Habu 32x 8s 160MPH
Description
E-Flite Habu 32x 8s Build
I got this airframe on facebook marketplace for $300 with all the stock electronics and I guess it was about 12 years old. It looked like someone through a handful of rocks through the fan so I started looking for a speed build.
This one is not crazy but on 8s it does around 160mph. Awesome little jet and I plan to go 10 or 12s in the future.

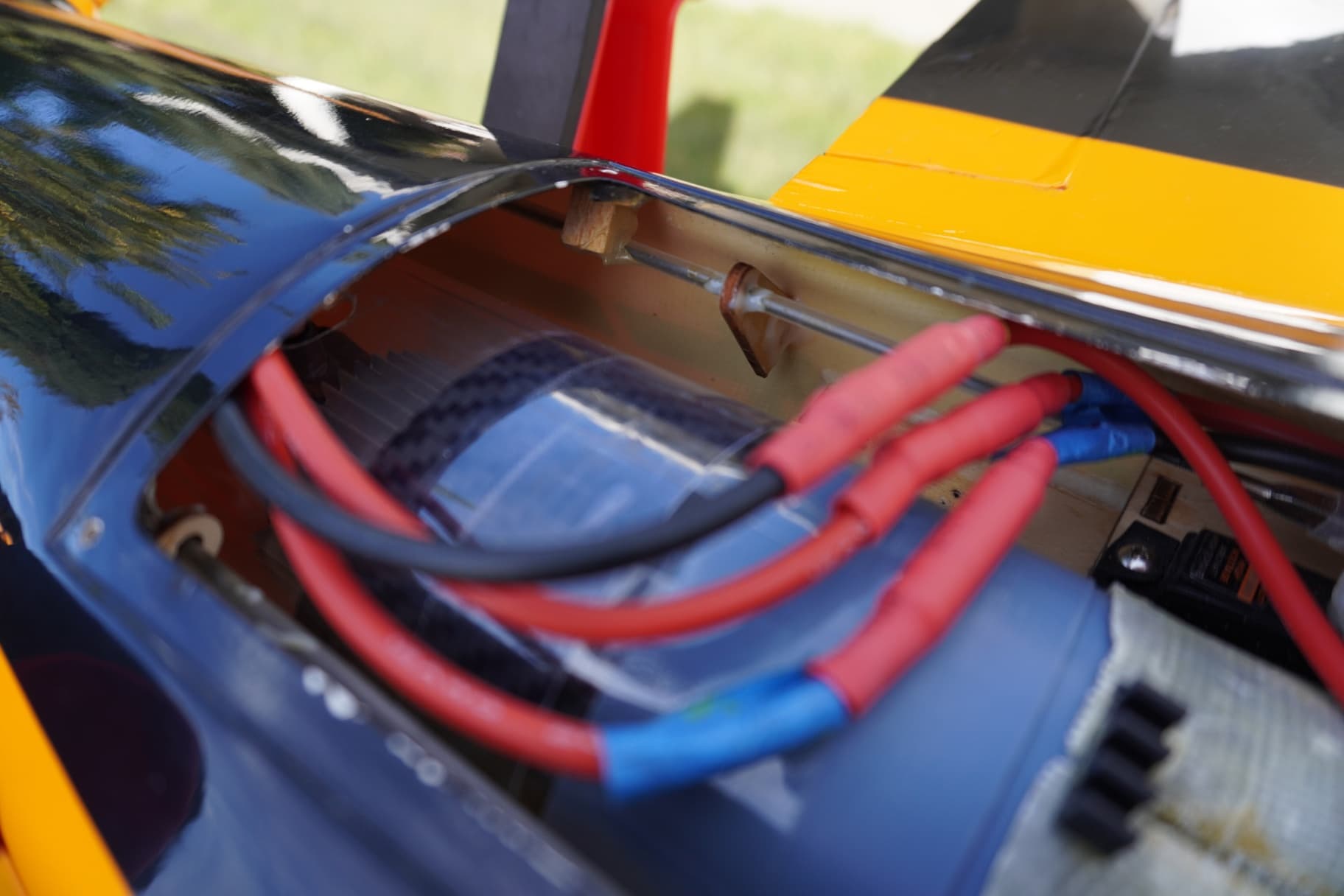

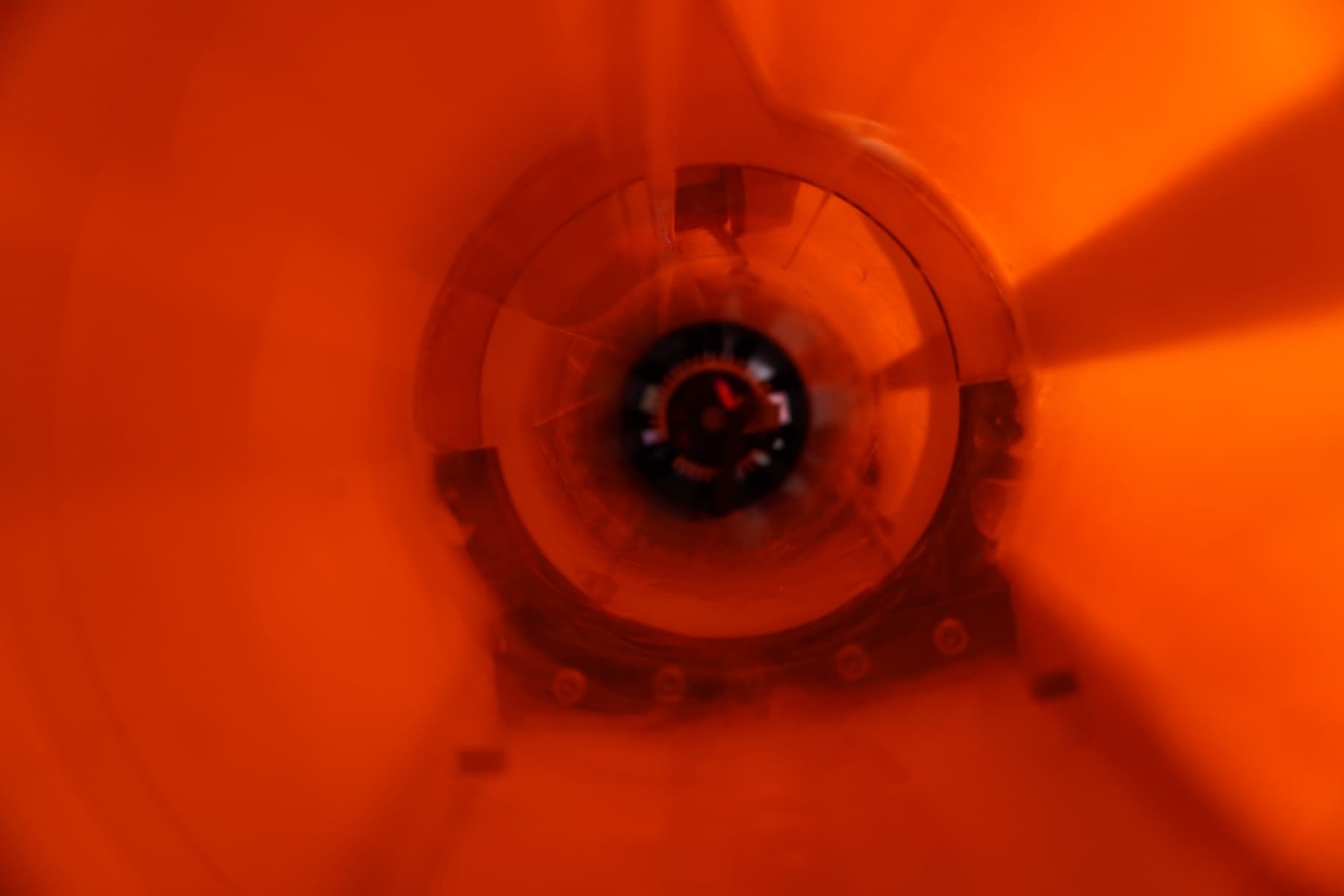

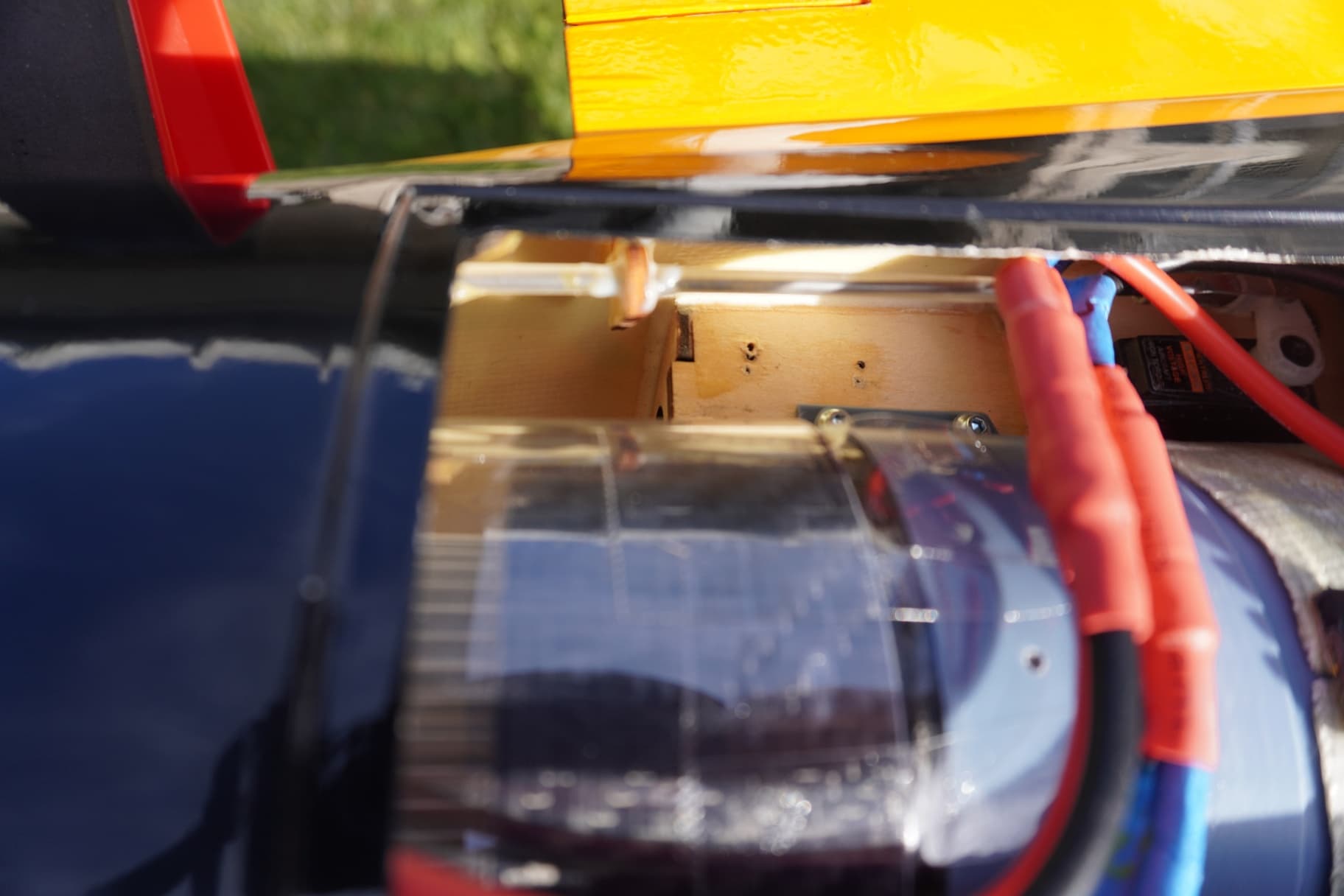

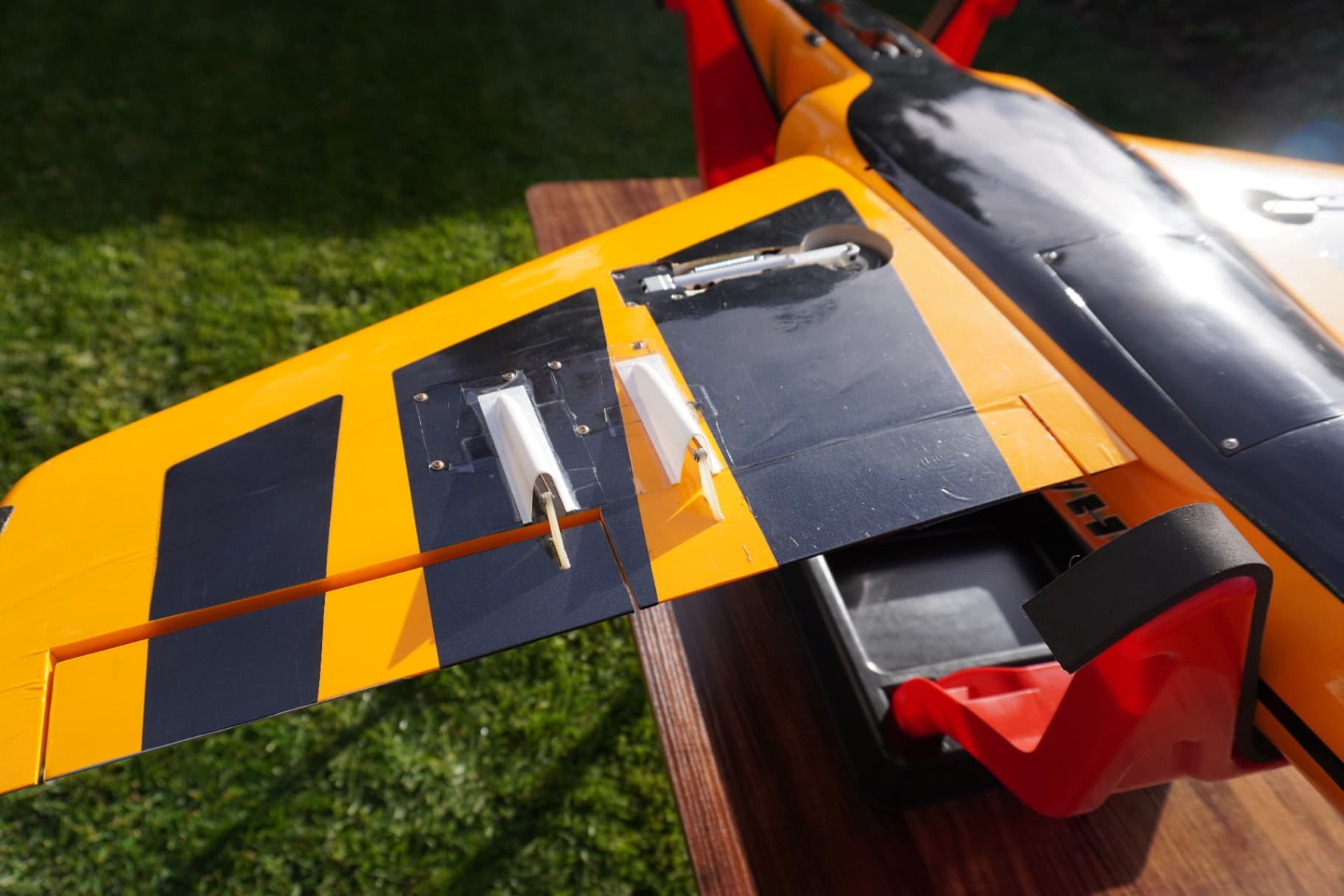

I 3d printed a custom mount for the jet fan that pushes it back farther so I could put more battery weight up front. This required pulling the stock balsa servo tube supports and had to do a little custom work and epoxy them to the side of the fuse.

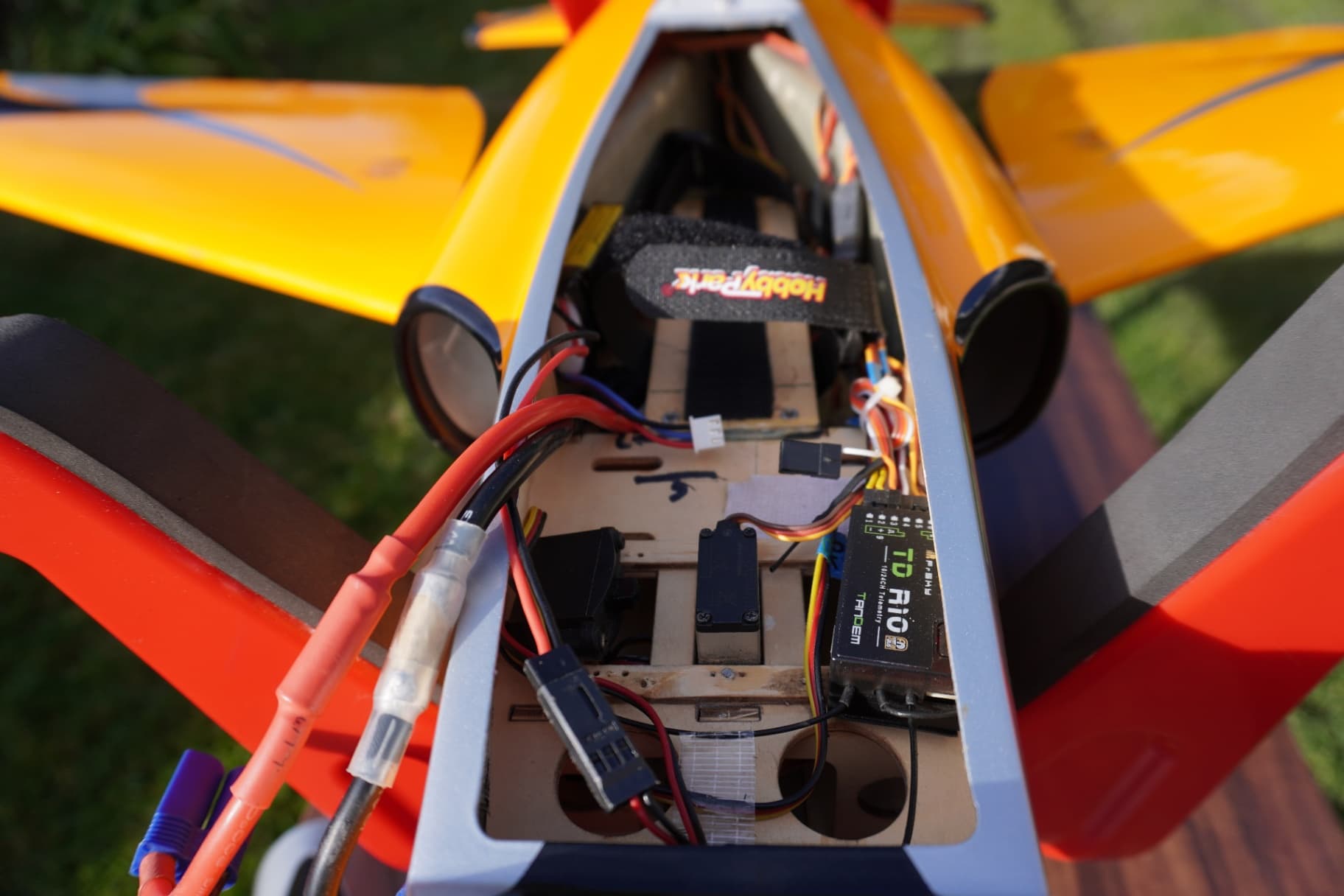

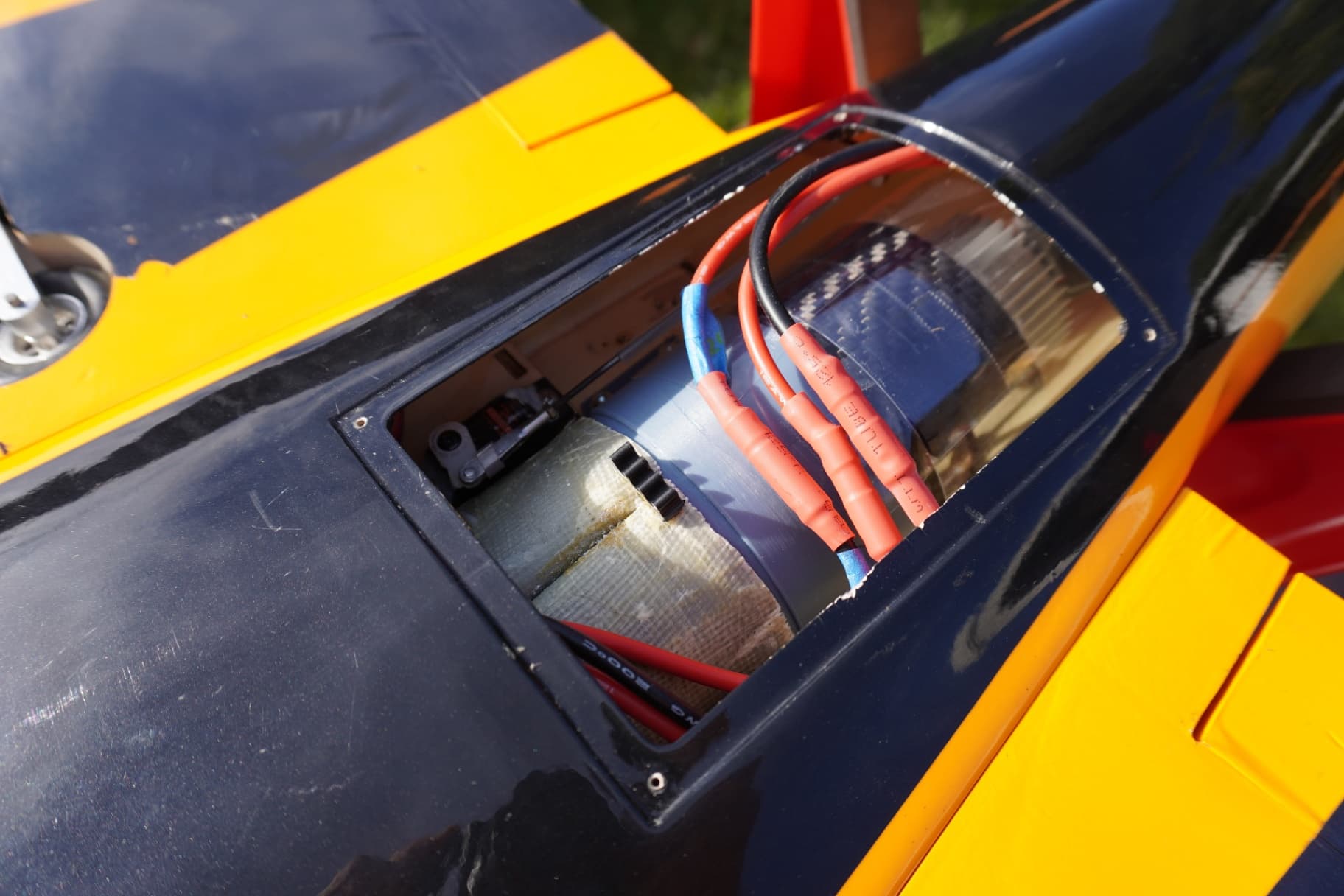

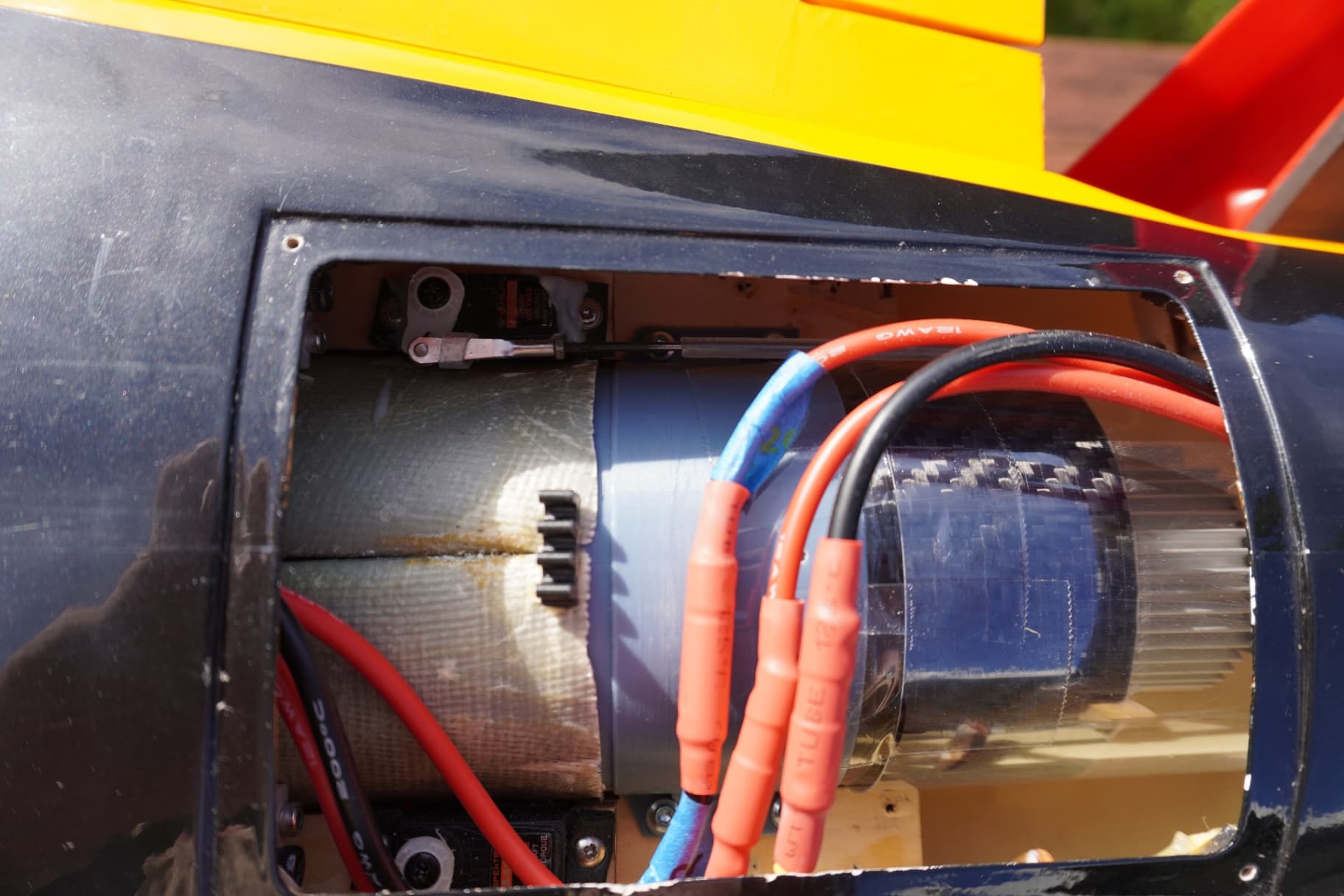

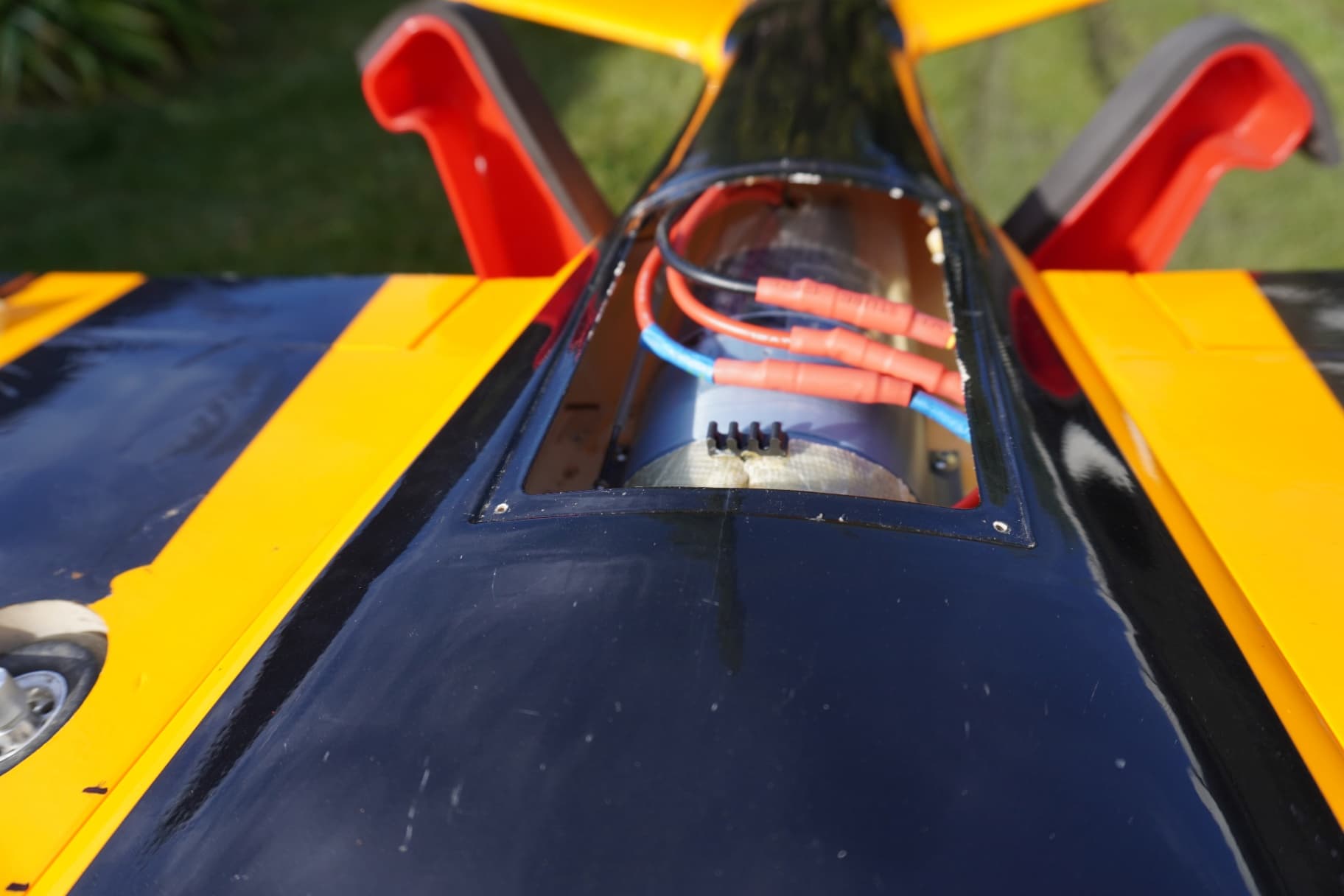

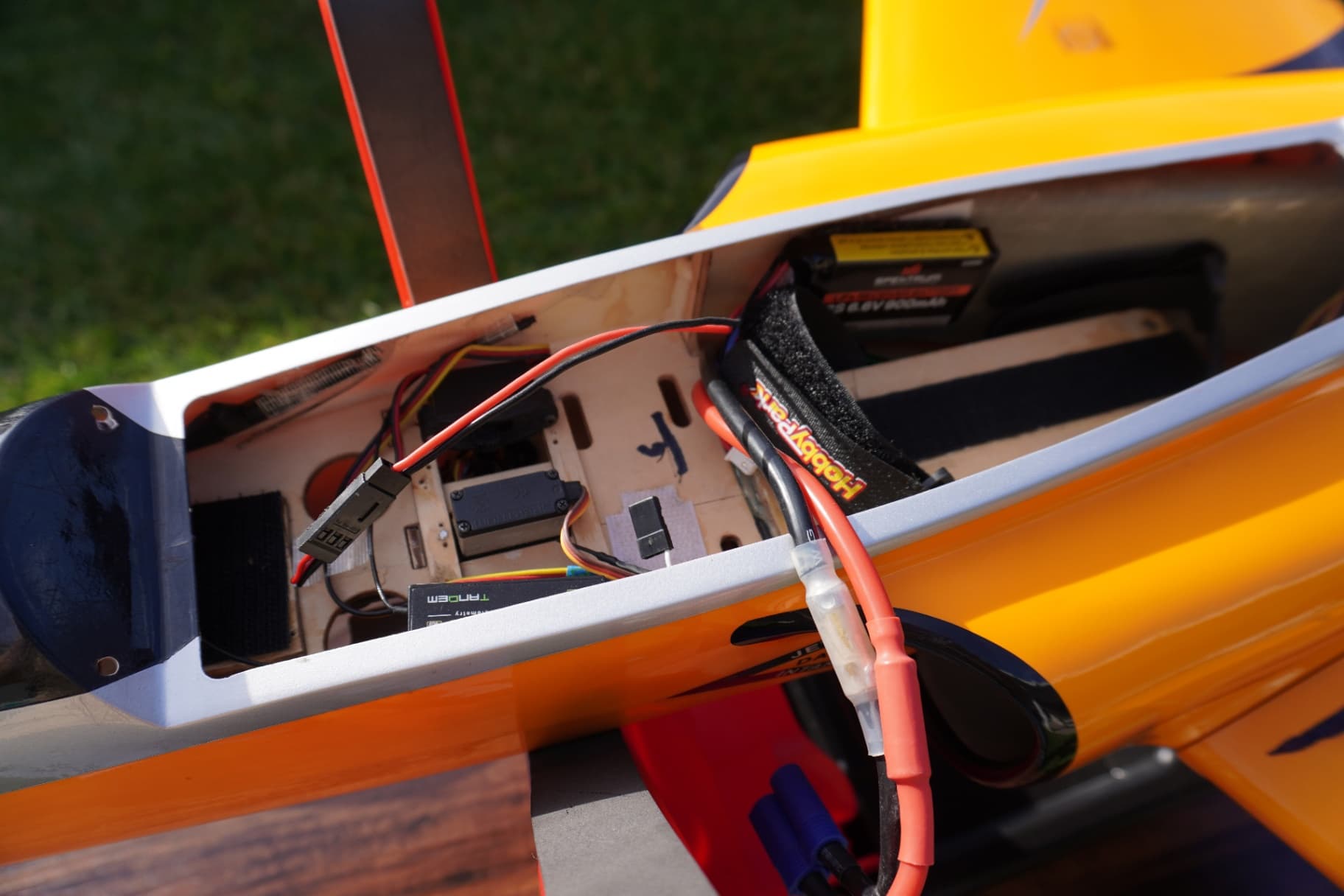

I am running a Jetfan with a HET 700-60 39mm 1865kv motor and a Castle Creations edge 130amp ESC running it on LiHi 8s batteries and have had no issues with overvoltage on the ESC.
Photos
Part list
| Part Category | Part Name | Qty | Price |
|---|---|---|---|
| — | HET 700-60-1865 Motor | 1 | $116.30 |
| — | Jetfan 80mm V3 EDF Unit | 1 | $164.99 |
| — | Habu 32x 80mm EDF Jet ARF (Discontinued) | 1 | $0 |
| — | Hitec HS-5087MG HV Micro Digital Metal Gear Servo | 1 | $42.99 |

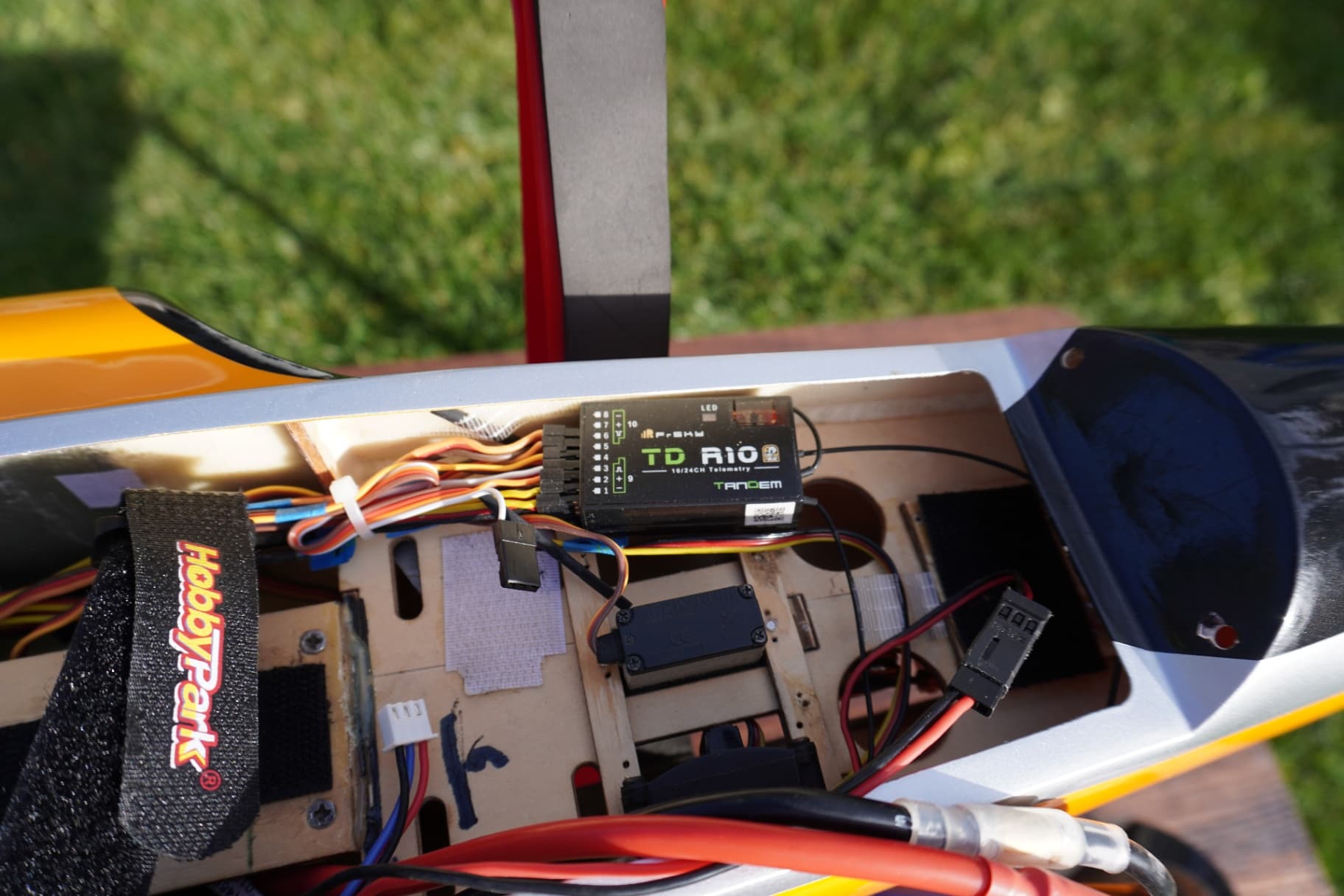

| — | FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas | 1 | $59.99 |
| — | Habu 32x 3D Print Fan Push Back Mount | 1 | $0 |
| — | Servo Horn Cover | 1 | $0 |

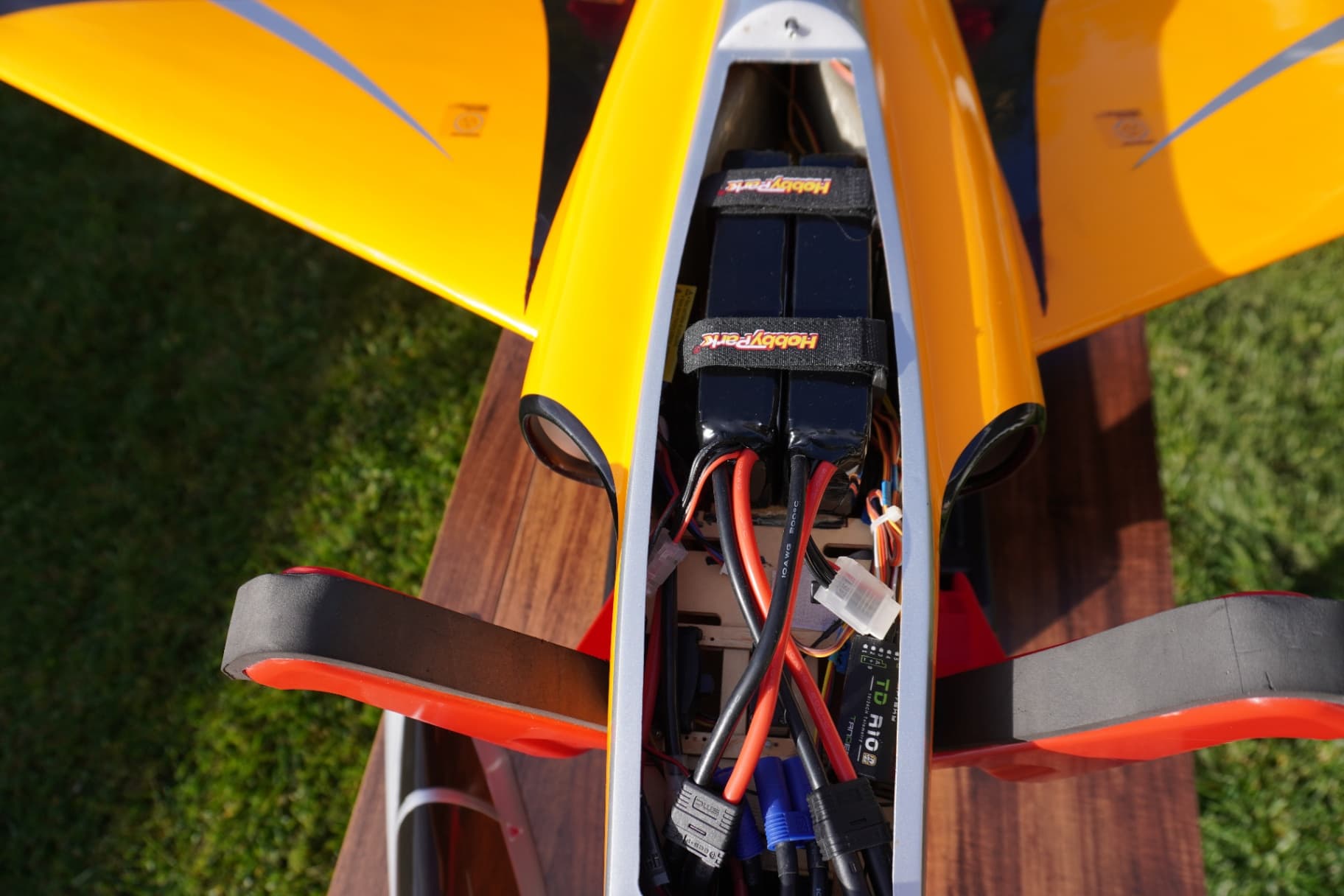

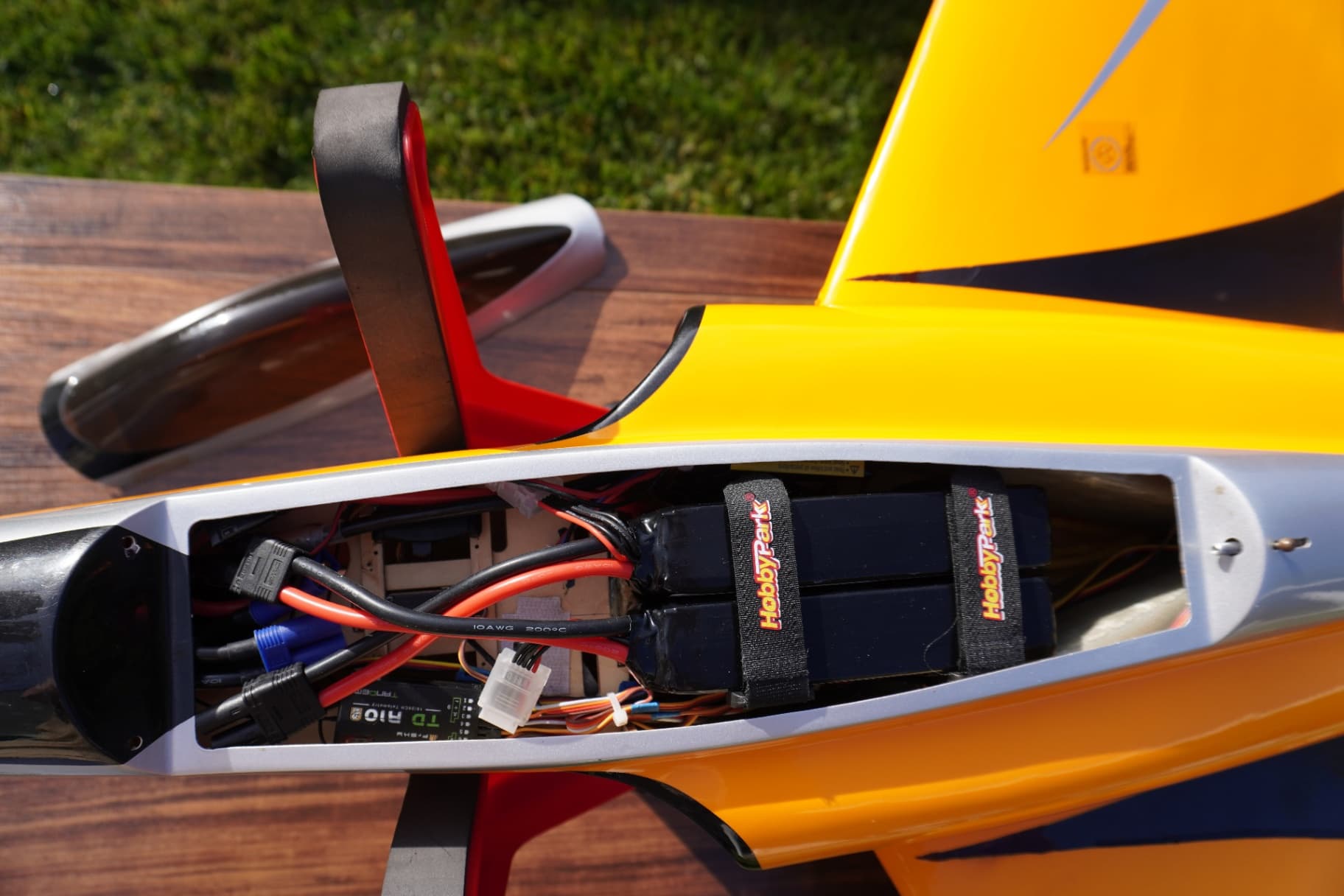

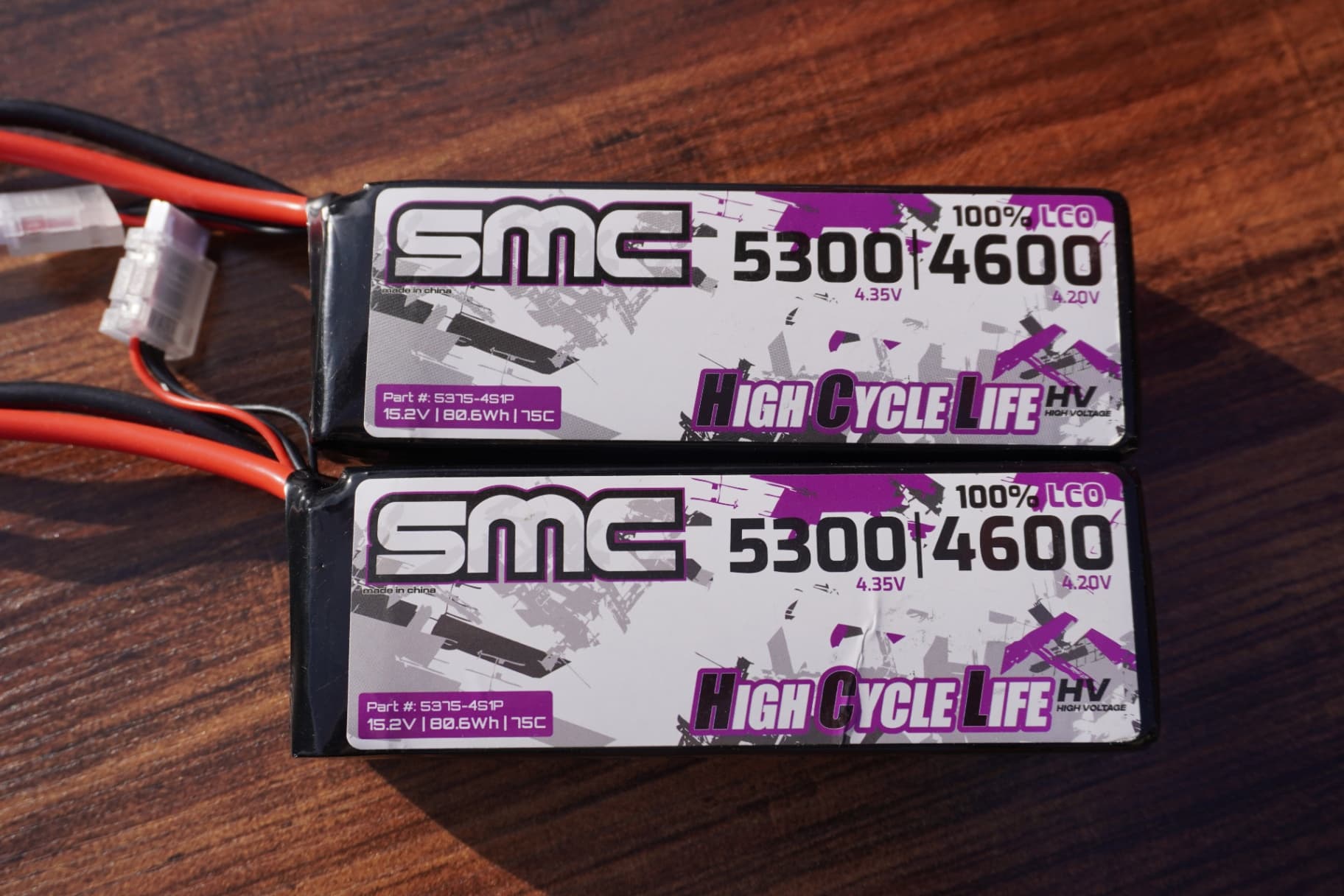

| — | SMC HCL-HV2 Flight 15.2V/4S-5900mAh-90C | 2 | $66.95 |
| — | Spektrum 900mAh 2S 6.6V Li-Fe Receiver Battery | 1 | $24.99 |

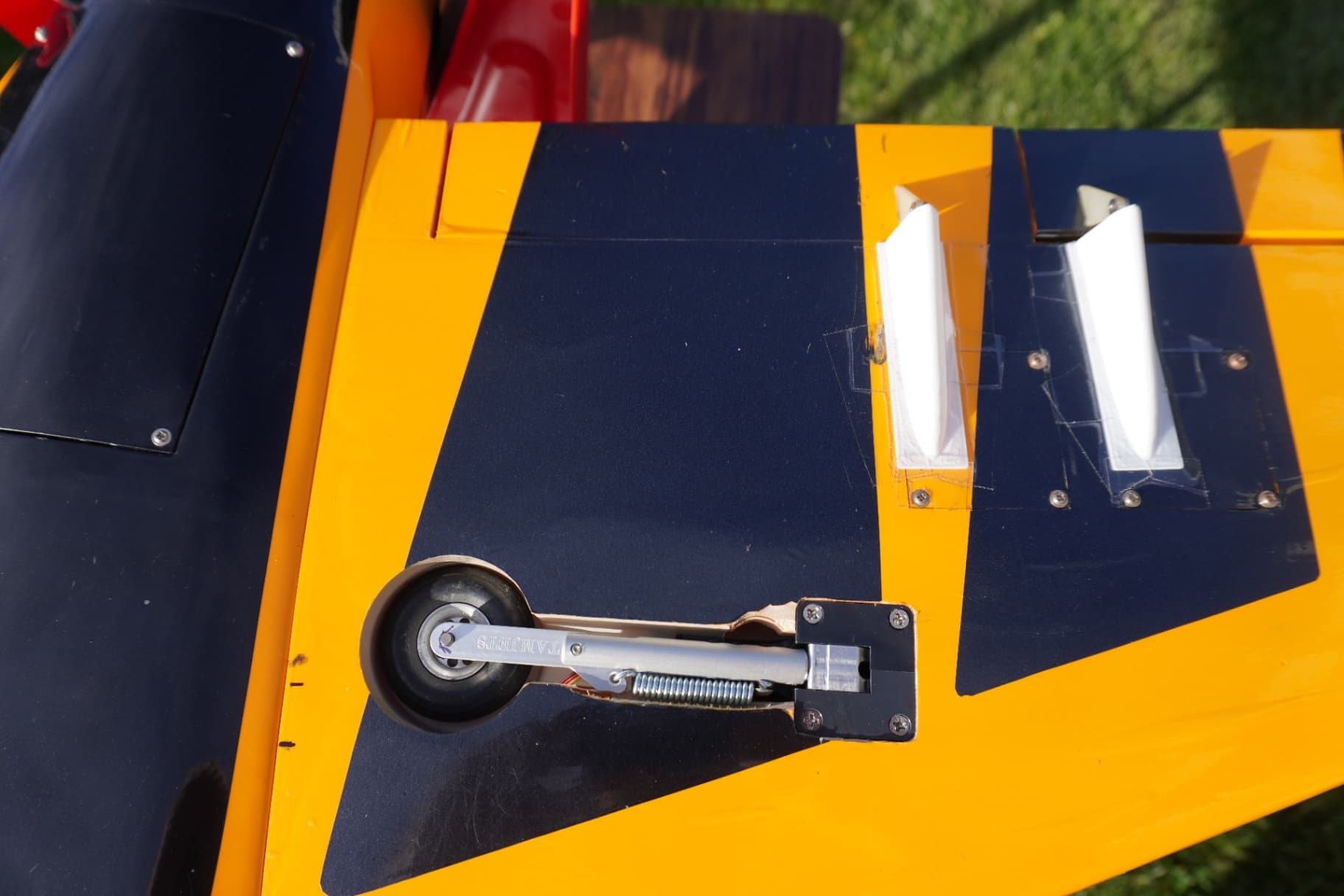

| — | Habu 32x Tamjets Struts | 1 | $175 |
| — | Phoenix Edge 130 AMP ESC, 8S / 33.6V with 5 AMP BEC | 1 | $214.95 |
