FlyfishRC Volador VX3.5
Posted January 27, 2025
multirotor
Cameron Miller@Cabooshy
0comments174views
Description
My Very first Foray into FPV Quads.
Just to note, the prices shown in the parts list are the prices in GBP and not USD (would be baller if we could change that!), and as such are not accurate to the US Prices for these parts.Dry Weight: 210g
All-Up Weight with the CNHL Ministar 550mAh: 265g
All-Up Weight with the Turnigy 850mAh: 310g
Could it be lighter without all the TPU and such? yeah, of course.
Could've i gone with 1604's instead of 1804's? most likely.
Personally, what matters for me is that in its current configuration, it flies really nicely with both the smaller and larger batteries.
Currently it's setup to use the RC Link through the O3 Air Unit (i got the FPV RC3 as i also have a little tiny baby DJI NEO that i fly in manual mode, its not nearly as powerful as the Volador, but its good fun in its own right!), but i am planning to switch it over to ELRS in the not too distant future.

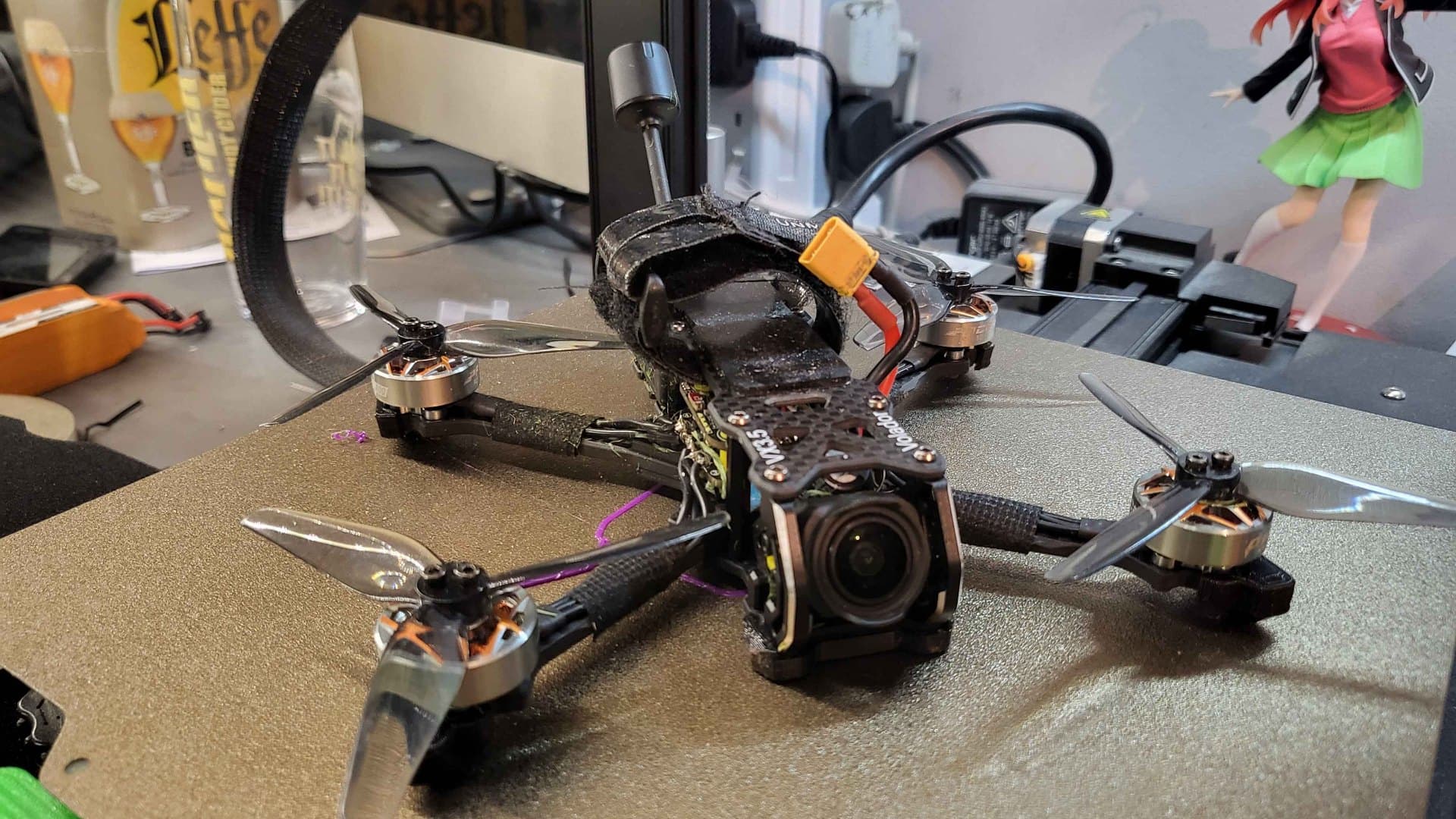

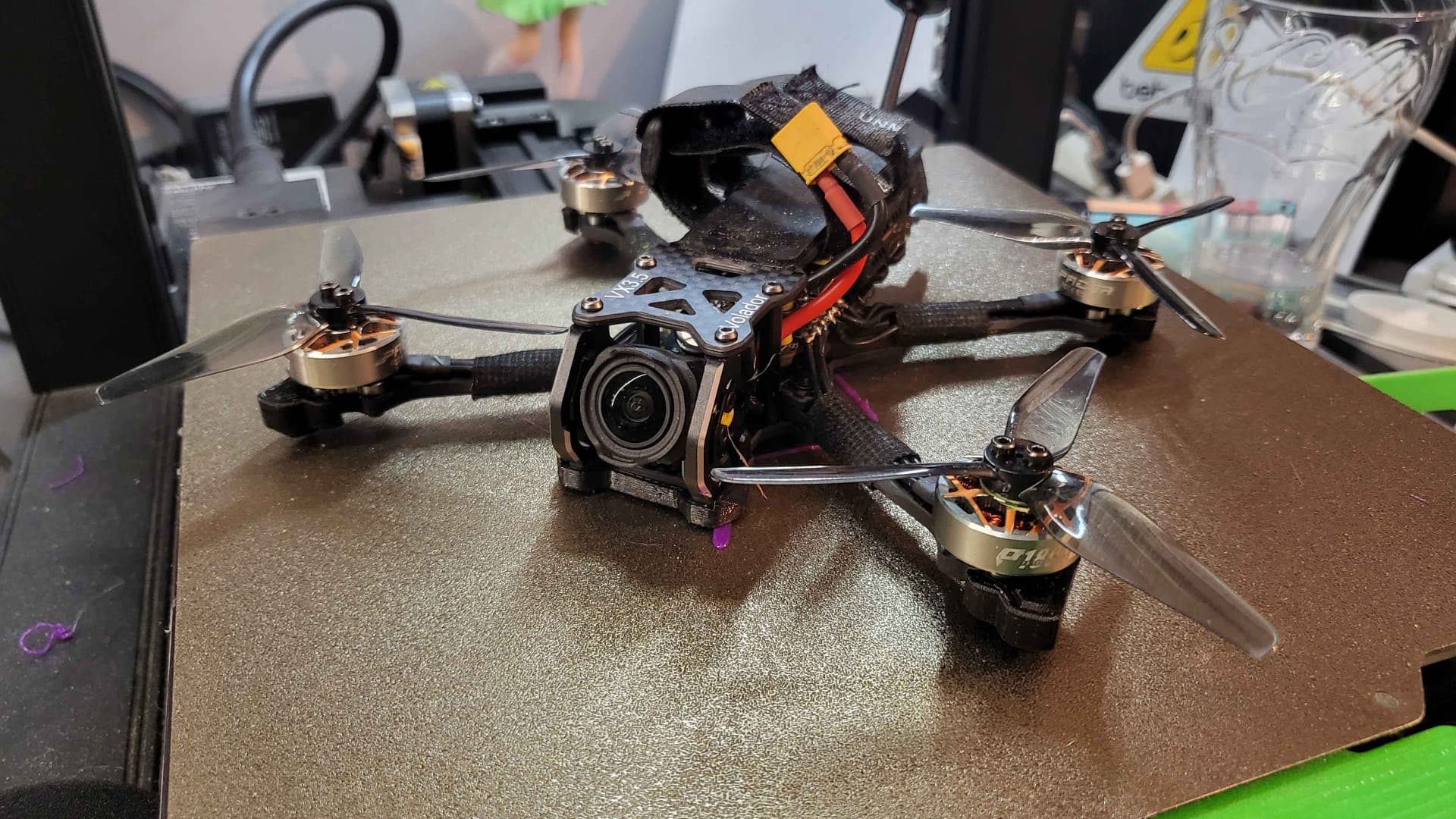

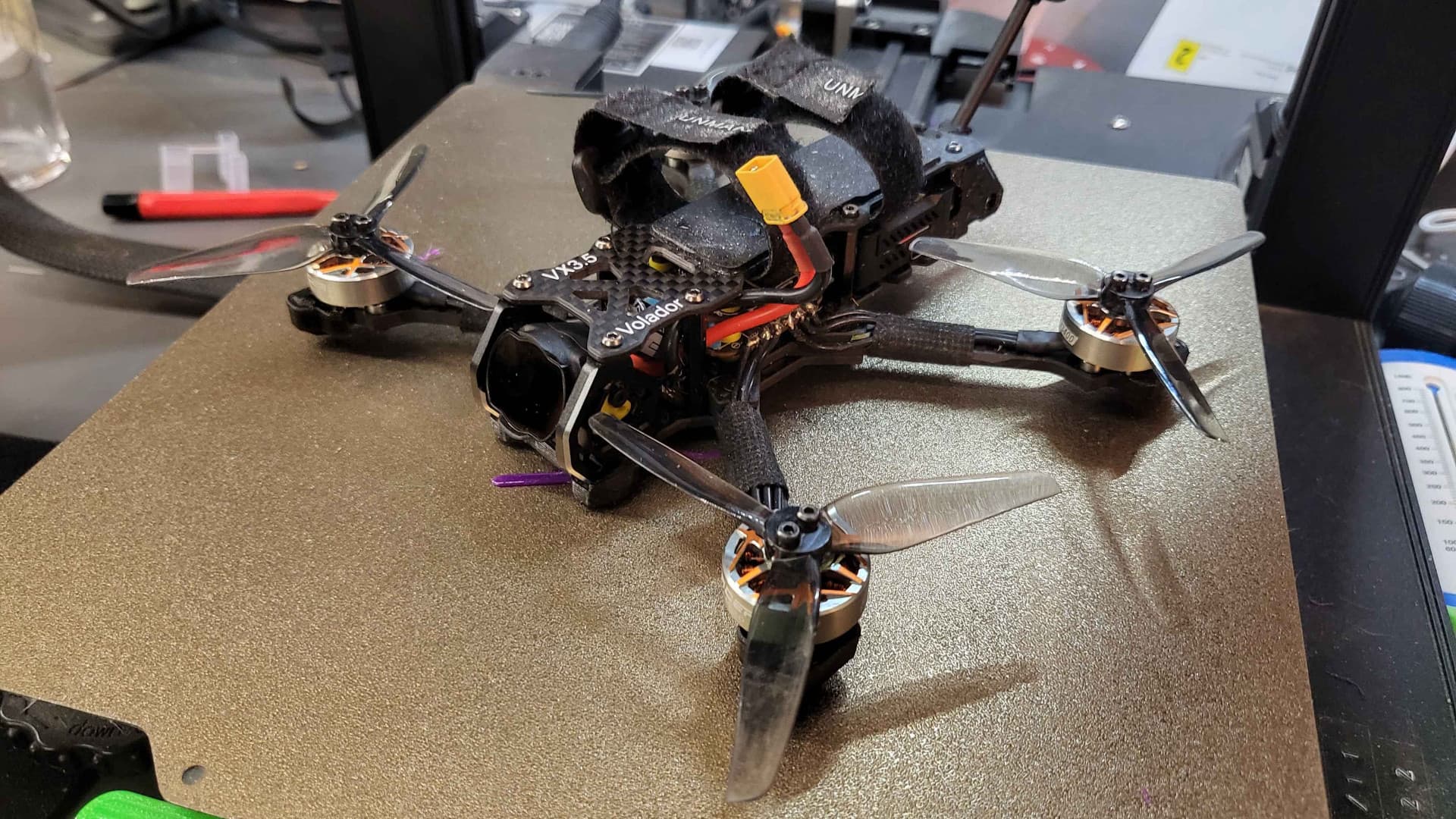

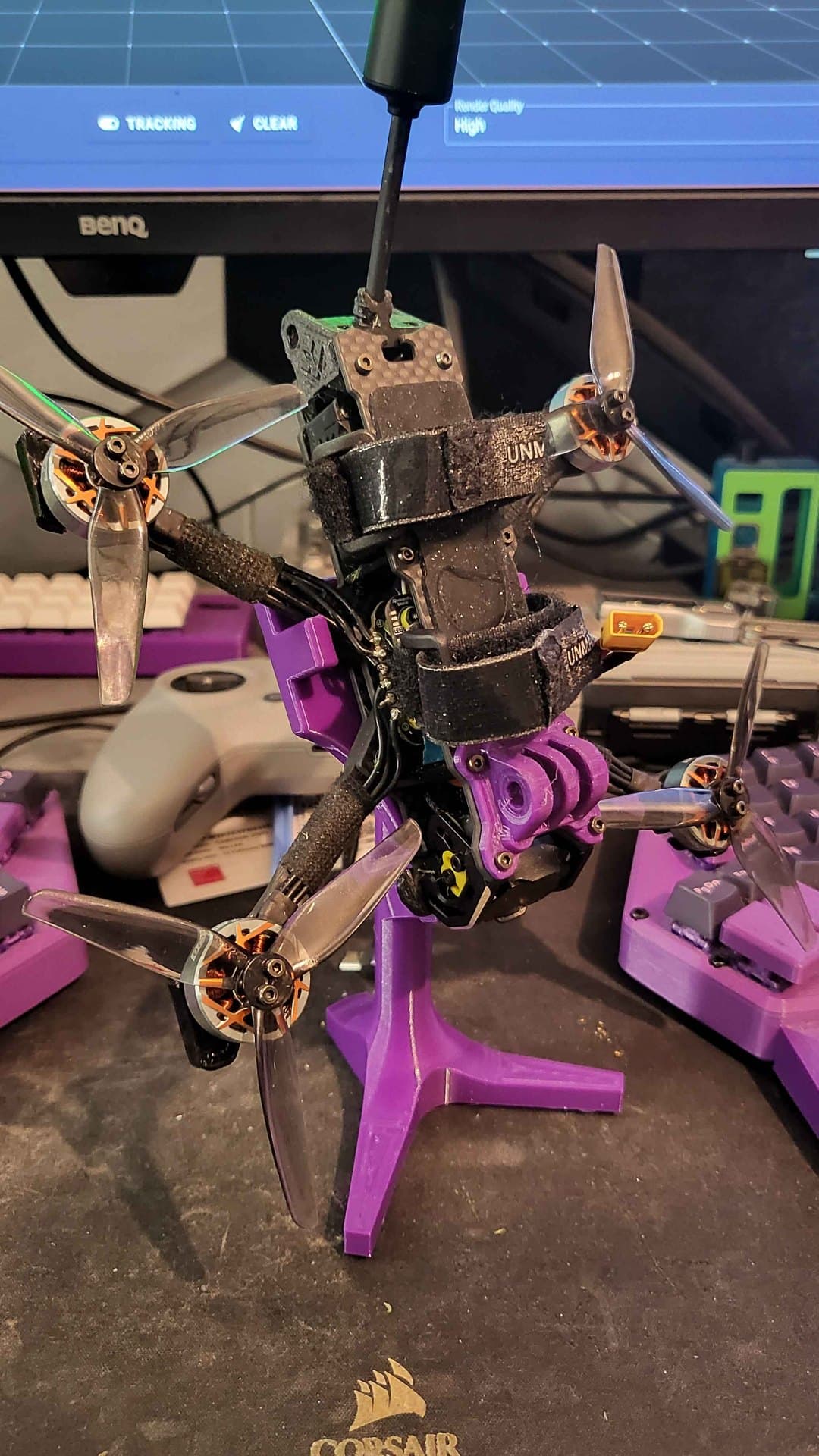

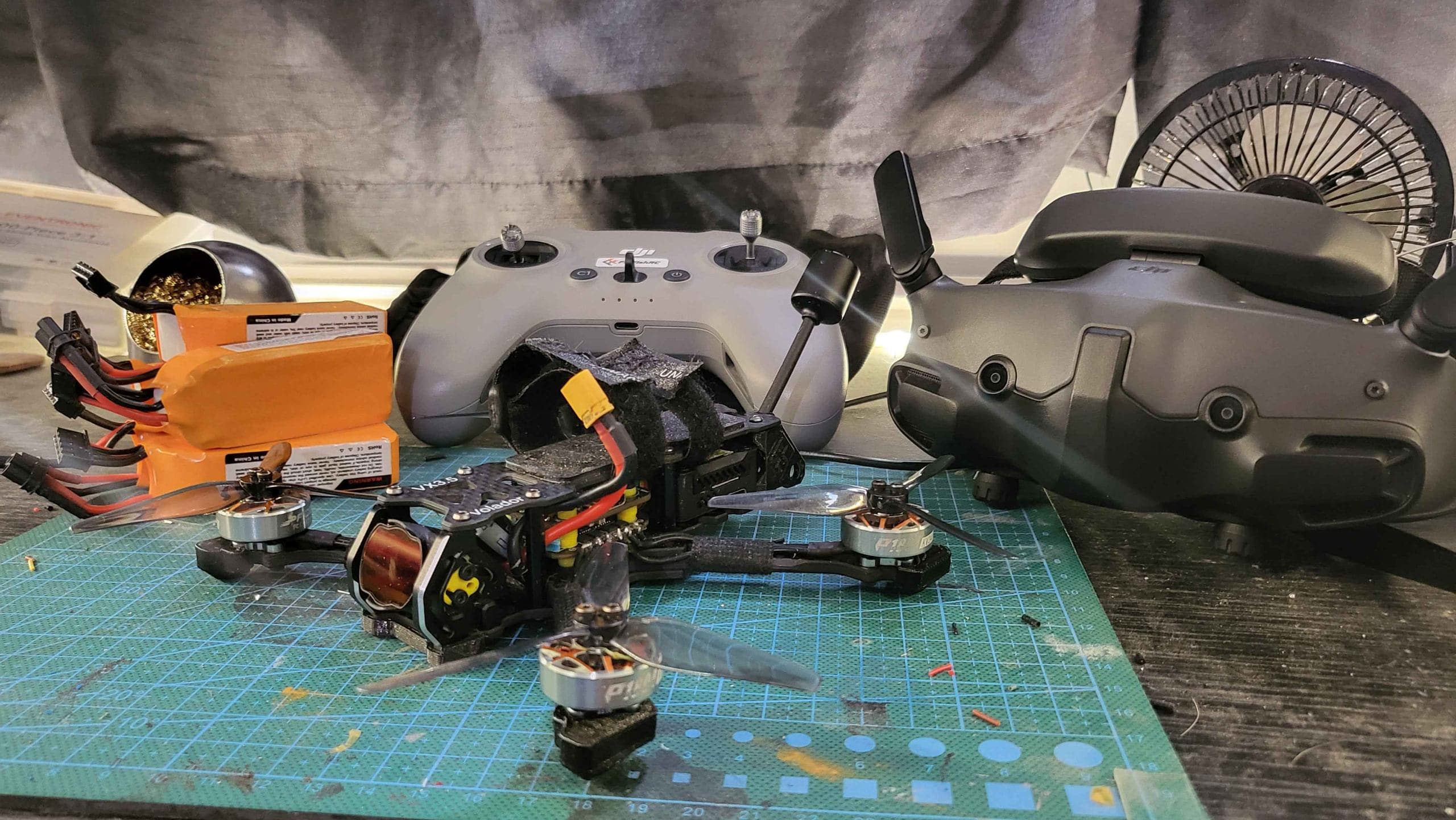

Photos
Part list
| Part | Type | Qty | Price |
|---|---|---|---|
| unmannedtechshop.co.ukpending | — | 1 | — |

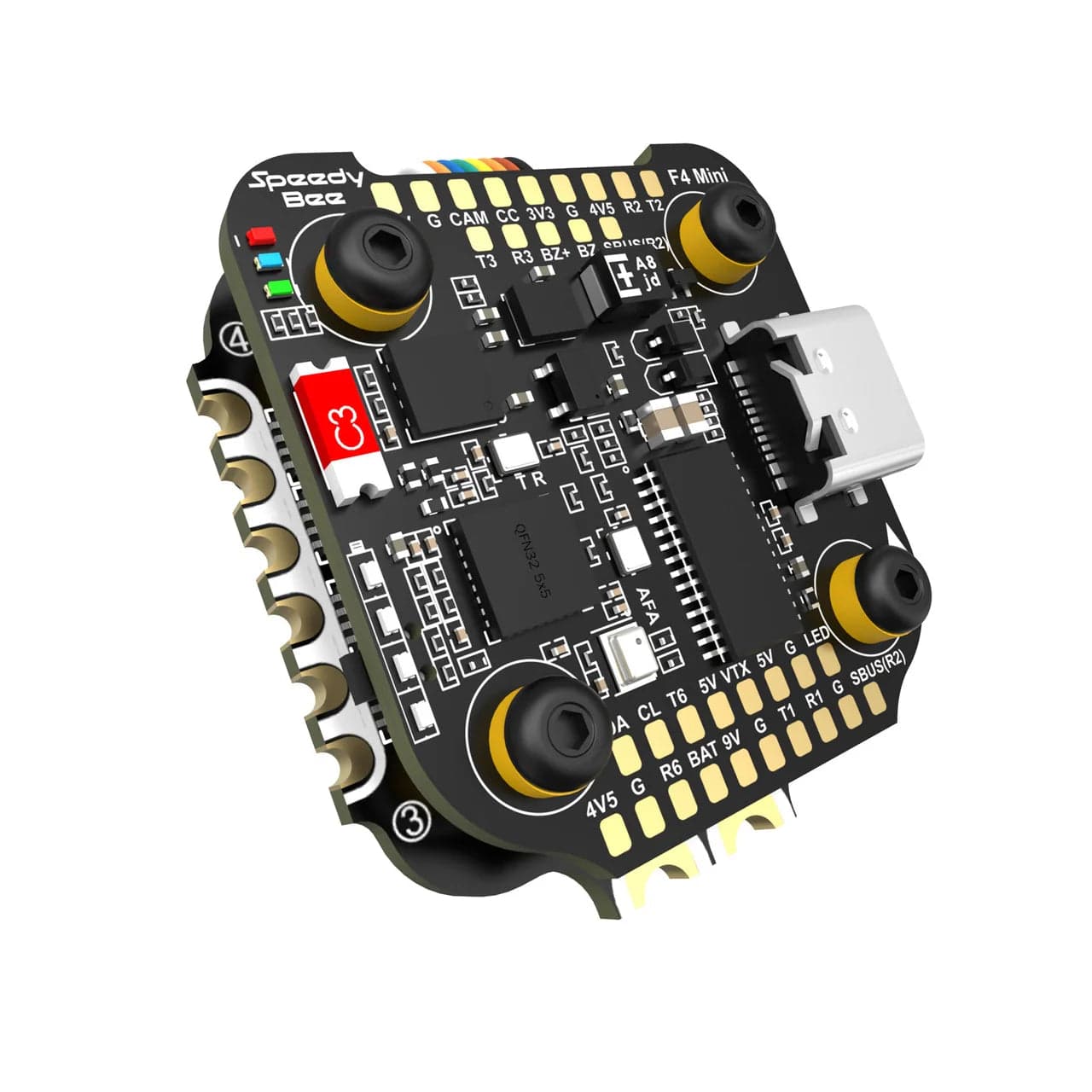

 SpeedyBee F405 Mini BLS 35A 20x20 Flight Stack | Flight controllers | 1 | $55.17 |
| unmannedtechshop.co.ukpending | — | 4 | — |

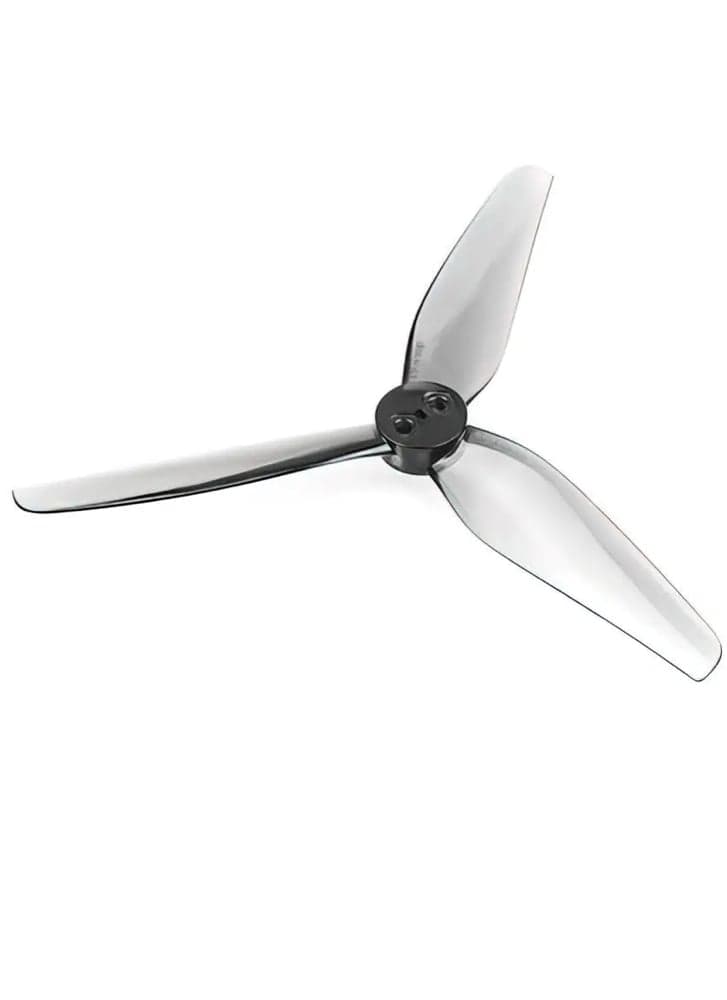

 HQProps T3.5x2x3 Tri-Blade Propellers (1.5mm Shaft) - Grey - Flying Tech | Propellers (air) | 2 | $2.70 |
| unmannedtechshop.co.ukpending | — | 1 | — |

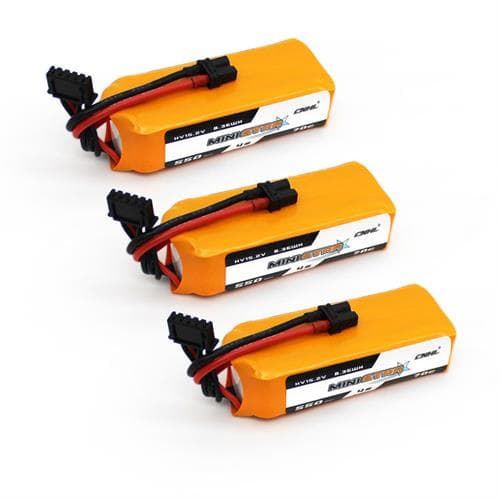

 3 Packs CNHL MiniStar HV 550mAh 15.2V 4S 70C Lipo Battery with XT30 | LiPo batteries | 3 | — |
| hobbyking.compending | — | 3 | — |
 DJI Goggles 3 | Video receivers & goggles | 1 | $499.00 |

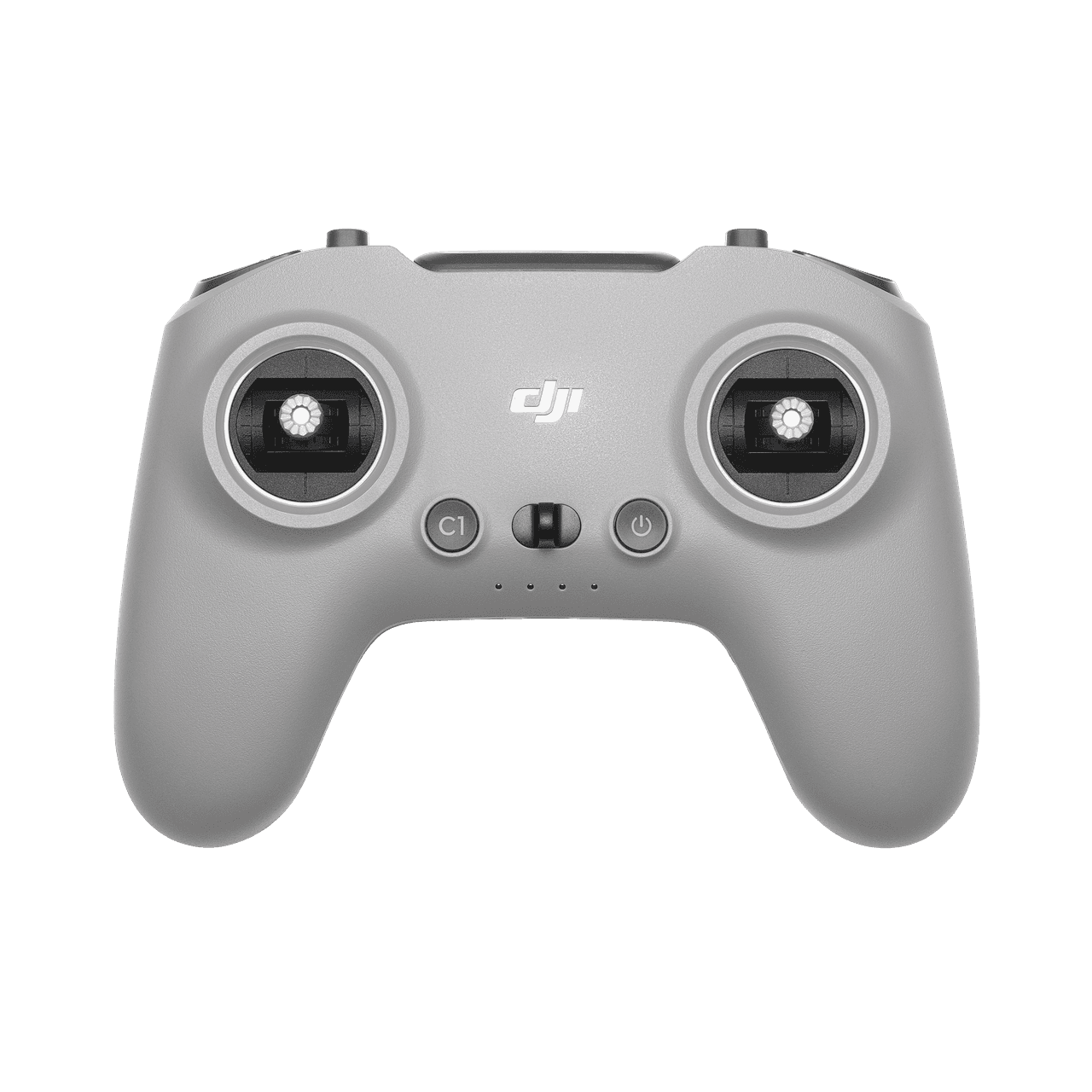

 DJI FPV Remote Controller 3 | Transmitters | 1 | $199.00 |
 SkyRC D100neo AC/DC Multi-Function Smart Charger | Chargers | 1 | $59.92 |
