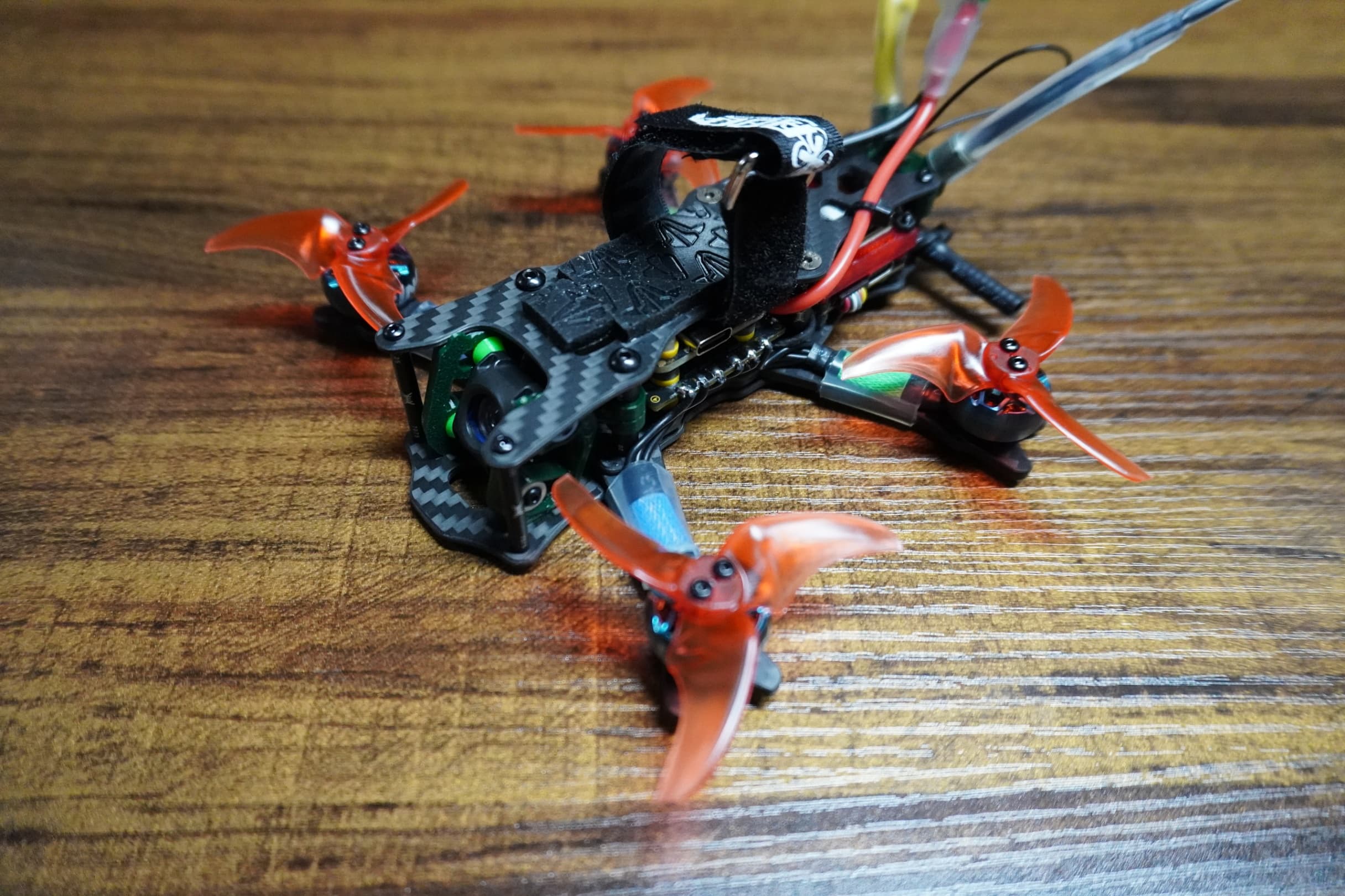

Djinn SP Sub 250 6s DJI O4 Lite
Description
This is my first quad build in years, and on my first attempt, I was in betaflight with my 6s lipo plugged in and my esc burst into flames after about 30sec... all of my soldering was clean and I used a smoke tester first power up....

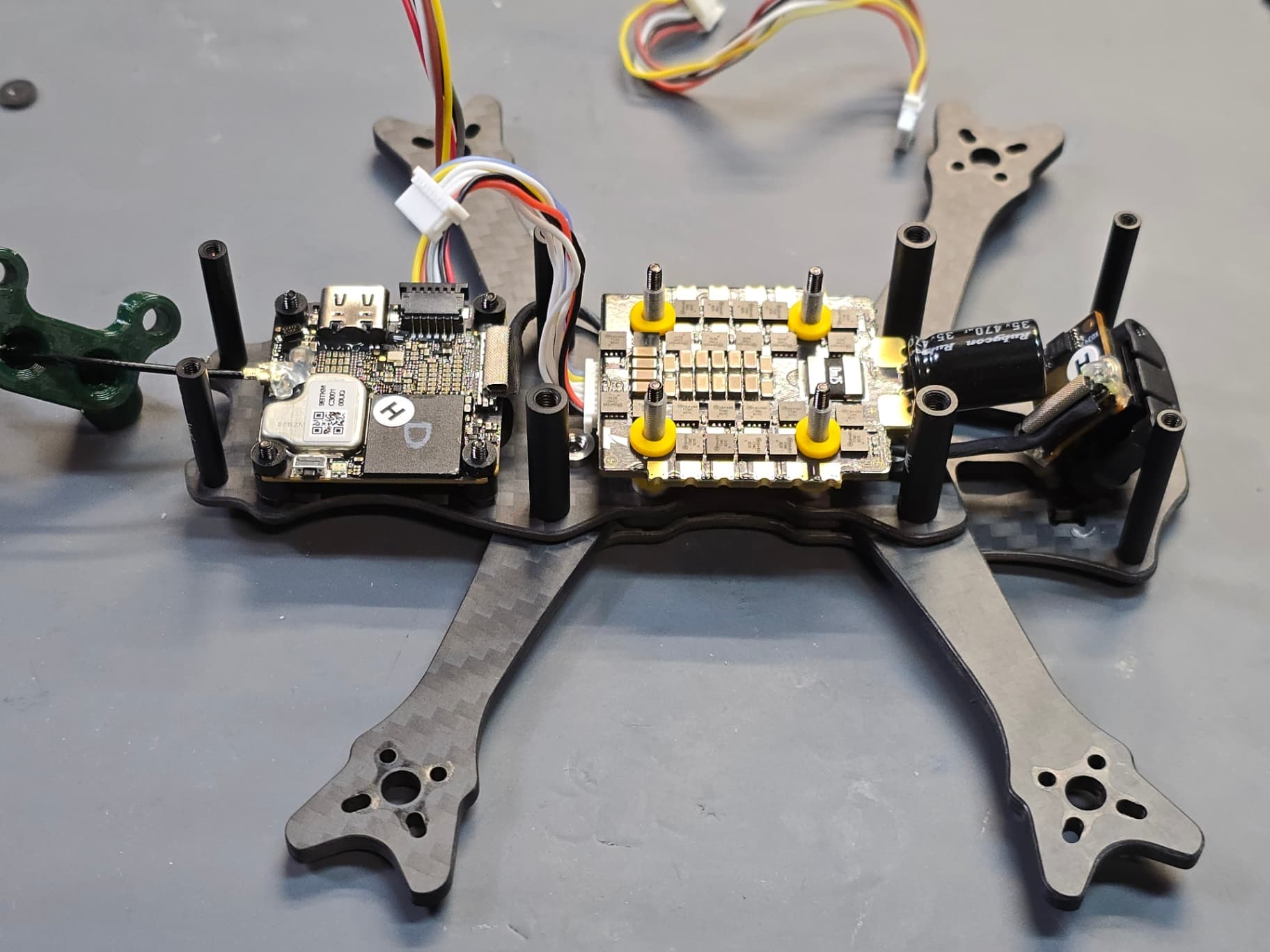

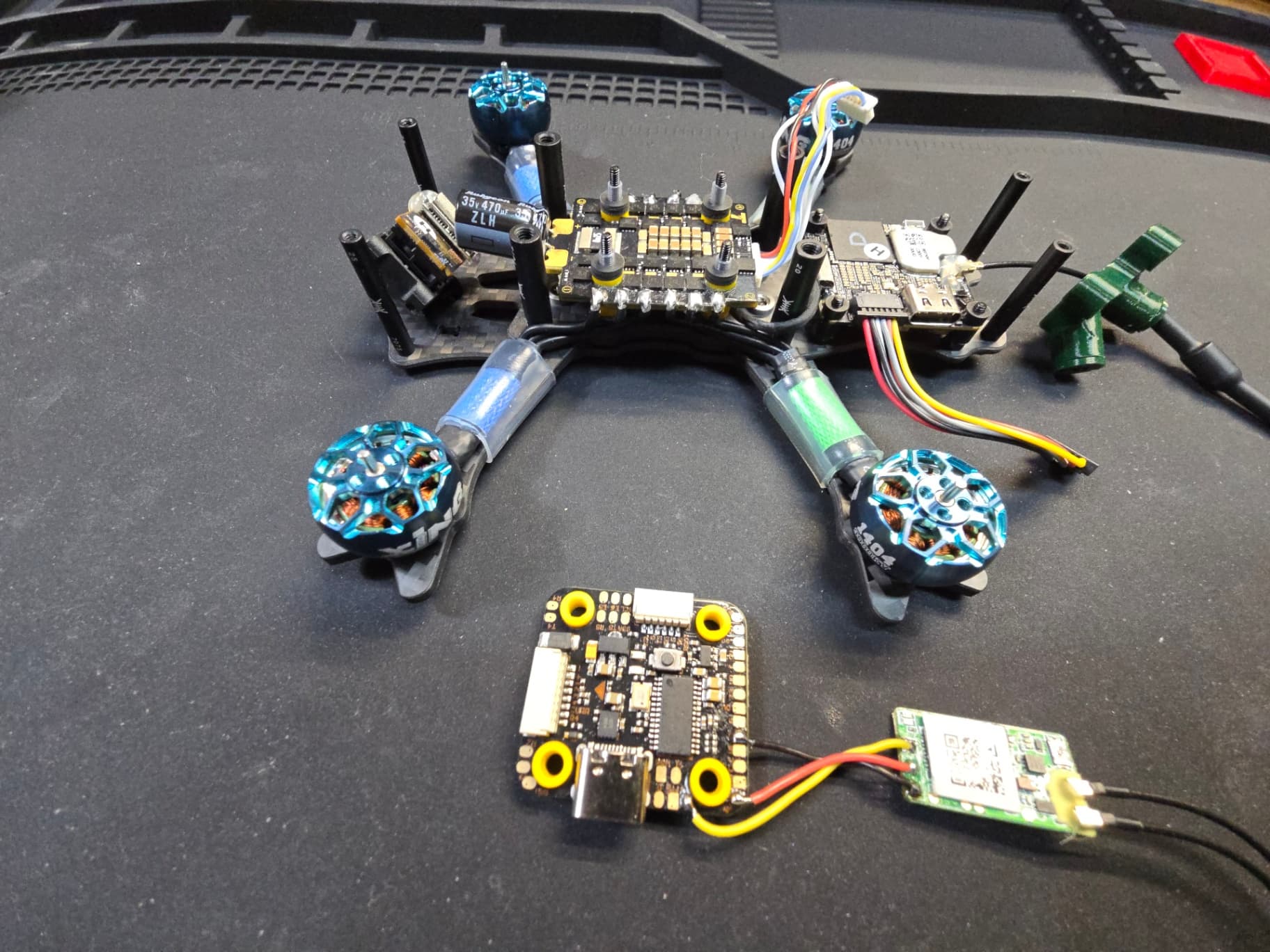

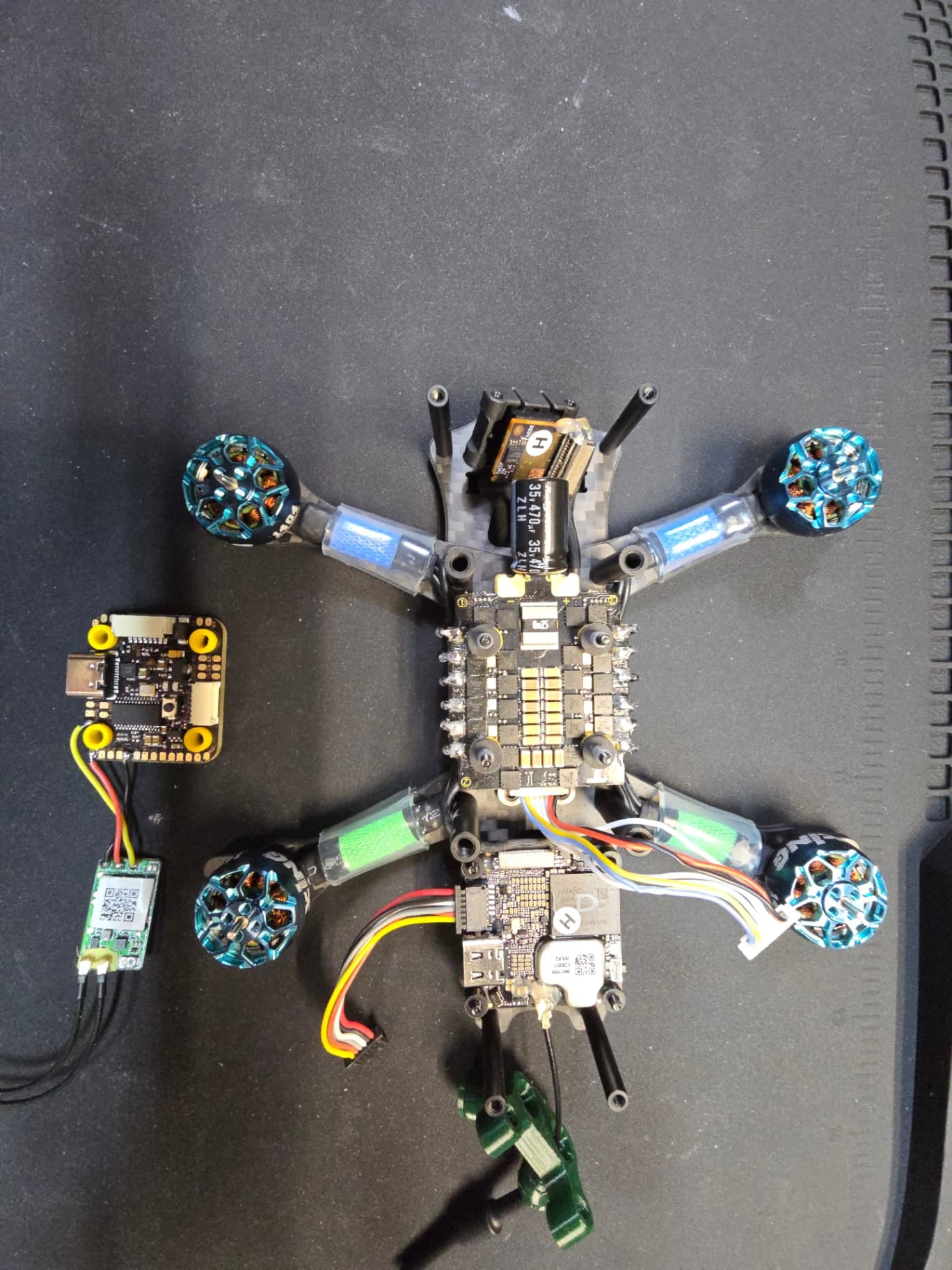

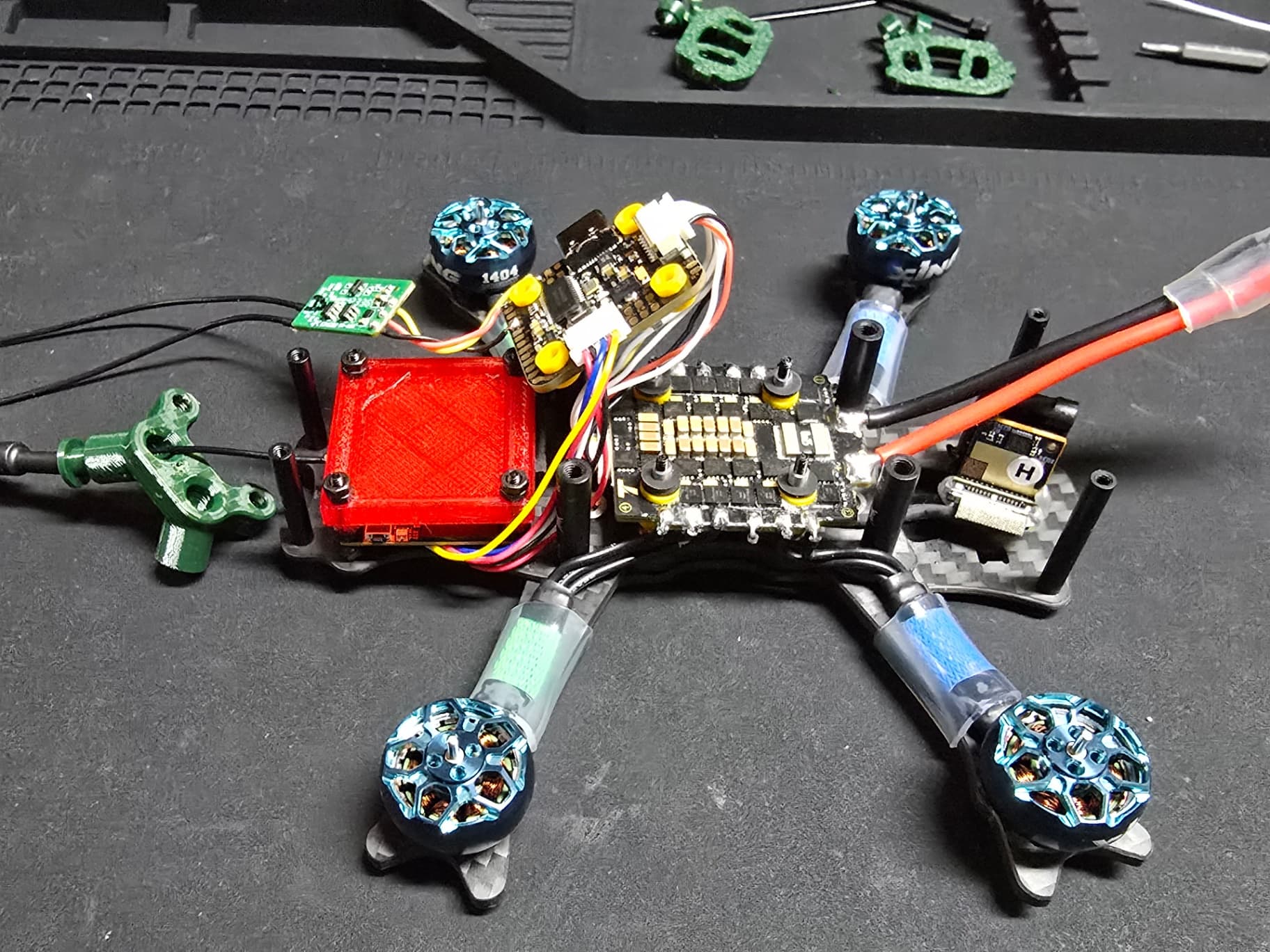

Got a new stack and finally put it back together.

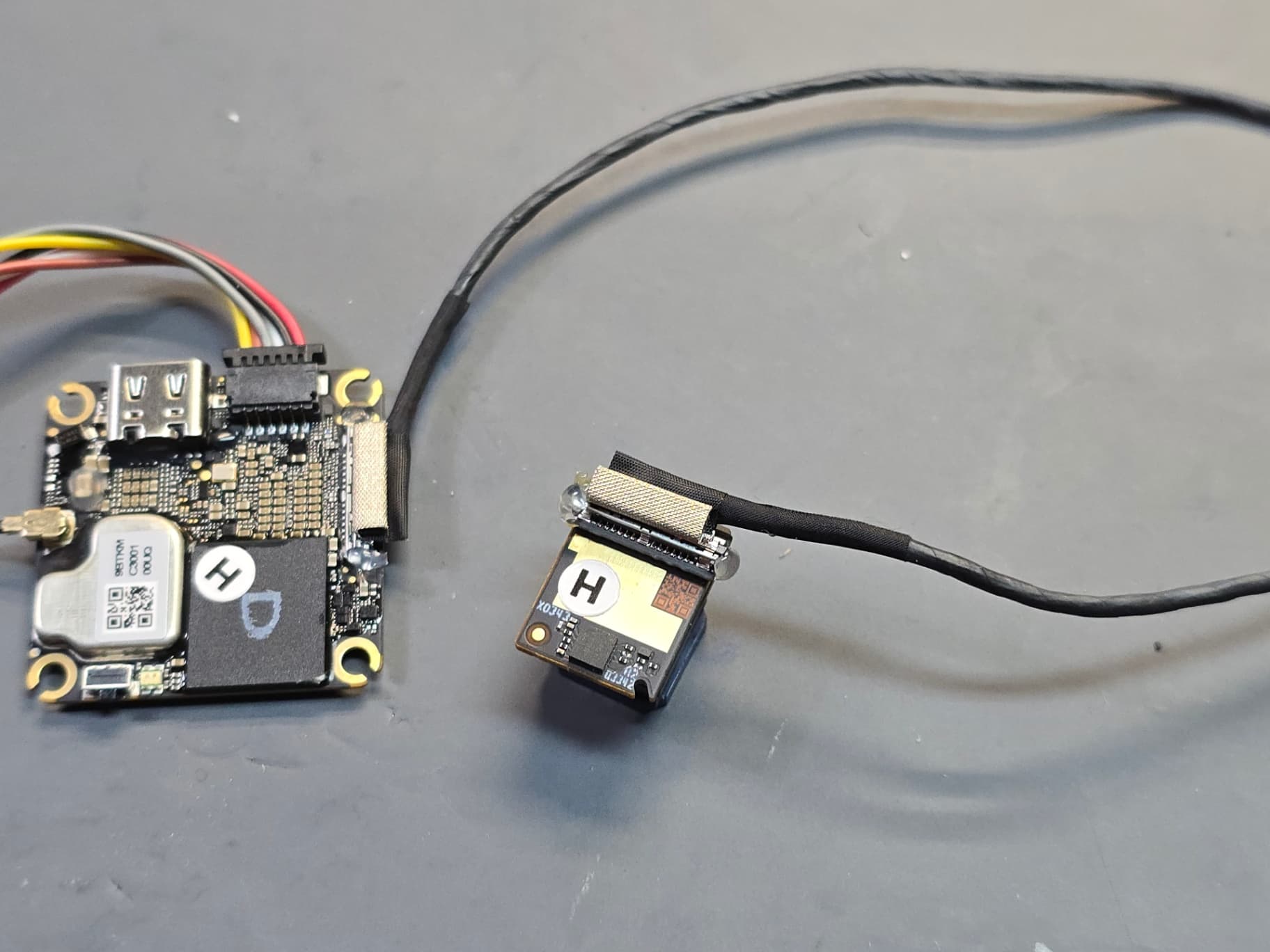

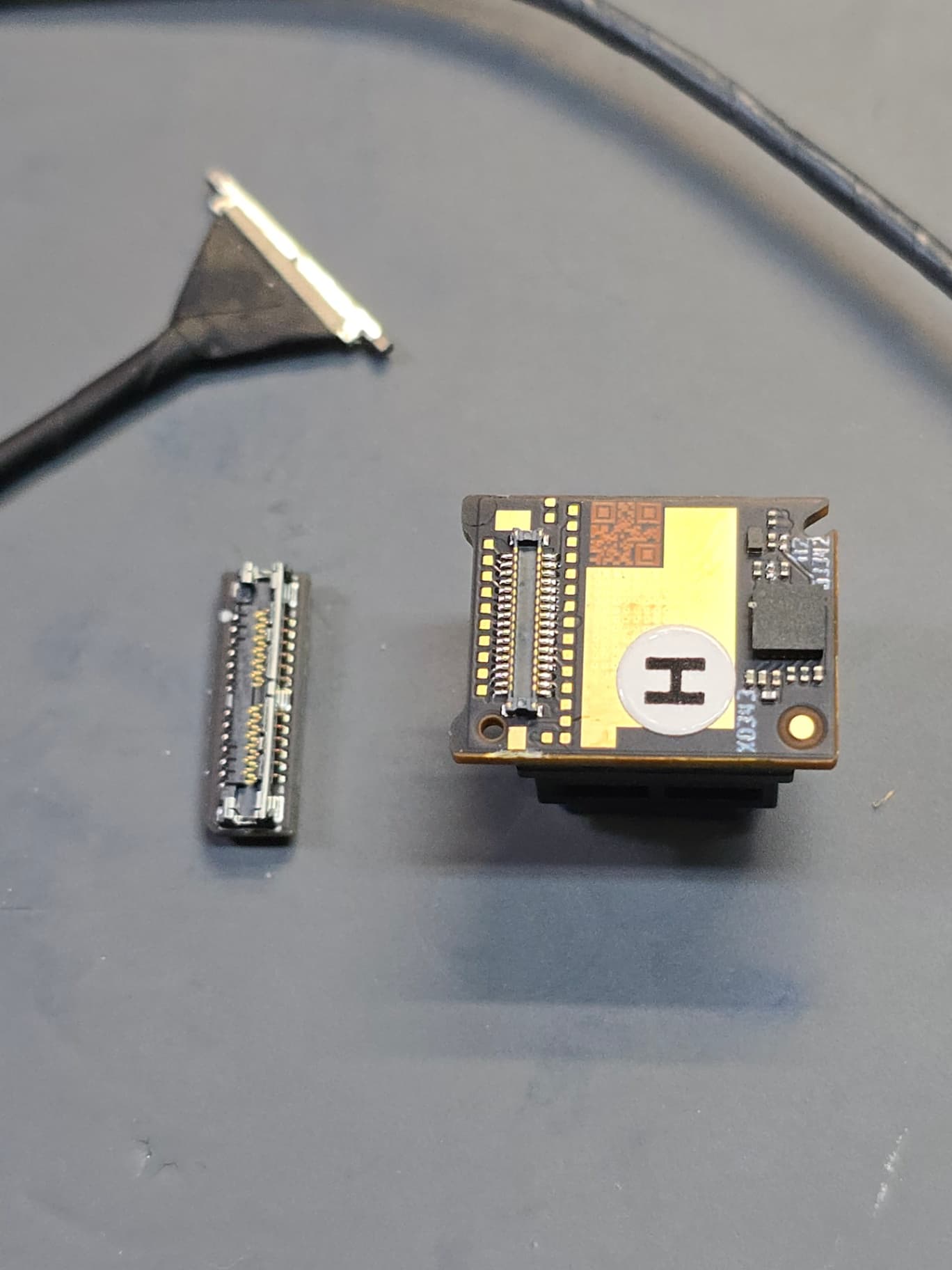

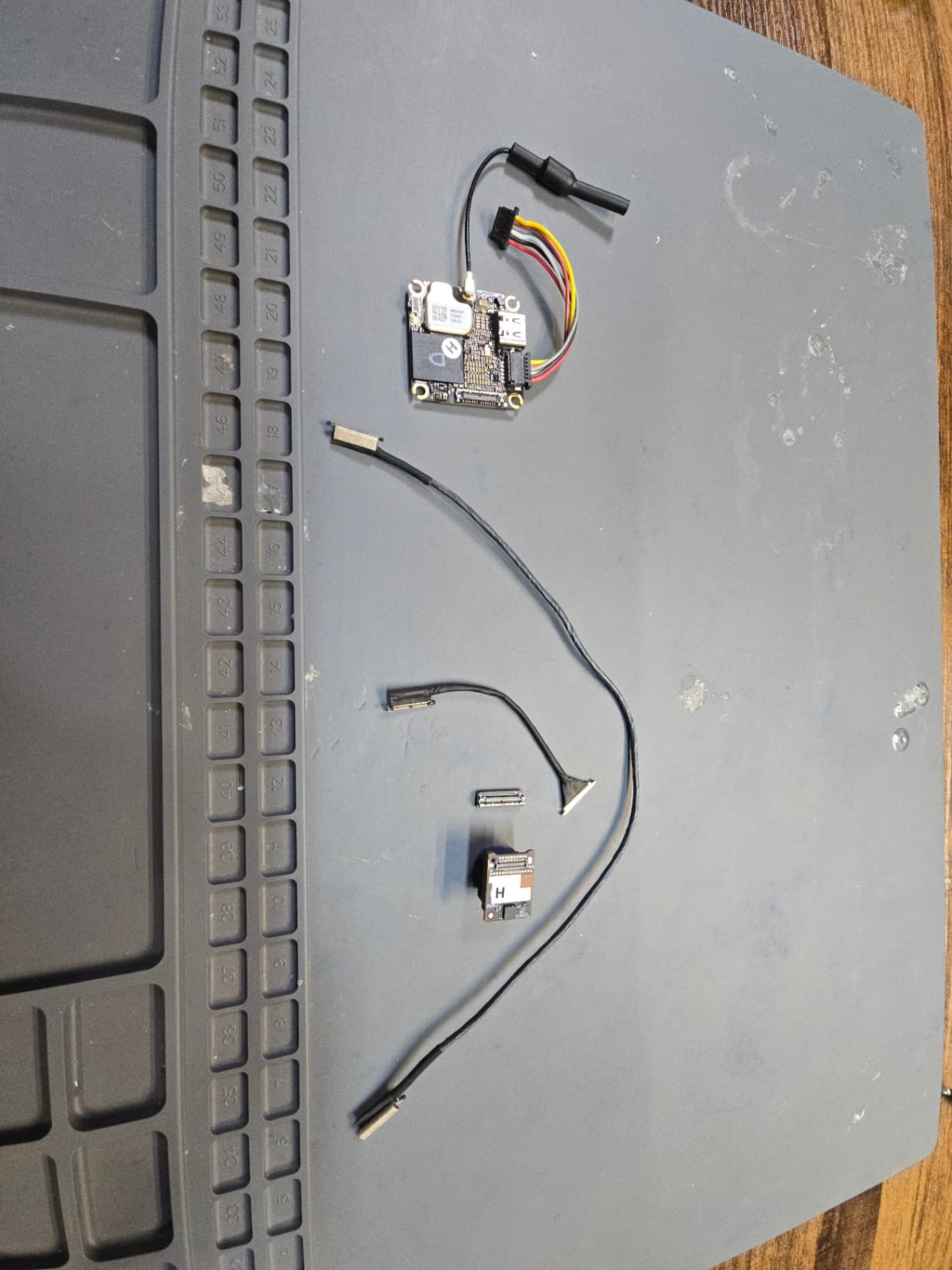

For this build, I had to buy an O4 air extension cable because the stock air unit cable on the Lite is really short, being that it's intended for little whoops.

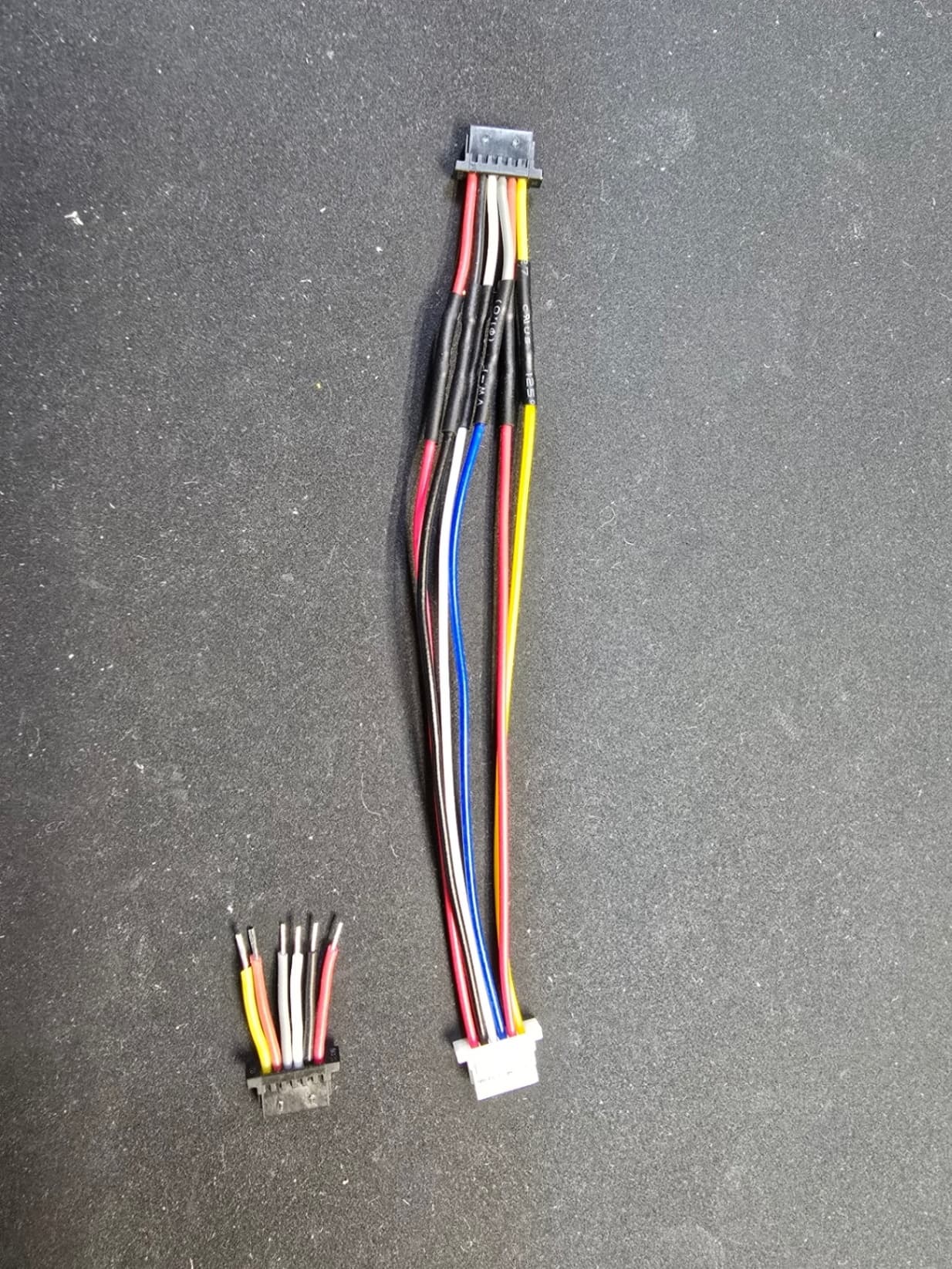

I also had to splice the FC cable to work with the air units' small black connector.

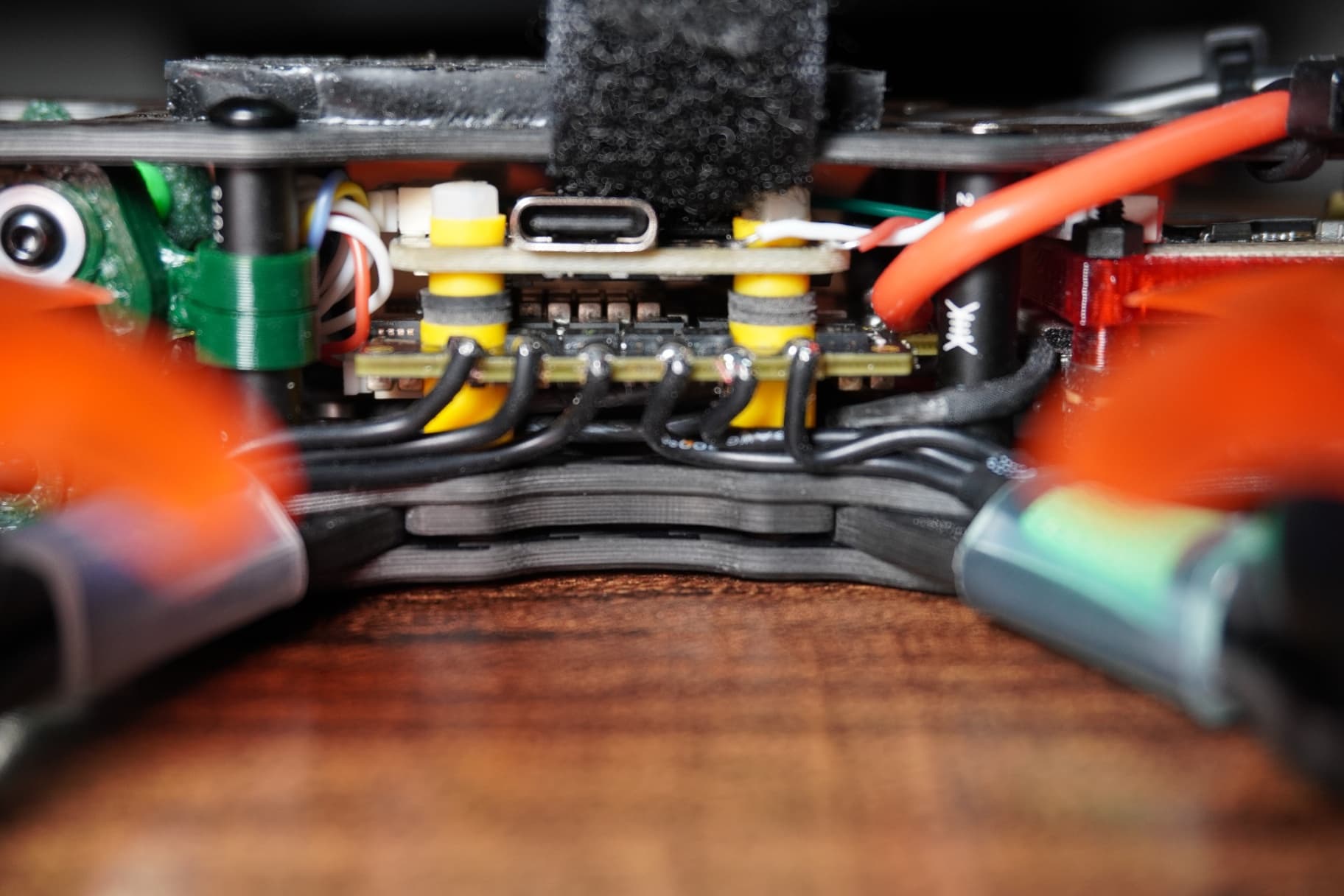

Originally the Capacitor came on the board, but it just wouldn't fit, so I used a WaFL’s XT30 Cap Cap.
For this build, I went with the 3000kv motors and 6s, and I wanted to try 6s on a small quad.
Had my first flight this morning and it flys great. Definitely need some tunning and rate adjustments, but its a great little flyer!
Photos
Part list
| Part Category | Part Name | Qty | Price |
|---|---|---|---|

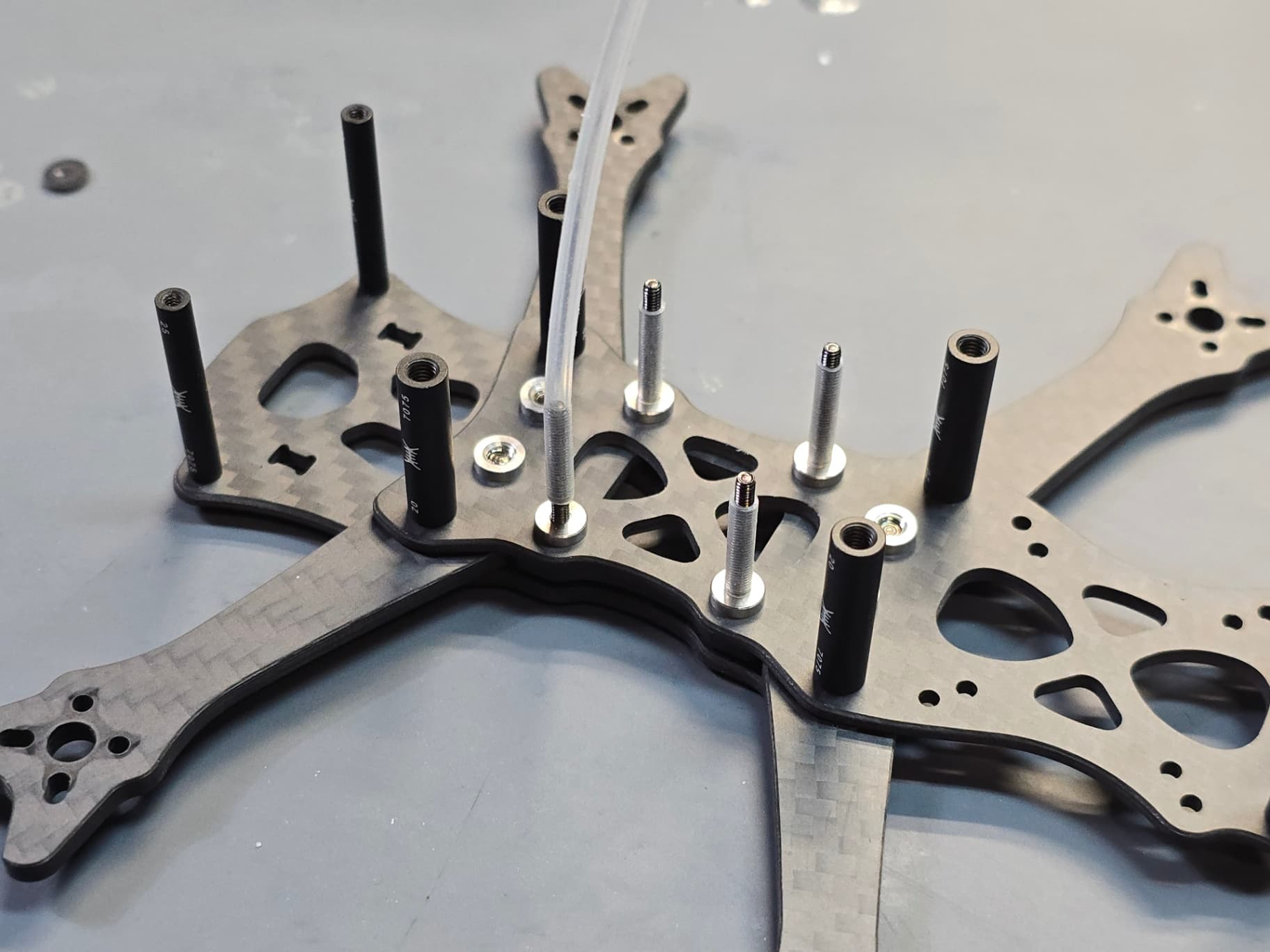

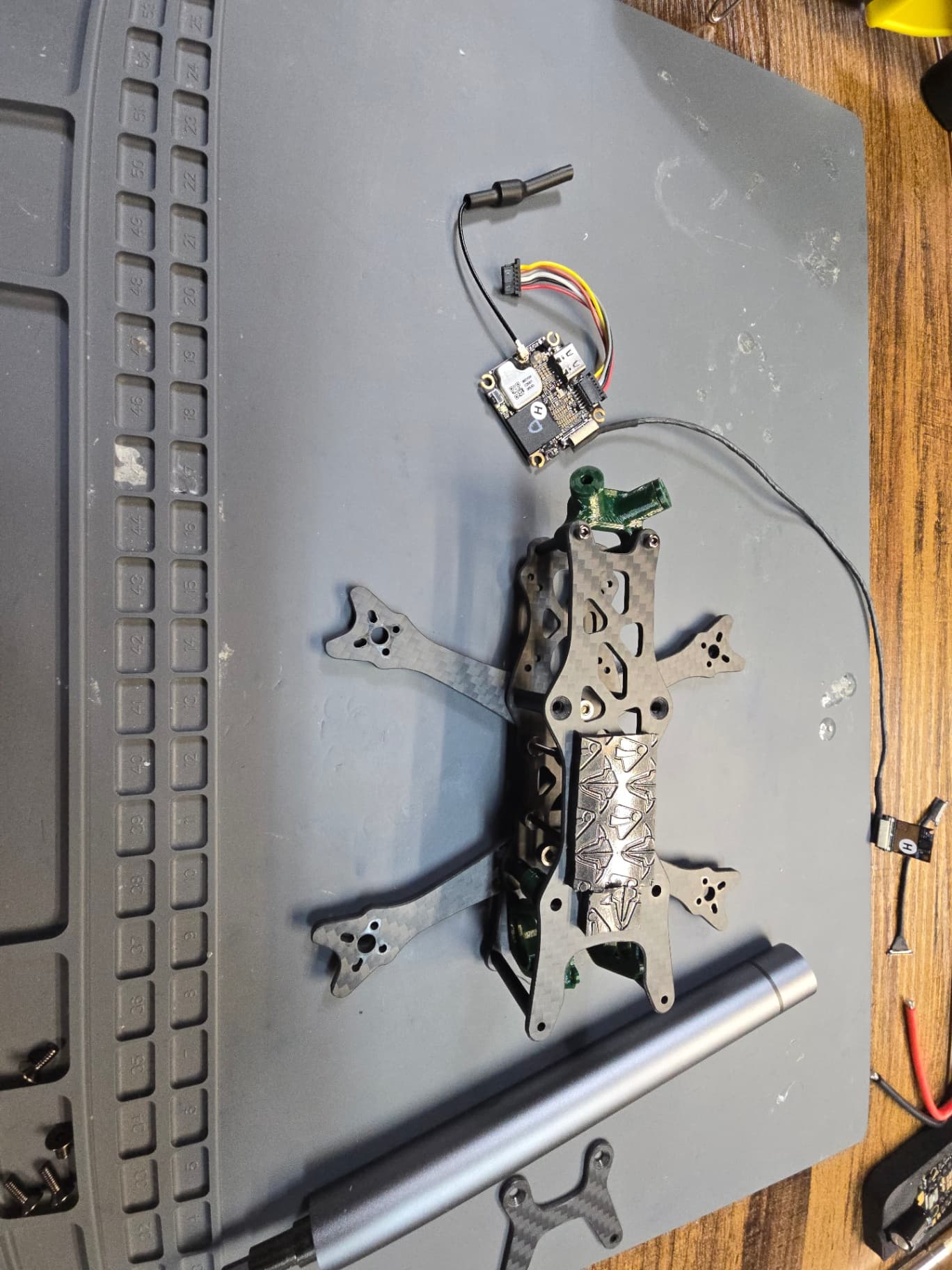

| — | Djinn F25 SP | 1 | $50 |

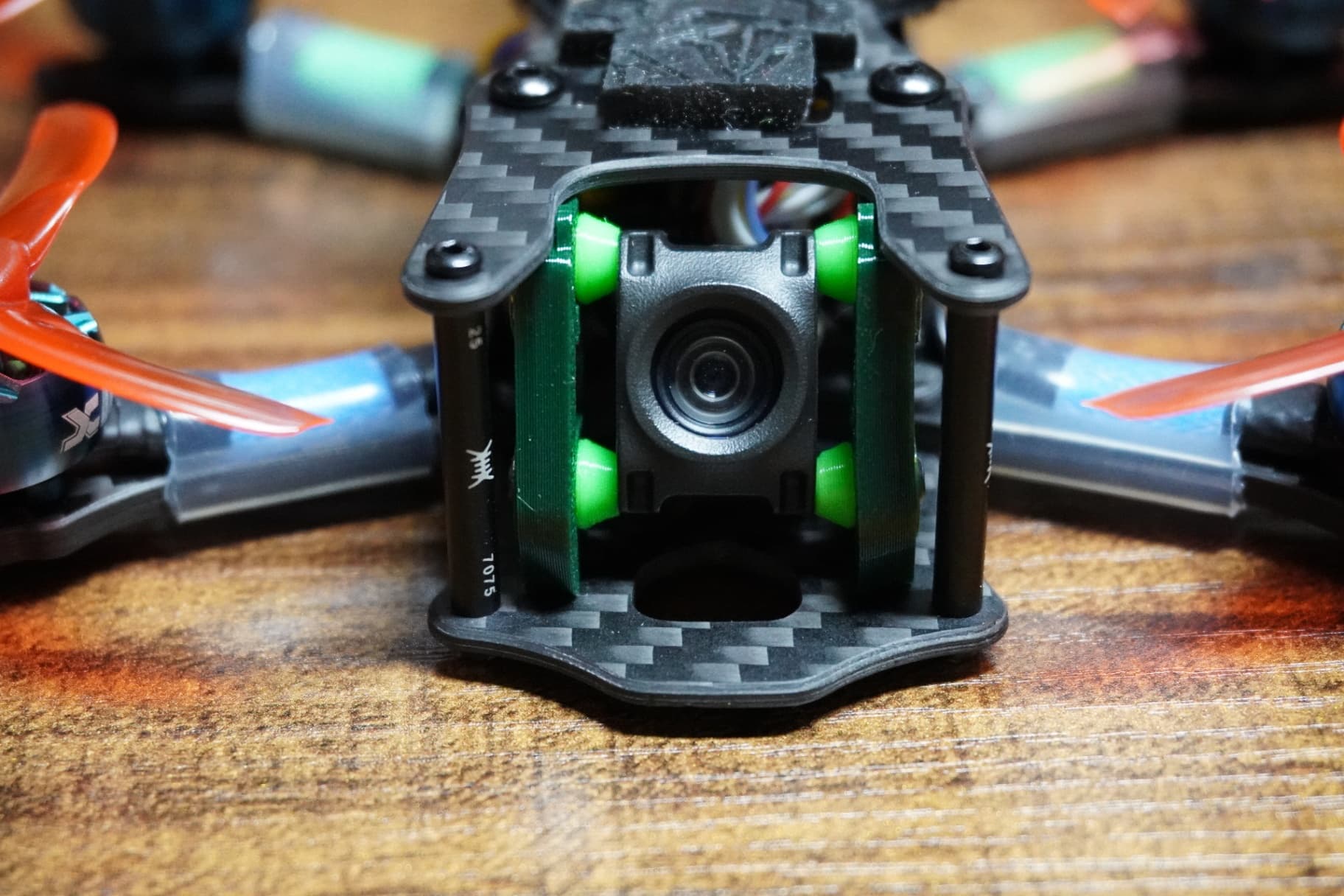

| — | DJI O4 Air Unit Lite | 1 | $109 |

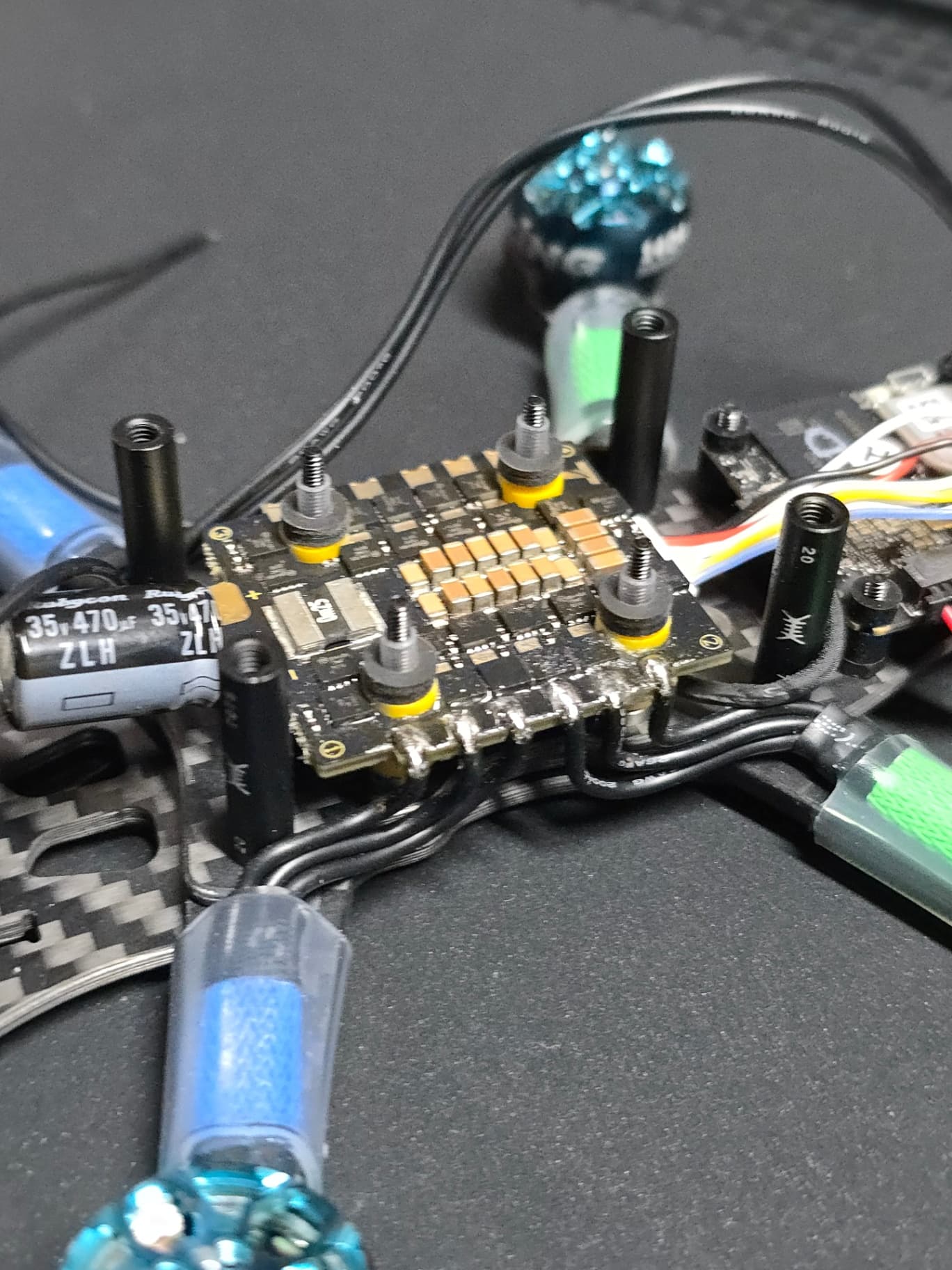

| — | T-Motor Mini F7 Stack + F45A 3-6S BLHeli_32 4-in-1 ESC | 1 | $187.99 |
| — | iFlight XING2 1404 3000KV/3800KV/4600KV Toothpick Motor | 4 | $17.99 |
| — | FrSky TD MX 2.4GHz 900M Dual-Band Tandem Receiver w/ Antennas | 1 | $41.99 |
| — | EMAX AVAN Rush 2.5x1.9x3 Propeller | 1 | $2.49 |

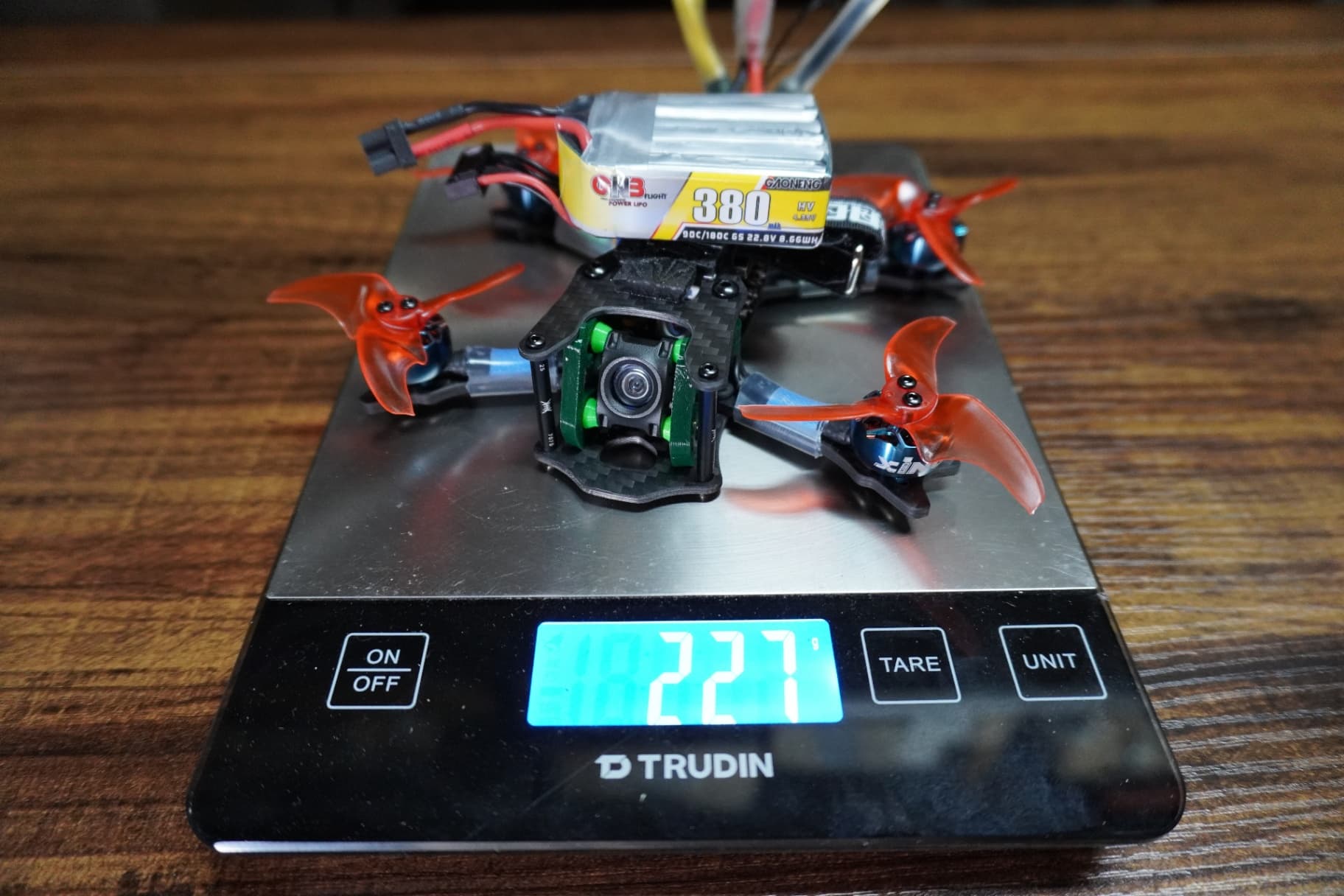

| — | GAONENG 2PCS GNB 6S LiPo Battery 380mAh 22.8V HV 90C with XT30 | 1 | $56.99 |

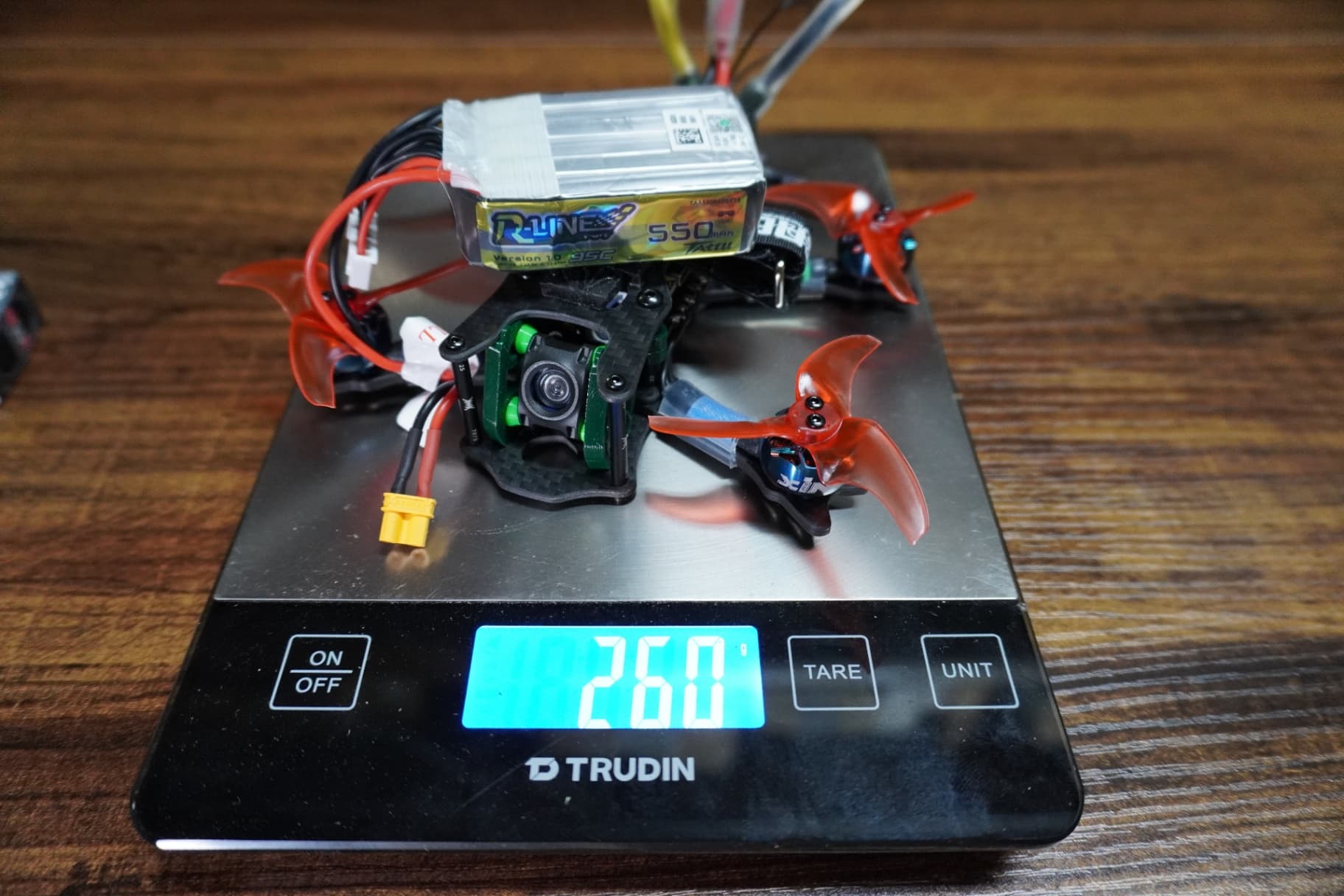

| — | Tattu R-Line Version 1.0 550mAh 6S 95C LiPo Battery - XT30 | 1 | $27.99 |
| — | FrSky X20 RS Tandem Radio Transmitter | 1 | $649.99 |
| — | WaFL’s XT30 Cap Cap | 1 | $4.99 |
