3S-2,5" Franky25 1103 7500KV BE (2022-2026)

Posted March 31, 2025
Csakegy Senki@scirocco
0162

Description

Frame: BETAFPV TWIGLET FPV Drone​ 2,5"
FC: JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S

Canopy:
ShenStar - 3D Printed Material TPU Camera Mount with 25.5x25.5mm
BETAFPV Micro Canopy Lite
Home/Hand made from Aloy!
Happymodel Crux3 Camera Mount with 25.5x25.5mm

VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW
Propeller: Gemfan 2 Blades PC Propeller 65mm
Motor: DroneART 2-3S 1103/7500KV

Camera: Caddx ANT

Runcam Nano2

Receiver:
Until 2023 Xm+
From 2023 ELRS

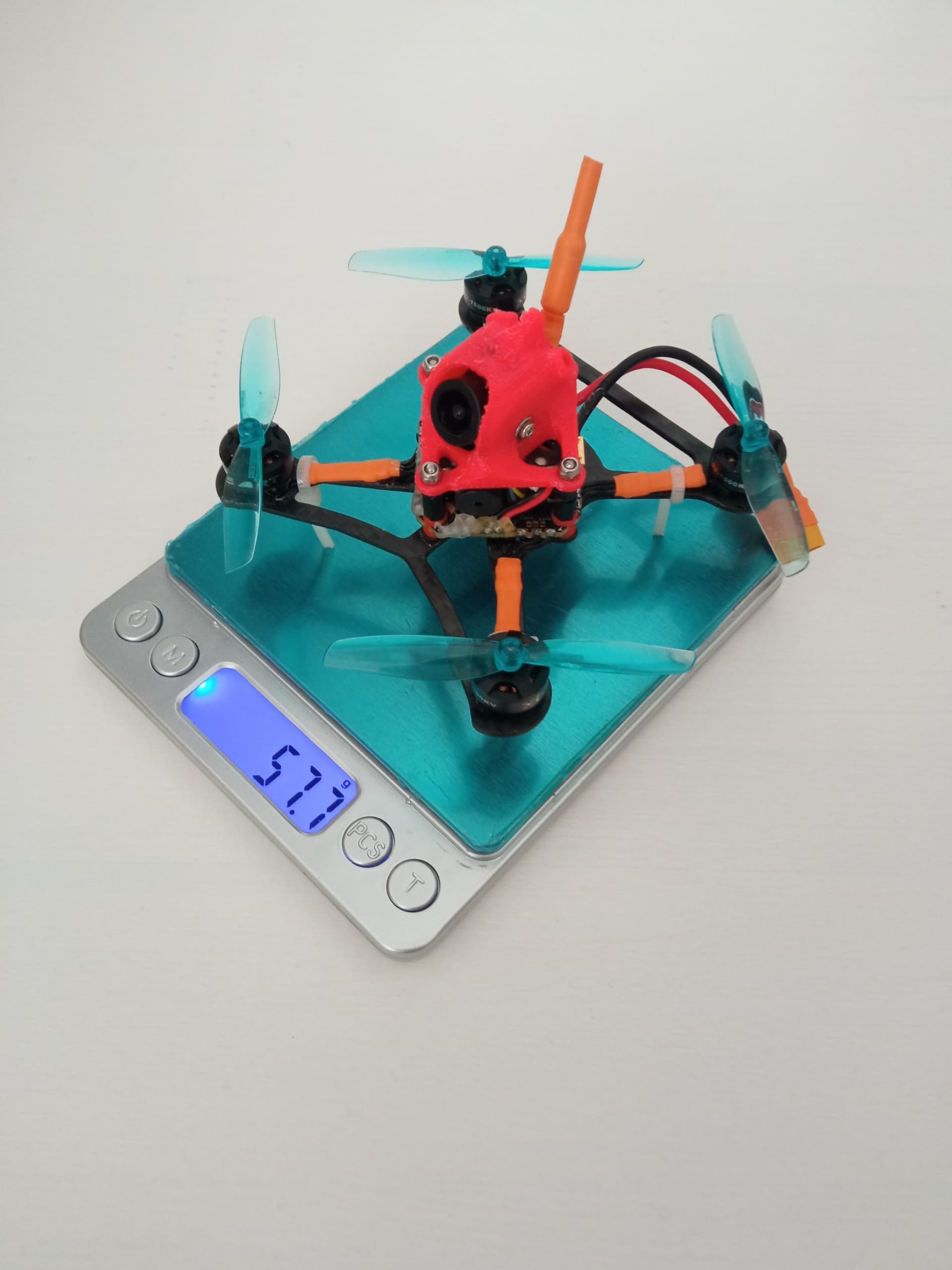

Weight: 58g

Battery: GNB HV 3S 380mah (31g)

Summ weight: around 89g
Fly time: 4-6minutes+
