4S-5" Scirocco5 2205 2300KV HU (2025-2026)

Posted May 26, 2025
Csakegy Senki@scirocco
0169

Description

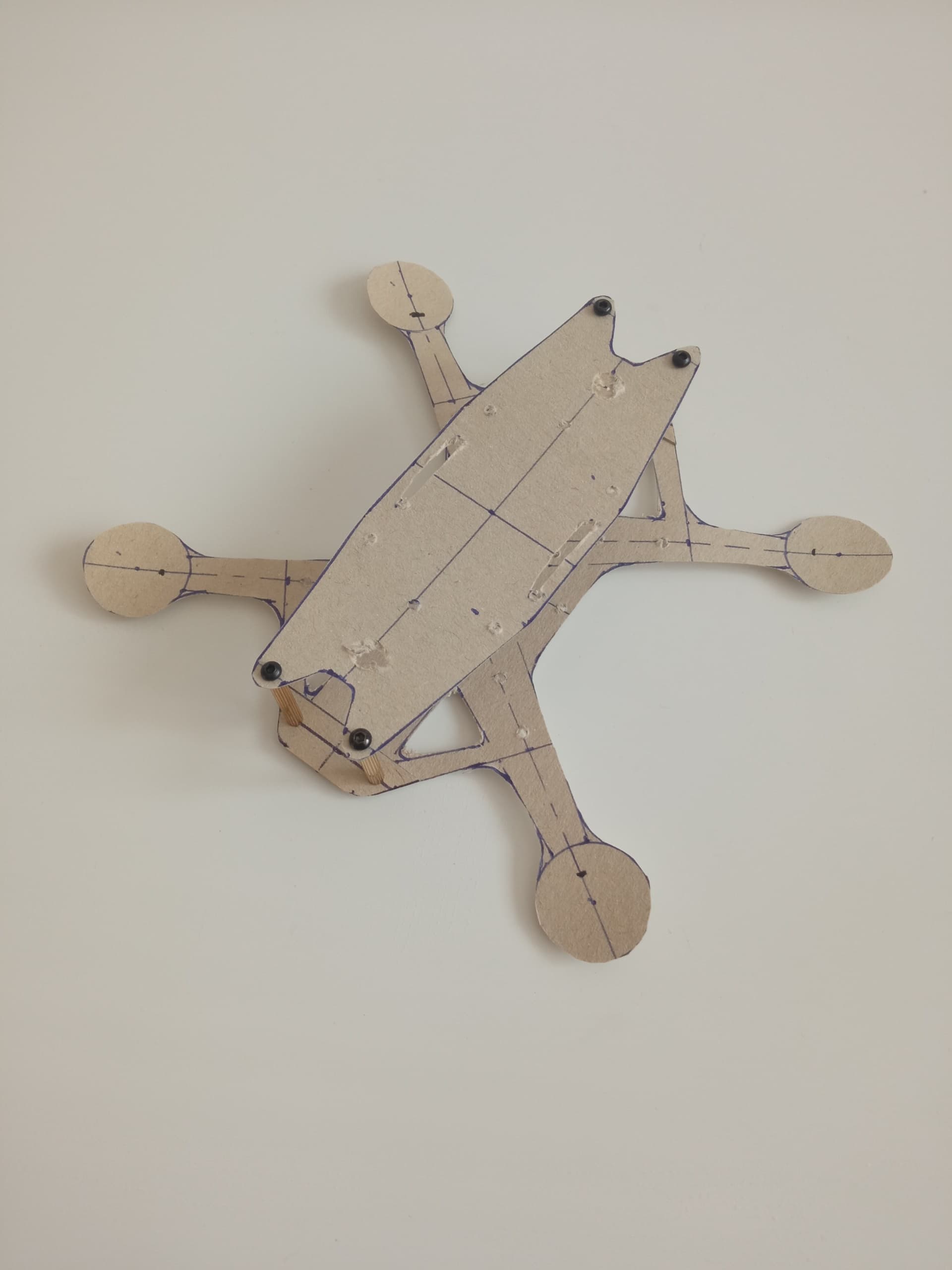

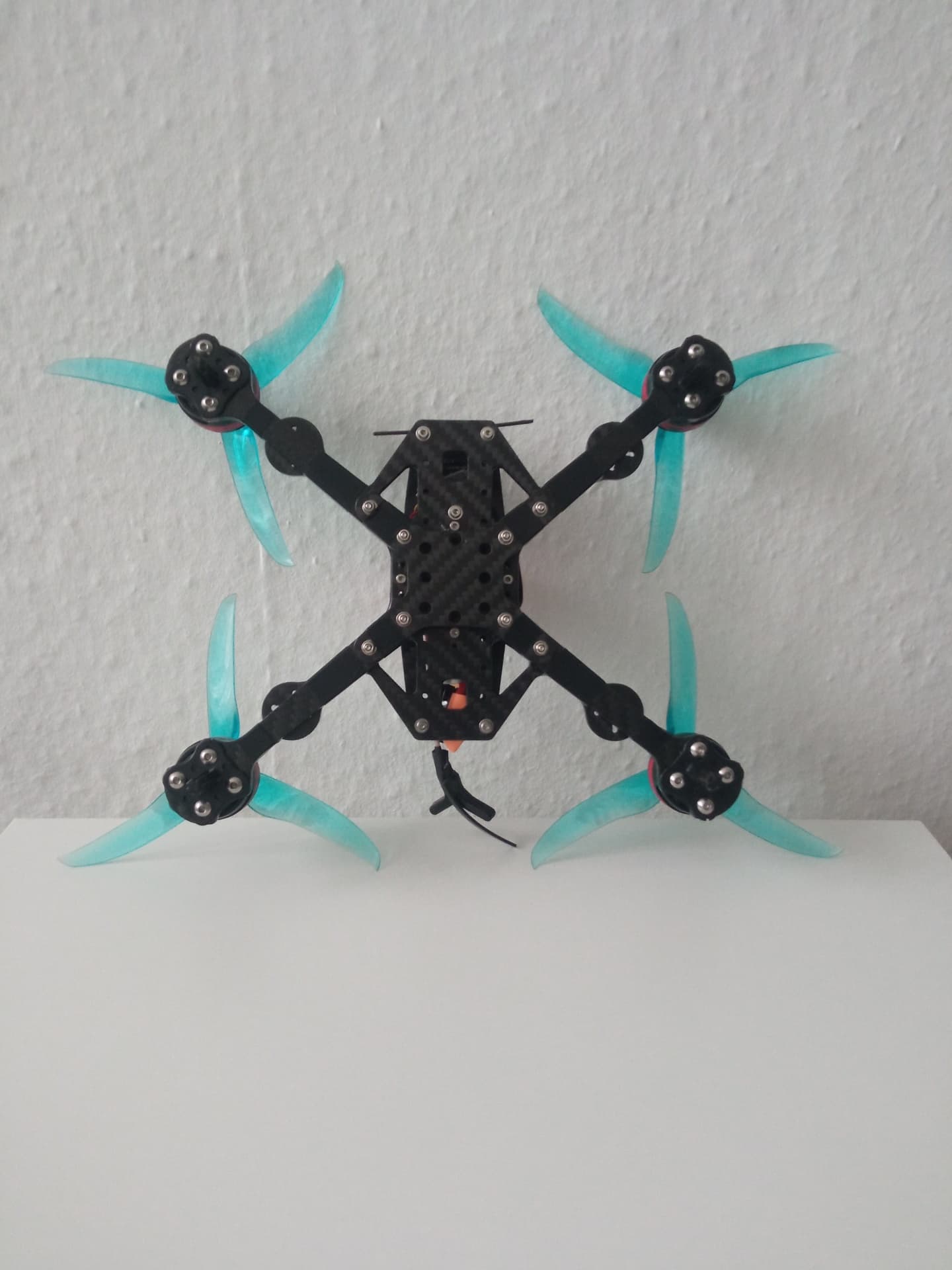

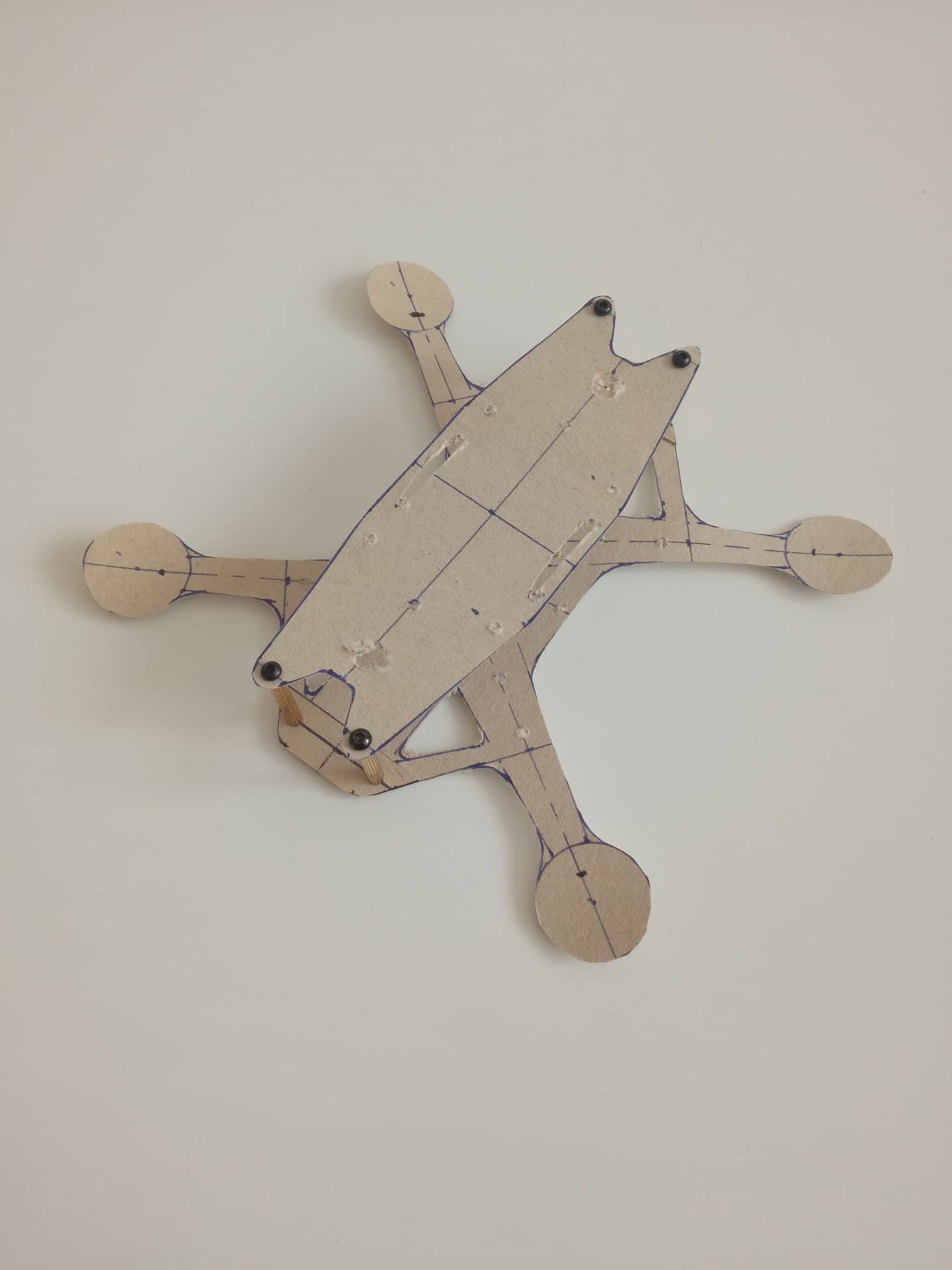

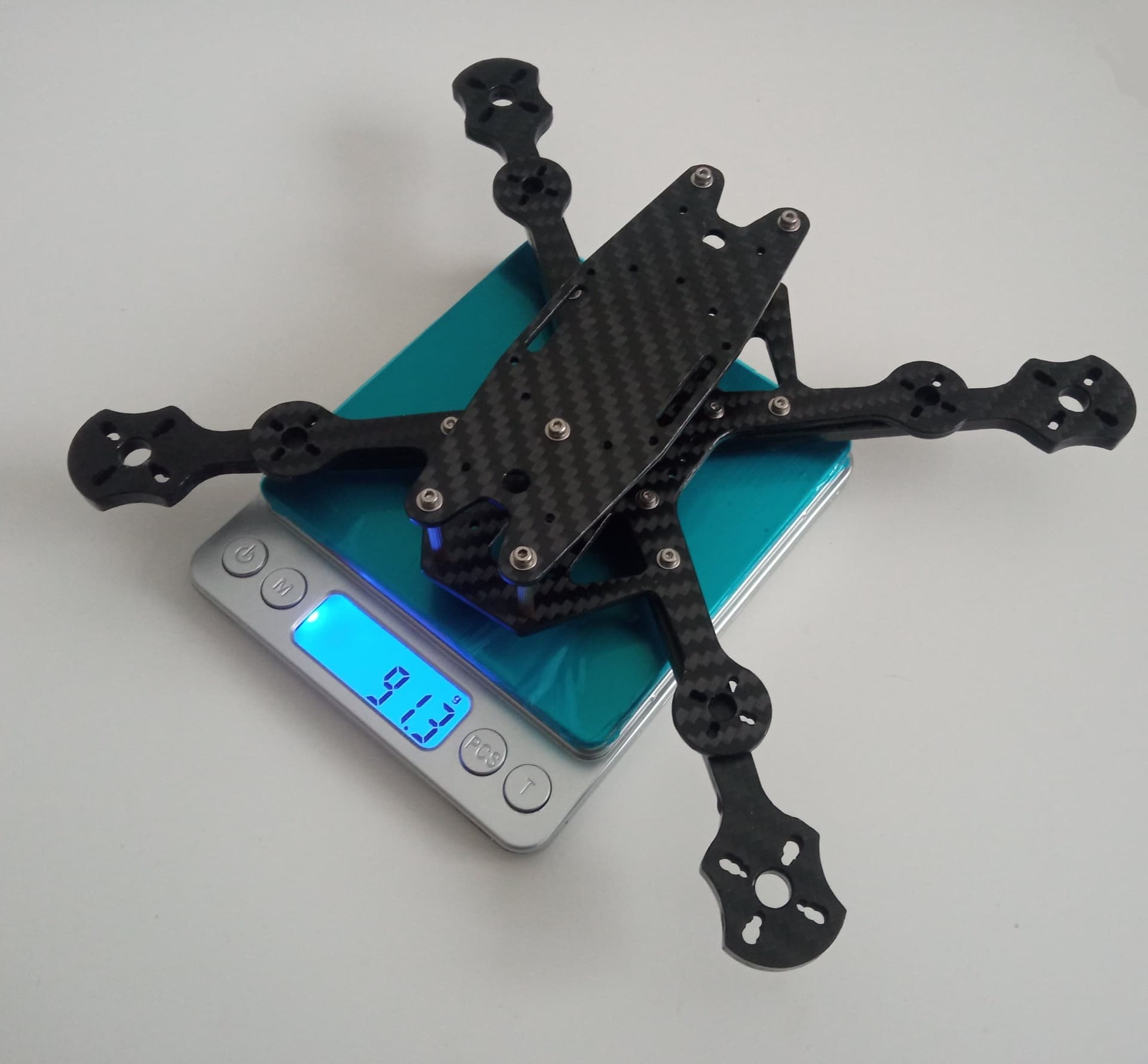

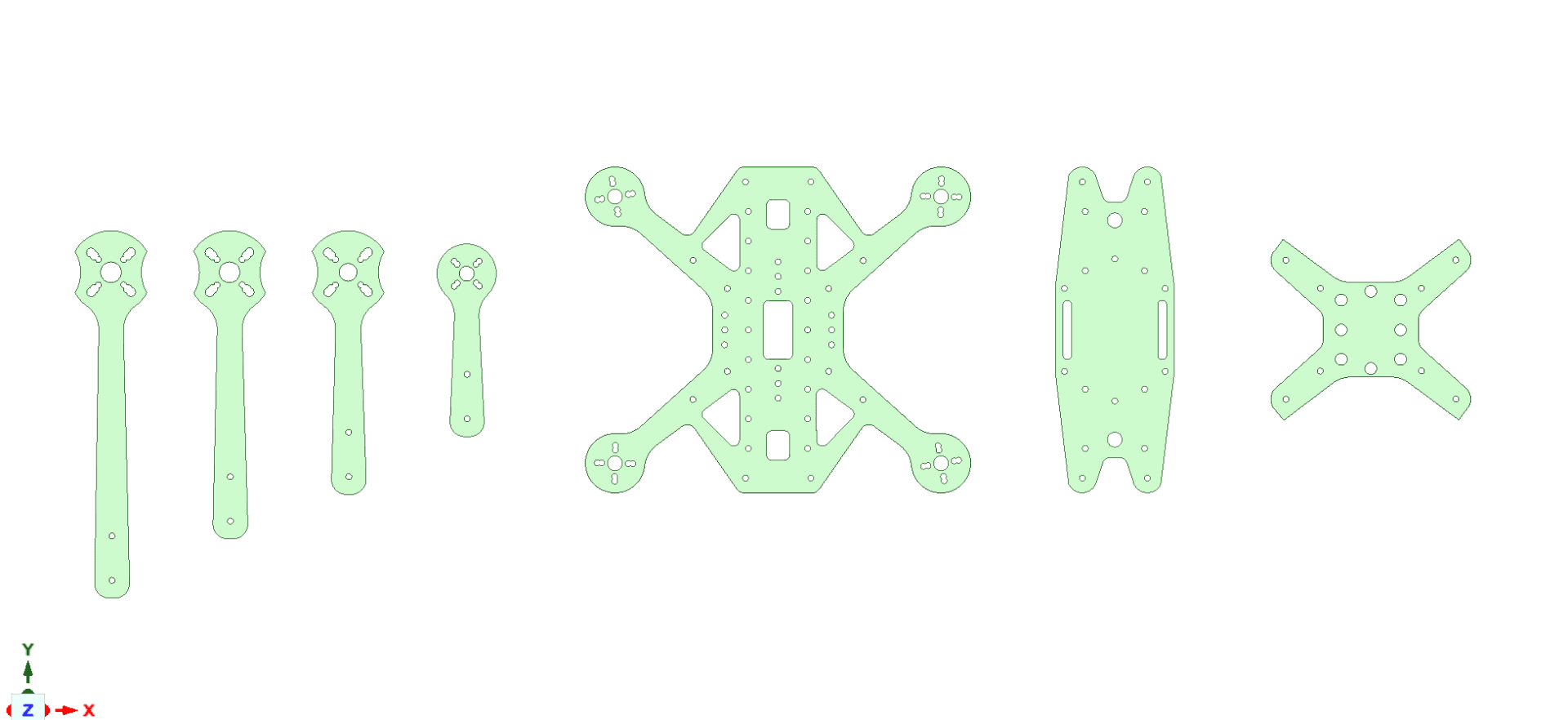

Frame: Own developmemt from 3" until 6" "ementaly design" and cut by ccarbon.hu (92g)

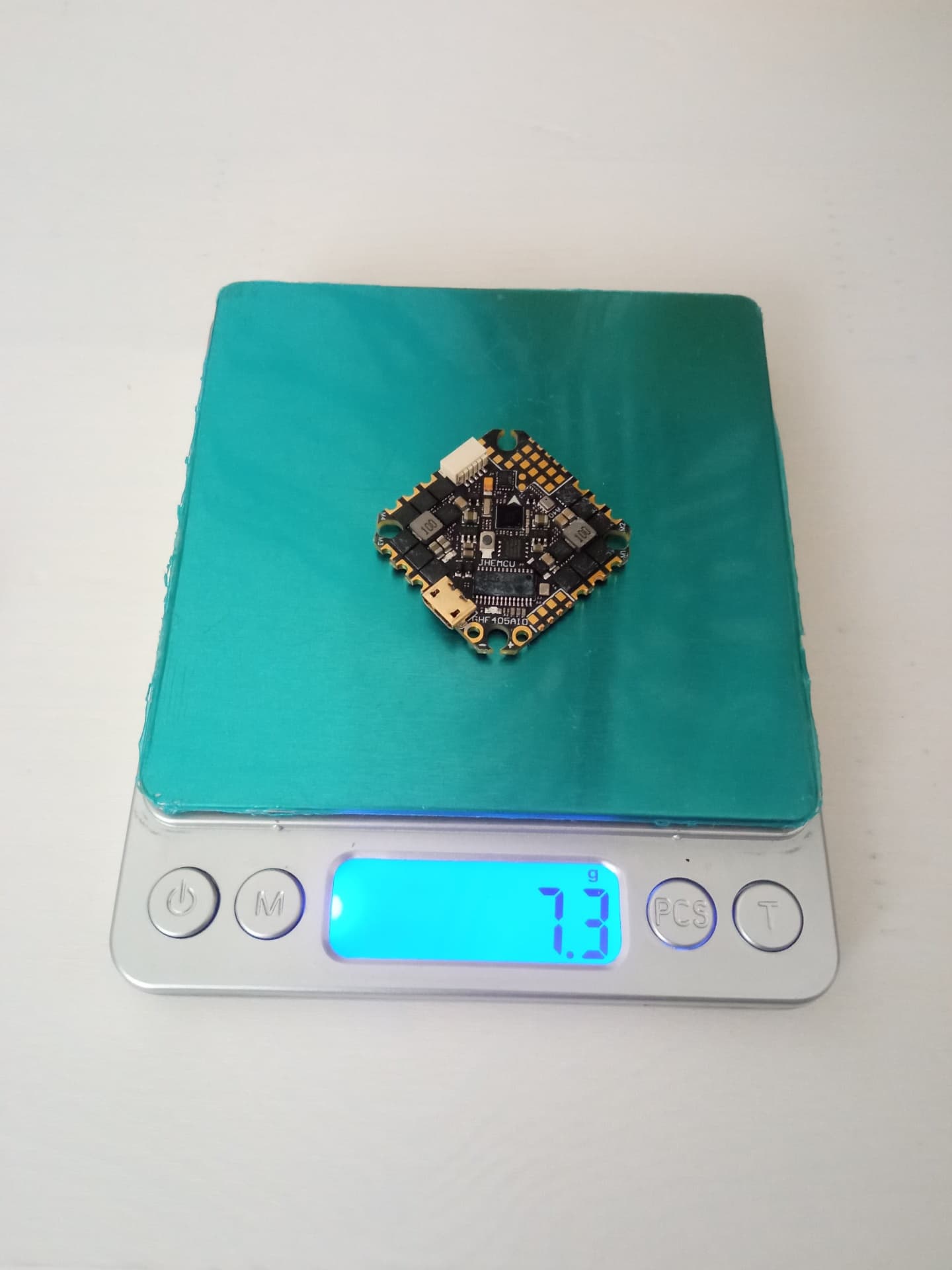

FC: JHEMCU GHF405AIO-HD 40A F405 OSD Flight Controller ESC 2-6S (7,3g)

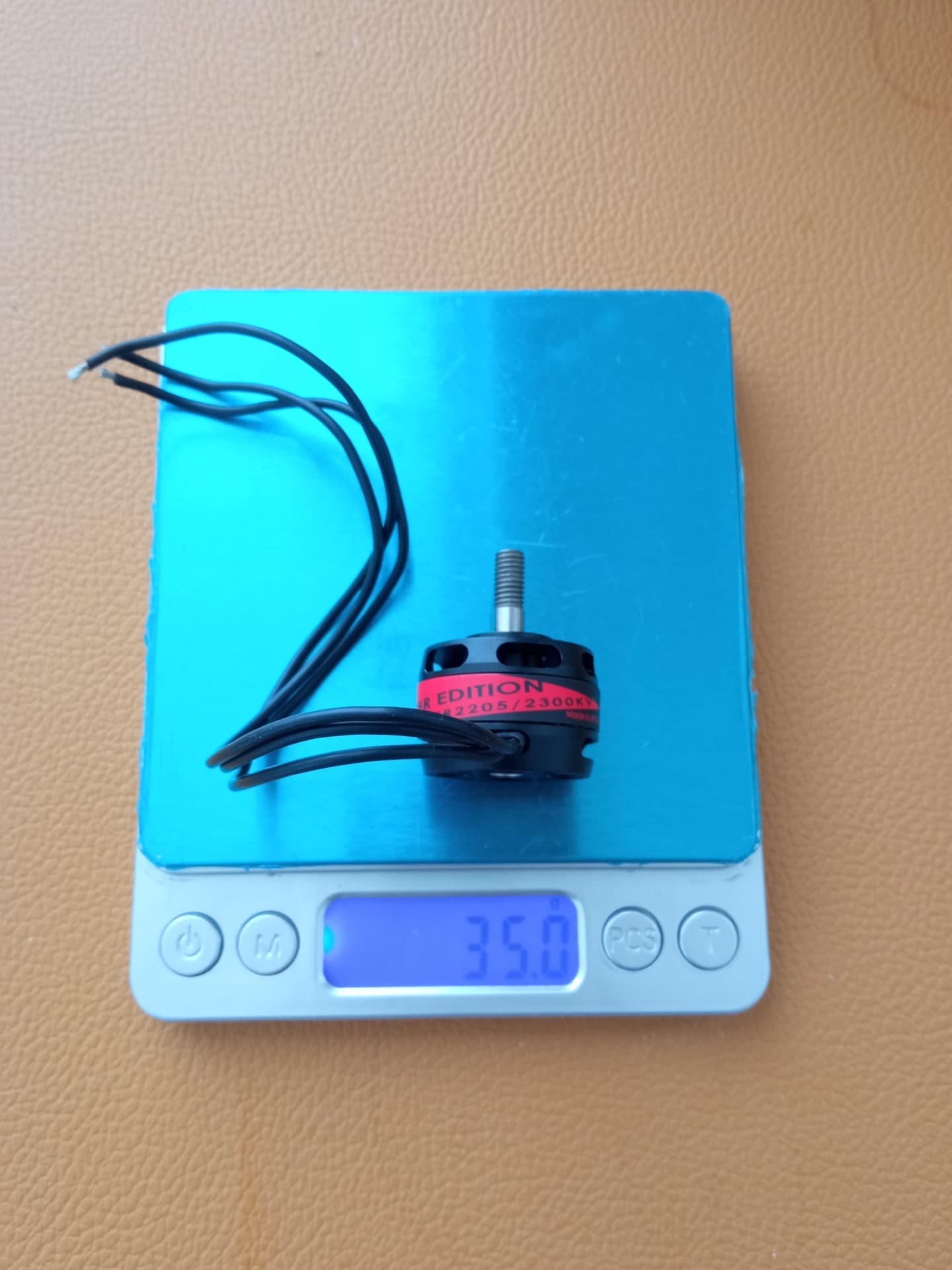

Motor: Rctimer RED FR2205 2300KV FPV Racing RC Aircraft Plane Multi-copter Brushless Outrunner Motor (35g)

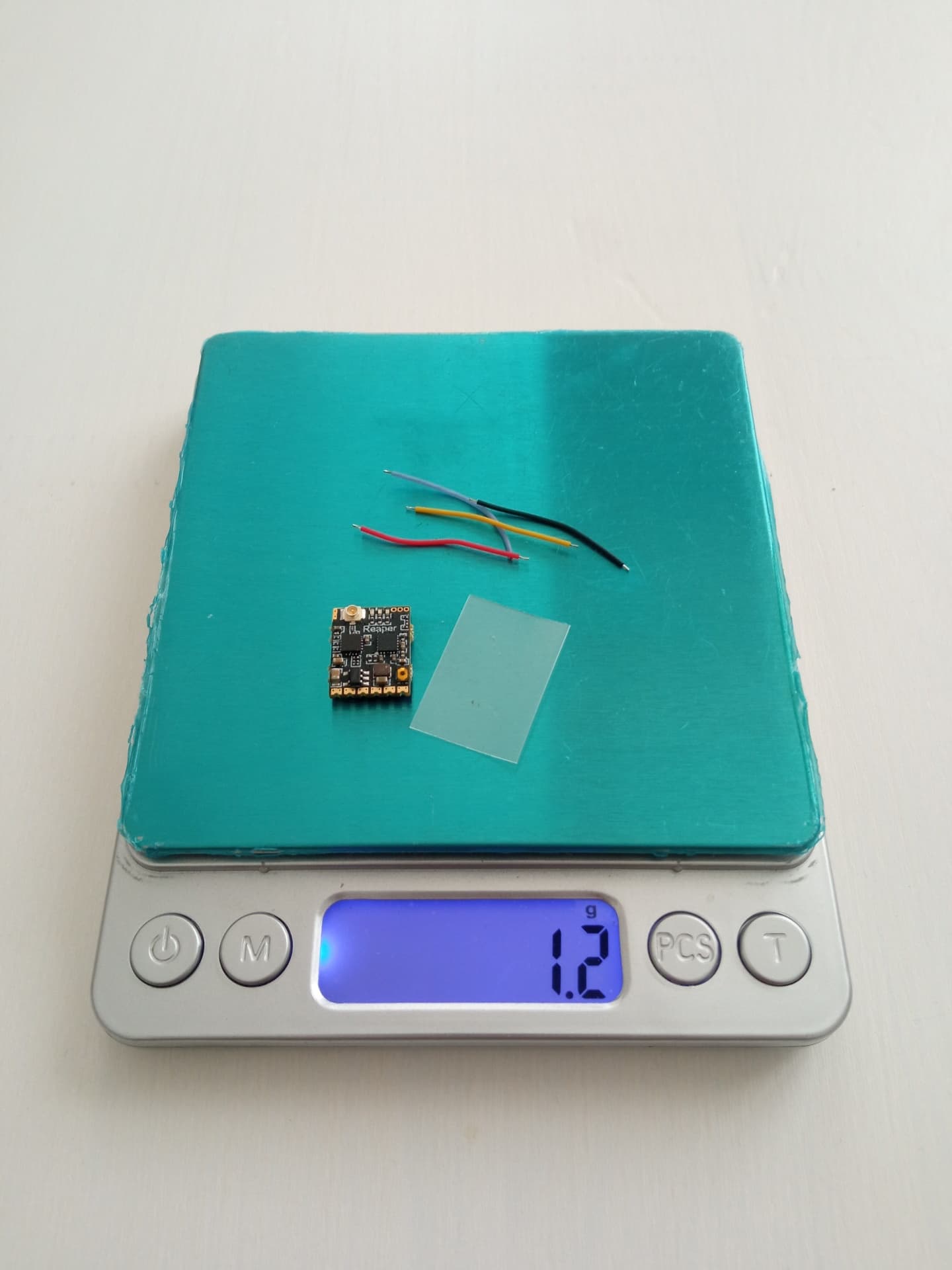

VTX: Foxeer Reaper Nano 5.8G 48CH 350mW (1,2g)
Propeller: 5030, 5040 2-3blade

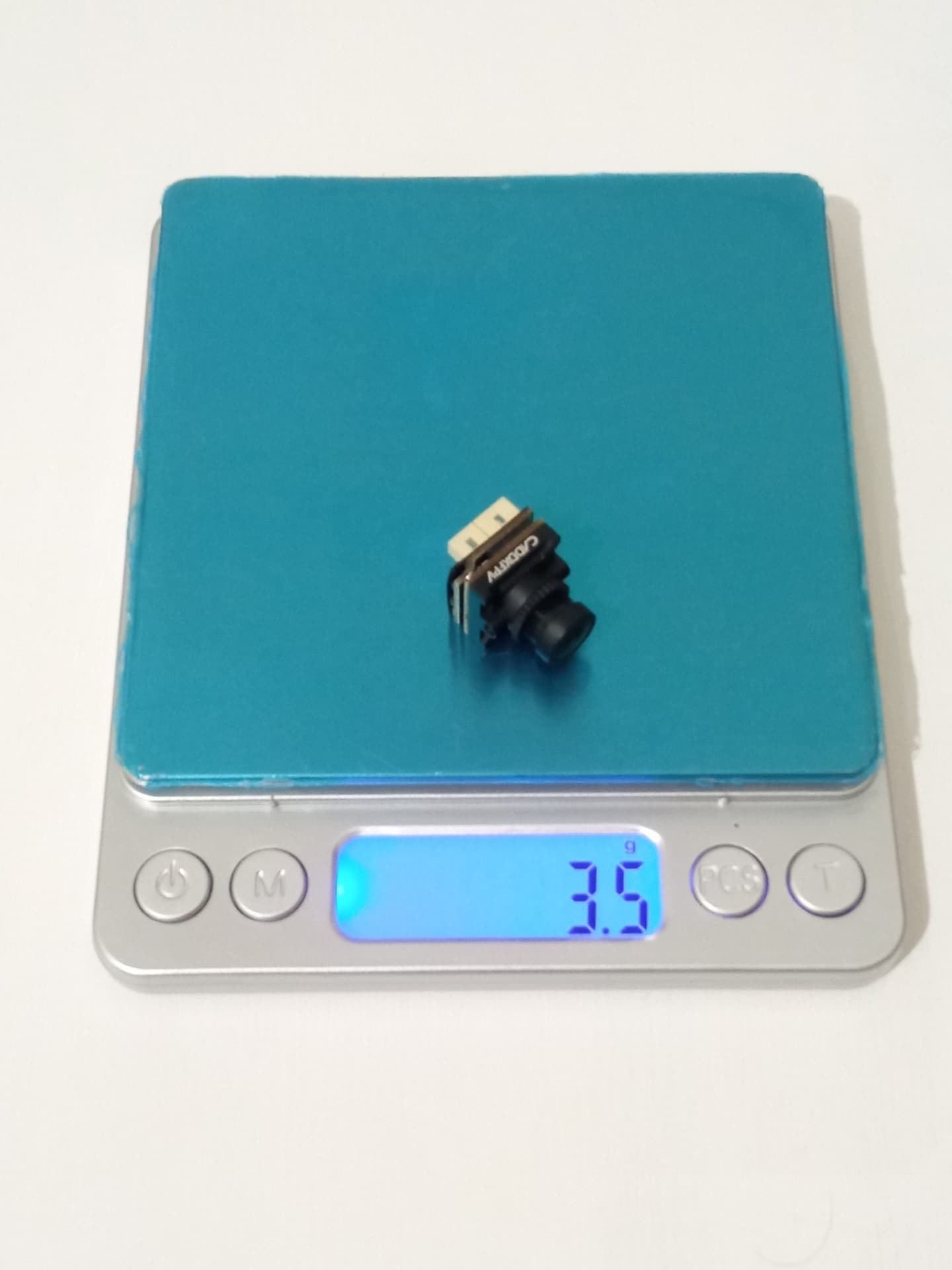

Camera: Caddx Baby Ratel 2
Receiver: ELRS

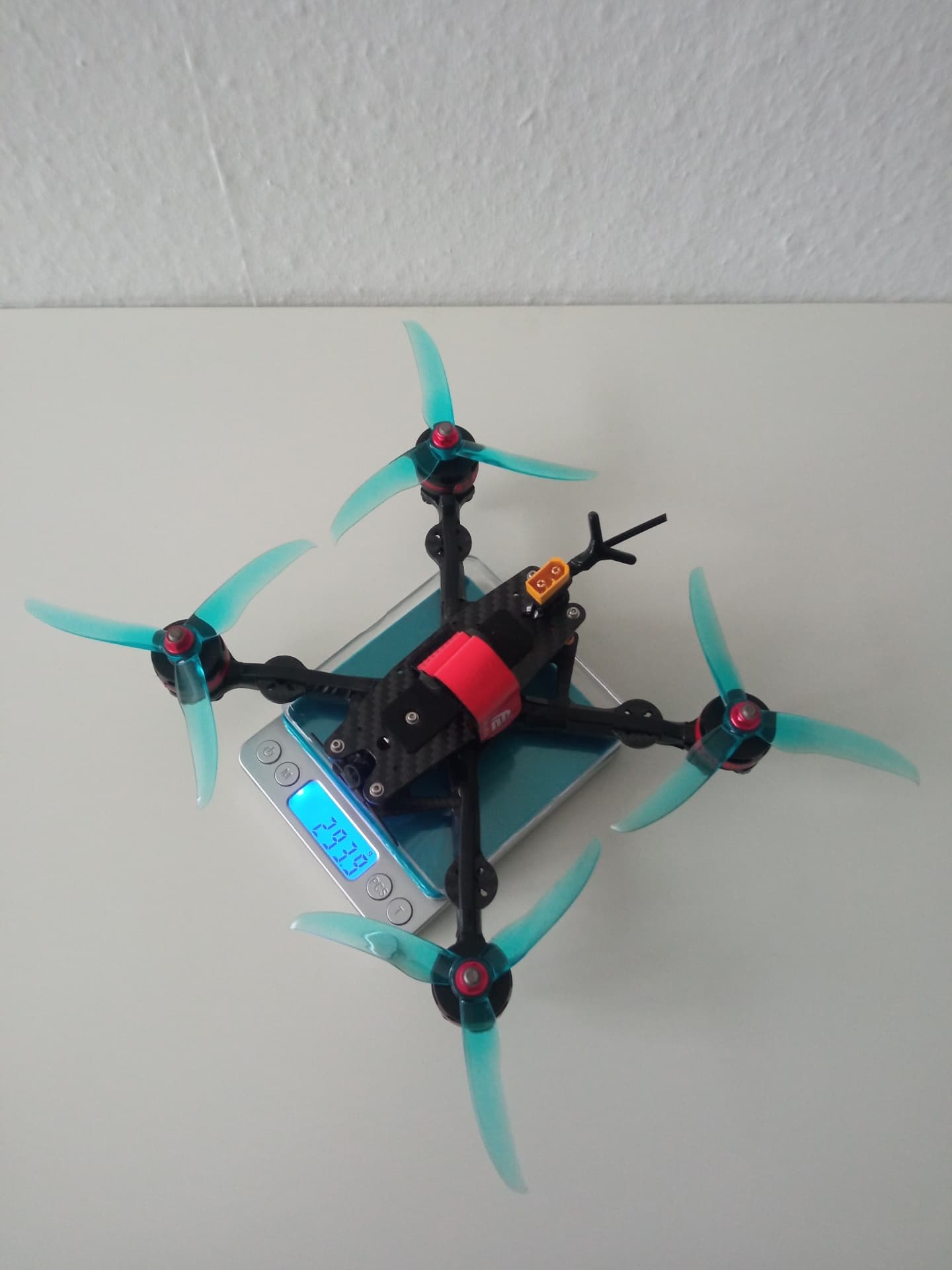

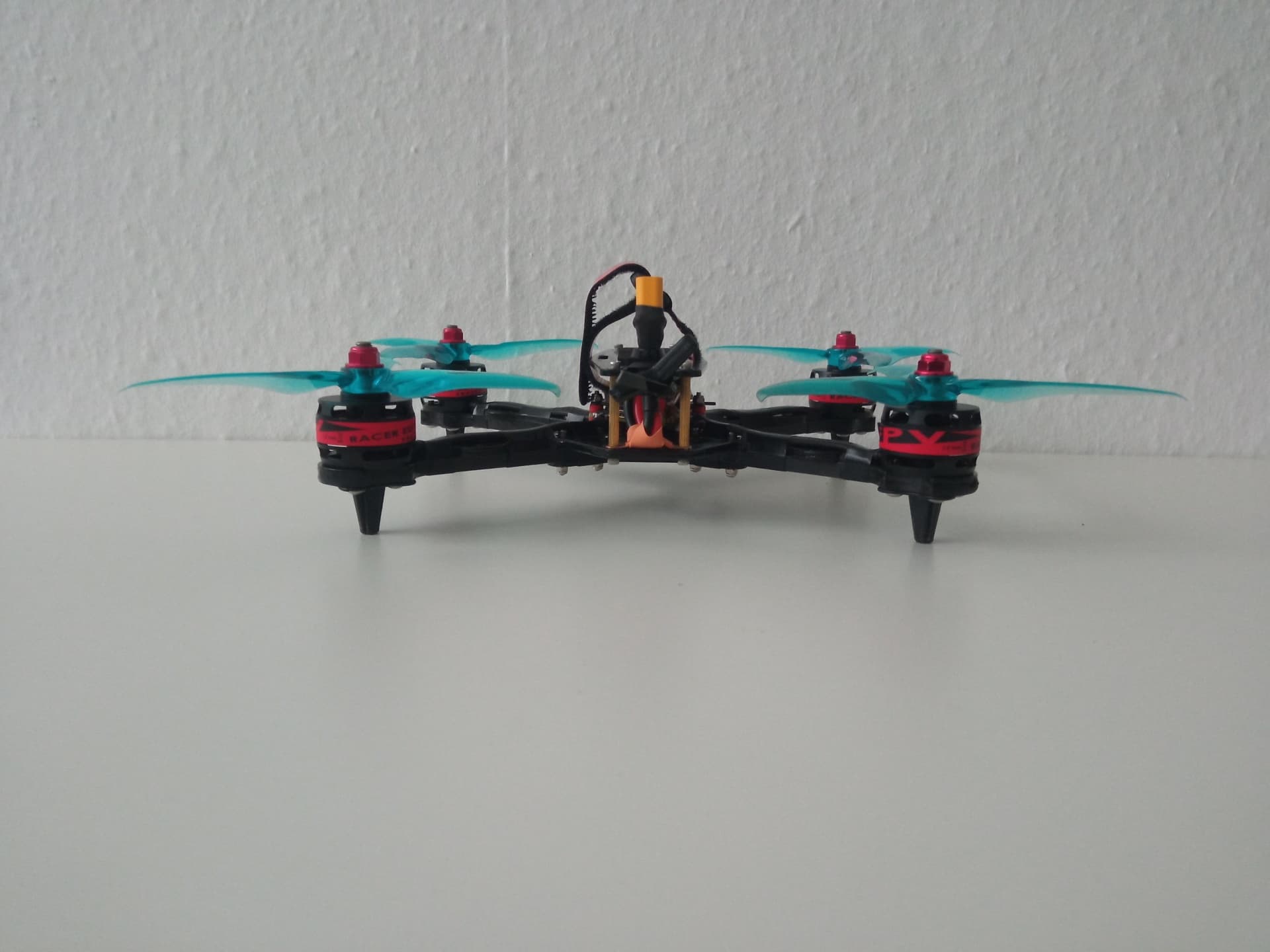

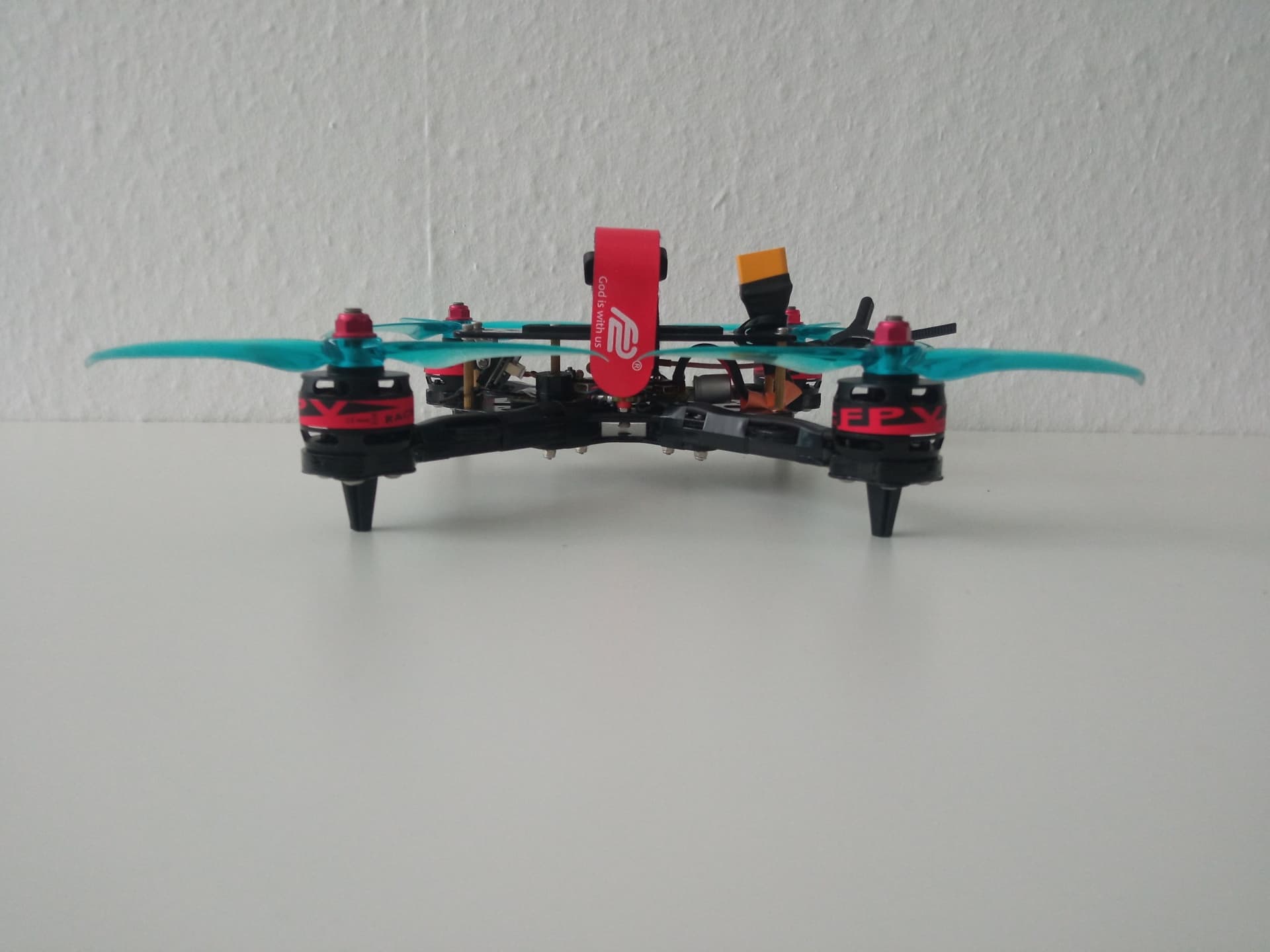

Weight: 294g

Battery: Turnigy Bolt HV 4S 850mah (102g)
Battery: Turnigy Bolt HV 4S 1000mah (122g)

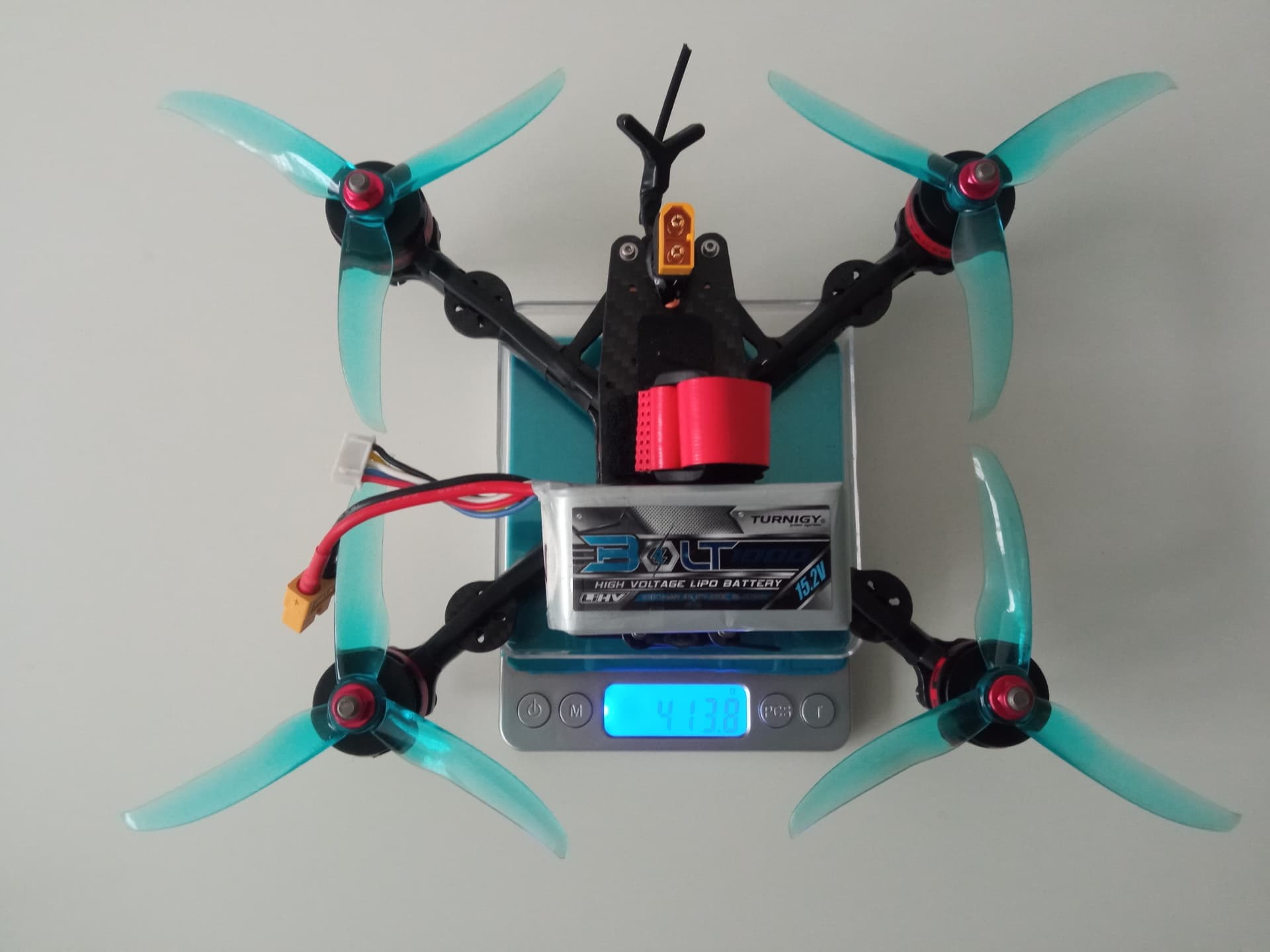

Summ weight: around 414g
Fly time: 4-6minutes
