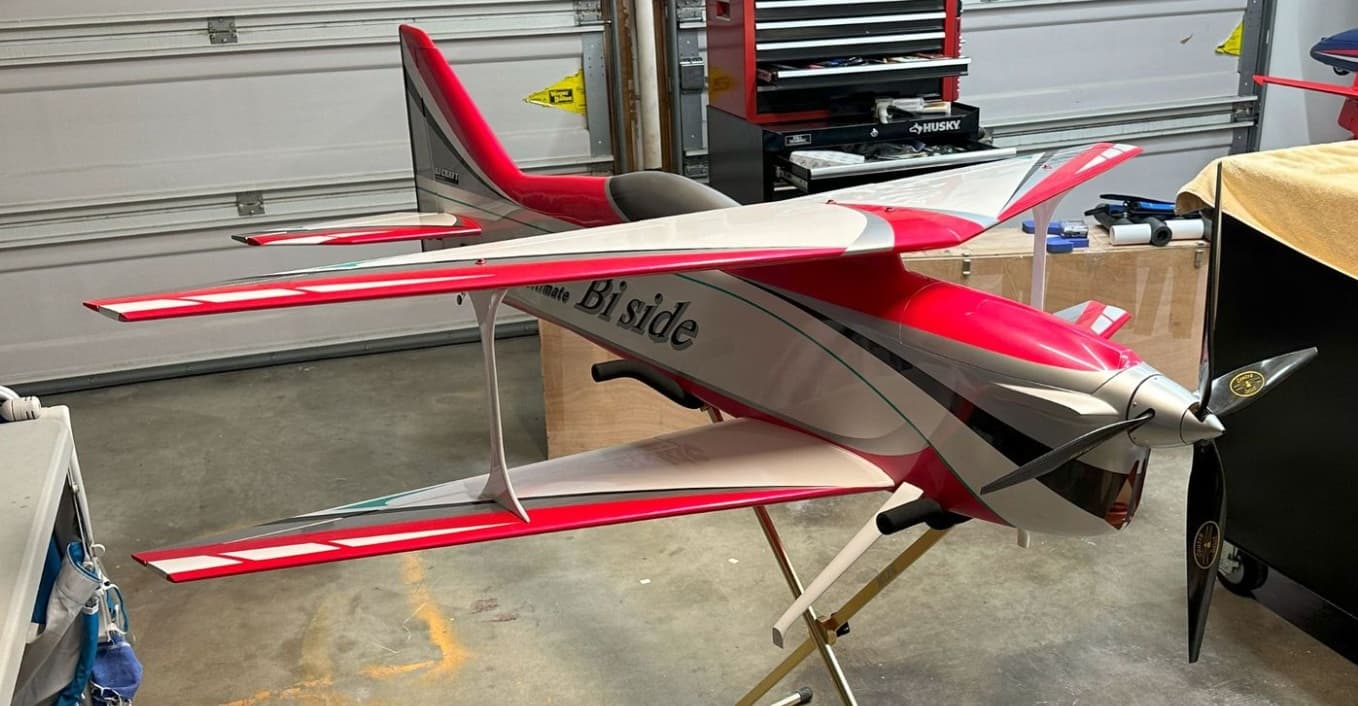

BJ Craft Biside Pattern Plane
Posted September 9, 2025
Admin@RCFeed
1comments140views
Description

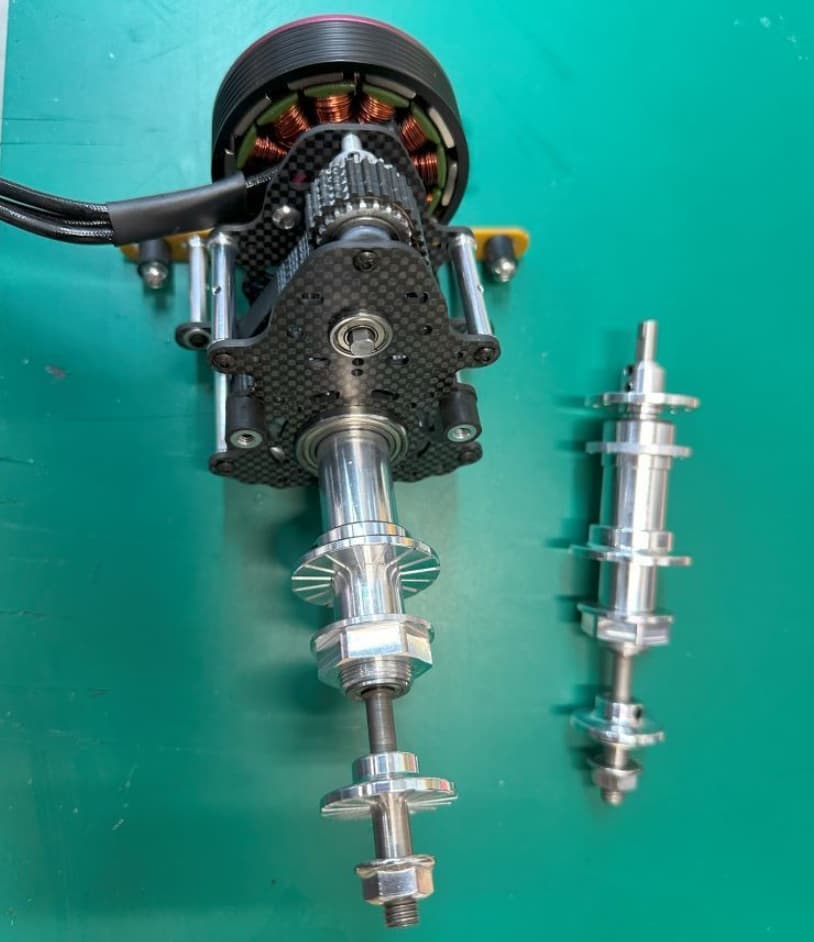

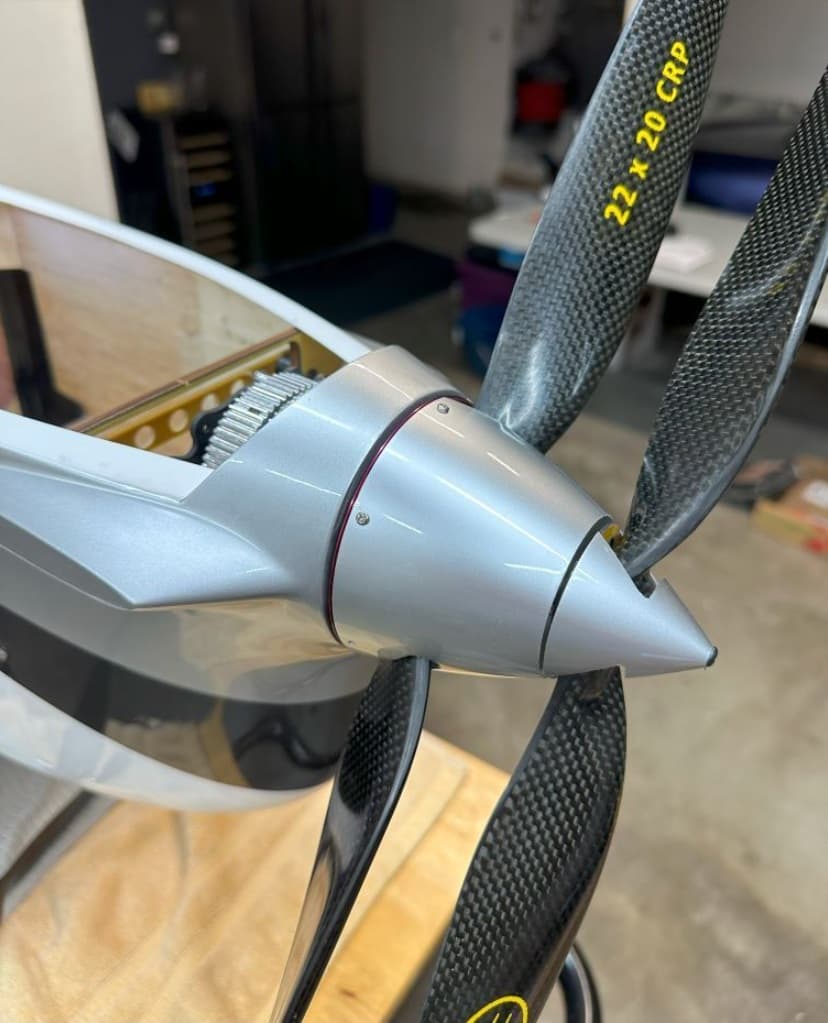

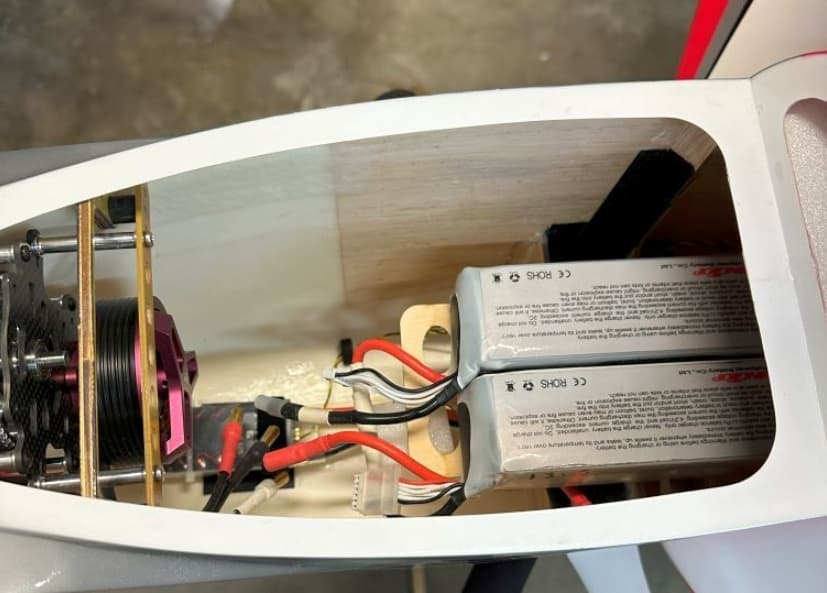

This is Steve Hannah’s BJ Craft Ultimate Biside Pattern plane build which I saw fly at the Woodland-Davis Aeromodelers F3A competition in Nor Cal. Steve was nice enough to give me the details about this plane. It has a belt driven counter rotating prop system that eliminates the P-Factor and smooths out power delivery. The BJ Craft X-drive contradrive system must be special ordered from the manufacturer. The airframe can be ordered through retailers like GatorRC or RombautRC.

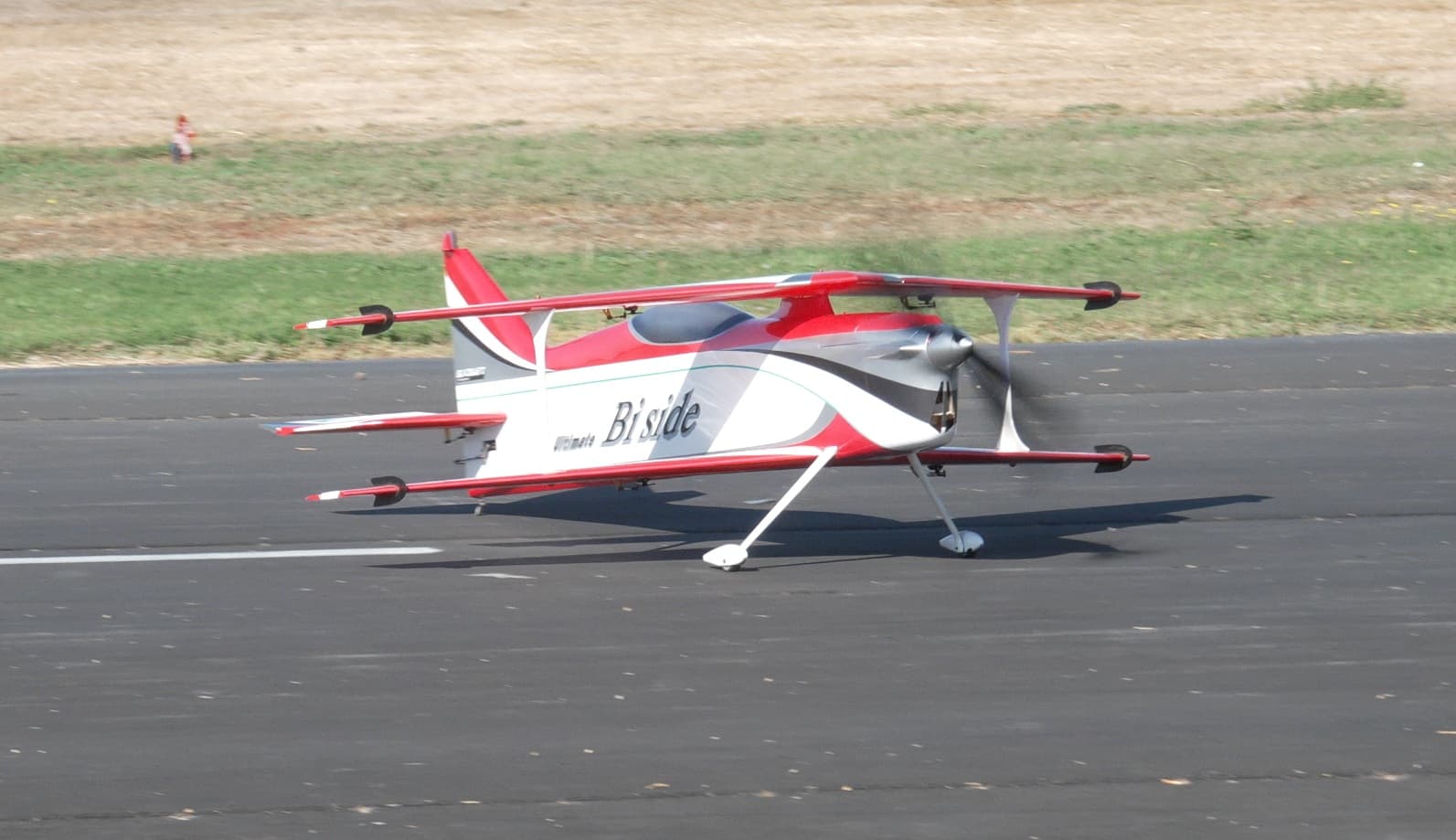

Check out this cool plane in flight!

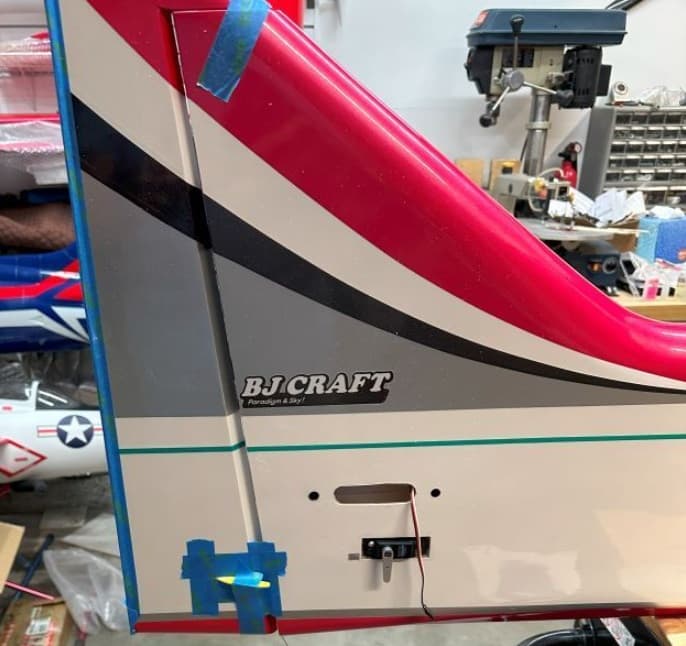

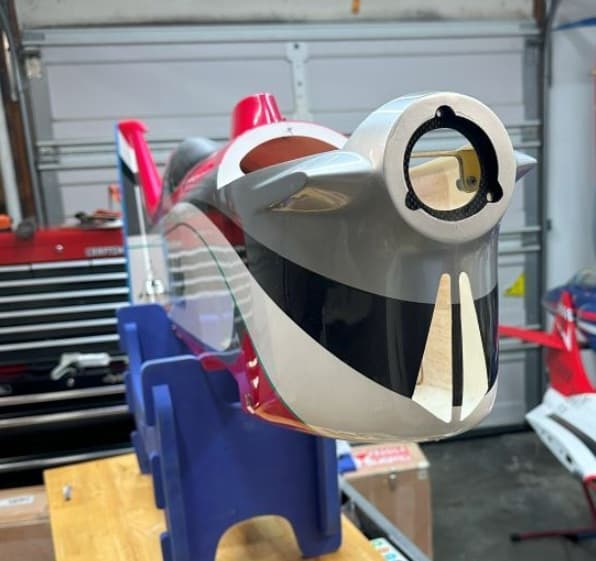

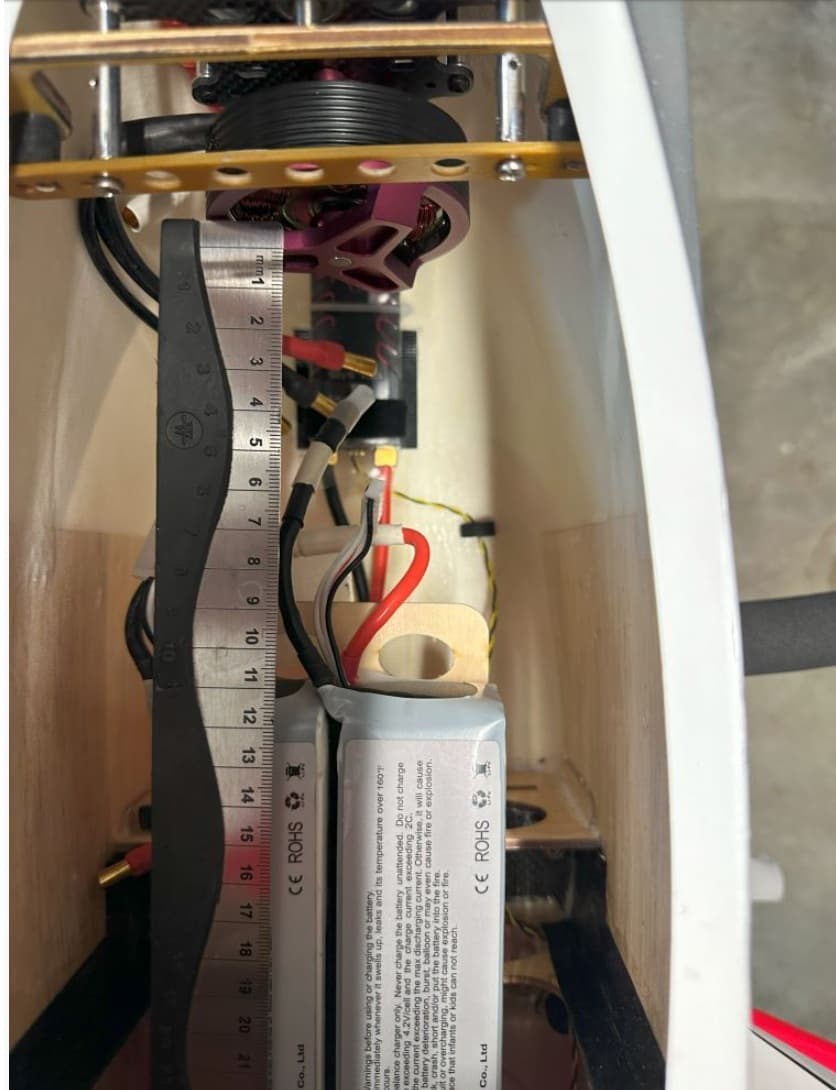

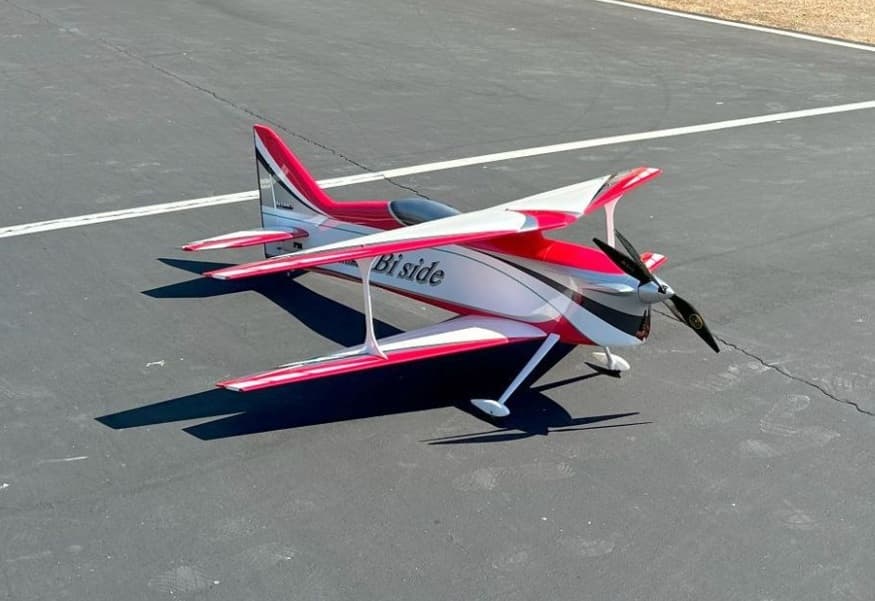

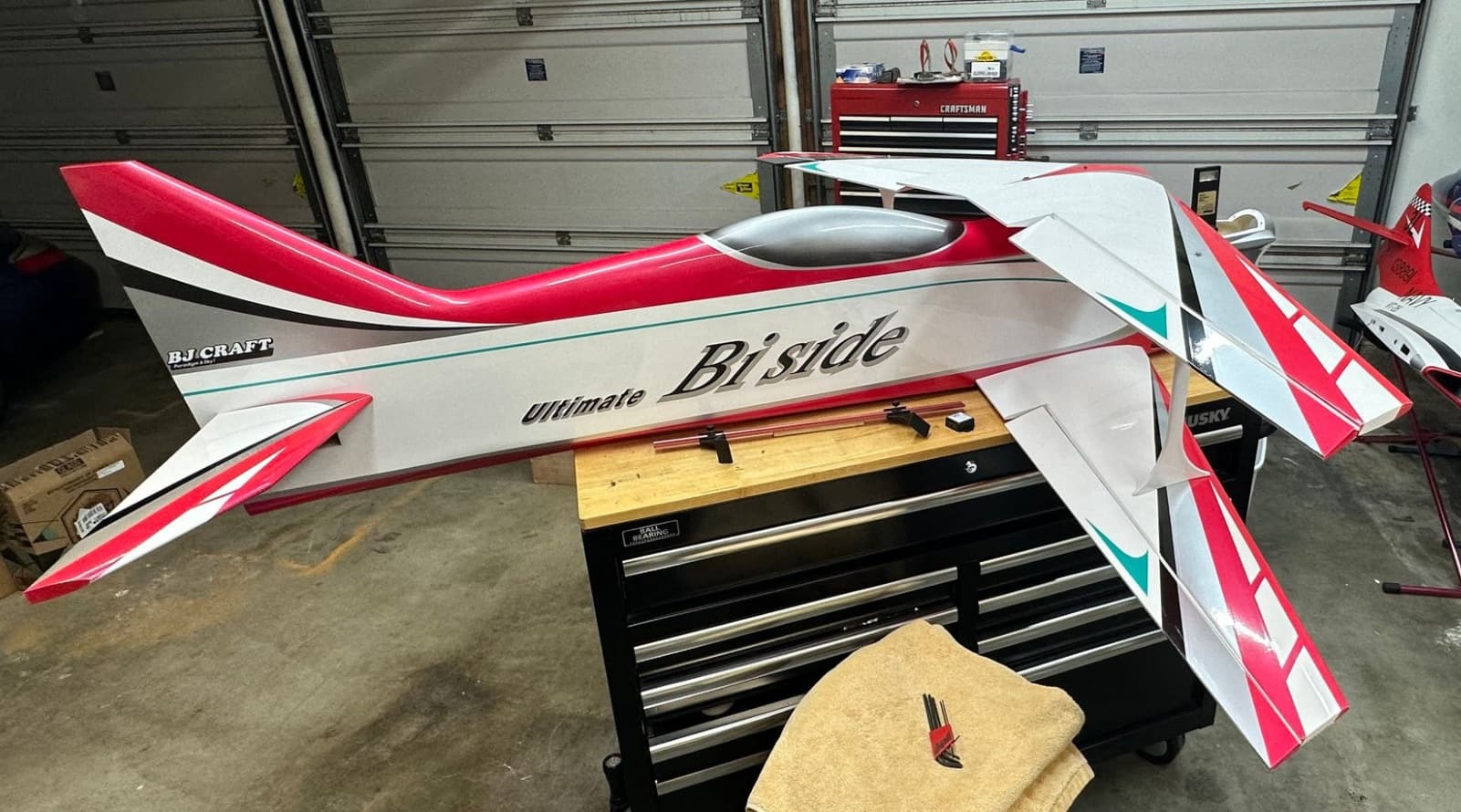

Photos
Part list
| Part Category | Part Name | Qty | Price |
|---|---|---|---|
| — | BJCraft Ultimate BiSide | 1 | $2,878.73 |
| — | BJ Craft X-Drive | 1 | $1,000 |
| — | VLV F3A Governor ESC HV | 1 | $225 |
| — | Optipower Ultra-Guard Back Up Solution Combo | 1 | $61.99 |
| — | Roaring Top 35C 5800 mAh 5S with EC5 Plugs | 2 | $70.09 |
| — | Futaba BLS173SV S.Bus2 Brushless Mini Air HV Servo | 1 | $149.99 |
| — | Futaba BLS-CM600 S.Bus2 Mini 1/12 High Voltage Brushless Servo | 6 | $159.99 |
