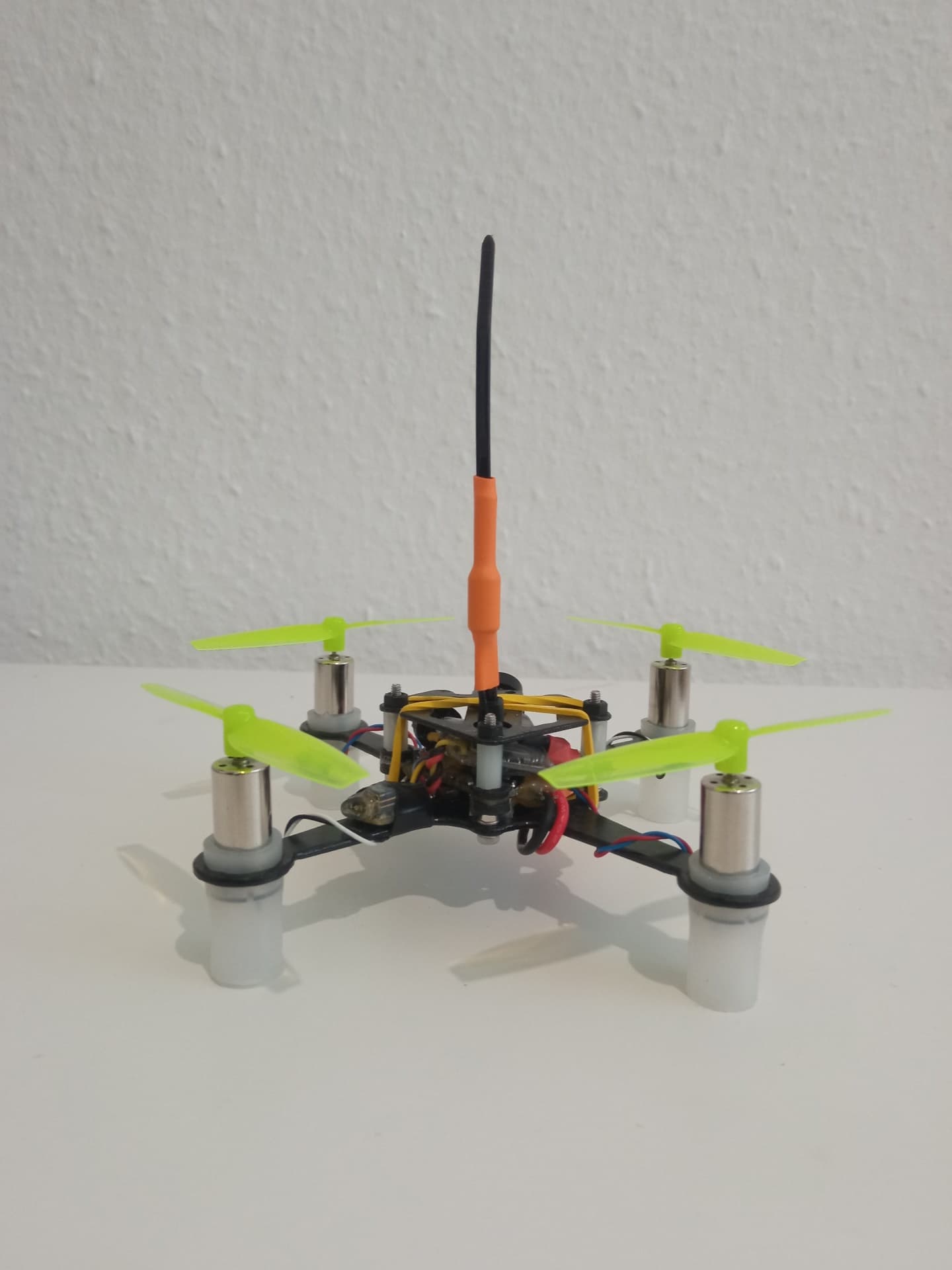

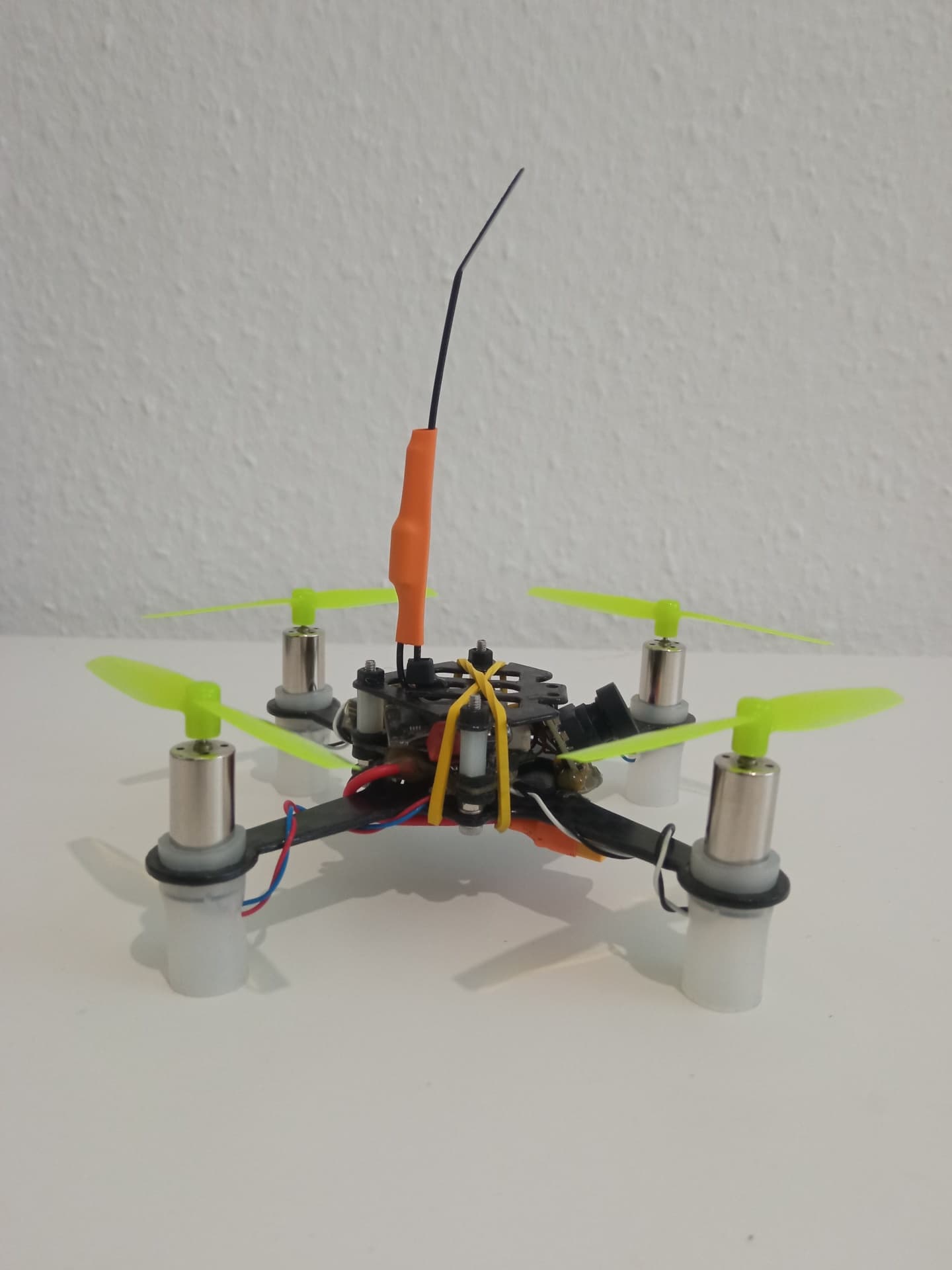

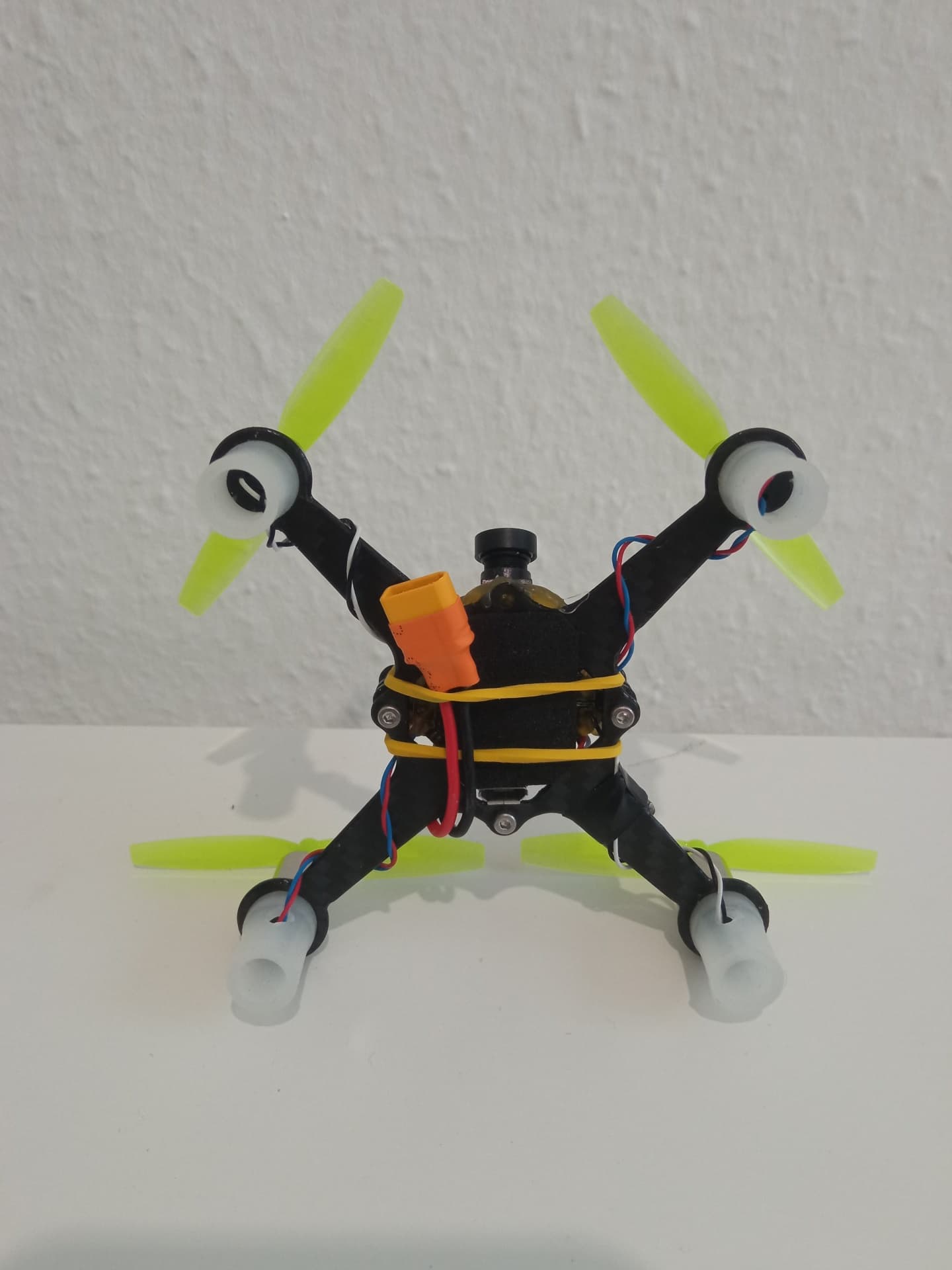

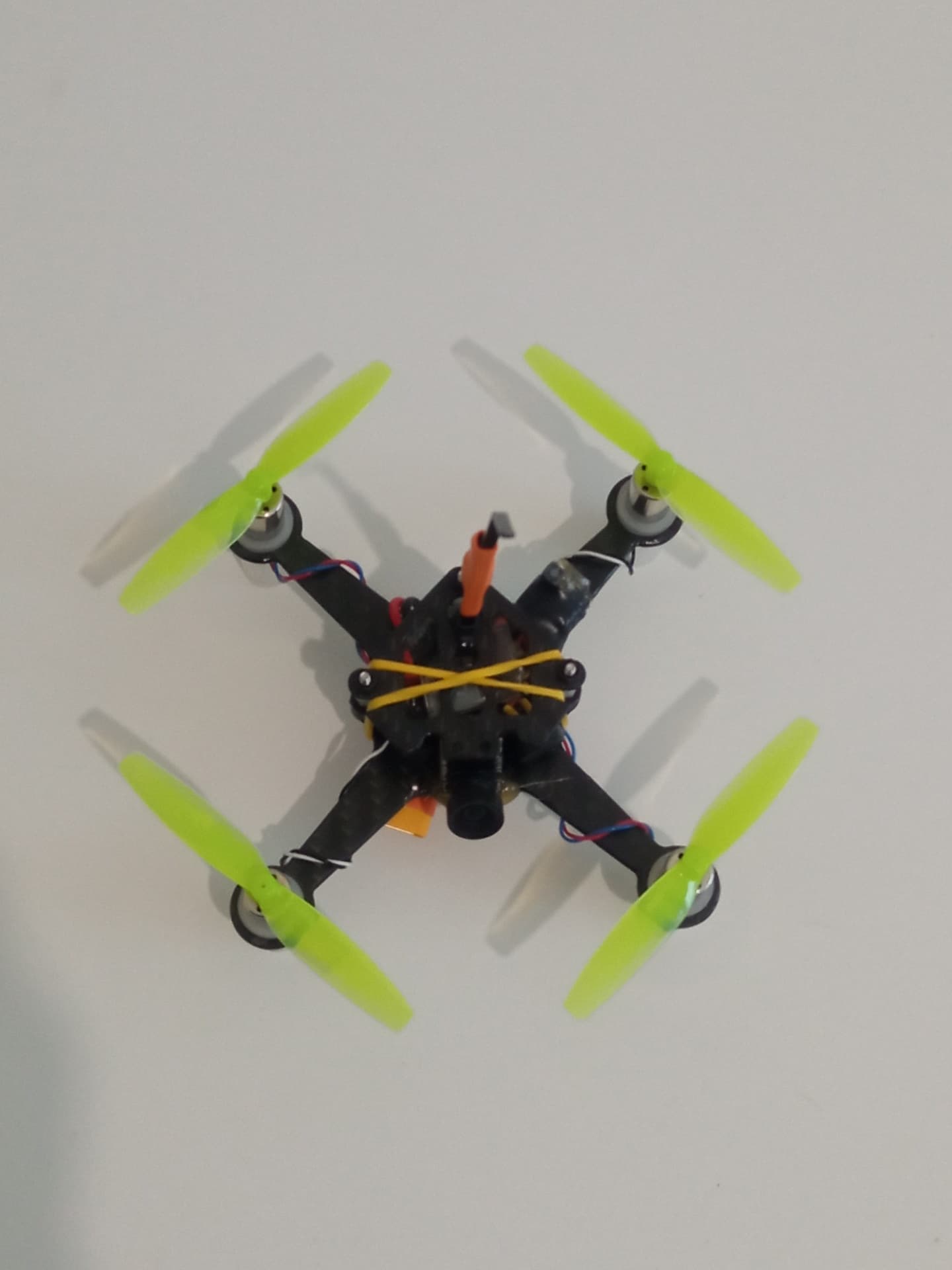

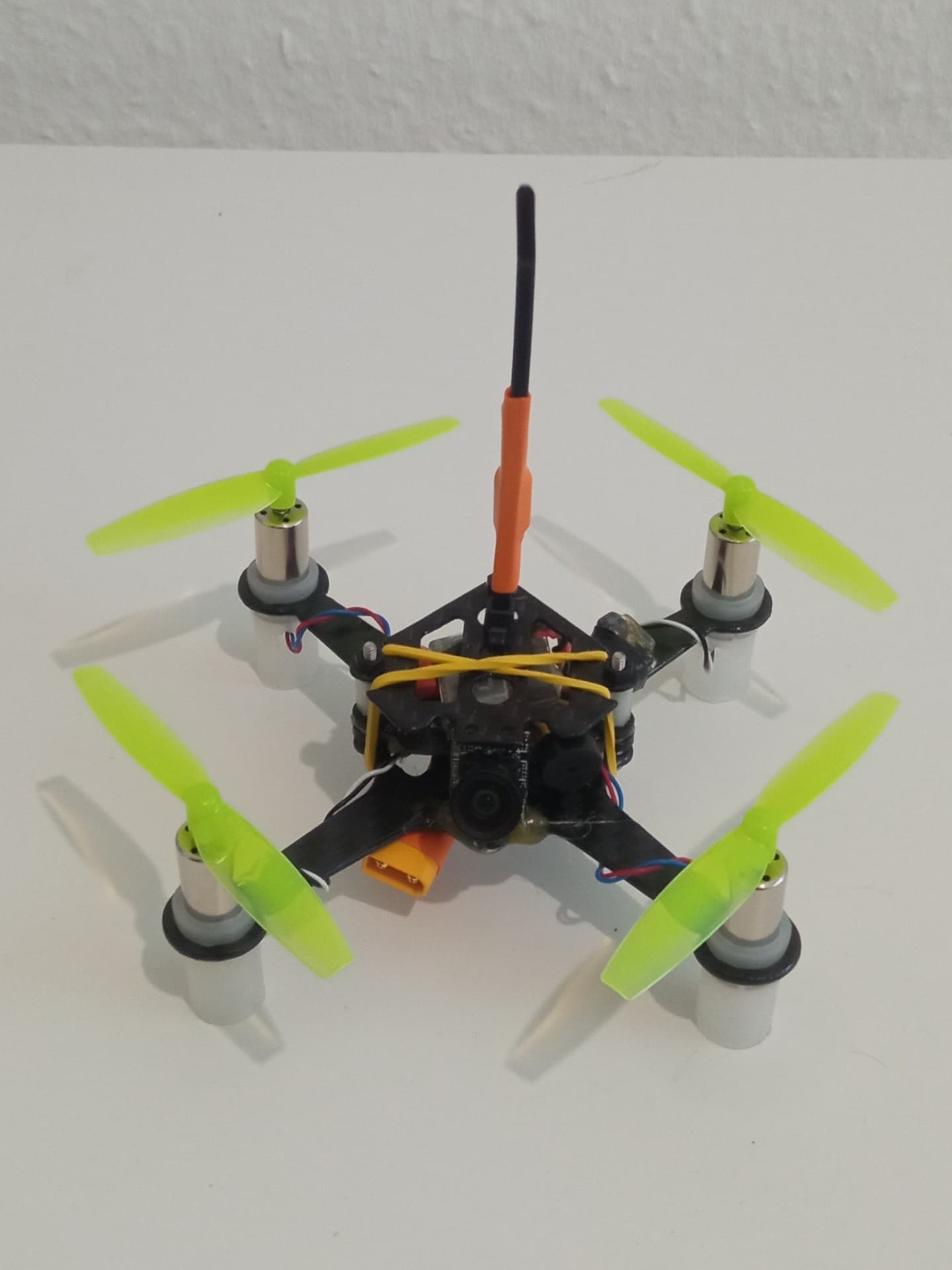

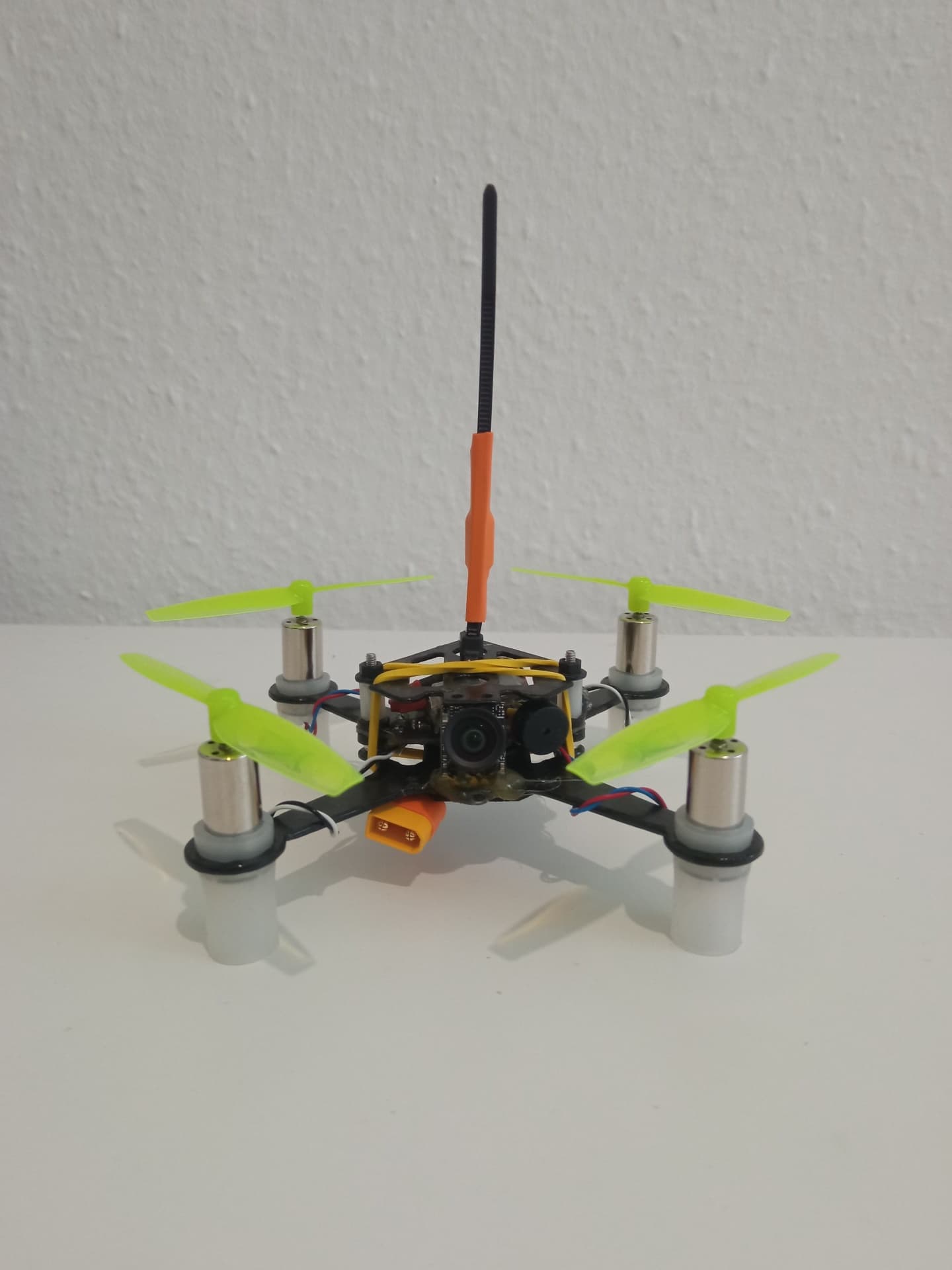

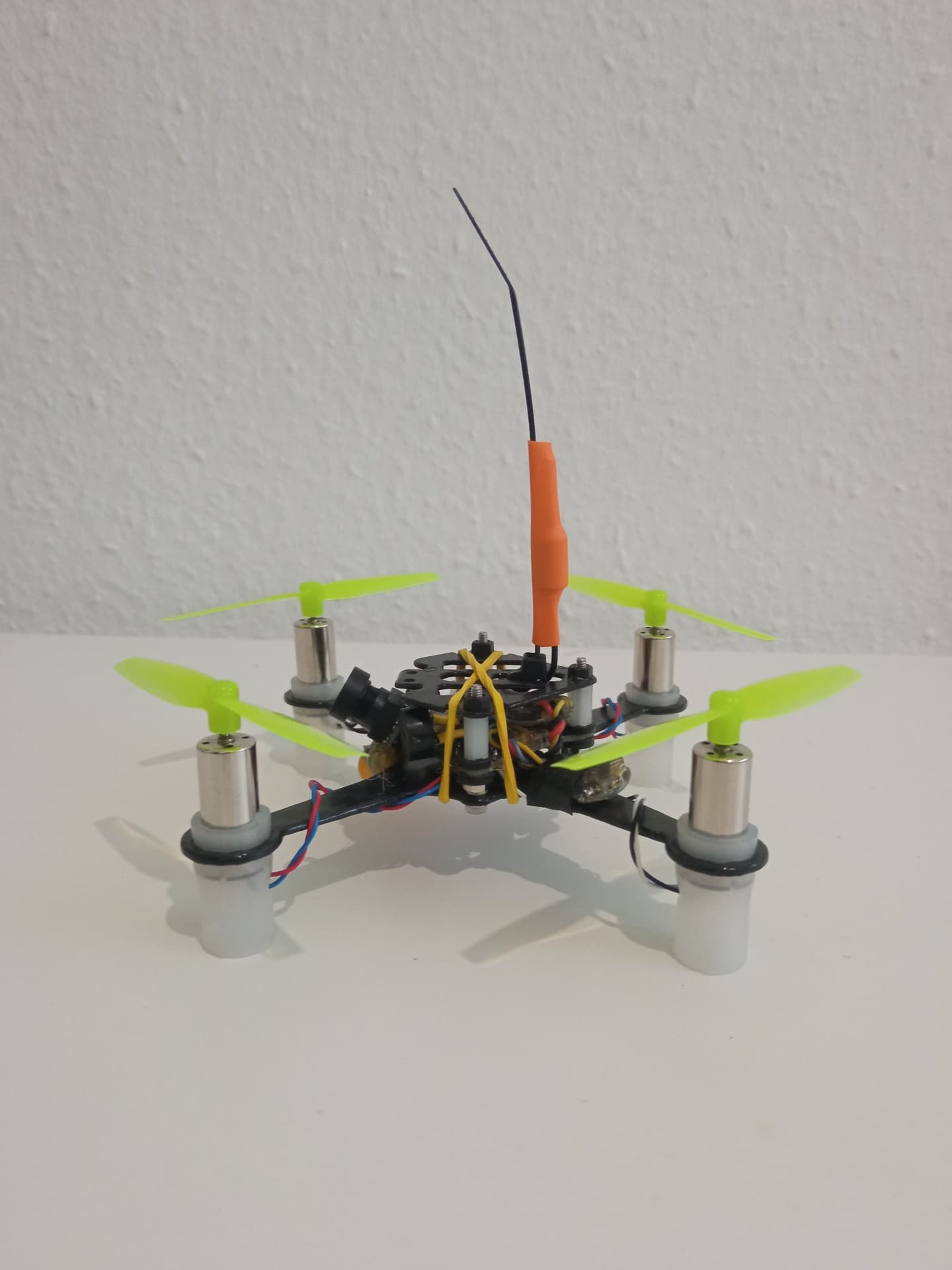

2S 8520/8523 Brushed F4 102mm HU (2026)

2S brushed classic build with different motors weight 48g-52g depends on motor!

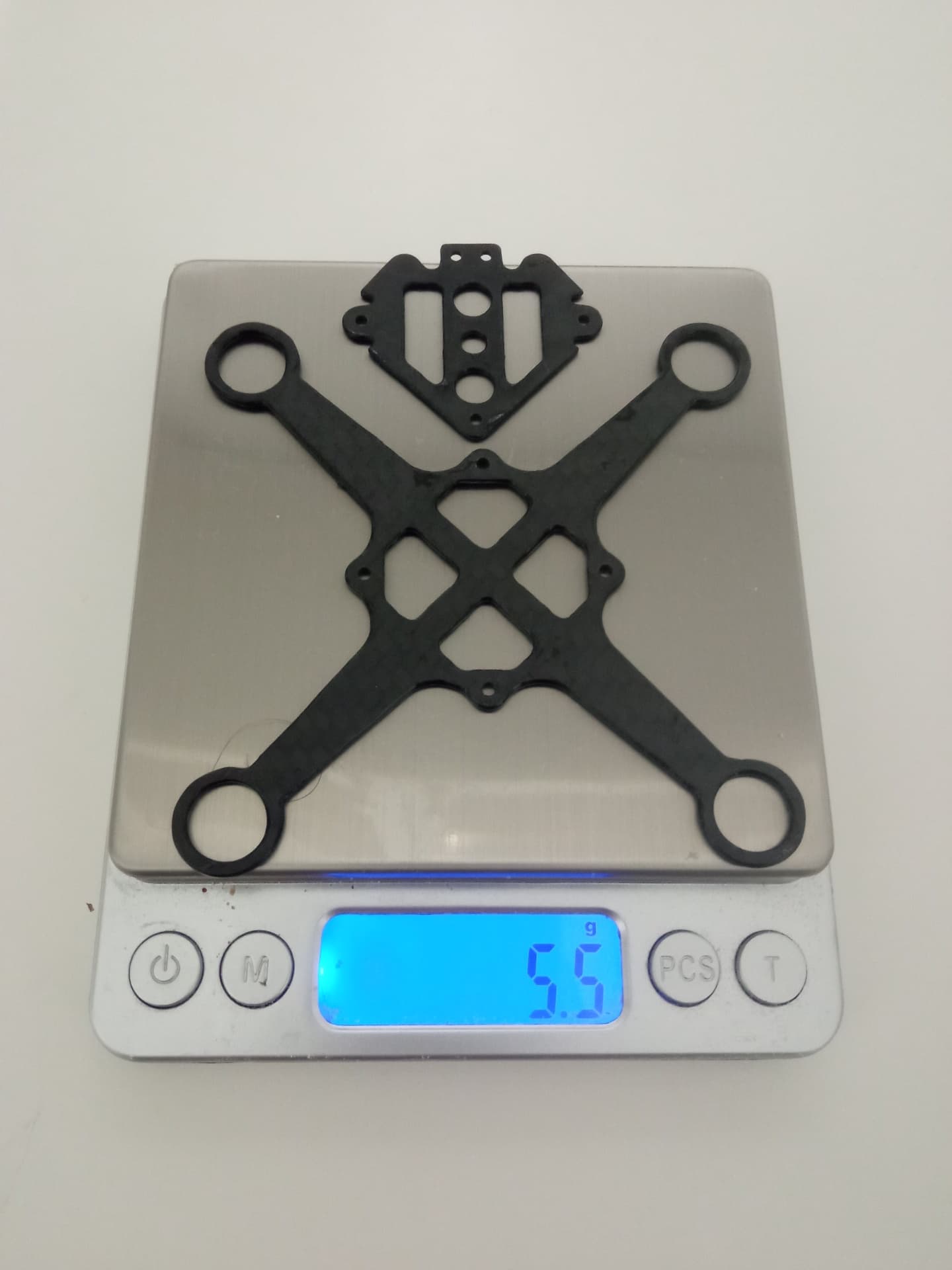

Frame: 102mm Own developmemt and cut by ccarbon.hu

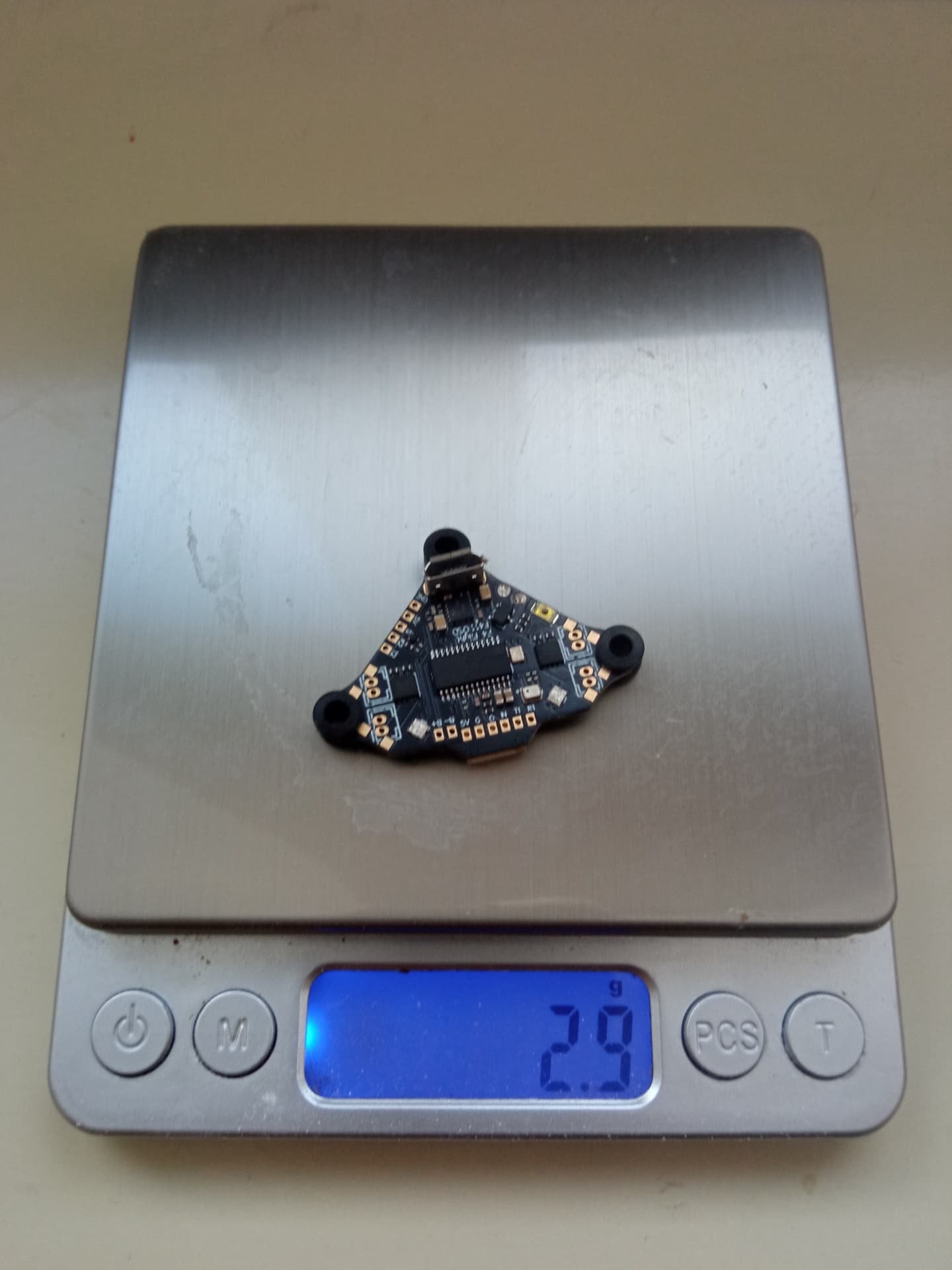

FC: F4DC F4 Flight Control Brushing Motor, OSD, Barometer

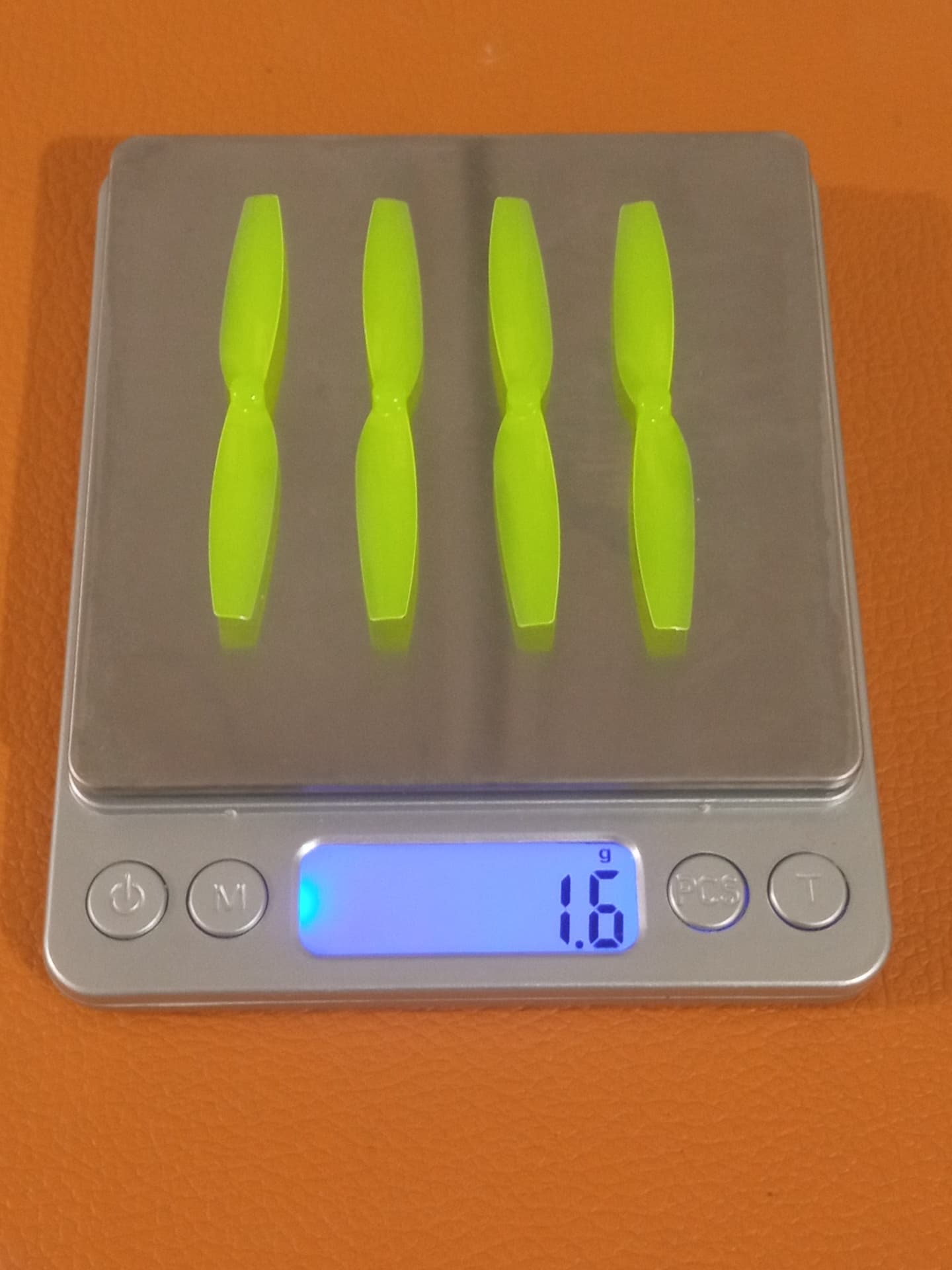

Propeller: 65mm with 1 or 1.2mm hole
Receiver: BetaFPV ELRS Lite Receiver
VTX: Eachine VTX02 200mw

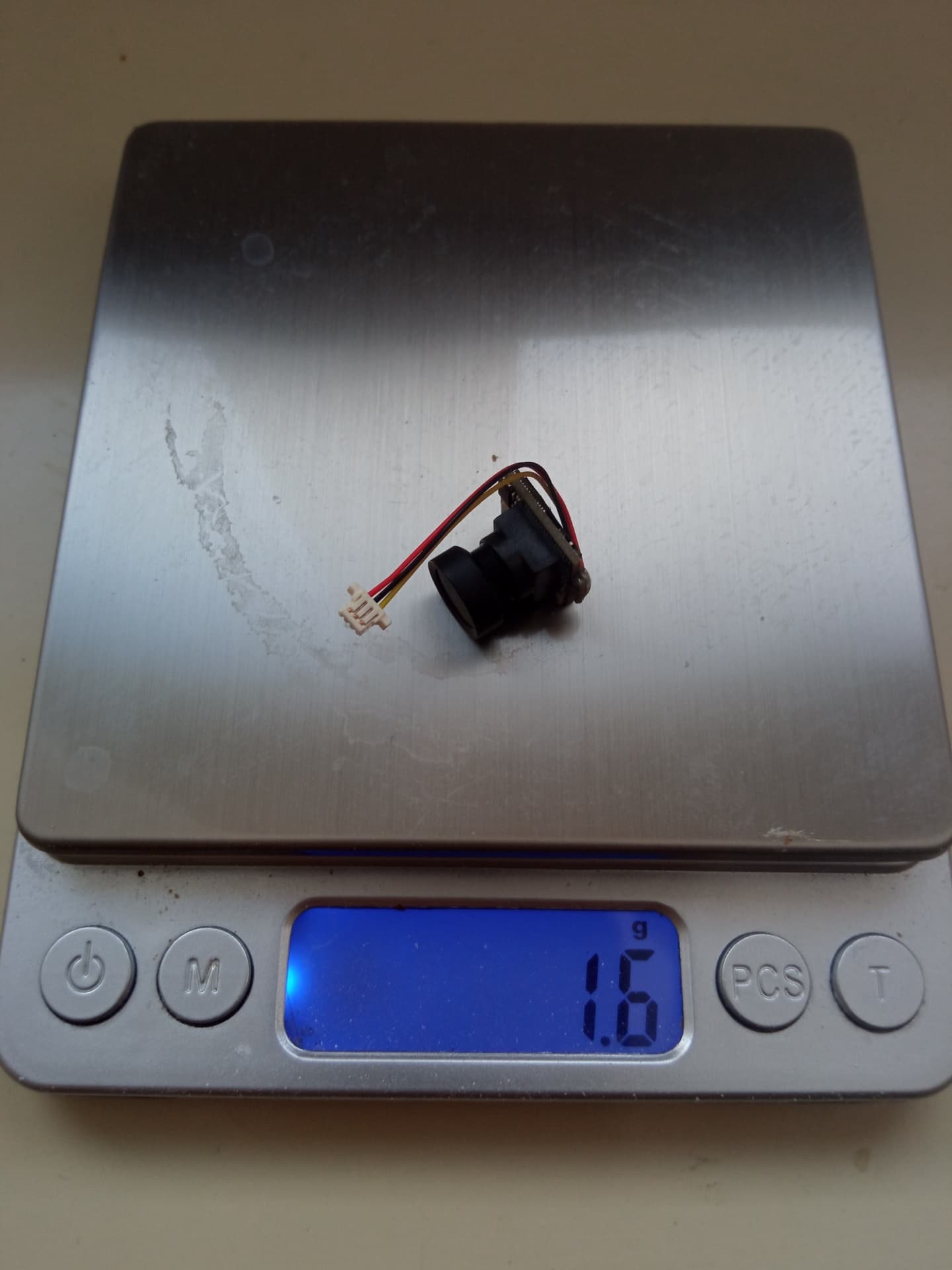

Camera: BETAFPV C03

Motor:

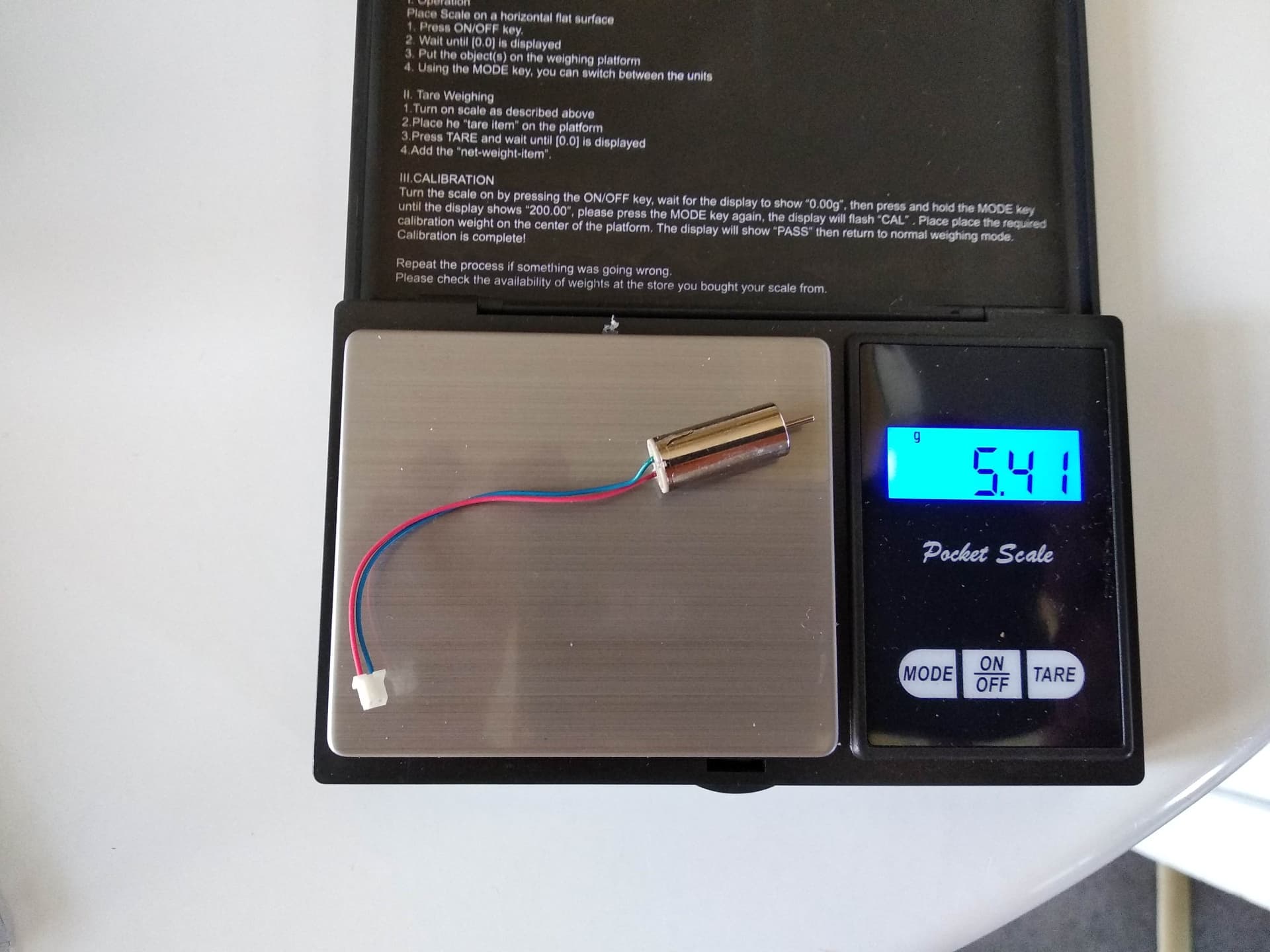

2S 8520 (5,4g) shaft: 1mm short Lifetime Rating minimum 1hour maximum 4hours

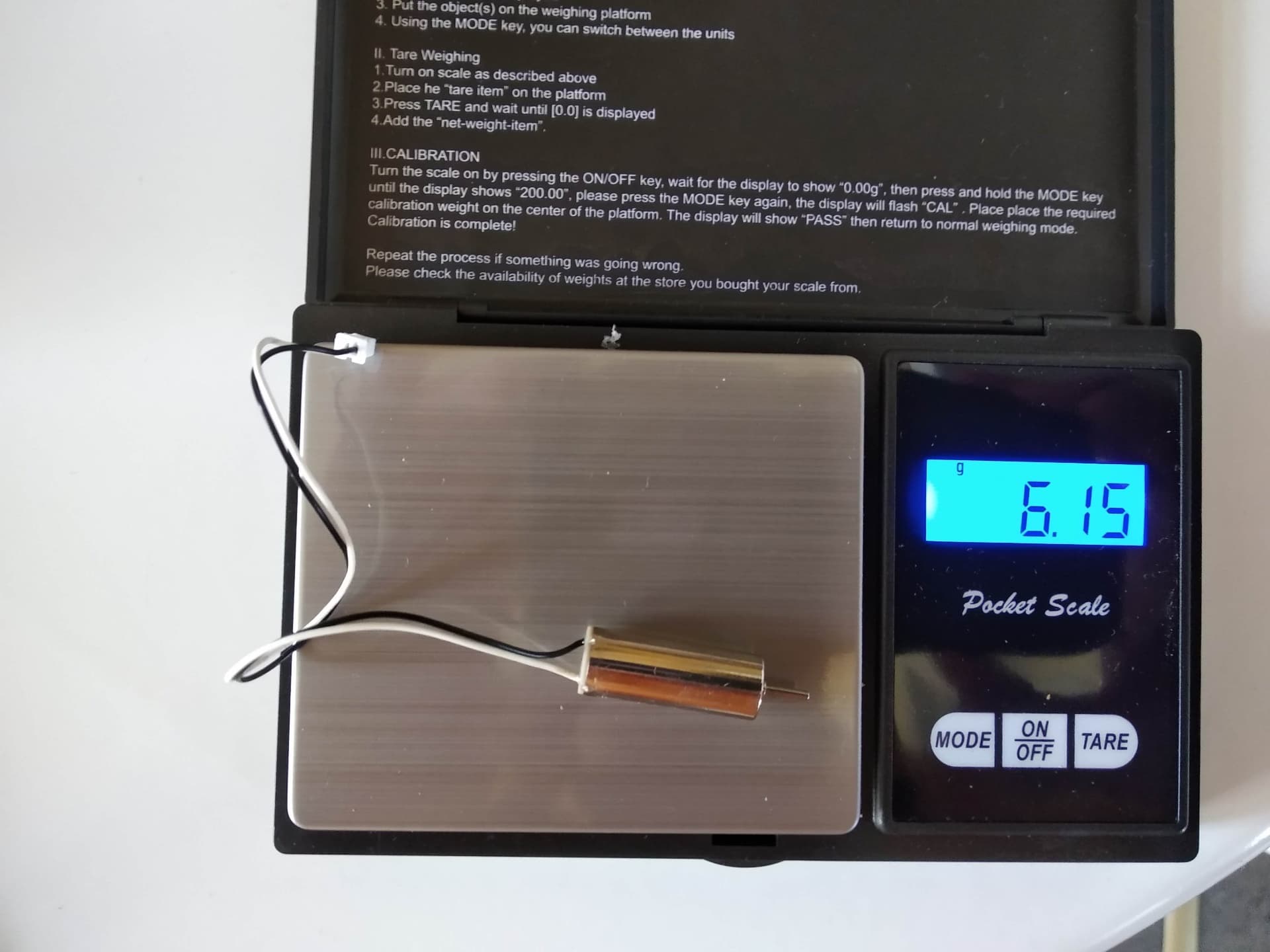

2S 8523 (6,2g) shaft: 1.2mm better Lifetime Rating more than 5hours!

Weight:
2S 8520 -> 48gramm
2S 8523 -> 52gramm

Battery:

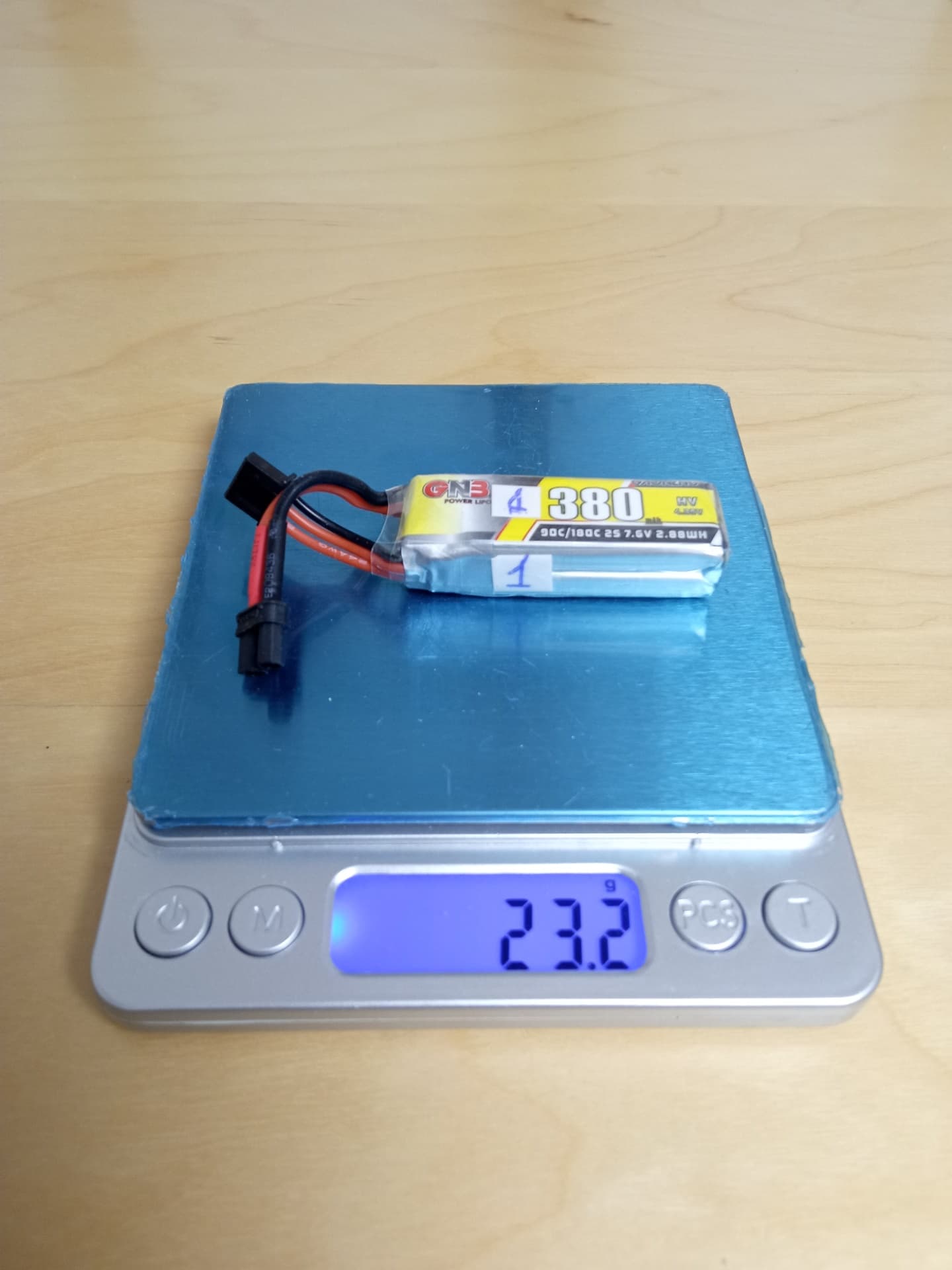

GNB HV 2S 380mah (22g)

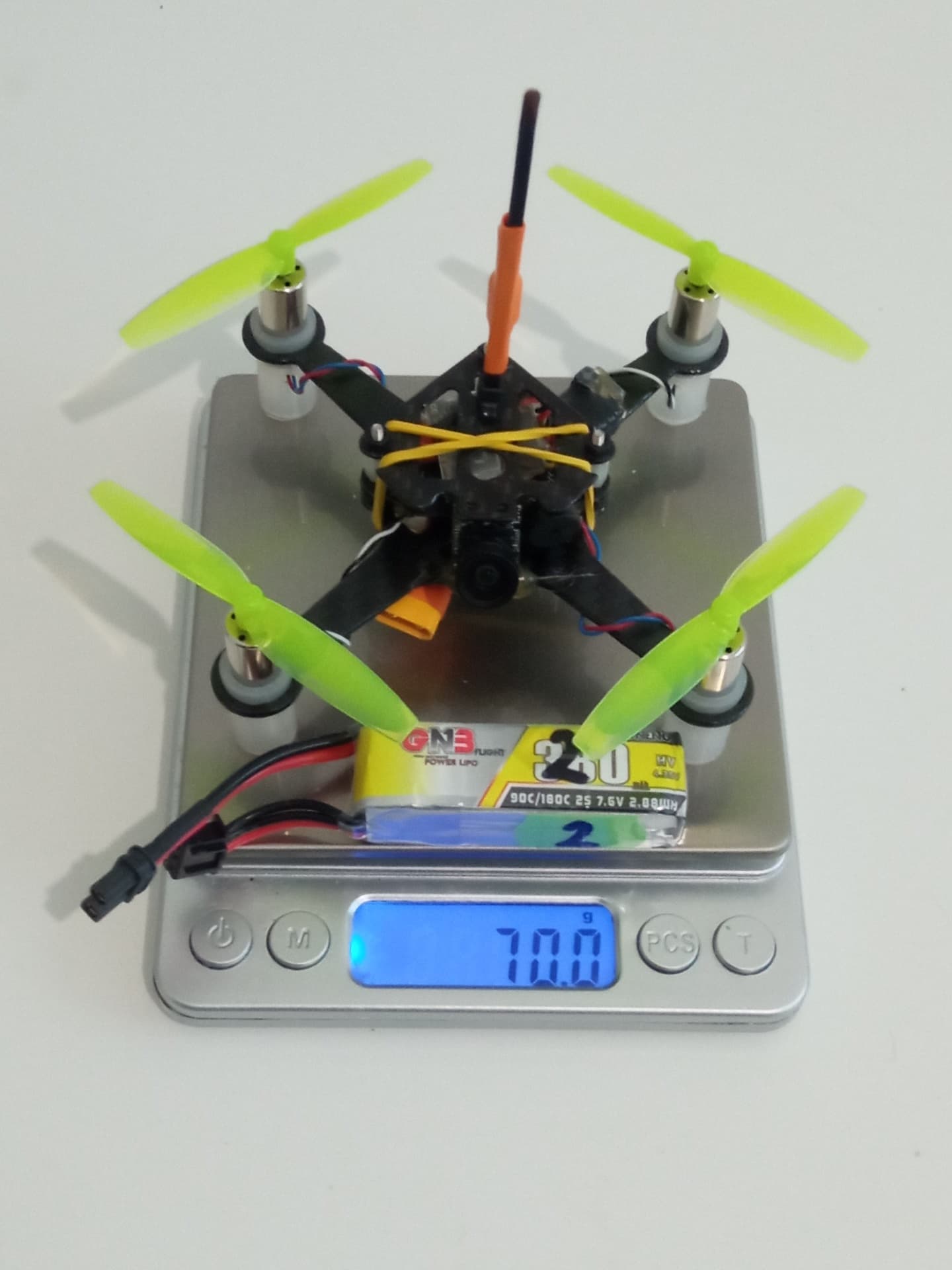

Summ weight: around 70-74gramm

Flytime 4-6 minutes!
