About this part

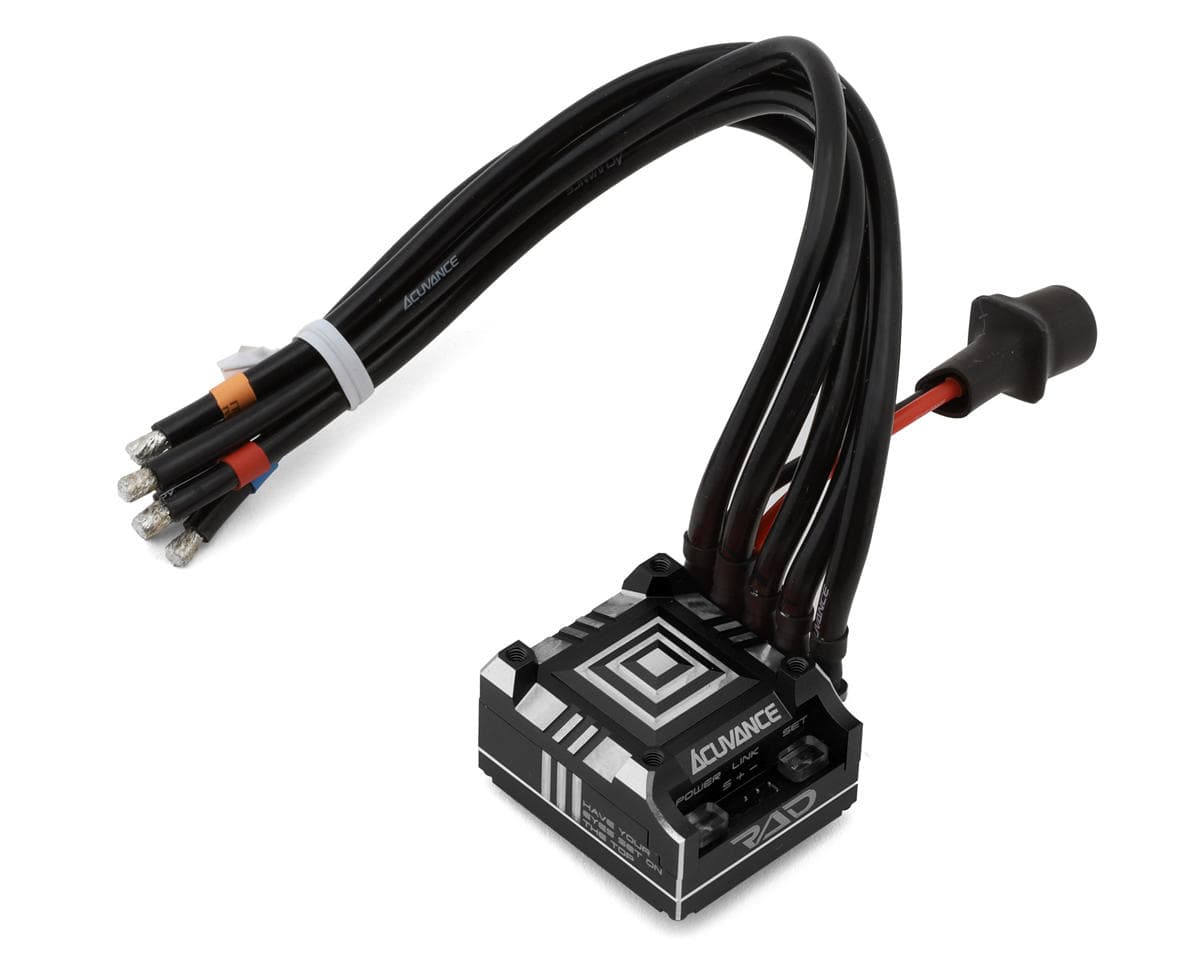

High-Performance R/C Drift Car ESC
Push your drift performance to the next level with the Acuvance RAD ESC — silky, torquey power, advanced cooling, and precision control designed for competitive 1/10 sensored brushless racing.
About the RAD Drift ESC
Silky Smooth Torque
The Acuvance RAD Sensored Brushless ESC delivers silky, torquey output with precise low-RPM control for delicate and dynamic driving. Updated FET technology enhances throttle response while maintaining smooth power delivery, giving drivers a high-performance, controllable experience. The ESC is ROAR Racing approved, ensuring it meets competitive standards for touring-car performance.
Advanced Cooling & Durability
Featuring a pyramid-shaped top design, the RAD maximizes airflow when a cooling fan is installed, reducing fan load and improving thermal efficiency. Battery reverse connection protection with alert LED prevents circuit damage, while hologram-cut aluminum adds a stylish, high-end finish. Integrated [Torque Level] and [Torque Endpoint] functions allow fine-tuning via TAO III or S.BUS-compatible transmitters, providing complete control over acceleration and throttle response.
Features:
- Silky smooth and torquey output
- Updated FET for smooth power
- Precise low-RPM throttle control
- Pyramid-shaped top for better cooling
- Cooling fan compatible for efficiency
- Reverse battery protection circuit included
- Alert LED for reverse connection
- Hologram-cut aluminum for stylish finish
- Torque Level function for acceleration tuning
- Torque Endpoint function for throttle range adjustment

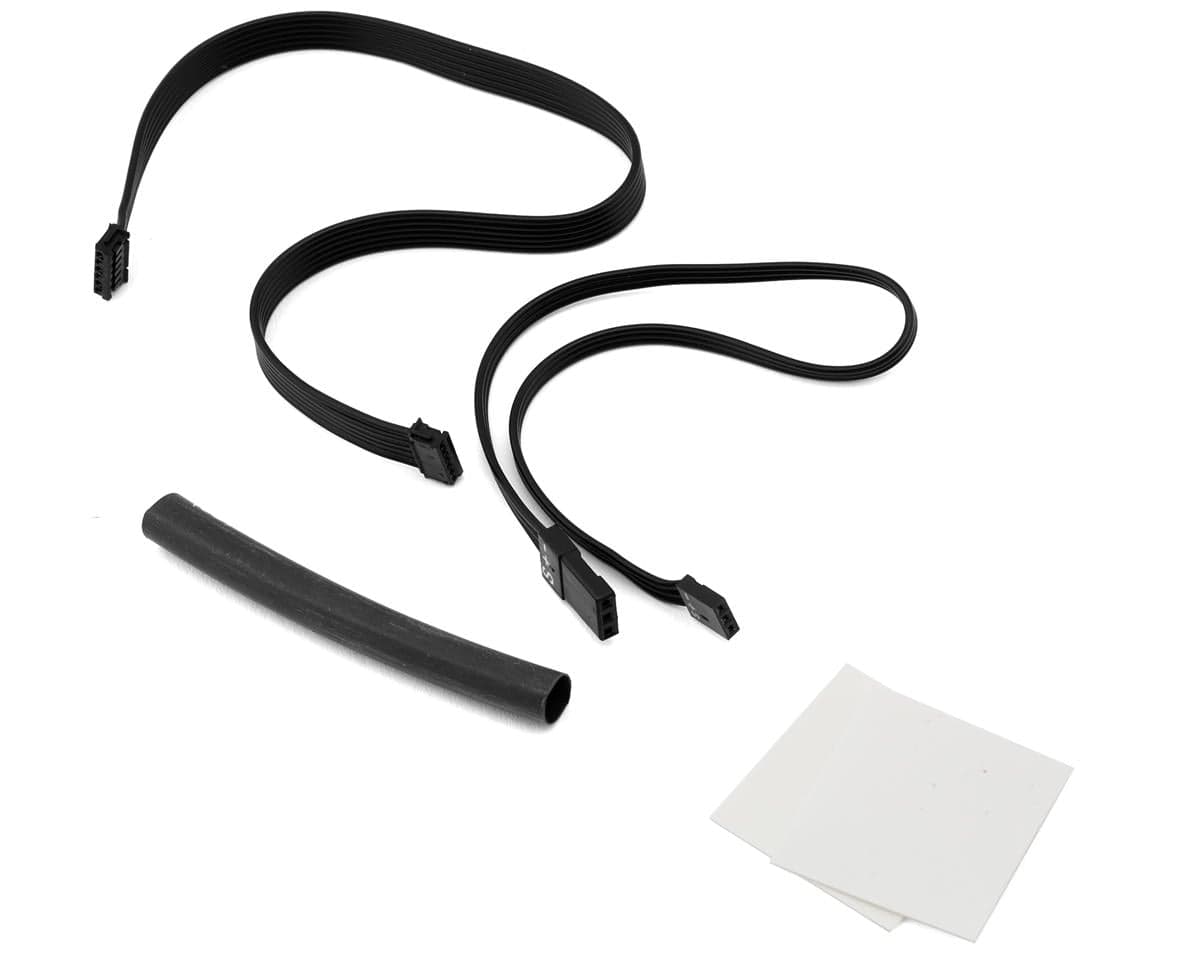

Includes:
- (1) RAD Performance Sensored Brushless 1/10 Drift ESC
- (1) RX Cable
- (1) Sensor Cable
- (1) Bullet Connectors
- (1) Heat Shrink Tube
- (1) Manual
Specifications:
| Suggested Application | 1/10 Drift |
|---|---|
| Motor Type | Brushless - Sensored |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | - |
| Peak Current | - |
| Dimensions (LxWxH) | 1.2x1.37x0.80in (30.5×35×20.5mm) |
| Weight | 1.66oz (47.2g) |
| Motor Limits | 540-Size |
| BEC Voltage | 6V/7.4V |
| BEC Peak Current | - |
| Programmable | Yes |
*Tech Note: Update TAO? to enable communication between TAO? and RAD
*Tech Note: RAD update is required to perform wireless communication using the transmitter.
