About this part
High-Performance R/C Drift Car ESC
Experience unmatched control with the Acuvance Xarvis XX ESC — high-efficiency, fully programmable, and engineered with advanced cooling to deliver smooth, powerful, and reliable performance for 1/10 sensored brushless drift cars.
About the Xarvis XX Drift ESC
High-Efficiency Power Delivery
The Acuvance Xarvis XX Sensored Brushless ESC delivers stable, torquey output with high efficiency thanks to its advanced FET technology. Its improved program control circuit allows fine-tuning of torque levels, torque endpoints, turbo, and boost timing for precise throttle control. Reverse battery protection and an alert LED prevent damage from accidental reverse connections, while pre-soldered wires and updated capacitor terminals make installation clean and effortless.
Advanced Cooling & Durability
Housed in a stylish anodized aluminum case with a floating 3D-bridge fan mount, the Xarvis XX maximizes airflow and cooling efficiency for consistent performance during intense driving. Dual dedicated fan terminals support simultaneous use of REY-Storm and FLEDGE fans, keeping temperatures under control even under high load. Designed for 1/10 sensored brushless motors, this ESC combines durable construction, cutting-edge cooling, and versatile programmability to give drivers a smooth, reliable, and fully adjustable driving experience.
Features:
- High-efficiency FET technology
- Smooth, torquey power output
- Improved program control circuit
- Adjustable torque level and endpoints
- Turbo and boost timing options
- Reverse battery protection with alert LED
- Floating 3D-bridge fan mount
- Dual dedicated fan terminals
- Stylish anodized aluminum case
- Pre-soldered wires for easy installation
Includes:

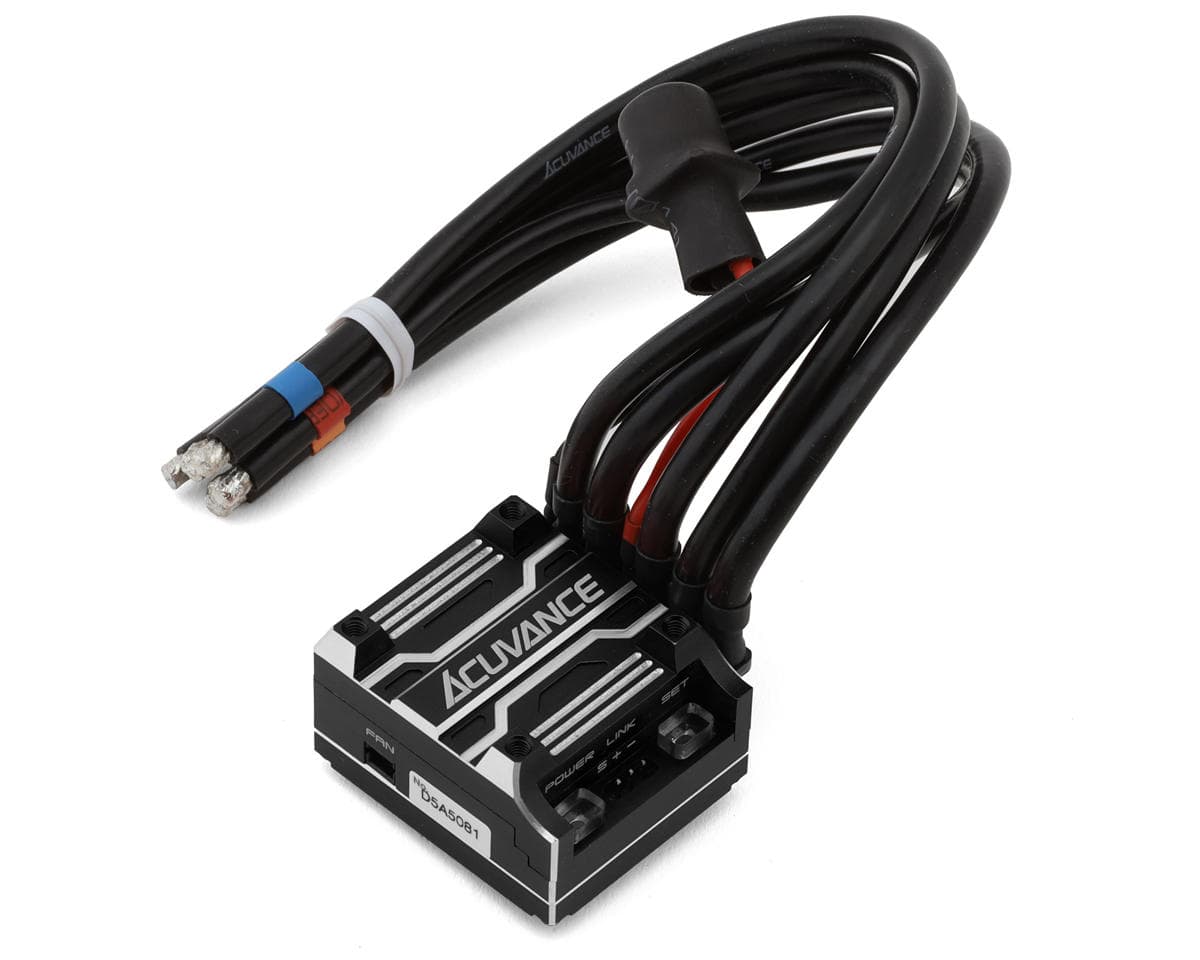

- (1) Xarvis XX Performance Sensored Brushless 1/10 Drift ESC

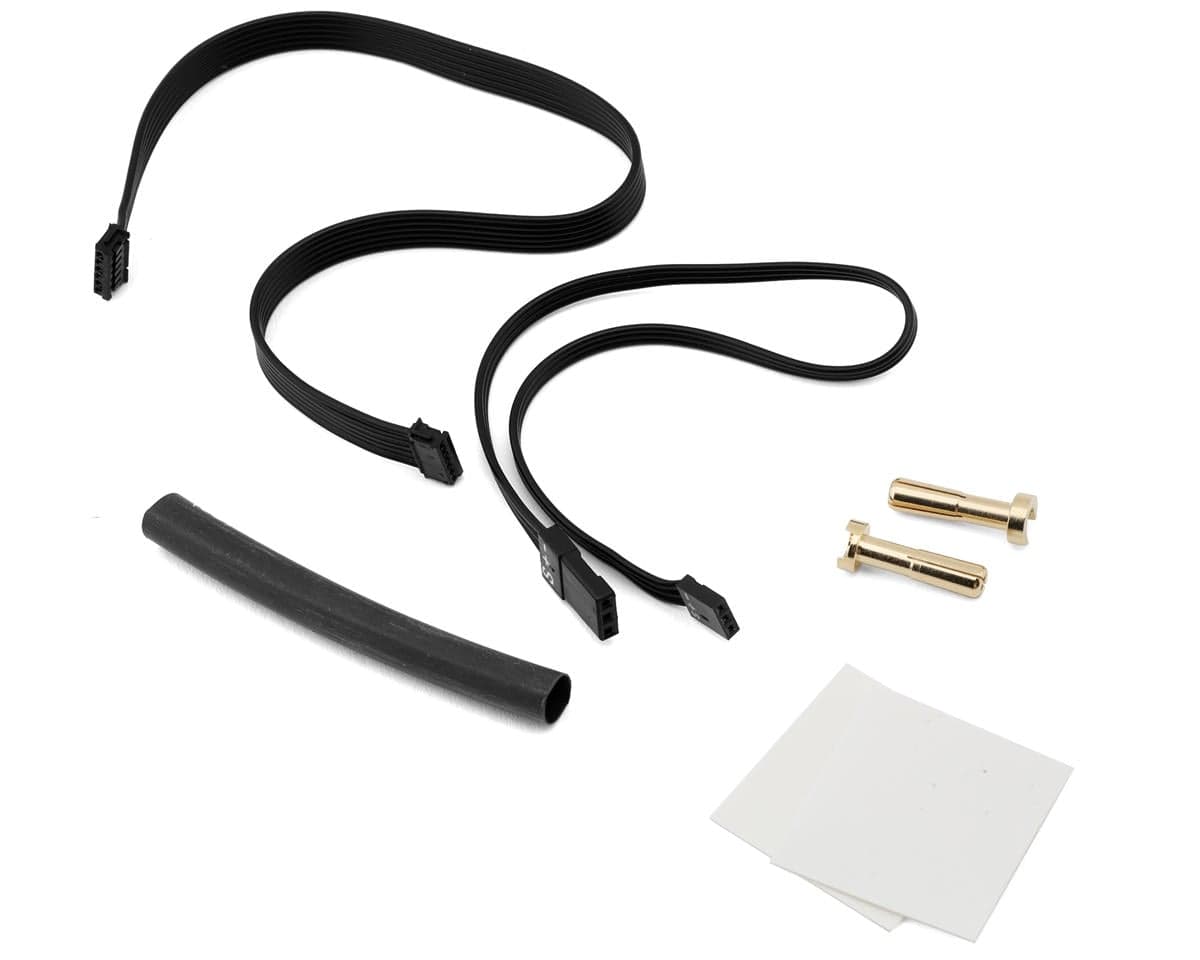

- (1) RX Cable
- (1) Sensor Cable
- (1) Bullet Connectors
- (1) Heat Shrink Tube
- (1) Manual
Specifications:
| Suggested Application | 1/10 Drift |
|---|---|
| Motor Type | Brushless - Sensored |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | - |
| Peak Current | - |
| Dimensions (LxWxH) | - |
| Weight | - |
| Motor Limits | 540-Size |
| BEC Voltage | 6V/7.4V |
| BEC Peak Current | - |
| Programmable | Yes |
*Tech Note: Update TAO? to enable communication between TAO? and XARVIS XX
*Tech Note: XARVIS XX update is required to perform wireless communication using the transmitter.
