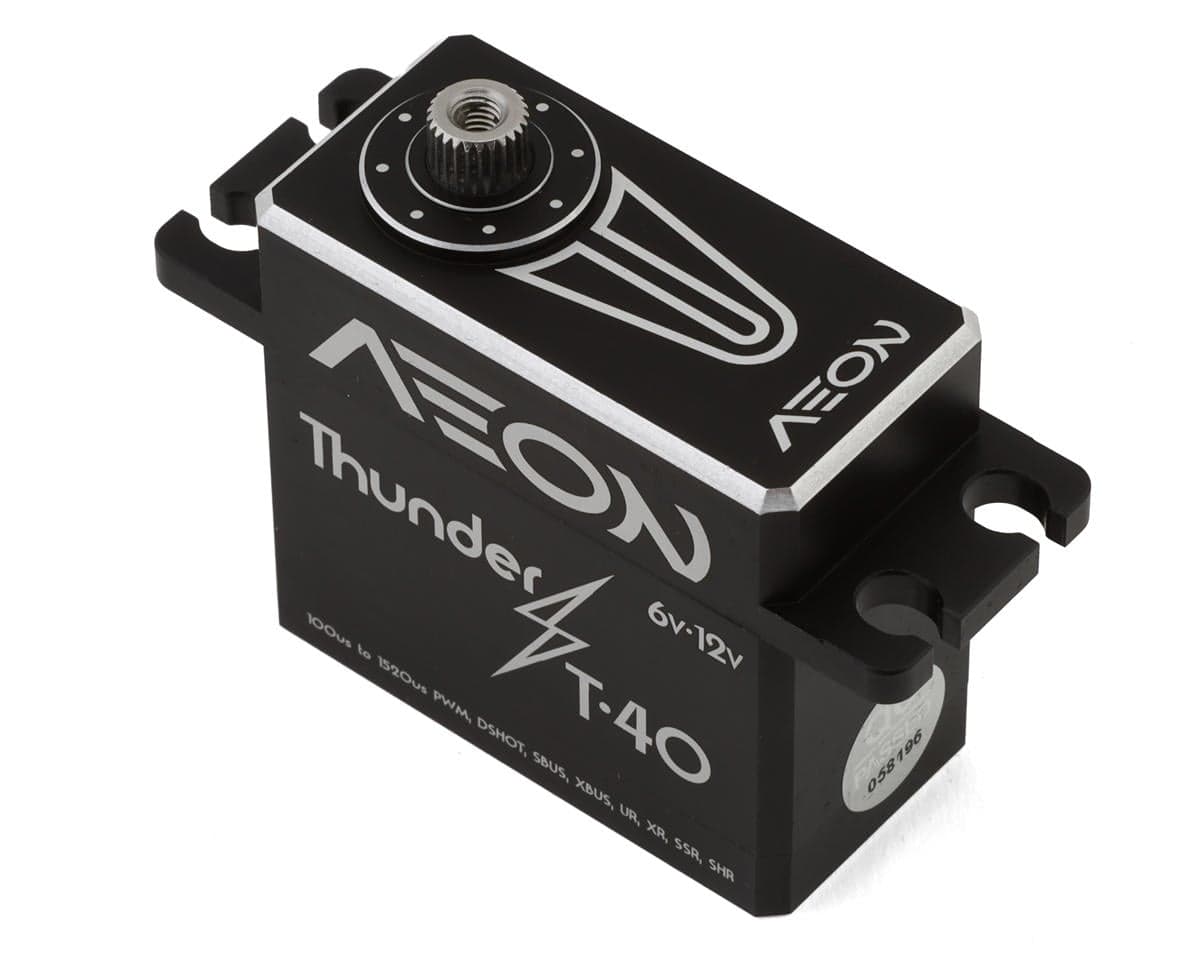

Aeon RC T-40 Multi-Protocol 12V Programmable Digital Brushless Servo
About this part
Ultra High Performance Brushless Servo Overview:
The Aeon RC T-40 Multi-Protocol 12V Programmable Digital Brushless Servo is a revolutionary step forward in RC servo technology. Designed to meet the demands of today’s most advanced RC applications, this servo blends high torque, blazing speed, and cutting-edge programmability into a single compact unit. With three years of R&D behind it, the T-40 brings to the table modern electronic control systems, an event-driven architecture, and support for virtually every protocol available. Whether you're fine-tuning a heli tail or adjusting throttle endpoints on a high-end car, this servo is built to outperform traditional hardware in every category.
Aeon RC mandates the use of their power buffer capacitor (AEN-BCSA82) for the use of multiple servos on any model, to help mitigate the possibility of BEC voltage drops, brownouts, and power resets. In addition to this, they further recommend the use of a emergency backup capacitor system such as the XGuard RC C30 or C50 units Click Here , or other similar systems from different manufactures.
About the Servo
Next-Gen Features and Unmatched Performance
The T-40 servo stands apart with its software-driven capabilities and precision engineering. Featuring a brushless motor, multi-core processor, and real-time multitasking firmware, this servo supports a vast range of protocols, from traditional PWM to cutting-edge DSHOT and MULTISHOT signals. Its 45.5 digital steps per degree offer unheard-of resolution, while firmware and settings can be managed and upgraded via Aeon’s intuitive ASP-01 touchscreen programmer. With torque reaching over 560 oz-in at 12V and programmable angles up to 300°, this servo is engineered for professionals demanding ultimate control, speed, and adaptability.
Features:
- Brushless motor for high efficiency and long life
- Programmable travel angle from 0–300°
- Supports multiple protocols including PWM, SBUS, XBUS, DSHOT & MULTISHOT
- 45.5 steps/degree resolution (0.0219° accuracy)
- WiFi-enabled firmware updates via ASP-01 programmer
- Detachable fireproof servo cable with three length options
- Multi-core processor with event-driven firmware
- Up to 40.5Kg (562 oz) torque at 12V
- Speed as fast as 0.0497 sec/60° at 12V
- Compatible with ASP-01 Aeon Servo Programmer
Includes:
- (1) T-40 12V Brushless Digital Servo
- (1) 330mm Fireproof Servo Cable
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6-12V |
| Operating Speed @ 6.0V | 0.0782 sec/60° |
| Operating Speed @ 8.4V | 0.0543 sec/60° |
| Operating Speed @ 12V | 0.0497 sec/60° |
| Dynamic Torque @ 6.0V | 381 oz-in (26 Kg-cm) |
| Dynamic Torque @ 8.4V | 458 oz-in (33 Kg-cm) |
| Dynamic Torque @ 12V | 562 oz-in (40.5 Kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | - |
| Weight | - |
