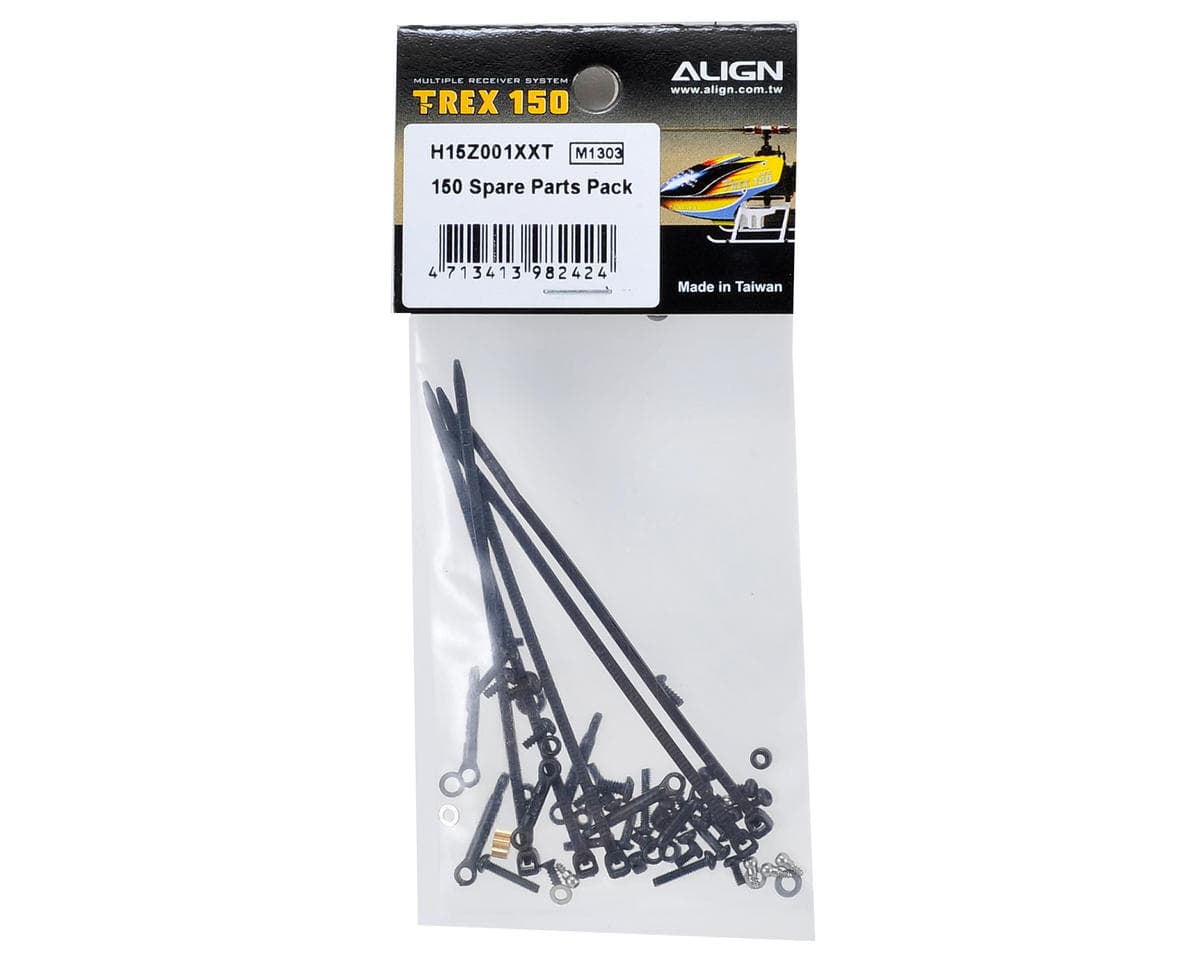

Align 150 Spare Parts Pack
Part # AGNH15Z001XX
Fits
Where to buy
$6.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is a replacement Align 150 Spare Parts Pack. This package includes a majority of the hardware used in the Align 150 DFC helicopter.
Includes:
- (5) Socket button head screw (#0-80x6.2mm)
- (4) Washer (Φ2xΦ3.6x0.2mm)
- (2) 150 Head Damper (Φ2xΦ4x1.3mm)
- (5) Socket Button Head Screw (#0-80x3mm)
- (4) 100 Spacer (Φ1.6xΦ3.2x0.2mm)
- (4) Socket button head screw (#0-80x8mm)
- (5) Φ2.1 Linkage ball A (Φ2.1x4.28mm)
- (2) Socket button head screw (M2x4mm)
- (2) Cross screw (T1.5x4mm)
- (2) 150 Ball Link A (Φ2.1x13.3x2mm)
- (4) 150 Ball Link B (Φ2.1x10.5x2mm)
- (4) 150 Landing Skid Spacer (Φ1.5xΦ3x2mm)
- (5) Socket button head self tapping screw (T1.5x3mm)
- (5) Socket button head self tapping screw (T1.5x4mm)
- (1) Motor Pinion Gear 10T
- (4) 100 Canopy nut
- (5) Strap (1.6x71mm)
