Align

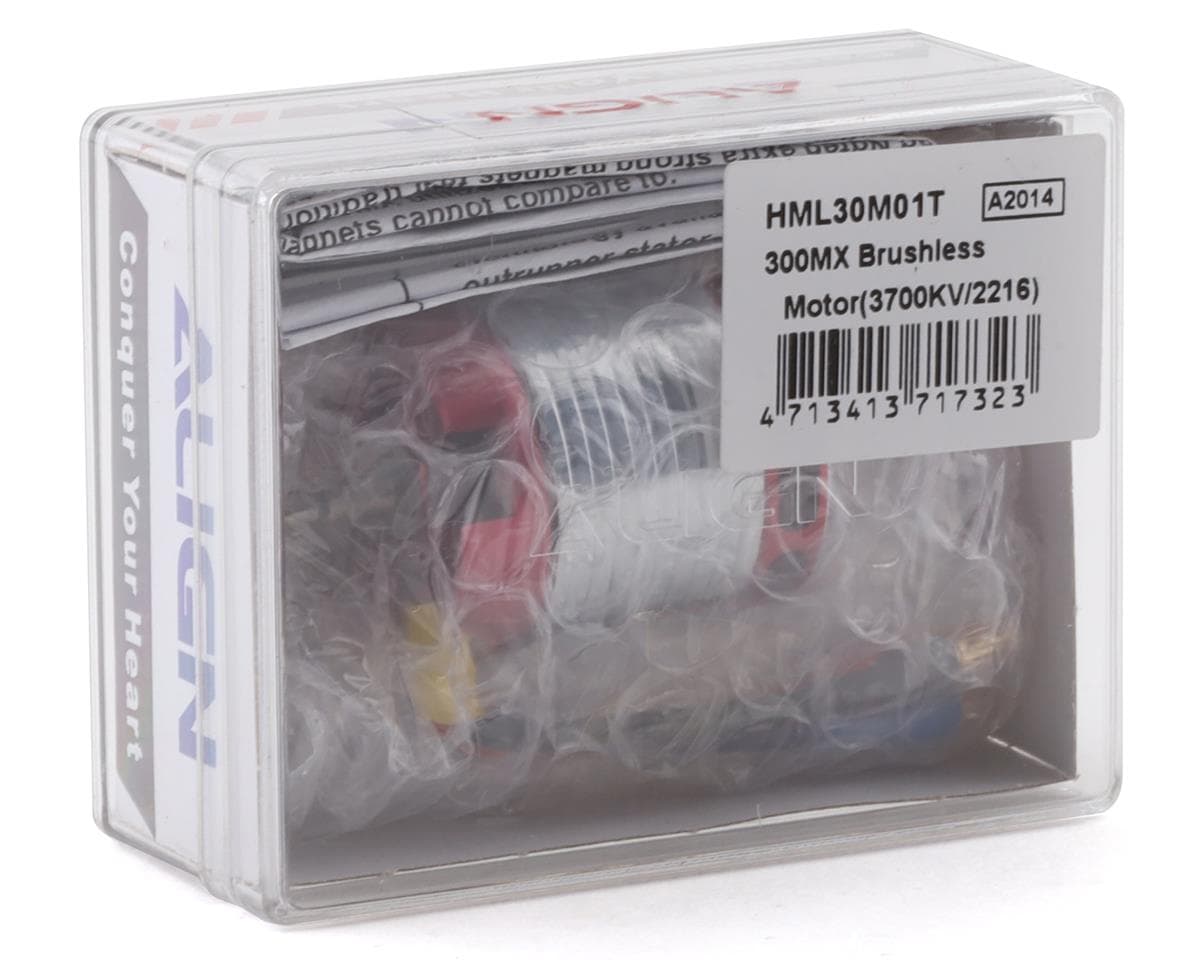

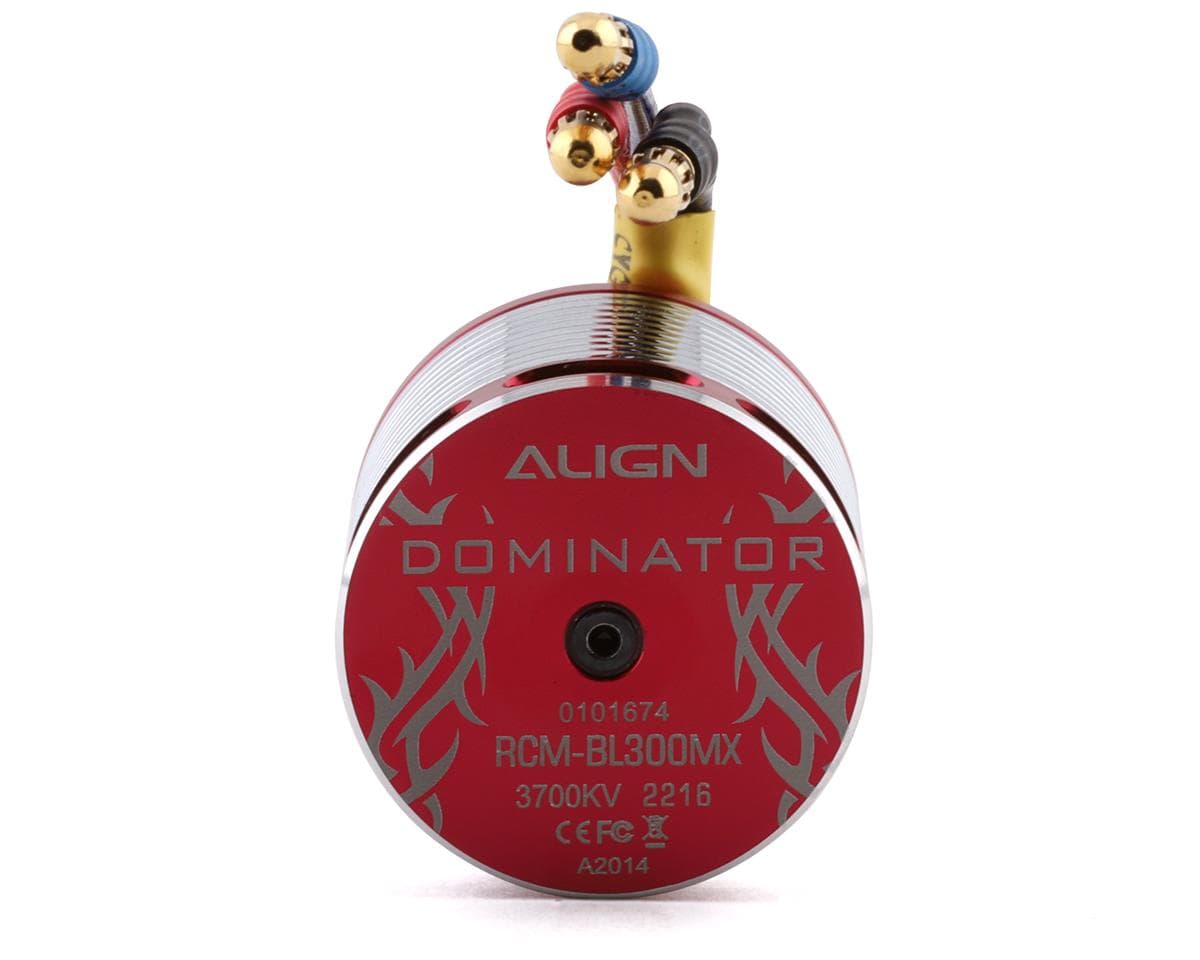

Align 300MX Brushless Motor (2216 3700kV)
Part # AGNHML30M01
Fits
Where to buy
$45.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is a replacement Align 300MX Brushless Motor, suited for use with the T-Rex 300X helicopter.
Specifications:
Input Voltage: 11.1V
Max Continuous Current: 24A | 36A Burst
Max Output Power: 260w | 400w Burst
kV: 3700kV
Stator Dimensions: 2216
Stator Arms: 9
Magnetic Poles: 6
Shaft Dimensions: 3.5x29.2x43.7mm
Weight: 70g
Specifications:
Input Voltage: 11.1V
Max Continuous Current: 24A | 36A Burst
Max Output Power: 260w | 400w Burst
kV: 3700kV
Stator Dimensions: 2216
Stator Arms: 9
Magnetic Poles: 6
Shaft Dimensions: 3.5x29.2x43.7mm
Weight: 70g
