Align

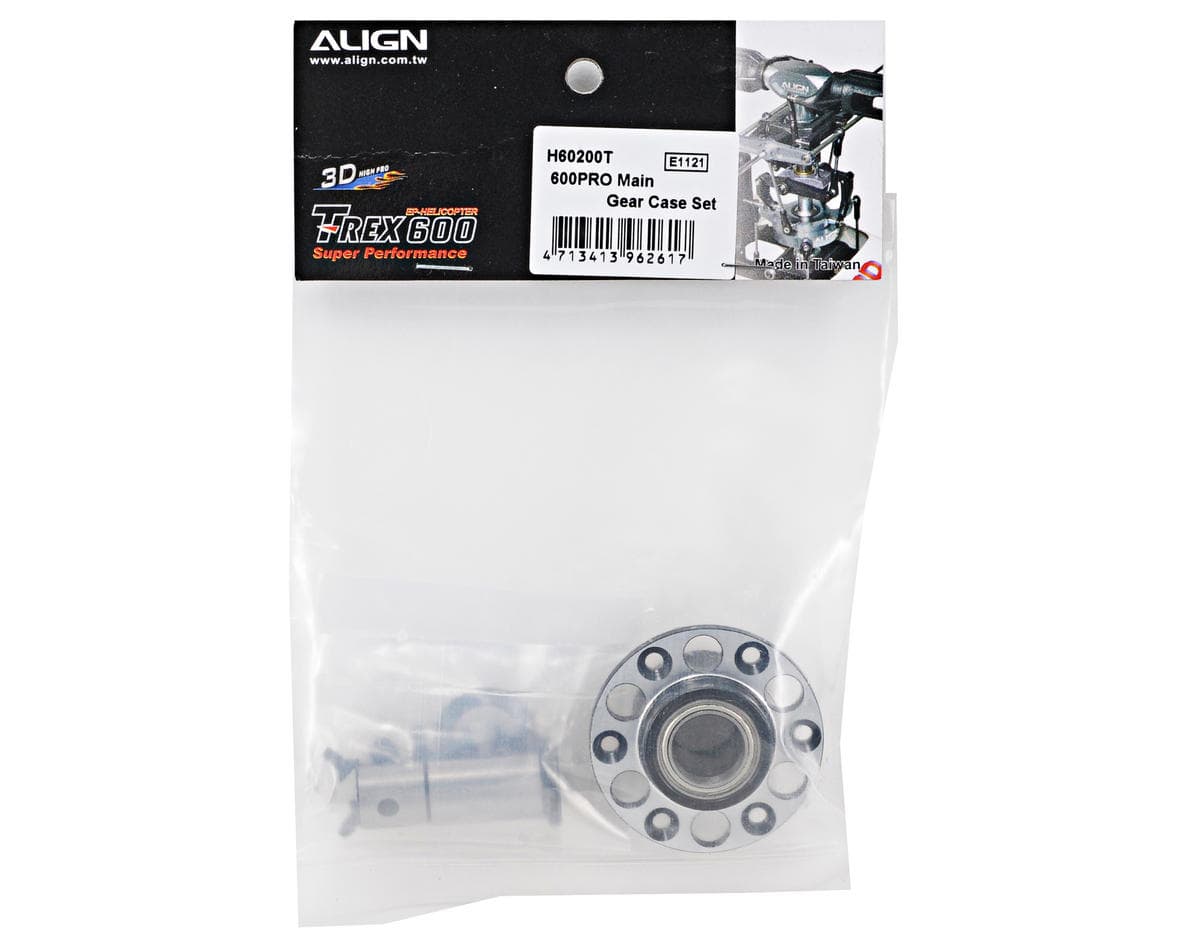

Align 600PRO Main Gear Case Set
Part # AGNH602001.0(1)
Where to buy
$22.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is a replacement Align Main Gear Case Set, and is intended for use with the Align T-Rex 600 Pro. This part features a re-designed one way bearing to help prevent locking.
Suitable with:
Suitable with:
- CNC Slant Thread Main Drive Gear/112T (AGNH70020A)
- One-way Bearing Shaft (AGNH60139A)
- 131T M0.8 Autorotation Tail Drive Gear (AGNH60198) and Torque Tube Front Drive Gear Set (AGNH60228) or (AGNH60229)
- 131T M0.8 Autorotation Tail Drive Gear Assembly (H60199) and Torque Tube Front Drive Gear Set (AGNH60228) or (AGNH60229)

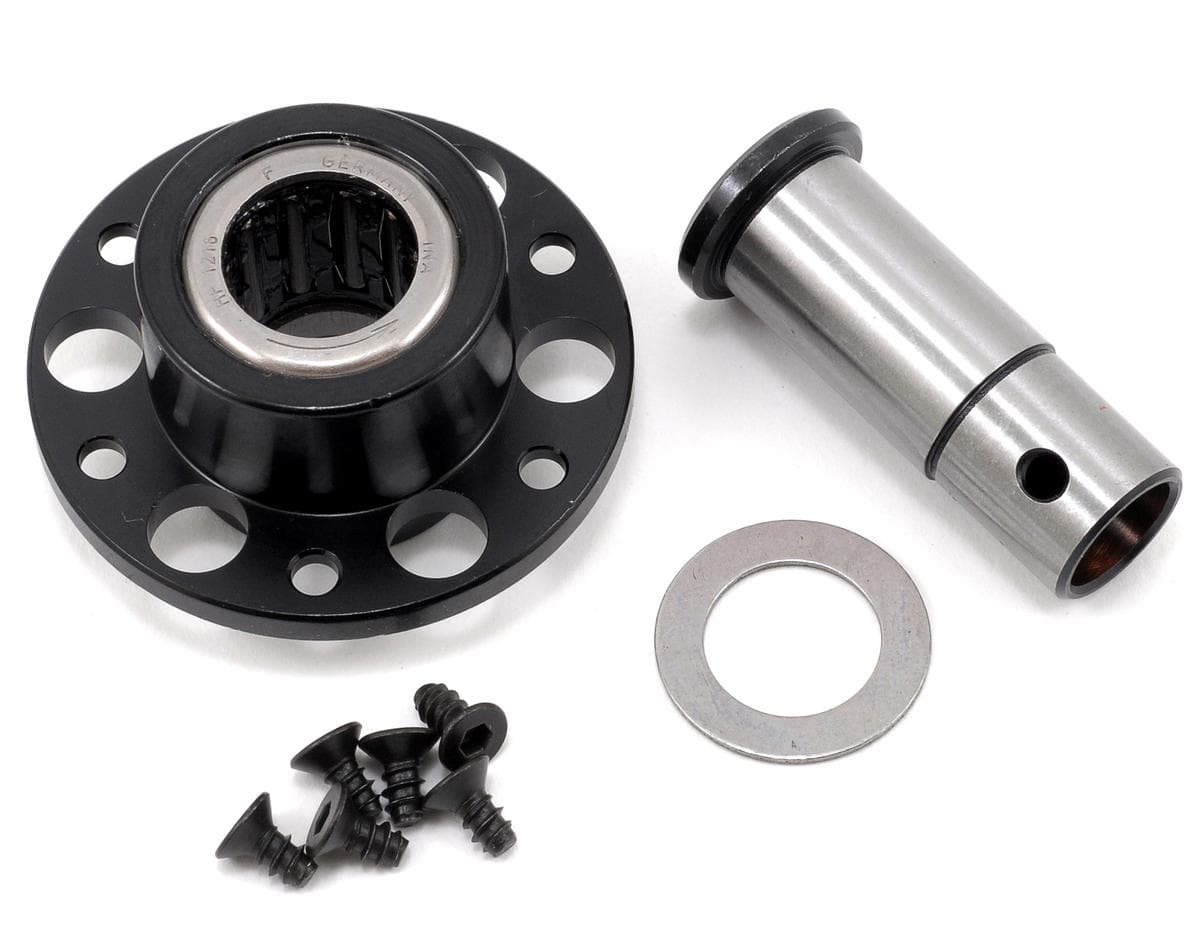

- (1) One-way bearing HF1216 (12x18x16mm)
- (1) Main gear case
- (6) Hex socket salf tapping screw (T3x6mm)
- (1) One-way bearing shaft (9x12x34.7mm)
- (1) Washer (11.5x18x0.8mm)
Reviews1.0 · 1 review
Zachon Align 600PRO Main Gear Case Set
Main gear case for 600 size is good, fits the gears nice and tight. However, the one-way bearing failed within 2 minutes of flight time. I was just doing some hovering and flight settings, went to take off again and the bearing failed causing a forced auto-rotation. Not cool!
