Align
Align DS155 Digital Servo
Part # AGNHSD15501A
Fits
Where to buy
$17.99
Prices are as last seen at the store; stock is not tracked.
About this part
Servo Overview:

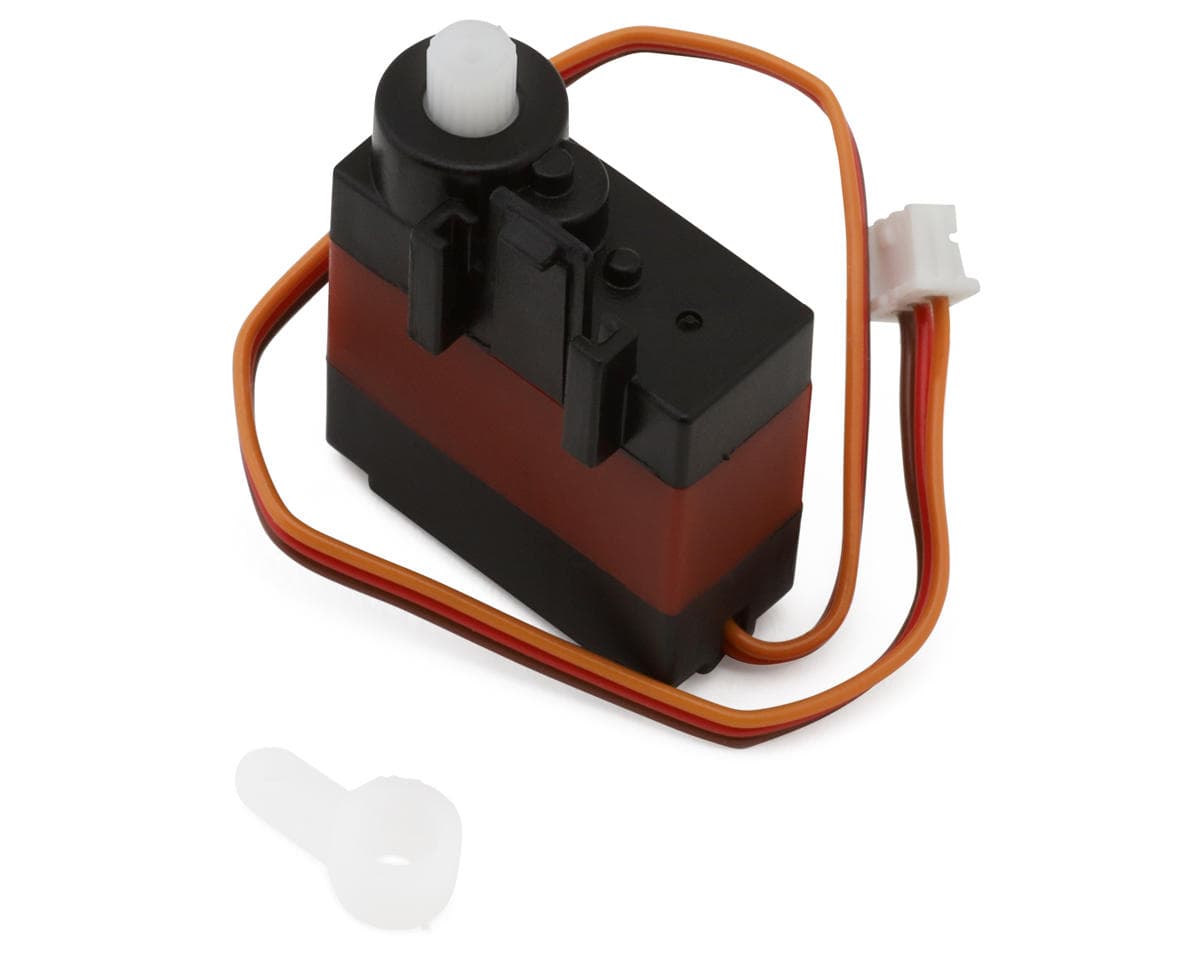

Align DS155 Digital Servo. The DS155 digital micro servo was developed for the T-REX 150 DFC, to increase micro helicopter control, speed and precision. This servo allows the 150 DFC to have the same flight performance as a larger outdoor helicopter and weighs only four grams!
Specifications:
- Application: Helicopter Rudder
- Type: Cyclic
- Input Voltage: 4.8-6V
- Speed:
- @5.0V: 0.06sec/60°
- Torque:
- @5.0V: 0.8oz-in (0.8kg-cm)
- Dimensions: 0.77x0.33x0.91in (19.8x8.4x23.3mm)
- Weight: 4.3g
- Motor: Digital
- Operating Spline:
Includes:

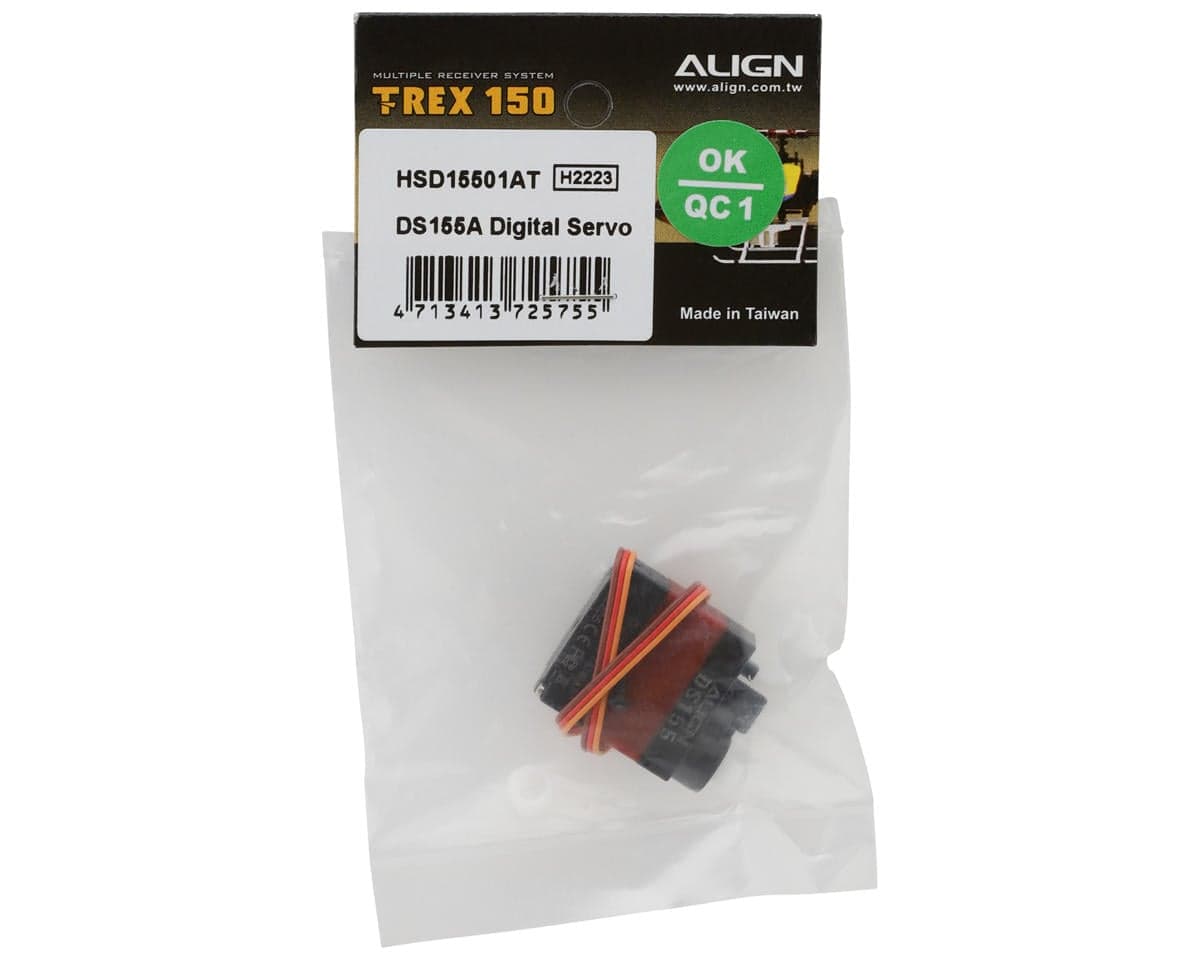

- (1) DS155 Digital Helicopter Rudder Servo
- (1) Composite Servo Horn
