Align DS530 Digital Mini Servo
About this part

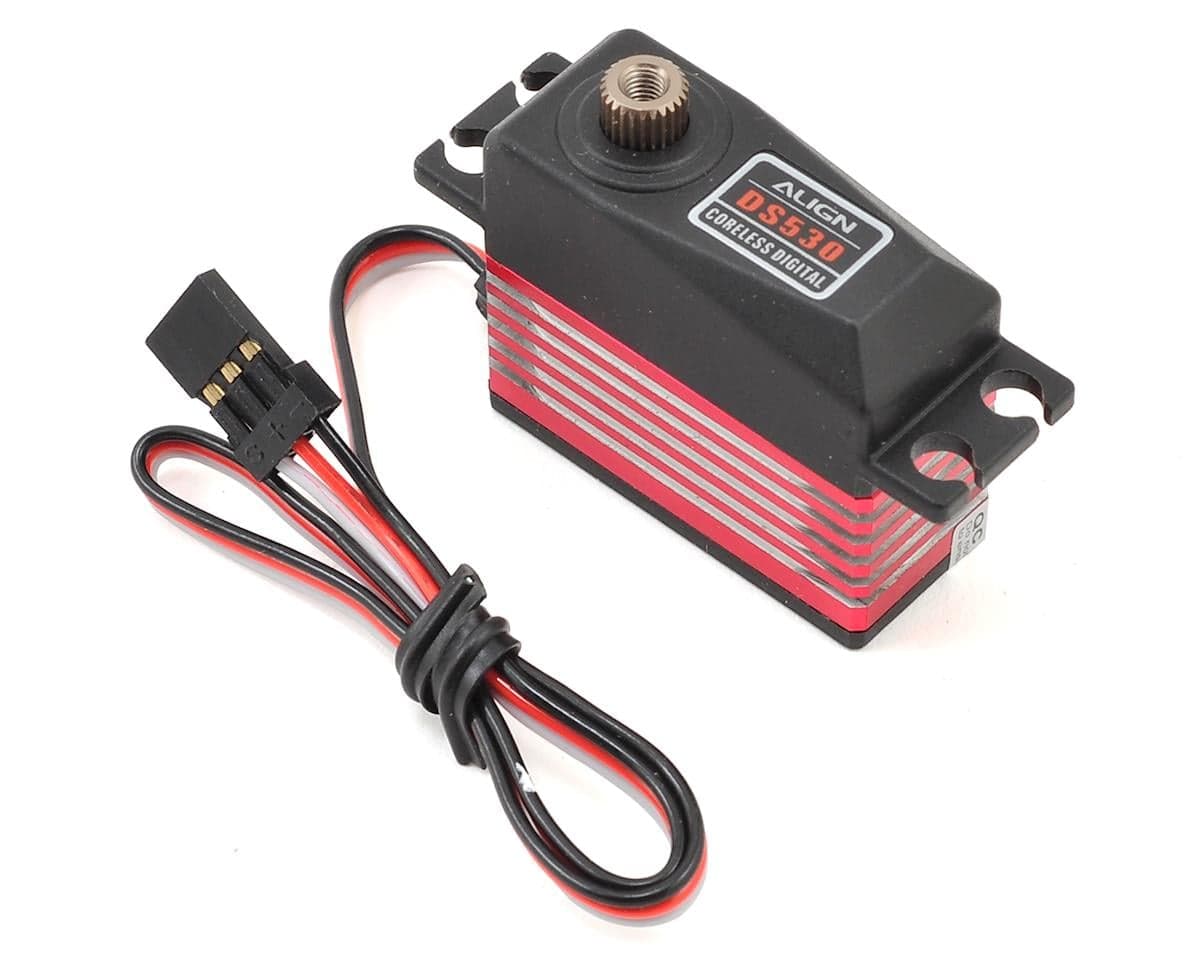

This is an Align DS530 Digital Servo. This metal gear servo features an aluminum middle case and high resolution for precise movements on cyclic applications for helicopters.
Features:
- Coreless Motor Design for fast speed, high efficiency, and low power consumption
- High Voltage Support
- High rigidity metal gears with high precision and durable structure characteristics
- Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency
- Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use

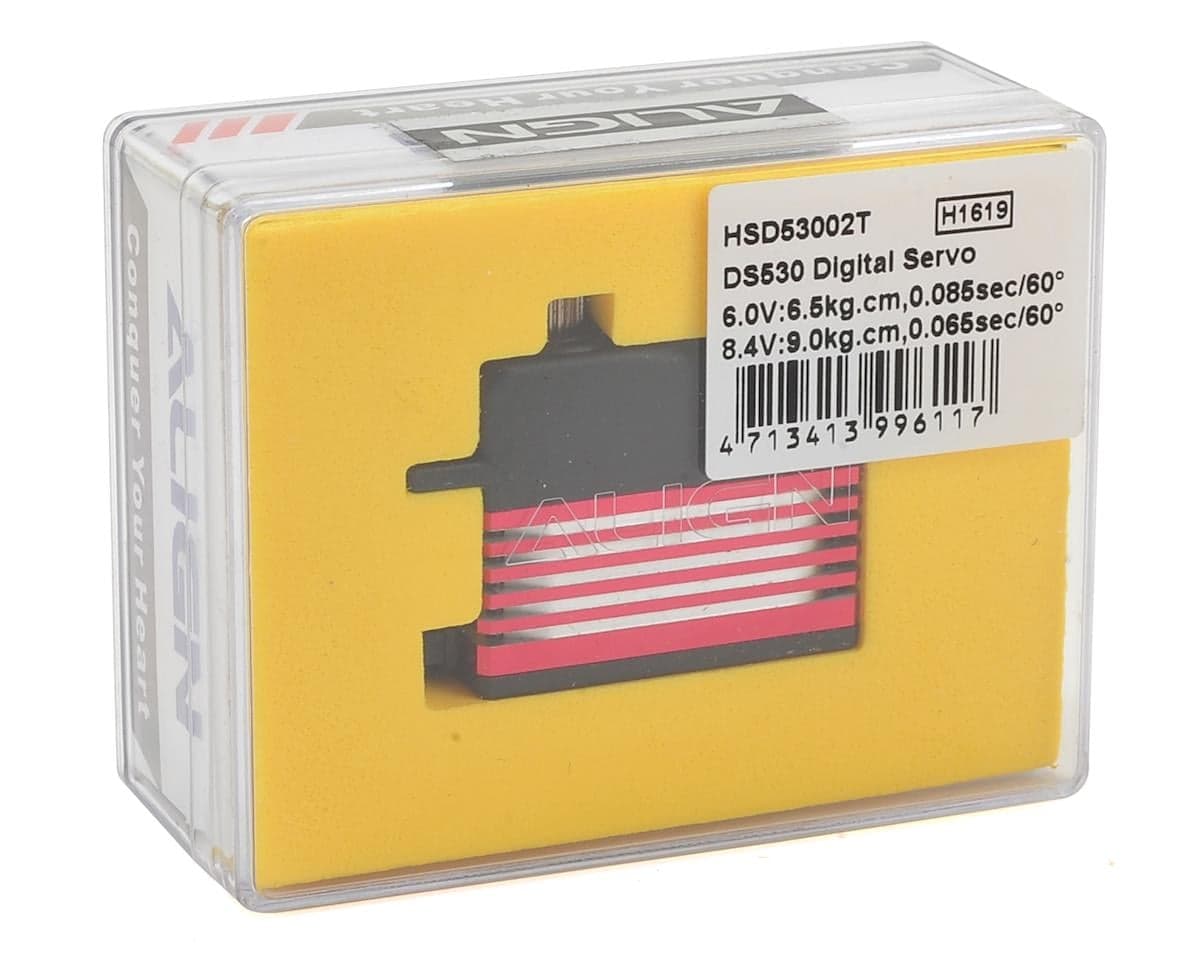

Specifications:
- Torque:
- @ 6.0V: 90.22oz-in (6.5kg-cm)
- @ 8.4V: 124.92oz-in (9.0kg-cm)
- Speed:
- @6.0V: 0.085sec/60°
- @8.4V: 0.065sec/60°
- Voltage: DC 4.8-8.4V
- Temperature Range: -F°F ~ 140F° (-20°C ~ +60°C)
- Dimension: 35.1x15.1x29mm
- Weight: 29g
- Band: 1520?s standard band

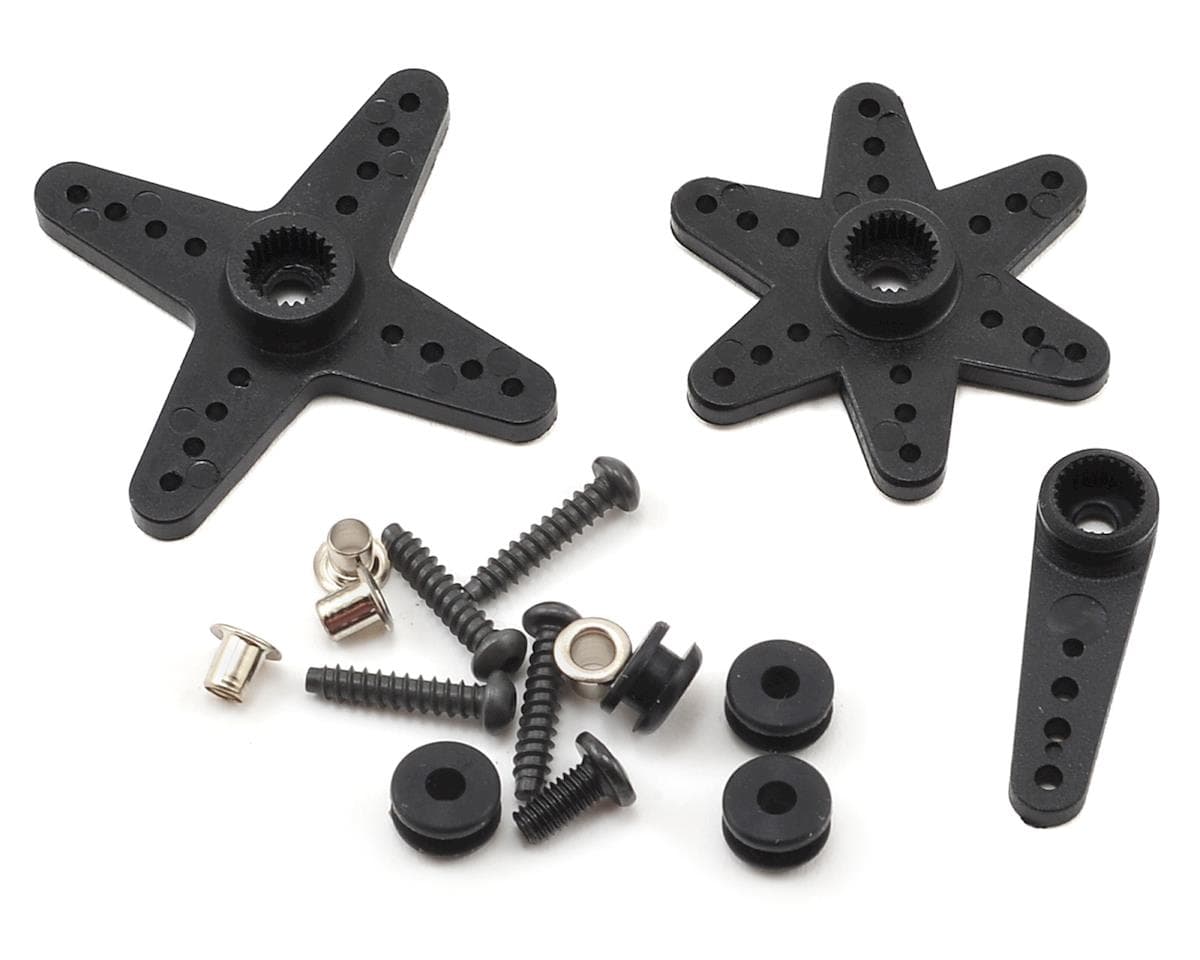

Included Accessories:
- (4) Rubber damper
- (4) Brass grommet
- (4) Socket button head tapping screw (T2.6x12mm)
- (1) D5AF Servo horn
Reviews4.0 · 3 reviews
great fit for my losi mini 8ight. works strong and fast. can always count on amain for top notch items!!!
I bought a good product at a good price. Thank you, Amain hobbies.
these servos are not good, tip over on start up and 2 servos destroyed themselves. gears are made of playdoo. had full on crashes with mks, BK, GDW only arms broken. i use same arms on all my servos.
Three verified owners reviewed the Align DS530 Digital Mini Servo, all using the Variant listed as the Align DS530. Two reviewers rated it 5/5, praising its fit in a Losi Mini 8ight, its strong and fast operation, and the value of the purchase. One reviewer rated it 2/5, reporting that servos tipped over on startup, two units were destroyed, and the gears felt weak. Reviews disagree sharply on durability, with the low rating tied to failures under crash conditions. The sample is small, so the overall picture is uncertain.
- + Good fit in Losi Mini 8ight
- + Strong and fast operation
- + Good value for price
- − Tipped over on startup
- − Two units failed
- − Gears reported as weak
