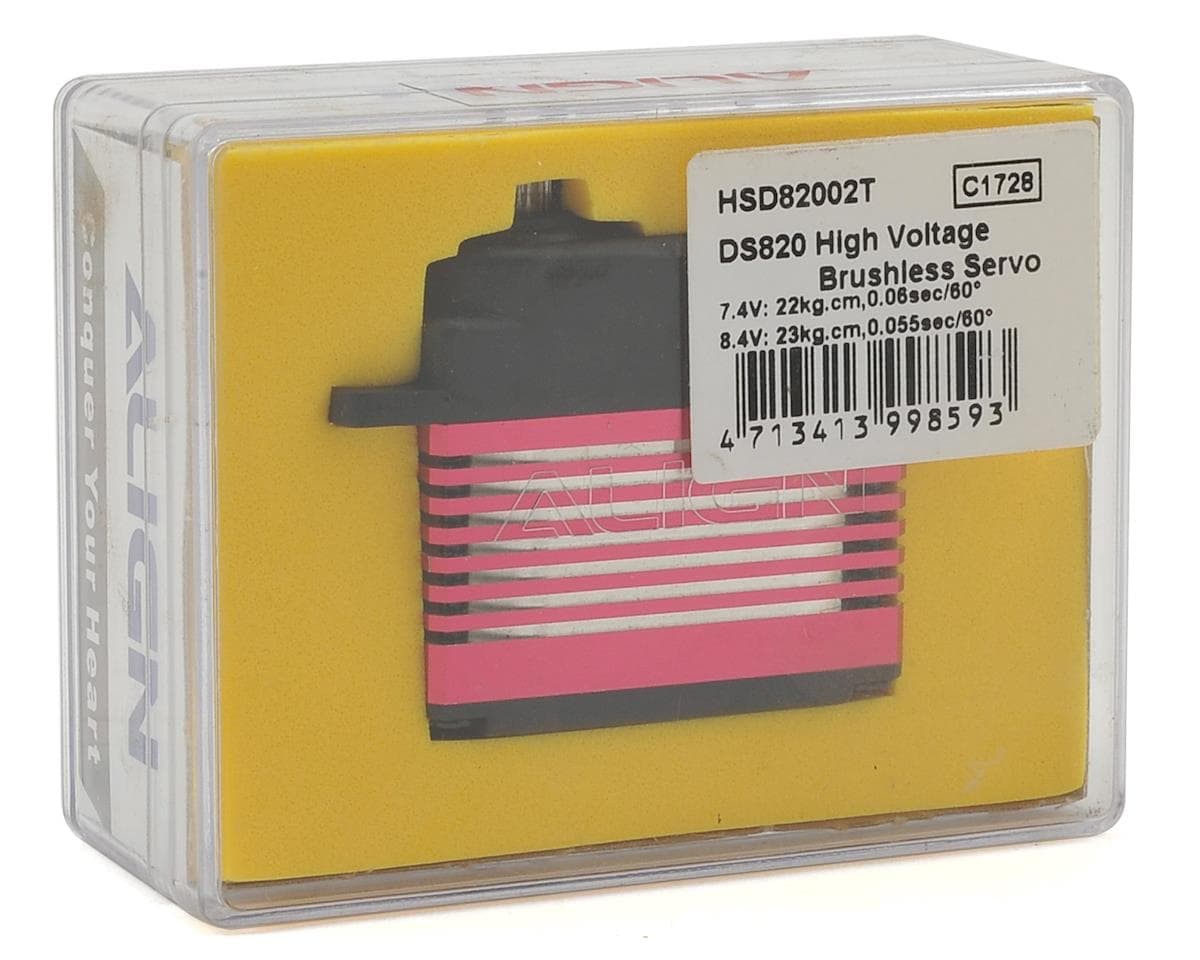

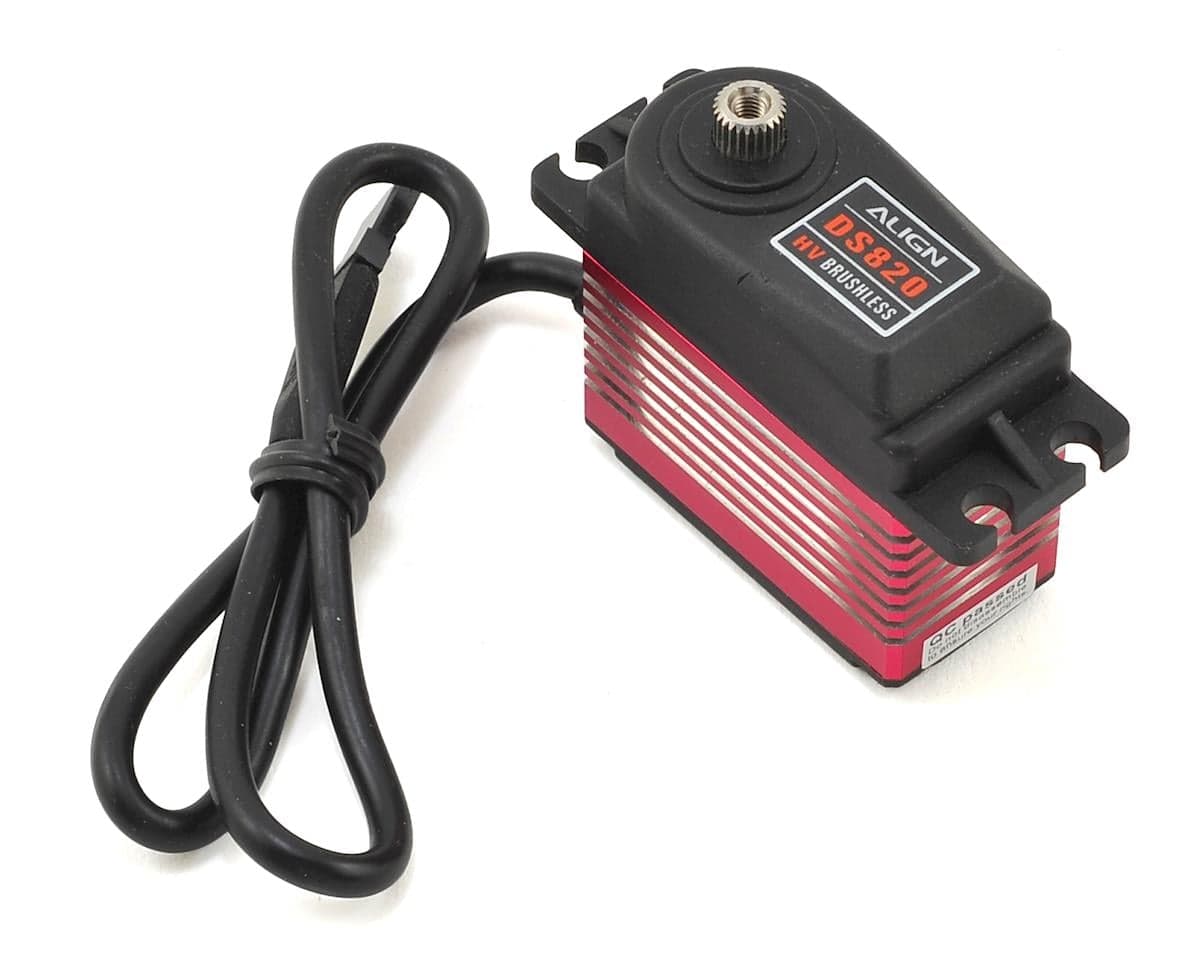

Align DS820 High Voltage Brushless Cyclic Servo
Part # AGNHSD820025.0(1)
Where to buy
$120.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Align DS820M High Voltage Brushless Servo is utilized for 550-800 sized helicopters on cyclic applications. Featuring a high torque & efficient brushless motor, the Align series of Brushless servos will provide incredible performance and reliable performance for countless hours of operation.
Specifications:
Torque: 7.4V: 305 oz/in (22kg.cm) | 8.4V: 320 oz/in (23kg.cm)
Speed: 7.4V: 0.06 sec/60 degrees | 8.4V: 0.055 sec/60 degrees
Input Voltage: 7.4v-8.4v
Temperature Range: -20*C - 60*C
Dimensions: 40x20x39mmm (LxWxH)
Weight: 80g
Specifications:
Torque: 7.4V: 305 oz/in (22kg.cm) | 8.4V: 320 oz/in (23kg.cm)
Speed: 7.4V: 0.06 sec/60 degrees | 8.4V: 0.055 sec/60 degrees
Input Voltage: 7.4v-8.4v
Temperature Range: -20*C - 60*C
Dimensions: 40x20x39mmm (LxWxH)
Weight: 80g
Reviews5.0 · 1 review
Raymond LoycanoVerified owneron Align DS820 High Voltage Brushless Cyclic Servo
Nice servos except the tail servo on a nitro. The DS825M managed to get oil in the case that screwed with the circuit board.
