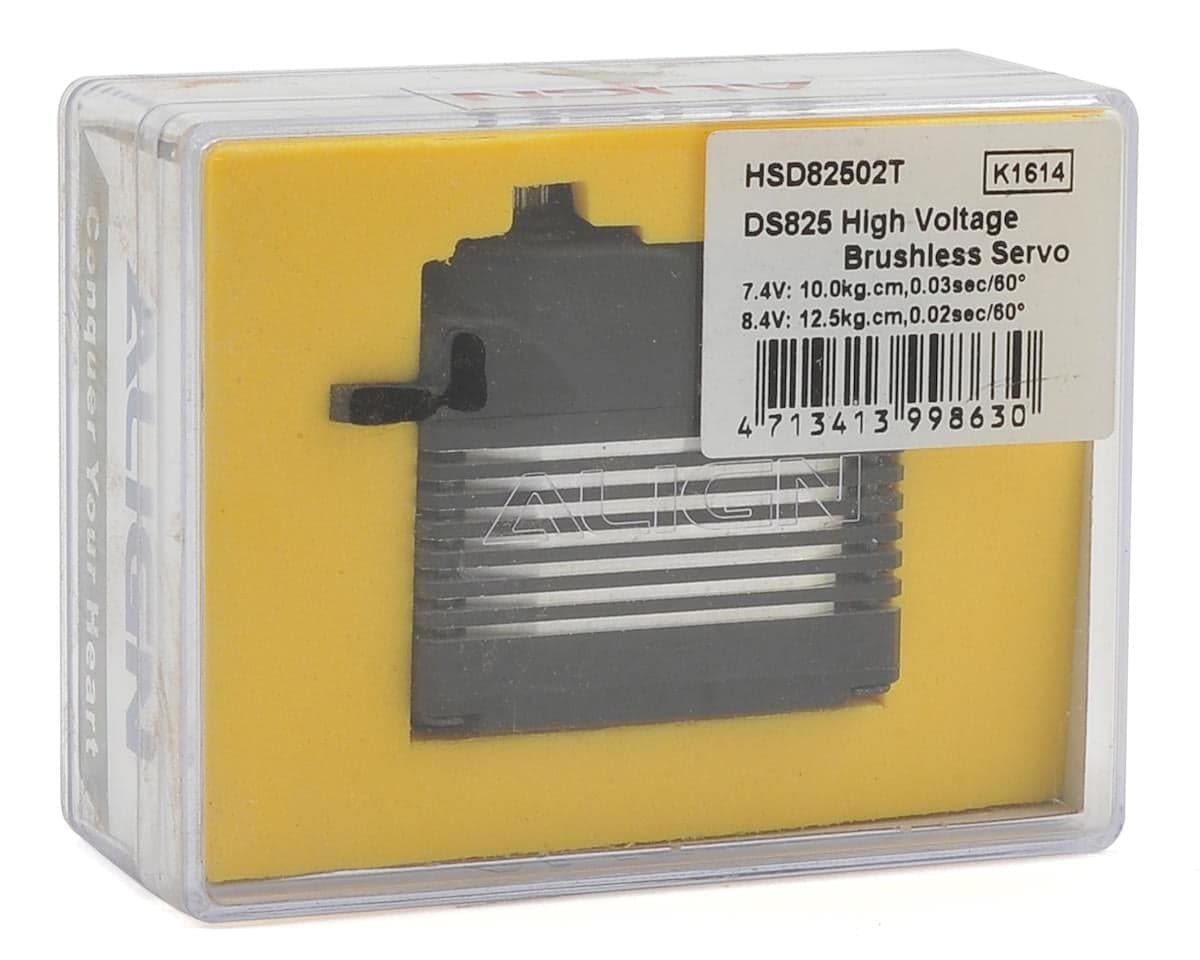

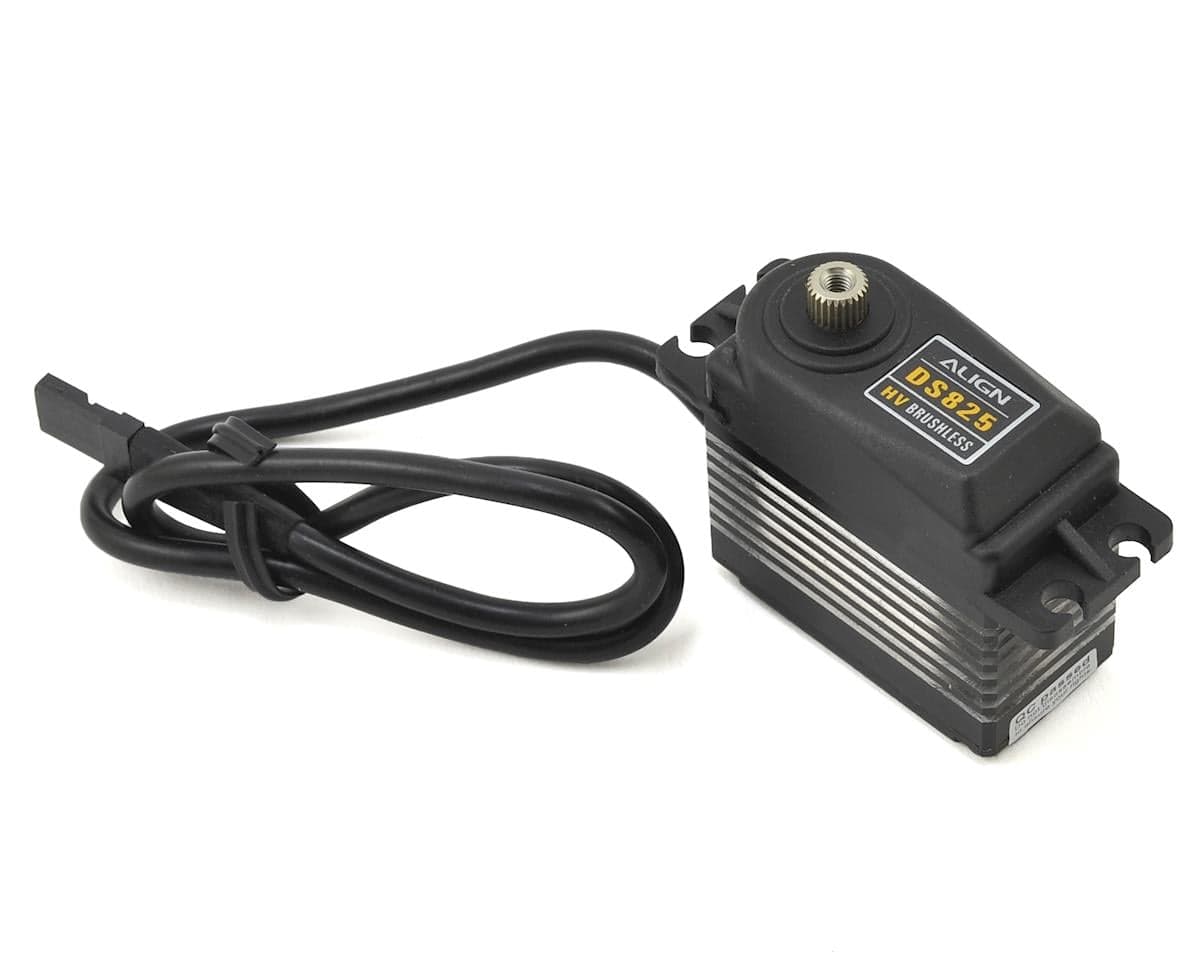

Align DS825 High Voltage Brushless Tail Servo
About this part
Specifications:
Torque: 7.4V: 138 oz/in (10kg.cm) | 8.4V: 173 oz/in (12.5kg.cm)
Speed: 7.4V: 0.03 sec/60 degrees | 8.4V: 0.02 sec/60 degrees
Input Voltage: 6v-8.4v
Temperature Range: -20*C - 60*C
Dimensions: 40x20x39mmm (LxWxH)
Weight: 72g
Reviews5.0 · 3 reviews
I have been using this servo in all of my 700 size birds; two SAB's and a Miniature Aircraft Fury Extreme. My only complaint is finding the specs for setting up the FBL controller where you need the frequency and bandwidth. Amain should have this listed on the spec page so I don't have to search the WEB for this. The servo is excellent though.
Great product and excellent quality. Would definitely recommend it.
Awesome servo I hav it on a Align 550 Dominator in its very responsive great product
All three reviewers rate the Align DS825 High Voltage Brushless Tail Servo 5 out of 5 and describe it positively. Two reviewers are verified owners who use it in 700-size helicopters, and one uses it in a 550-size model. Reviewers describe the servo as excellent, responsive and high quality. The one recurring criticism is that the frequency and bandwidth settings needed to configure the FBL controller are not listed on the product specification page, so buyers must search elsewhere for them. No reviewer reports a fault or disagreement about performance.
- + Excellent quality
- + Very responsive
- + Works in 700 and 550 size helicopters
- − FBL frequency and bandwidth specs not on spec page
