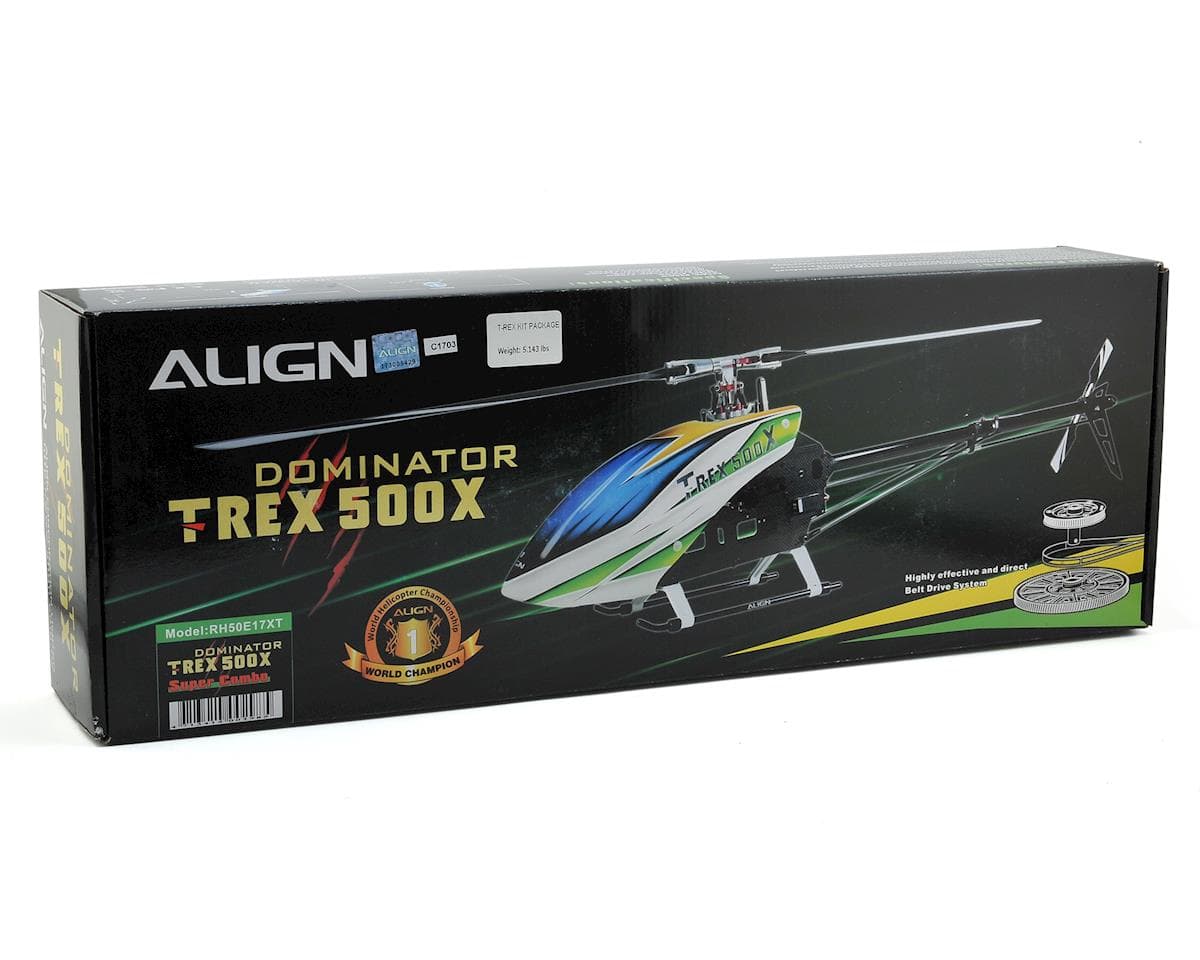

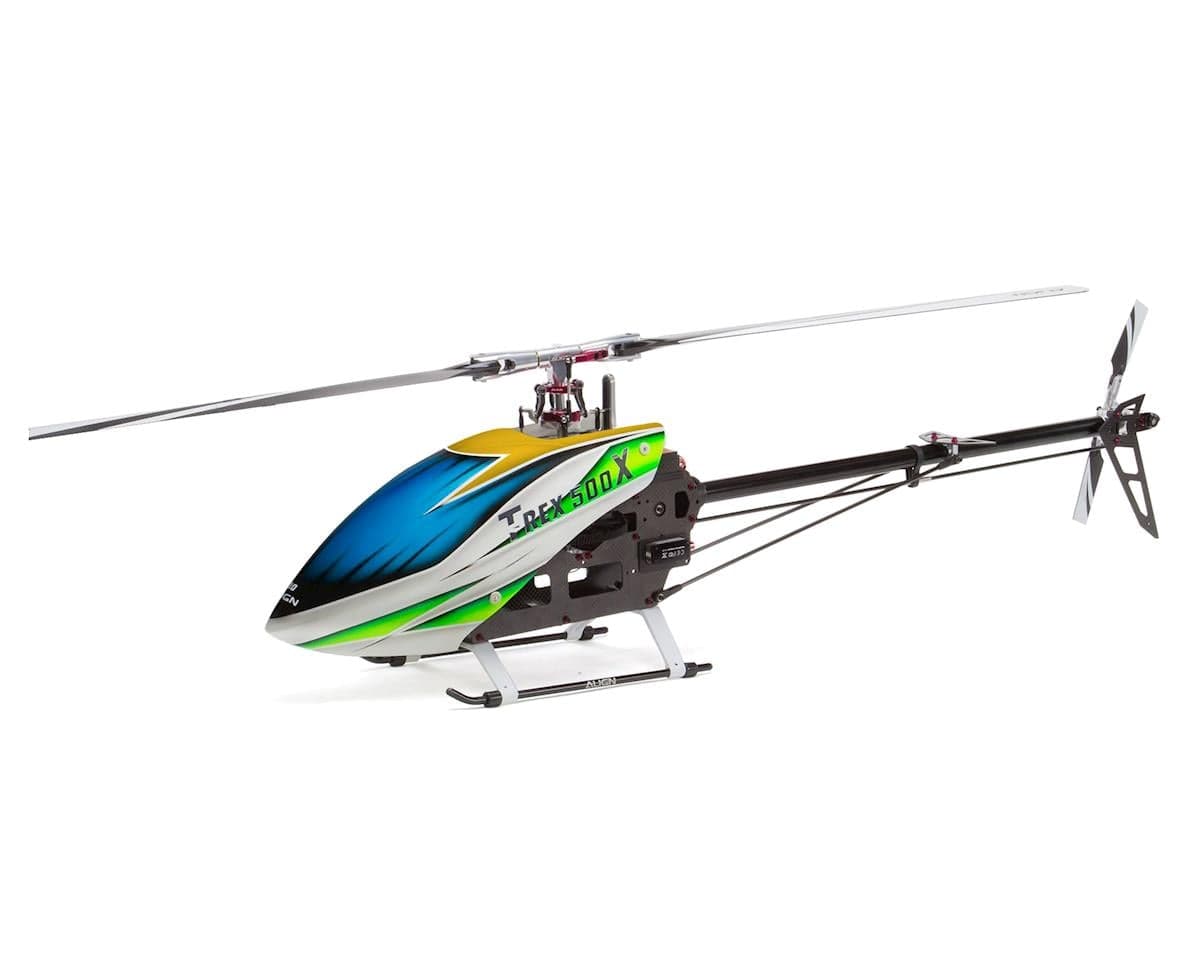

Align T-Rex 500X Super Combo Helicopter Kit w/BeastX Plus
About this part
Features at a Glance
- 470mm Main Blades: The larger 470mm main blades aid in providing more stability, power, and performance.
- 500FL Rotor Head System: Replacing the DFC system, the FL Rotor Head offers excellent stability, a high level of responsiveness, and precision in flight.
- Belt Driven Tail System: Improved tail belt system, offering a lower parts count, quick & easy access to belt tension adjustments, and low cost of maintenance.
- Align 520MX Brushless Motor: High efficiency, excellent power, high torque, & low current draw.
- Align RCE-BL80X ESC: Designed for the 500X and providing current output, with additional support for high voltage BEC output (6V-8.4V).
- Align Cyclic & Rudder Servos: Equipped with the DS 530M & DS535M High Voltage Servos, the 500X will benefit from the available high torque and high speed outputs the DS530 & 535HV offer.
Specifications:
Length: 935mm
Height: 259mm
Main Blade Length: 470mm
Main Rotor Diameter: 1054mm
Tail Rotor Diameter: 219mm
Motor Drive Gear: 12T
Main Drive Gear: 134T
Tail Drive Gear: 21T
Drive Gear Ratio: 11.17:1:3.81
Weight (With Motor): 1400g
Includes:
- T-REX 500X Super Combo Kit
- (1) Microbeast PLUS Flybarless System
- (1) 520MX Brushless Motor (1600KV)
- (1) RCE-BL80X Brushless ESC
- (1) Set of 470mm Carbon Fiber Blades
- (1) Set of 78mm Tail Rotor Blades
- (3) DS530M Aluminum Case Digital Servos
- (1) DS535M Aluminum Case Digital Servo
- 7-channel or more, helicopter transmitter & receiver
- 6S Li-Po 2600 ~ 3300mAh (3300mAh recommended)
- Digital Pitch Gauge
Reviews4.7 · 3 reviews
I purchased this in February 2017 and flew it throughout the 2017 season. This is a great helicopter, quiet, efficient, lots of power, and extremely smooth operating. I have one friend with a slightly older Align 600FBL who prefers the crispness of my 500 over his larger heli. Any issues I had with the helicopter were taken care of immediately through the seller. The one big issue I had was with the original "80X" model esc which shorted out on my first flight. Everything went dead and I was very lucky to be only 1 to 2 feet off the ground when it happened so the heli thankfully did it's own ugly auto-rotation. I was provided the upgraded "80A" model ESC at no charge. Things I liked the most include: 1.) The turnbuckles on the linkage rods so that I can precisely adjust the links. 2.) The manual was understandable 3.) I like having 4 canopy grommets to hold down the canopy. 4.) The machining of the metal parts is excellent. It's a great looking helicopter when it's all assembled. Couple of things to keep in mind: 1.) The belt system does slip and get loose as the tension screws won't stay perfectly in place. I have to make 8 full turns on both tension screws to get the belt right, I have tried to pull out the tailboom to take up some of the slack but it won't hold with just the 2 bolt that hold the boom to the tailboom block. 2.) The location of the ESC conflicts with the battery release hatch. I cut a small wedge of lightweight wood and put it under the ESC so that the capacitors are lifted up in the air above the battery tray release switch. That added about 10 grams of weight to the heli. 3.) I wish they had included some anaerobic retainer.
Hi, Question.. What is the difference between, Top combo, Super comber and comber??? Thanks.
60+ flights in and this bird flies well. Purchased this and gave away my all my 450 Pros. Keep this 500x well serviced and it will fly well for you too. Adhere to the instructions and replace parts after so many flights, just like real a helicopter. The MicroBeast it came with had more to be desired. Clunky setup, flashing lights, easy to make misconceptions with and make mistakes. It flew with the 'beast don't get me wrong, but the align 500x really opened up when I used a different FBL, the FC6250HX. Anymore, most FBL's have a GUI with better help and are more intuitive.
Three reviews of the Align T-Rex 500X Super Combo, all for the Super Combo Helicopter Kit variant. Two reviewers rate it 5/5 and praise its flight performance, describing it as smooth, quiet, powerful and efficient, with one noting a long service life after 60+ flights when maintained. One reviewer reports an ESC (80X) that shorted out on the first flight, which the seller resolved by supplying an upgraded 80A unit at no charge. A second reviewer found the bundled MicroBeast flight controller clunky and error-prone, and preferred a different flight controller that unlocked better performance. The third review is a question about the difference between Top Combo, Super Combo and Combo kits, which is not answered in the reviews.
- + Smooth, quiet and efficient flight
- + Strong power
- + Long service life with maintenance
- + Responsive seller support
- − Original 80X ESC failed on first flight
- − Bundled MicroBeast controller seen as clunky
- − Flight controller setup less intuitive than alternatives
