Align T-REX 550X Dominator Super Combo Helicopter Kit w/BeastX, ESC, Motor, Servos & CF Blades
About this part
T-REX 550X utilizes composite material integration technology on the carbon side frame plates, also adding battery mounting rails and top mounted motor base design to make assembly easy and protect the components. Using direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; combined with the low CG EFL rotor head, the 550X delivers exhilarating 3D performance and unimaginable flight speed. Plus, a high quality tail gearbox design, combined with a dual point mounted tail pitch control assembly helps to minimize slop and increase rudder control precision.
T-REX 550X Dominator has been equipped with the 730MX 960KV motor with unique DOMINATOR scheme to provide extremely efficient and powerful output. High voltage brushless BL820H/BL825H servos provide high torque and precise, lightning fast reaction, and low operating temperatures after flight will extend the service life.
The BeastX Plus flybarless system features a 6-axis gyro and 32-bit high speed processor. This processor and gyro work in harmony together to provide the pilot with exceptional flying characteristics, proven performance. Additionally, the BeastX Plus features improvements to vibration detection and absorption seen at the gyro and accelerometer level. With these improvements the BeastX can operate in harsh vibration environments and the pilot would not notice any bad tendencies or bobbles while in flight.
Features:
- T-Rex 550X Dominator

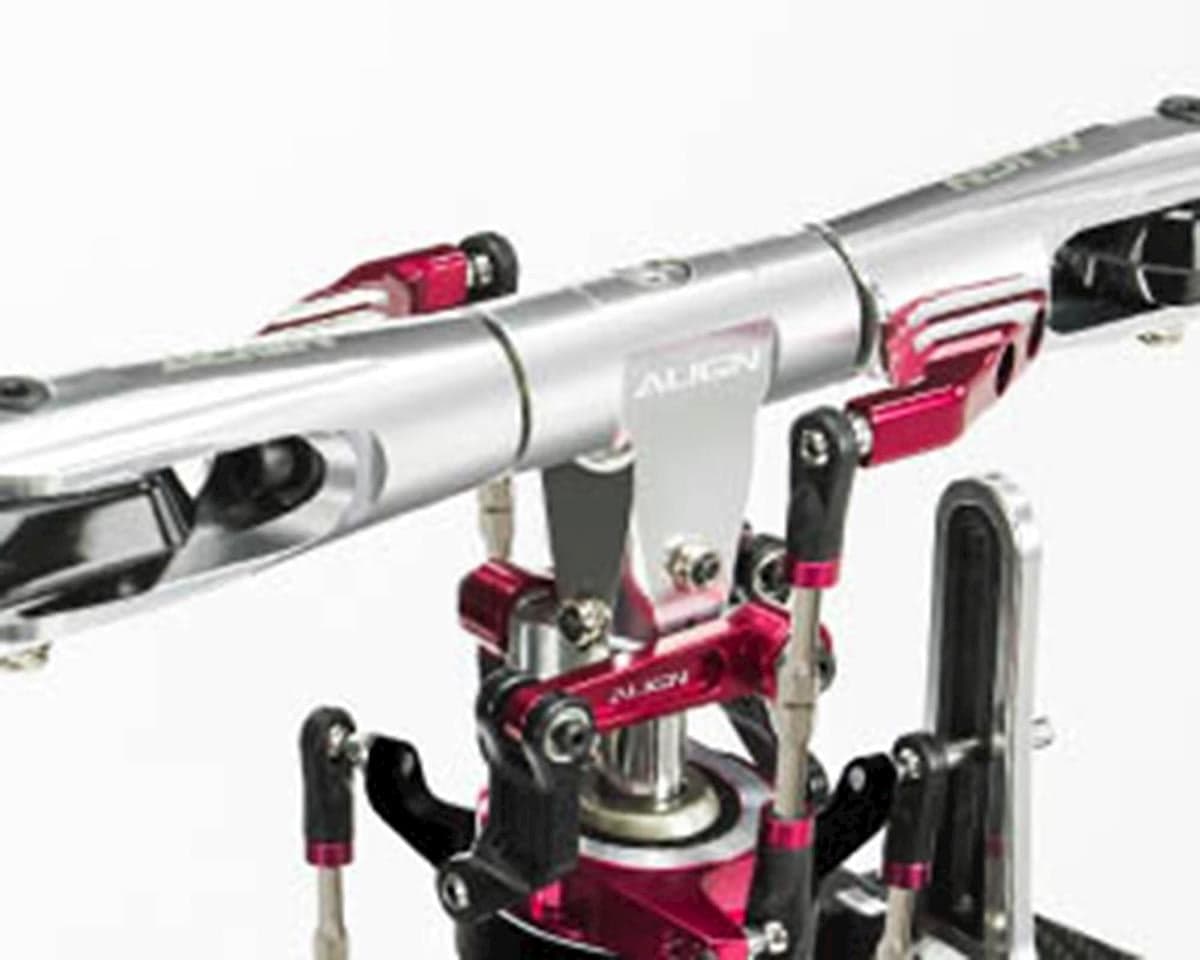

- Equipped with the low CG EFL rotor head, for exhilarating 3D performance and unimaginable flight speed.
- Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.
- Updated swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

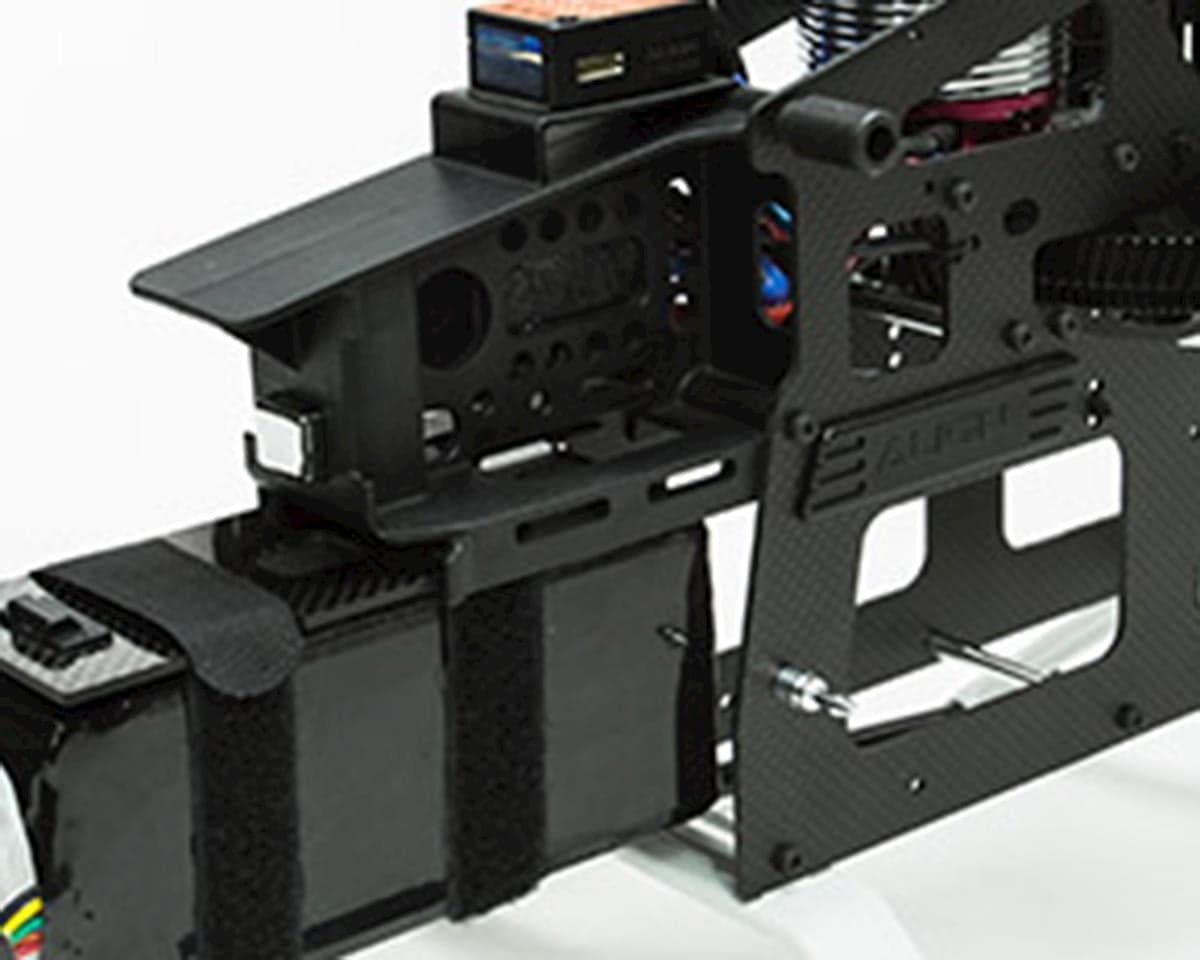

- Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
- Carbon side frame plates utilized composite material integration technology, adding battery mounting rails. The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing.

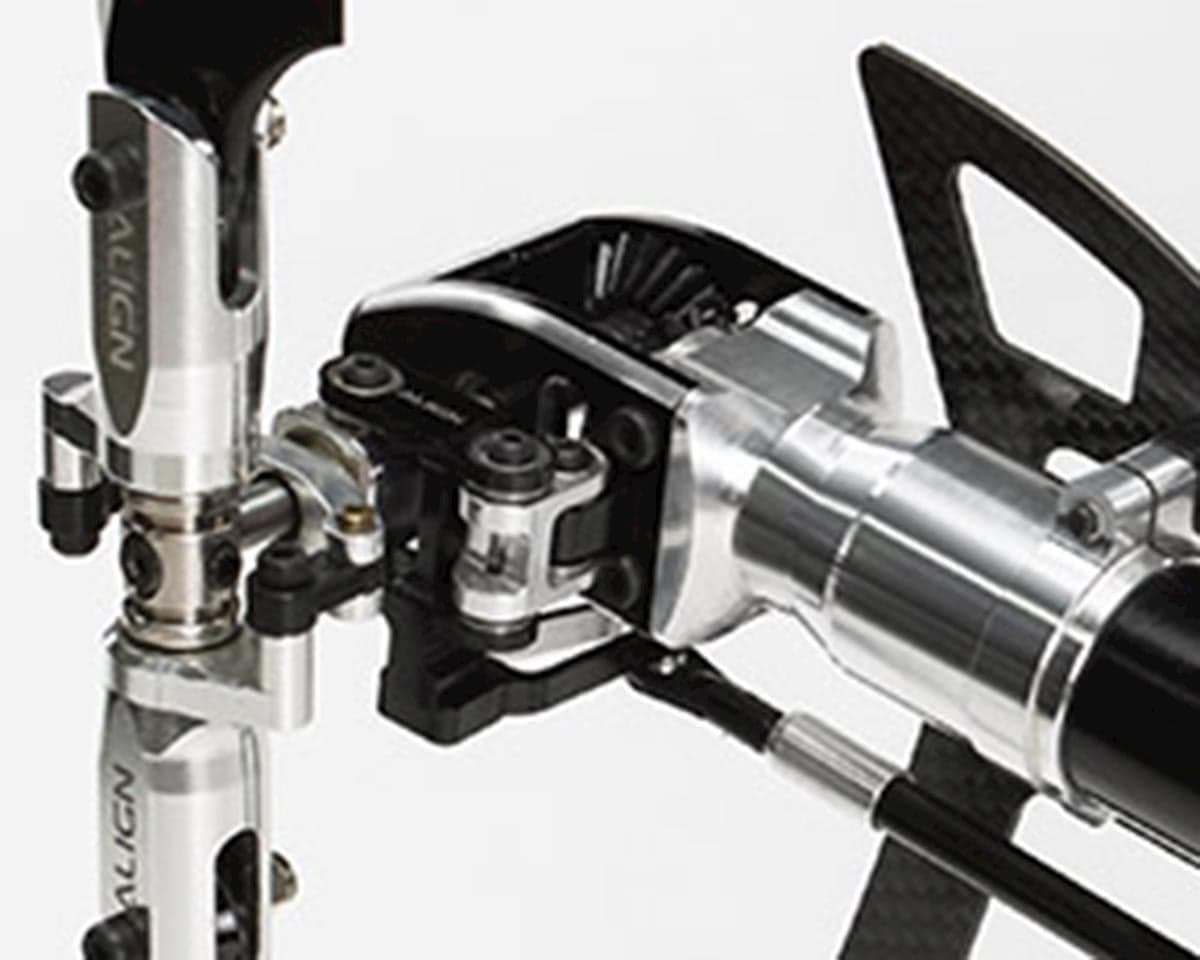

- High quality tail gearbox design, combined with dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.
BeastX Plus Features:
- Servo center pulses:
- Swashplate: 1520µs
- Rudder: 1520µs, 960µs, 760µs
- Servo pulse rates:
- Swashplate: 50 - 200Hz
- Rudder: 50 - 560Hz
- Swashplate mixing:
- mCCPM, eCCPM: 90, 120, 135, 140
- Swash phasing adjustment (Via BeastX USB BTXA76007 and StudioX)
- Input signals:
- Single channels
- PPM serial pulse
- SRXL (JR XBus, SUMD, M-Link)
- Futaba S.Bus/S.Bus2
- Spektrum Remote Receiver (DSM2/DSMX - with BeastX Adapter BTXA76009)
Specifications:
- 550X Dominator:
- Length: 1163mm
- Height: 344mm
- Width: 196mm
- Main Blade Length: 550mm
- Main Rotor Diameter: 1248mm
- Tail Rotor Diameter: 254mm
- Motor Drive Gear: 16T
- Main Drive Gear: 112T
- Autorotation Tail Drive Gear: 131T
- Tail Drive Gear: 34T
- Drive Gear Ratio: 7:1:3.85
- Weight (w/o power system): 2590g
- BeastX PLUS Specifications:
- Input Voltage: 3.5V-8.5V DC (operation with 2 cell LiPo is possible)
- Processor: 32 Bit ARM
- Sensor: 6-Axis MEMS (Gyro+Accelerometer)
- Dimensions: 36x25x14mm
- Weight (w/o wires): 11g
Includes:
- (1) T-REX 550X DOMINATOR Kit
- (1) 550 Carbon Fiber Blade set
- (1) 90mm Carbon Fiber Tail Blade set
- (1) 730MX Brushless Motor(960KV)
- (3) DS820M High Voltage Brushless servo
- (1) DS825M High Voltage Brushless servo
- (1) Align RCE-BL100A Brushless ESC
- (1) Microbeast PLUS Flybarless System
- Transmitter (6-channel or more,helicopter system)
- Receiver (6-channel or more)
- Pitch gauge or Digital Pitch Gauge
- 6S Li-Po 2600~5200mAh battery & Charger
Reviews4.5 · 11 reviews
I received my T-rex 550 it was easy to build. I began to program the Beast x it will not bind to my DX9. Also found the esc didn't put out any power. So now I have to find another ESC and put another freebarless unit on the helicopter.
needs a brain 2 in the combo. the beast is nowhere near the brain in performance and when i changed it out the heli really comes to life.
Started flying helicopters in the 90’s and the advancement since then is amazing. Align has really made a nice model in the 550x. Parts fit is perfect and assembly is always fun. I’ve not had the chance to fly it yet but if it’s like the others I’ve built and flown, the 150, 450’s, 600 and the 700 i won’t be disappointed.
This kit went together much better than the 700x super combo kit. Every hole lined up perfectly (700X holes did not) and the instructions were pretty much the same as the 700X kit.
Great kit with excellent quality. You can beat this for the price and this size. This heli is really a 600 size with 550 blades. Build was easy and had no issues with the maiden flight. Only con is the user manual, it could have better detail; the manual also skips a few steps sometimes which can throw you off. Highly recommended!
Reviewers generally praise the T-REX 550X Dominator kit for its build ease, fit and finish, and flight performance, with several describing it as large and powerful. Some note that the included Beast X unit disappointed them; one reviewer reported it would not bind to a DX9 and the ESC produced no power, and another said it lacked performance compared with a replacement unit. Other concerns include a manual that skips steps or lacks detail, and one buyer reported missing parts and slow support response. Several reviewers did not yet fly the model, and some reviews are brief and non-specific.
- + Easy, well-fitting build
- + Large, powerful flight performance
- + Good quality for price
- + Shipping and arrival speed
- − Beast X unit reported as underperforming or not binding
- − ESC reported without power in one unit
- − Manual skips steps or lacks detail
- − Missing parts and slow support response
