Name: Align T15M Digital Servo (Aileron)
Brand: Align
SKU: AGNHSD15006
Price: 50.99 USD

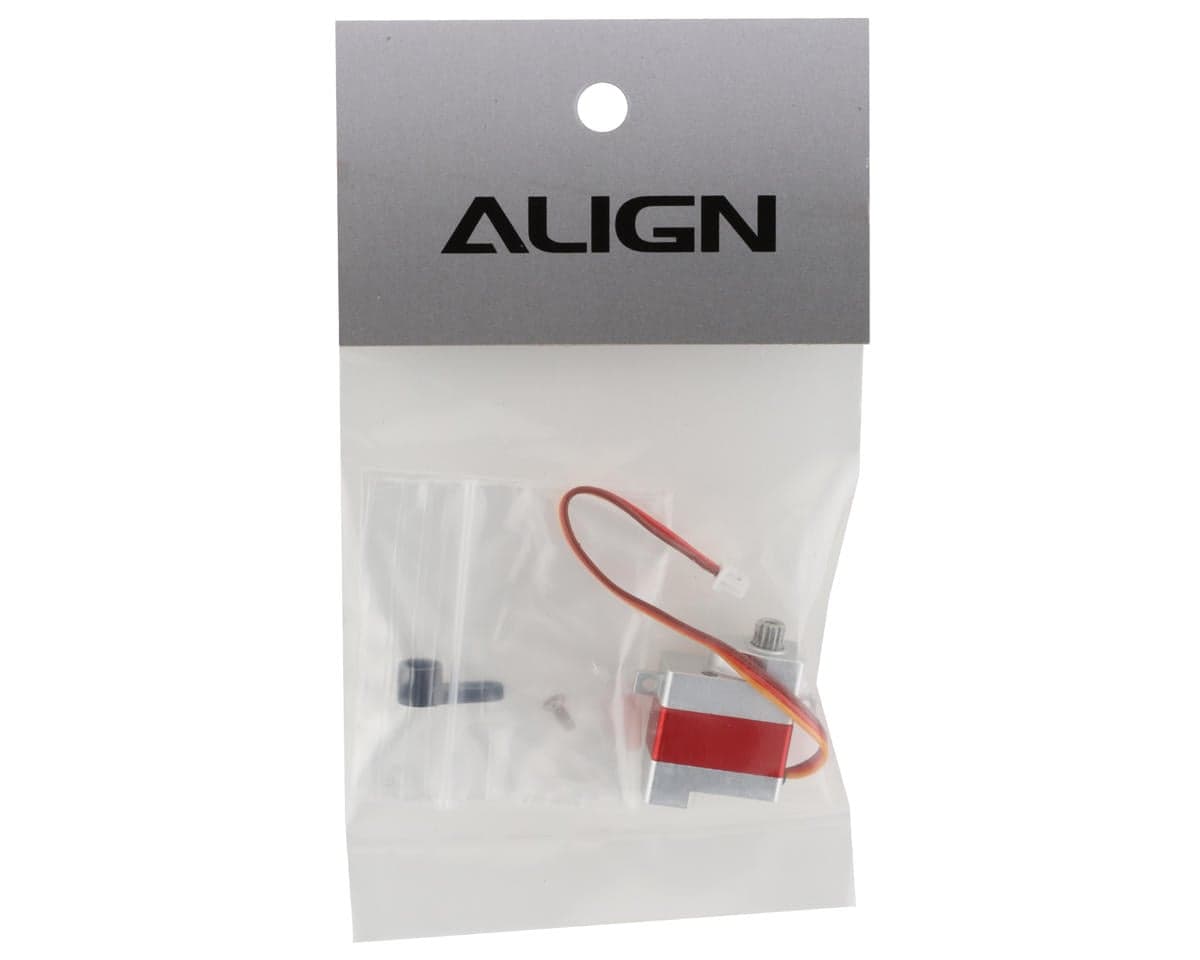

Align T15M Digital Servo (Aileron)

AMain Hobbies

Align&nbsp;T15M Digital Servo.&nbsp;This optional 4g digital micro servo is specially designed for the T15 helicopter to increase control, precision, and torque along with exceptional accuracy when returning to the neutral position. This servo features an aluminum alloy case for excellent heat dissipation helping to consistent performance and high efficiency.
<br>
<br>
<div><strong>Specifications</strong>:
</div>
<div><strong>Stall Torque</strong>: 0.4kg.cm (5V)
</div>
<div><strong>Motion Speed</strong>: 0.065sec/60°(5V)
</div>
<div><strong>Rating Voltage</strong>: DC 4.8-6V
</div>
<div><strong>Dimensions</strong>: 23.2x24.9x9.1mm
</div>
<div><strong>Weight</strong>: 6.55g
</div>
<div><strong>Neutral Pulse Width</strong>: 1520Us (standard band)
</div>
<div>
  <br>
</div>
<div><strong>Includes</strong>:
</div>
<div>
  <ul>
    <li>(1) T15M Digital Servo</li>

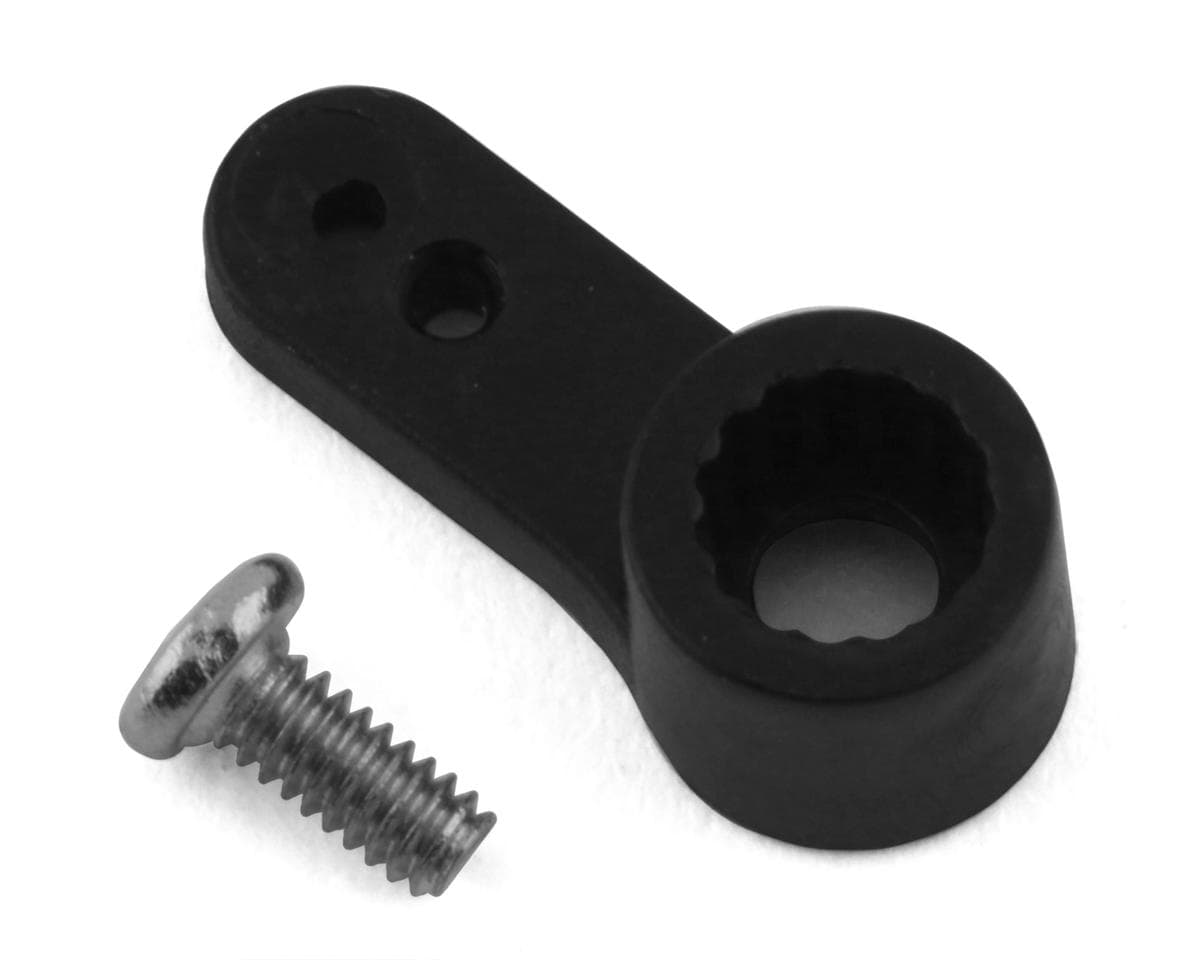

    <li>(1) Servo Horn with Hardware</li>
  </ul>
</div>

Align&nbsp;T15M Digital Servo.&nbsp;This optional 4g digital micro servo is specially designed for the T15 helicopter to increase control, precision, and torque along with exceptional accuracy when returning to the neutral position. This servo features an aluminum alloy case for excellent heat dissipation helping to consistent performance and high efficiency. Specifications: Stall Torque: 0.4kg.cm (5V) Motion Speed: 0.065sec/60°(5V) Rating Voltage: DC 4.8-6V Dimensions: 23.2x24.9x9.1mm Weight: 6.55g Neutral Pulse Width: 1520Us (standard band) Includes: (1) T15M Digital Servo (1) Servo Horn with Hardware
