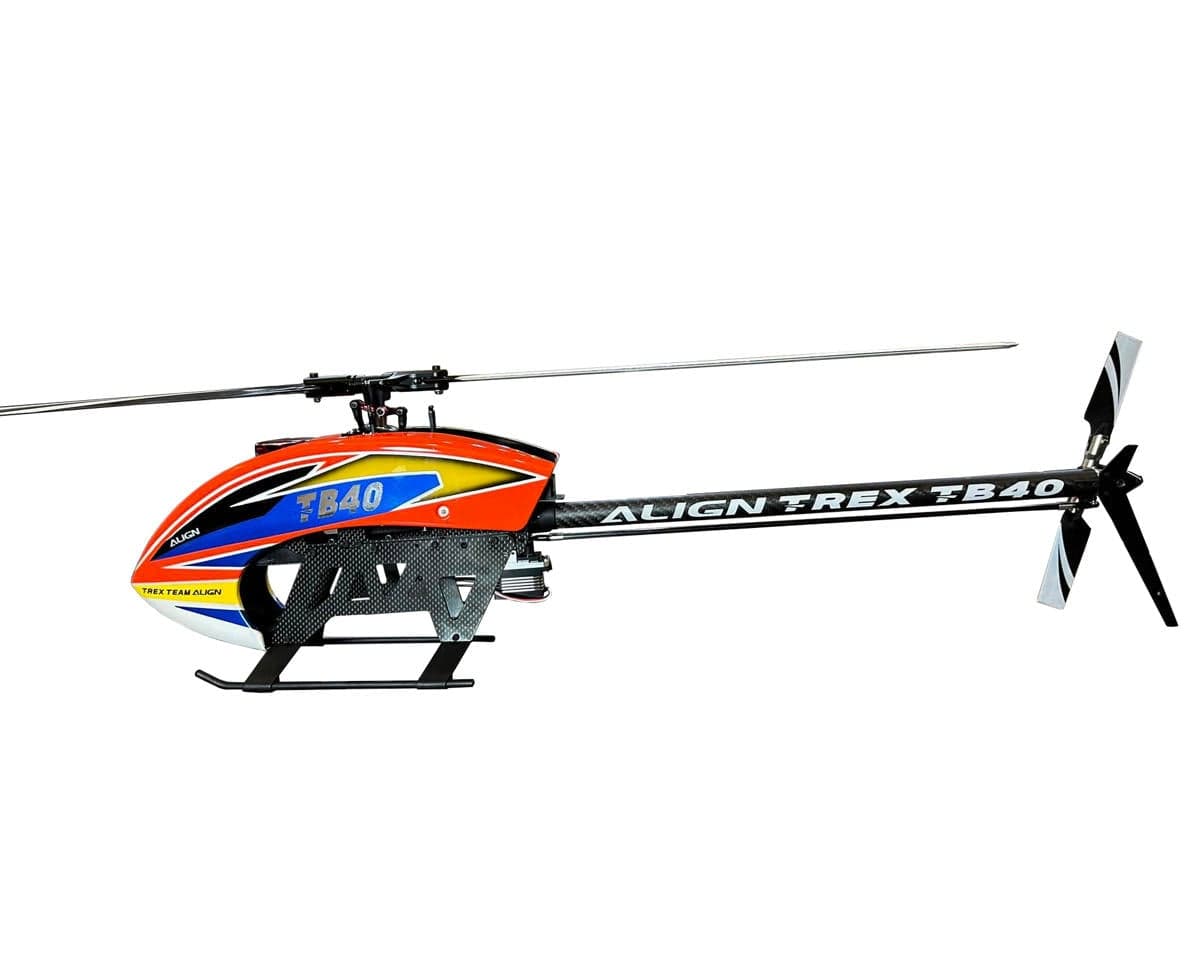

Align TB40 380 Electric Helicopter Kit w/400MX Brushless Motor
About this part
Performance 3D Aviation Redesigned
Introducing the Align TB40 Electric Helicopter Kit, the latest addition to the revamped TB and TN Helicopter Line. This 380-size helicopter stands out with its advanced features, making it a noteworthy member of the Align helicopter family. The Align TB40 boasts an adjustable belt pulley arm, allowing pilots to fine-tune the helicopter's performance to meet their specific preferences. The inclusion of a lightweight tail gearbox enhances overall agility and responsiveness, contributing to a smoother flight experience.
The updated lightweight rotor head is a key highlight, reducing overall weight while maintaining structural integrity. This enhancement not only improves flight efficiency but also adds to the helicopter's overall maneuverability. Complementing this, the revamped swashplate ensures precise and stable control during various flight maneuvers. The Align TB40 Electric Helicopter Kit is a compelling choice for enthusiasts seeking a blend of innovative features, responsive controls, and a lightweight design for an exceptional flying experience.
Features:
- Adjustable belt pully arm
- Light weight tail gear box
- Updated Lightweight rotor head
- Updated swashplate
- Three point spindle fixation
- Simple main shaft removal
- Motor pully incorporates belt guide pully
- Adjustable tail drive belt design
- Light weight and tough canopy
- Quick release battery latch
Specifications:
- Class: 380
- Power: Electric
- Completion Level: Unassembled
- Main Blade Length: 380mm
- Tail Blade Length: 70mm
- Weight: Approx. 2.10lbs (953g)
- Motor: 400MX Brushless Motor (1100kV/3225)
- Max RPM (approx.): 3400RPM
- Motor Input Voltage: (6S - 22.2V) Max
- Motor Belt Pulley: 22T
- Drive Gear Ratio: 6.44:1:4.04
Includes:
- (1) T-Rex TB40 Electric Helicopter Kit
- (2) 380 Carbon fiber main blades
- (2) 70 Carbon fiber tail blades
- (1) 400MX Brushless motor
- Manual
Needed to Complete:
- (1) 60A Brushless ESC
- (1) 6+ Channel Helicopter Radio system
- (3) Micro Cyclic Servos
- (1) 3 Axis Flybarless Gyro System
- (1) Micro Tail Servo
- (1) 6S 1800mAh LiPo Battery
- (1) Compatible Battery Charger
- Various tools, lubes, & greases for setup and assembly
Reviews4.3 · 3 reviews
For the money you can’t beat it flys great parts are cheap this replaced my micro helis . Flys very good easy build!!!
Great Build. This heli went together fast and smoothly. 4hr build for me. Heli looks great!
Spent quite a bit more on a raw 420, but the SAB models are very well justified. Even for the price point of being much cheaper than a SAB kit, it still doesn’t make up for the true quality of helicopter you’re getting. It's very challenging to cleanly install the electronics, wire management is poor. The belt drive system they use is not efficient. Drive train design has quite a bit more drag than other setups that I've come across. Repairs are inevitable, and even though the parts seem pretty cheap to replace the parts count on this Helicopter kit is very high and a real pain to replace.
Three verified owners reviewed this 380-class electric helicopter kit. Two reviewers rated it 5/5, praising its value, flight performance, and a fast, straightforward build that took about four hours. The third reviewer rated it 3/5, judging it below higher-end kits in build quality. That reviewer criticised difficult electronics installation, poor wire management, a belt drive they considered inefficient with notable drag, and a high parts count that makes repairs laborious. The reviewers disagree mainly on overall quality versus value, and the sample is small.
- + Good value for the price
- + Flies well
- + Easy, fast build
- + Cheap replacement parts
- − Difficult electronics installation
- − Poor wire management
- − Belt drive with notable drag
- − High parts count makes repairs tedious
