APC
APC 13x6.5 Thin Electric Propeller
Part # APCLP13065E
Where to buy
$5.79
Prices are as last seen at the store; stock is not tracked.
About this part

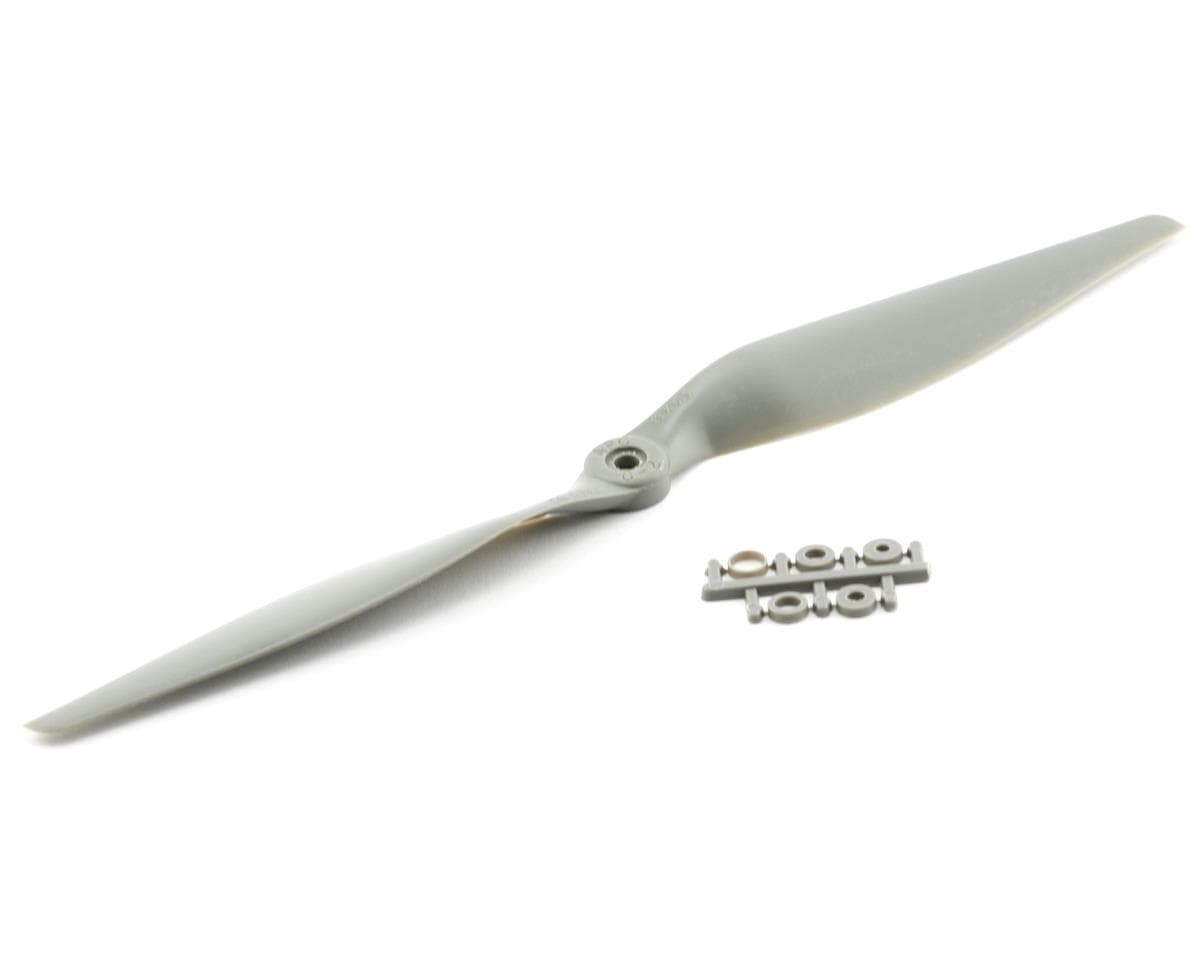

This is the APC 13x6.5 Thin Electric Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.
Features:
- Computer-optimized design gives these props a thinner profile and more "bite" with less noise
- Lightweight molded nylon construction reduces rotating mass for higher output and longer life
- Reinforcing fibers help maintain true, constant pitch at any RPM
Specifications:
- Propeller Diameter: 13in (330.2mm)
- Pitch: 6.5in (165.1mm)
- Hub Diameter: 0.8in (20.32mm)
- Hub Thickness: 0.41in (10.414mm)
- Shaft Diameter: 0.25in (6.35mm)
- Weight: 1.06oz (30.05g)
- Rotation: CCW (Standard/Tractor)
