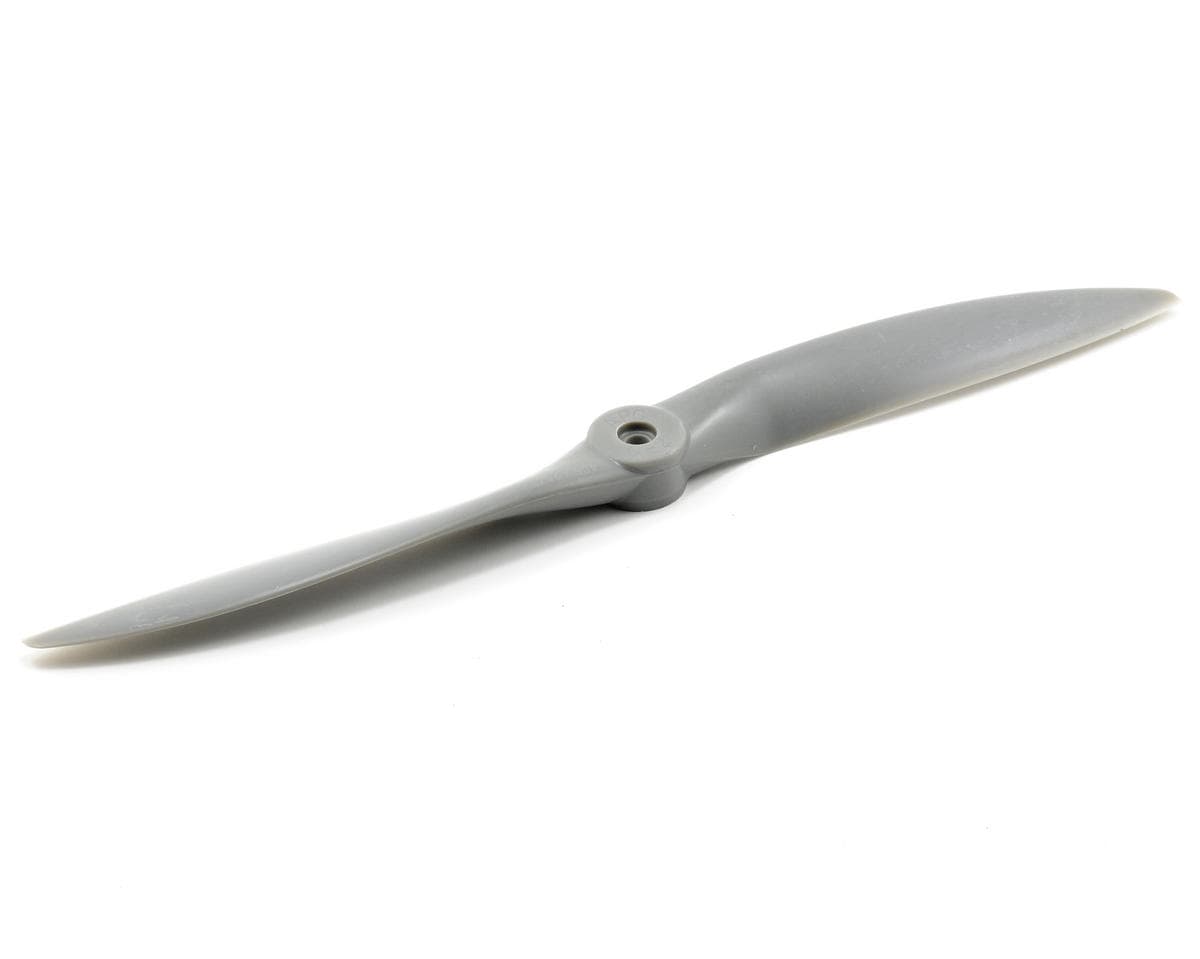

APC 16x10 Pattern Propeller

This is the APC 16x10 Pattern Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

Features:

• Computer-optimized design gives these props a thinner profile and more "bite" with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Specifications:

• Propeller Diameter: 16in (406.4mm)
• Pitch: 10in (254mm)
• Hub Diameter: 1.25in (31.75mm)
• Hub Thickness: 0.78in (19.812mm)
• Shaft Diameter: 0.3125in (7.9375mm)
• Weight: 3.7oz (104.89g)
• Rotation: CCW (Standard/Tractor)
