APC

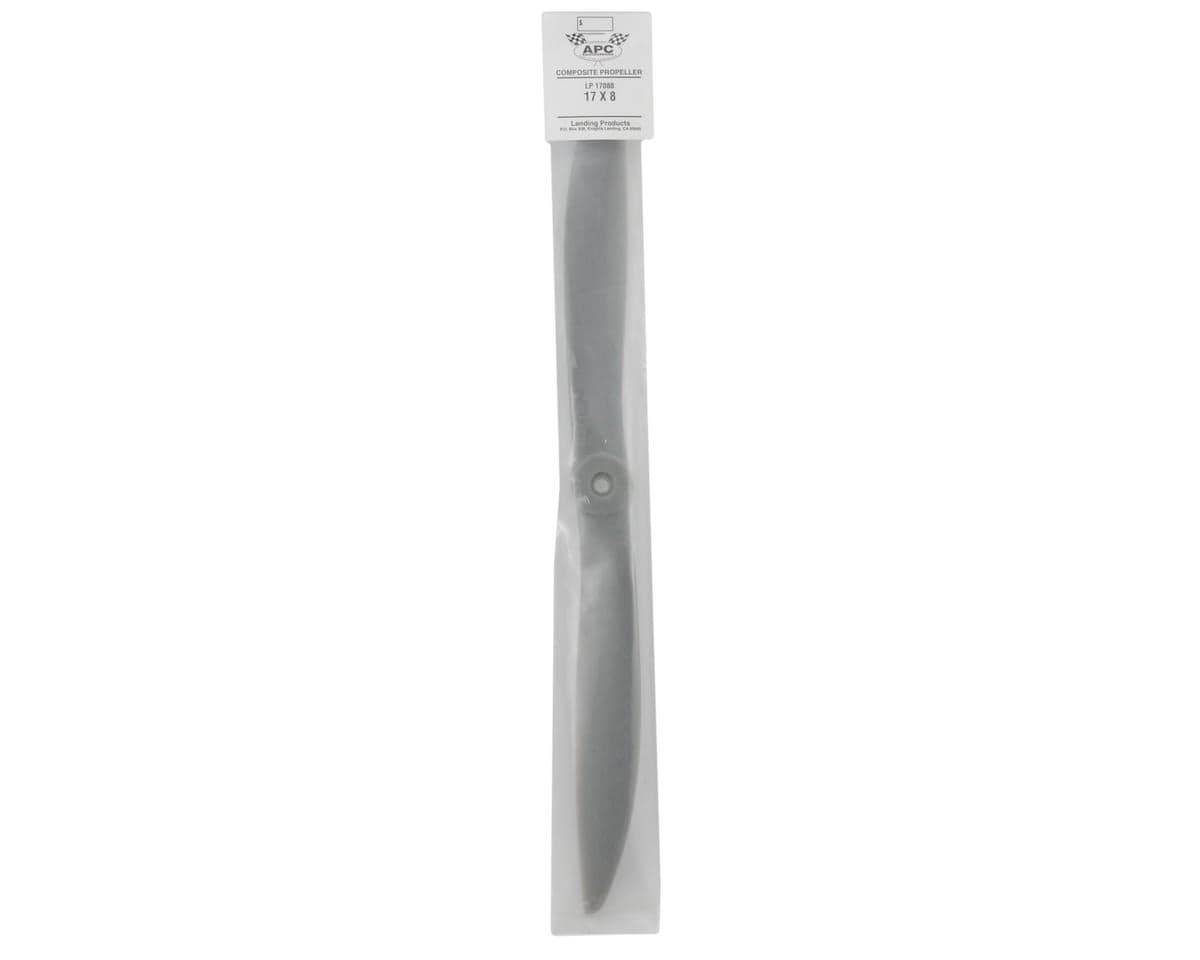

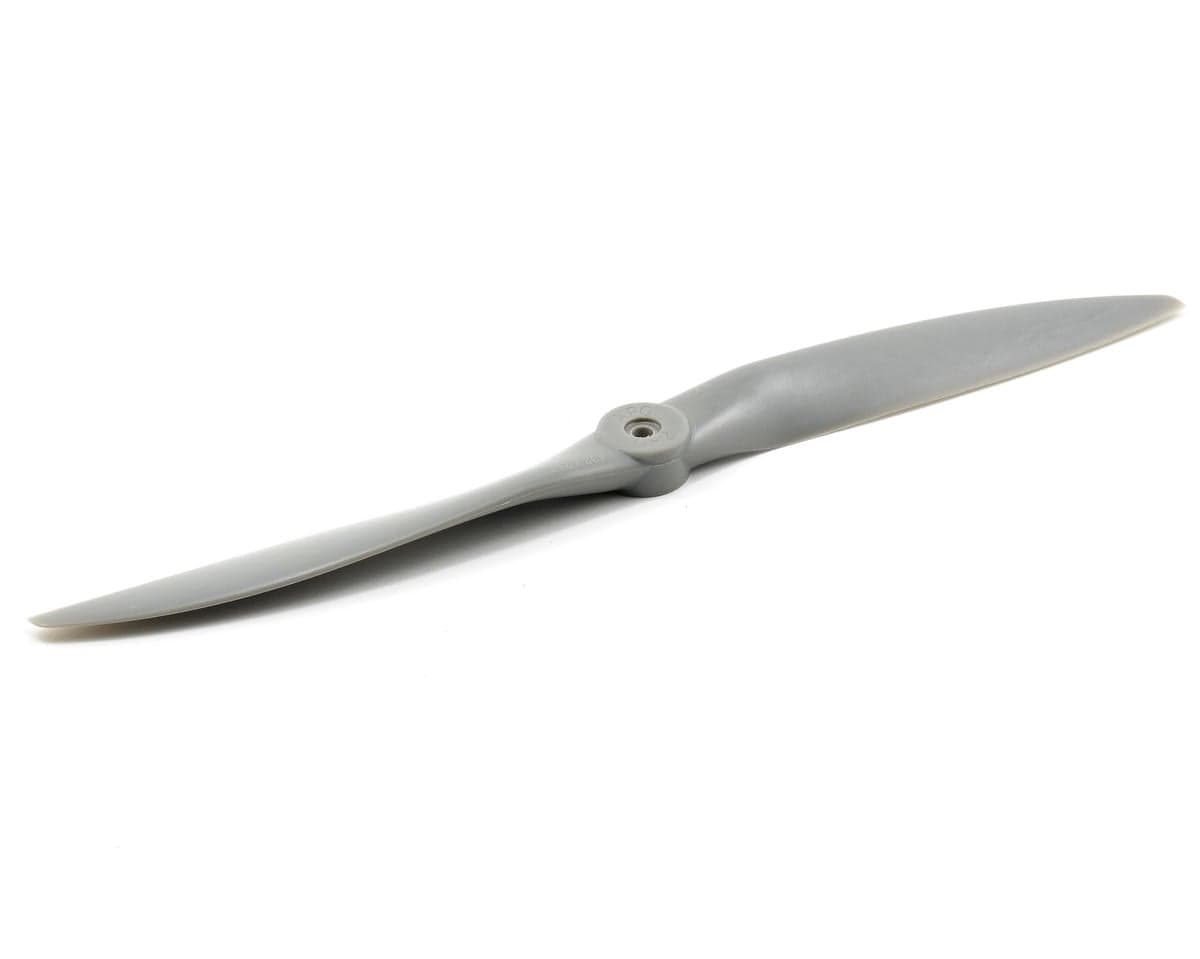

APC 17x8 Piece Pattern Propeller
Part # APCLP17080
Where to buy
$20.49
Prices are as last seen at the store; stock is not tracked.
About this part
This is the APC 17x8 Piece Pattern Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.
Features:
- Computer-optimized design gives these props a thinner profile and more "bite" with less noise
- Lightweight molded nylon construction reduces rotating mass for higher output and longer life
- Reinforcing fibers help maintain true, constant pitch at any RPM
Specifications:
- Propeller Diameter: 17in (431.8mm)
- Pitch: 8in (203.2mm)
- Hub Diameter: 1.25in (31.75mm)
- Hub Thickness: 0.72in (18.288mm)
- Shaft Diameter: 0.3125in (7.9375mm)
- Weight: 4.09oz (115.95g)
- Rotation: CCW (Standard/Tractor)
