APC

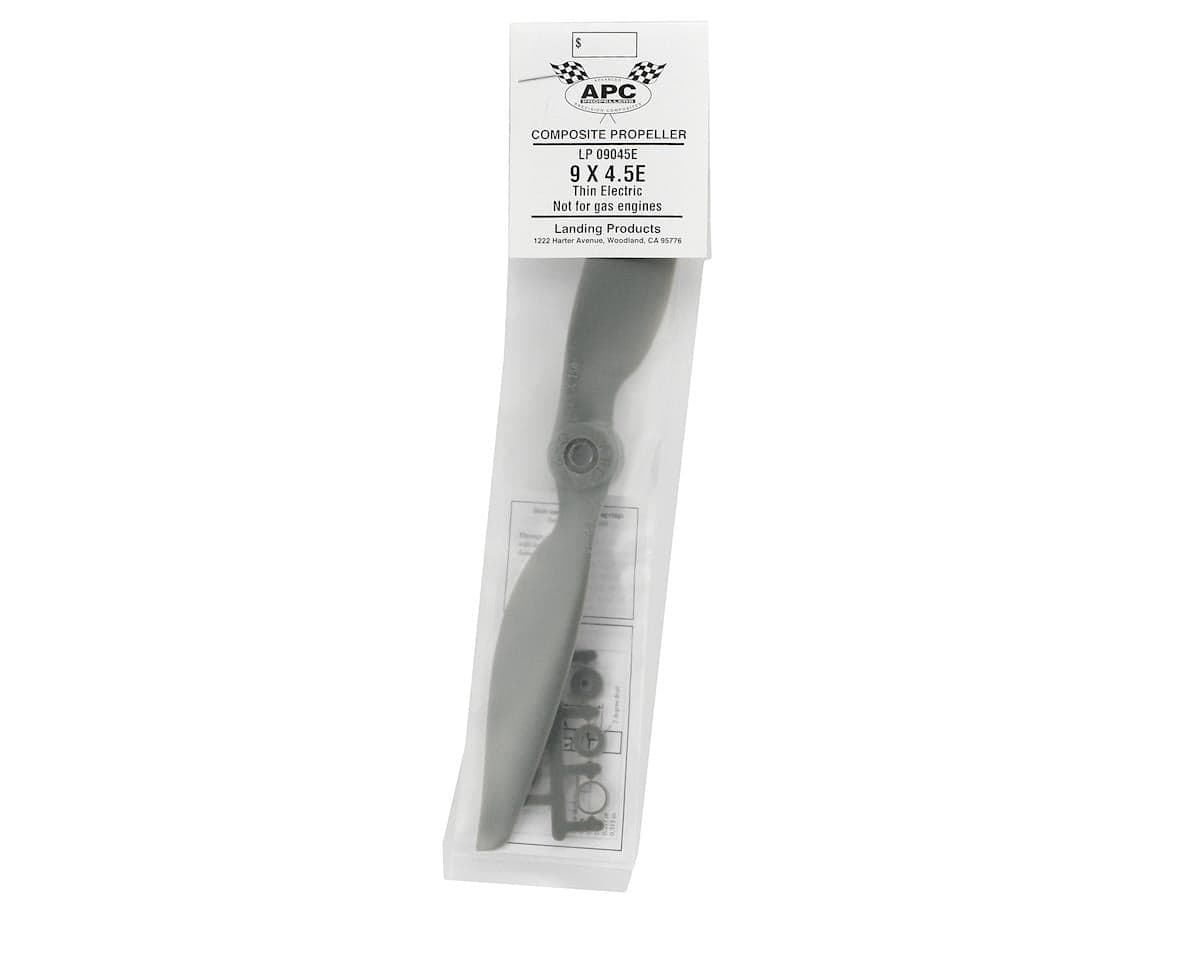

APC 9x4.5 Thin Electric Propeller
Part # APCLP09045E5.0(1)
Where to buy
$3.29
Prices are as last seen at the store; stock is not tracked.
About this part
This is the APC 9x4.5 Thin Electric Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.
Features:
- Computer-optimized design gives these props a thinner profile and more "bite" with less noise
- Lightweight molded nylon construction reduces rotating mass for higher output and longer life
- Reinforcing fibers help maintain true, constant pitch at any RPM
Specifications:
- Propeller Diameter: 9in (228.6mm)
- Pitch: 4.5in (114.3mm)
- Hub Diameter: 0.8in (20.32mm)
- Hub Thickness: 0.38in (9.652mm)
- Shaft Diameter: 0.25in (6.35mm)
- Weight: 0.63oz (17.86g)
- Rotation: CCW (Standard/Tractor)
Reviews5.0 · 1 review
Anonymouson APC 9x4.5 Thin Electric Propeller
Very durable! I bought several propellers but am still on my first. It has survived several high speed crashes with no visible damage.
1 found this helpful
