Arrma

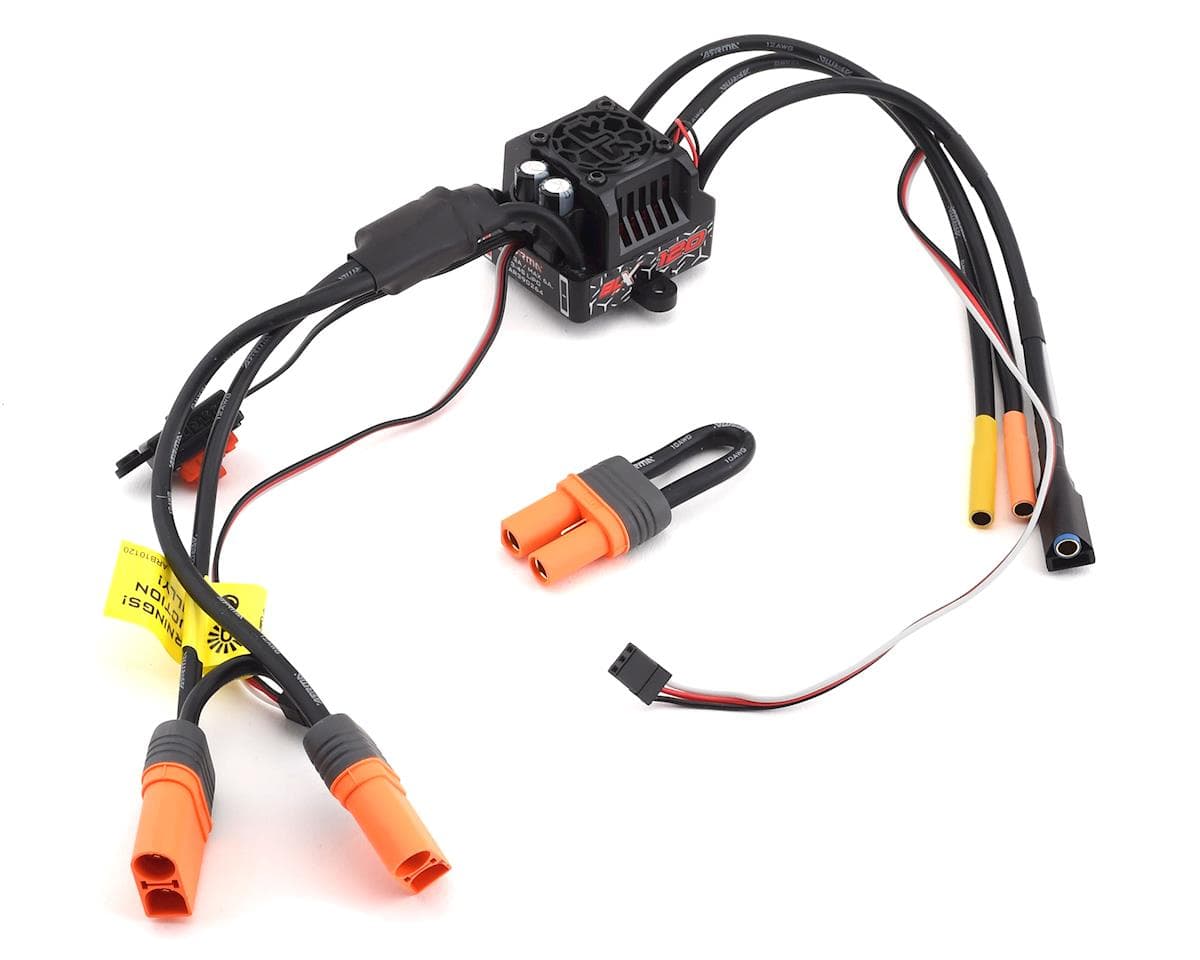

Arrma BLX120 4S Brushless ESC
Part # ARA3902645.0(2)
Where to buy
$126.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Arrma BLX120 4S Brushless ESC is a great choice to provide consistent power control and is 4S LiPo ready. The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
Features:
- Fitted with super-reliable EC5 connectors
- Built-in cooling fan for reduced heat during intense driving action
- BLX120 ESC has over voltage protection
- Two-stage LiPo cut off for added cell management
Specifications:
Battery usage: 3S LiPo (11.1V) or 4S LiPo (14.8V)
Low Voltage Cut-Off (LVC): 3.4V per cell
Thermal Protection Temperature: 125°C / 257°F
Over-Voltage Protection: Over 17.2V
BEC Voltage: 6V
BEC Current: 3A
ESC Length: 43mm / 1.69"
ESC Height: 34mm / 1.34"
ESC Width: 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight: 150g / 5.3 oz
Receiver Wire Length: 70mm / 6.70"
Battery Wire Length: 225mm / 8.86"
Motor Wire Length (Including Connector): 200mm / 7.87"
Switch Length: 21mm / 0.83"
Switch Width: 13.3mm / 0.52"
Switch Height: 16mm / 0.63"
Motor Bullet Connector Size: 4mm / 0.16"
Wire Specifications: 12AWG
ESC Battery Connector Type: 2xEC5
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Jason SinclairVerified owneron Arrma BLX120 4S Brushless ESC
I'm a big fan of how arrma electronics bolt mount to arrma vehicles. Solid for bashing. Fairly simple, limited programmability. But hey, it's for a basher! 3s, 4s compatible so it's a great upgrade for the blx line.
Nigel HyndmanVerified owneron Arrma BLX120 4S Brushless ESC
This is exactly what wanted, needed to up the power on my Typhon 3S it work like a charm. Delivery was speedy. Amain is my new fav parts store!
