Arrma
Arrma Mega 4x4 Brushed 2S ESC
Part # ARA390288
Where to buy
$34.99
Prices are as last seen at the store; stock is not tracked.
About this part

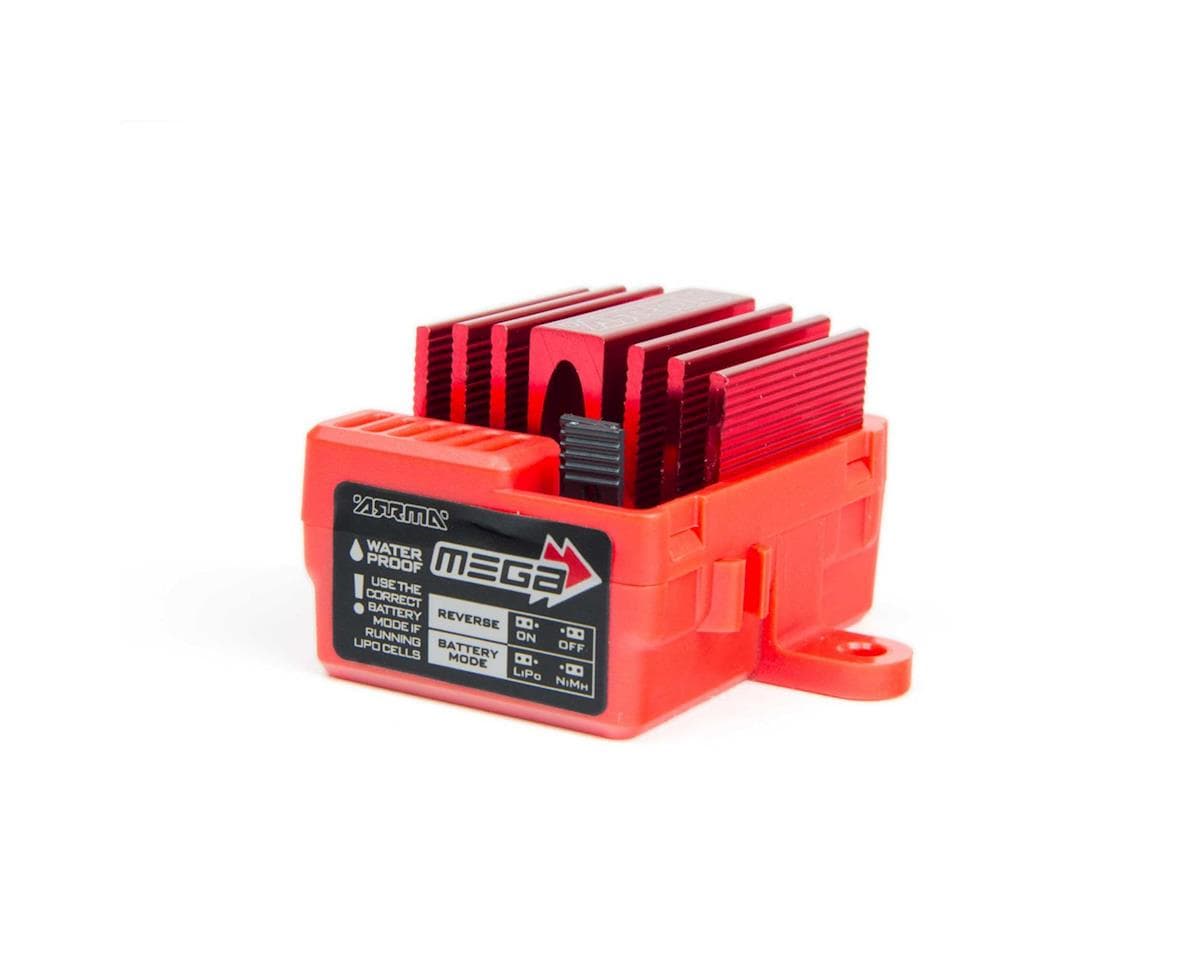

This is an Arrma Mega 4x4 Brushed 2S ESC, intended for use with Mega 4x4 Senton, Typhon, and Granite kits. This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.
Features:
- Fitted with reliable IC3 connector
- Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions
- Cool-looking integrated red anodized heatsink for increased heat dissipation
- Durable motor and battery connection cables for safe and reliable power transfer
- Waterproof power switch
- Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit
- Etched 'ARRMA' livery for cool looks and quality assurance
Specifications:
Battery usage: 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo
Low Voltage Cut-Off (LVC): 3.2V per cell
Thermal Protection Temperature: 95°C / 203°F
BEC Voltage: 5V
BEC Current: 2A
ESC Length: 47mm/1.85"
ESC Height: 21mm/0.83"
ESC Width: 34mm/1.34"
ESC Weight: 70g/2.47oz
Receiver Wire Length: 160mm/6.3"
Battery Wire Length: 90mm/3.54"
Includes:
- (1) ARRMA MEGA Brushed ESC
