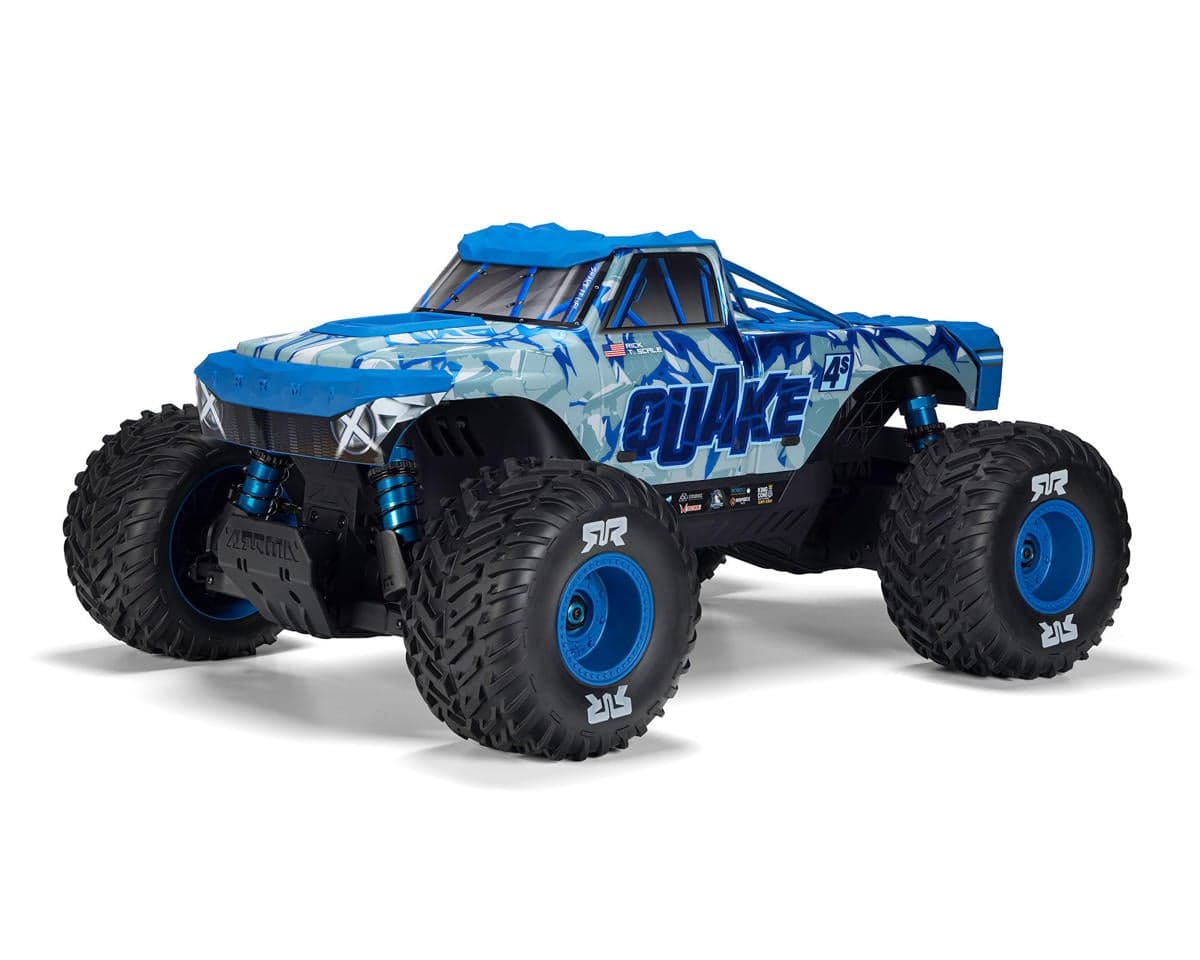

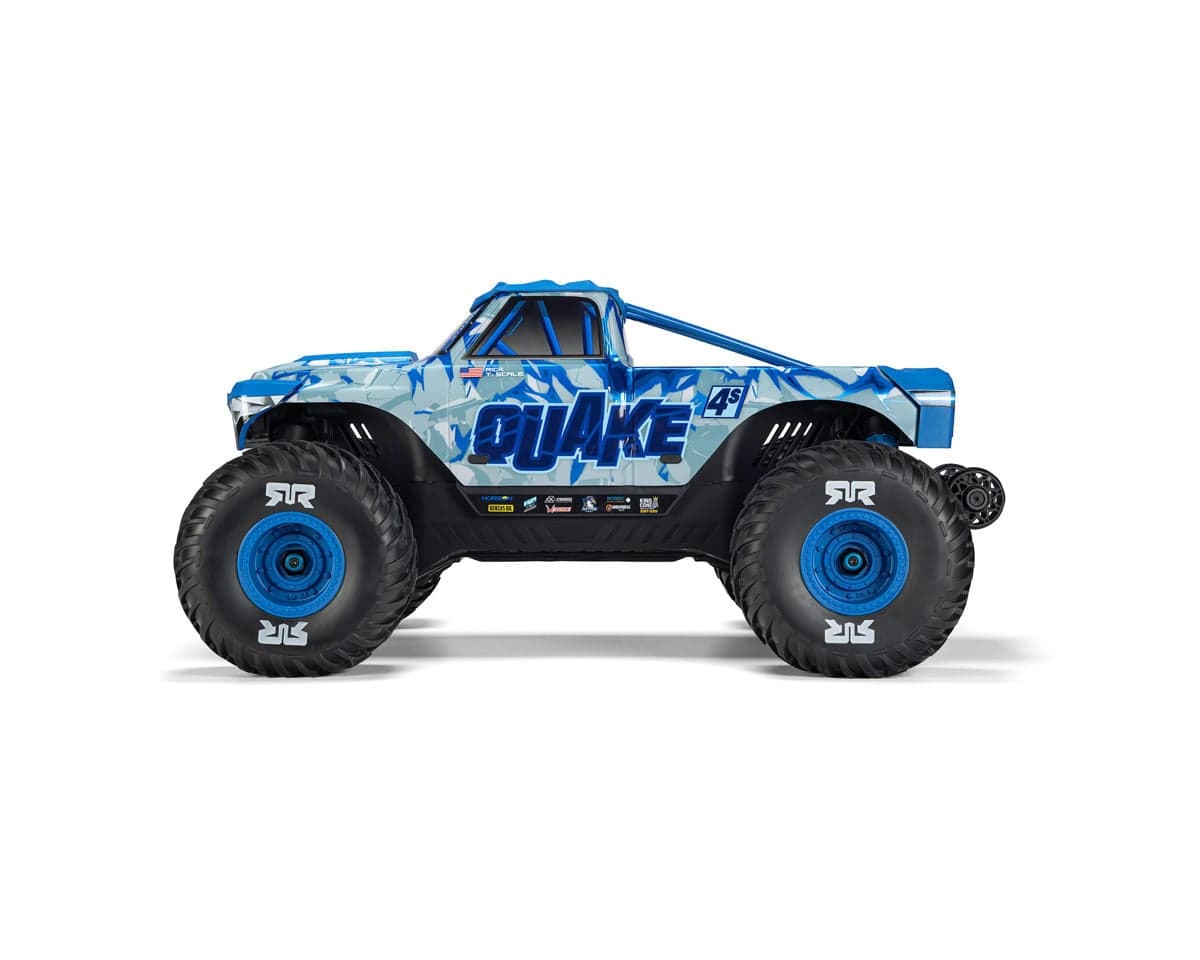

Arrma Quake 4S DSC 1/8 4WD RTR Brushless Monster Truck (White/Blue) w/2.4GHz Radio
About this part
Brushless Monster Truck Basher with 4S Capable Performance
The Arrma Quake 4S DSC 1/8 4WD RTR Brushless Monster Truck brings 4S brushless power and stunt-focused handling to a larger-scale platform. Its high center-of-gravity chassis is designed for dramatic cornering, wheelies, and big jumps, while the three-differential 4WD drivetrain delivers traction across dirt, grass, and gravel. Spektrum Dynamic Stability Control (DSC) helps manage sideways slides with four selectable modes, making it possible to adjust steering assistance to suit your driving ability. A durable composite chassis and simplified maintenance design round out a monster truck built for demanding bashing sessions.
About the Quake 4S Monster Truck
Seismic Monster Truck Handling

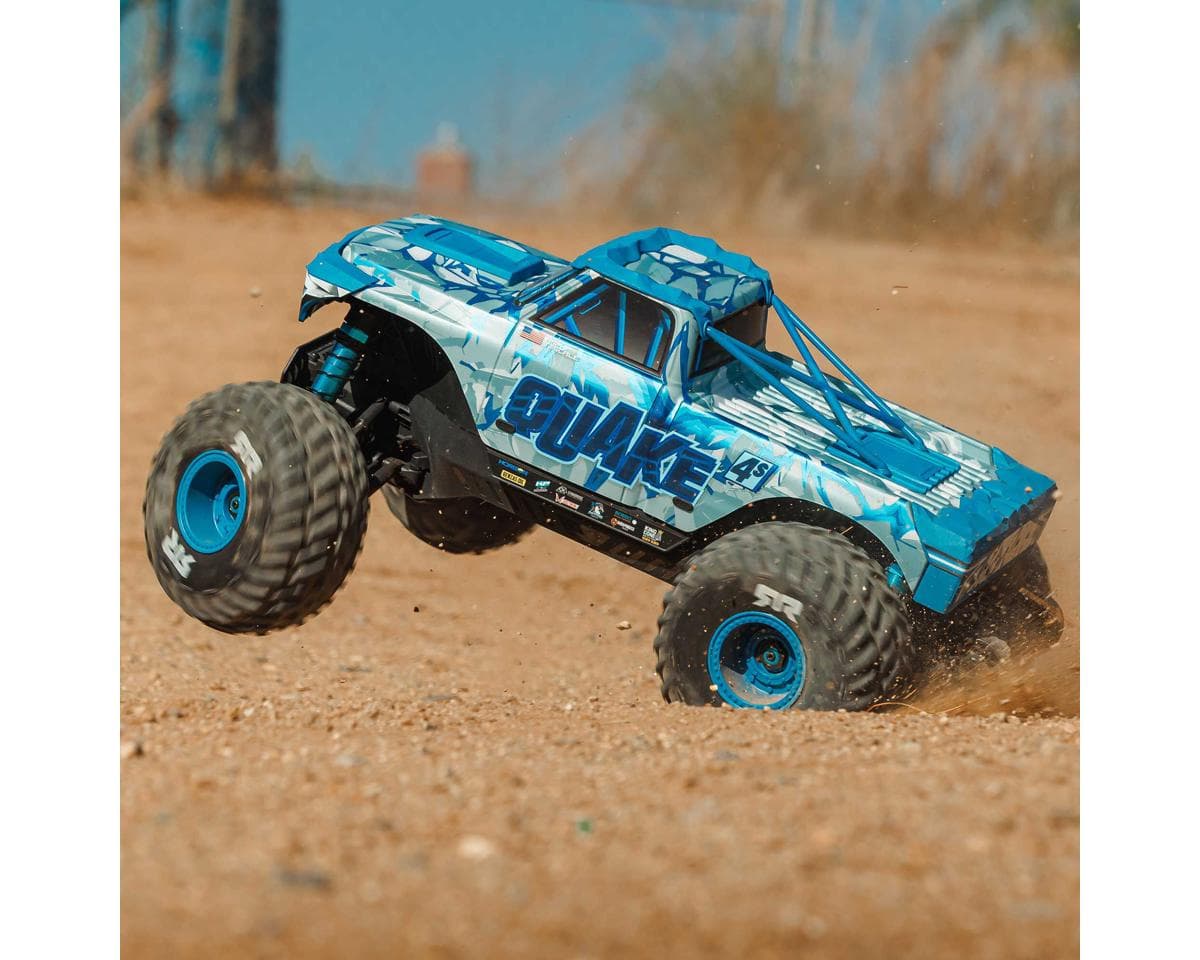

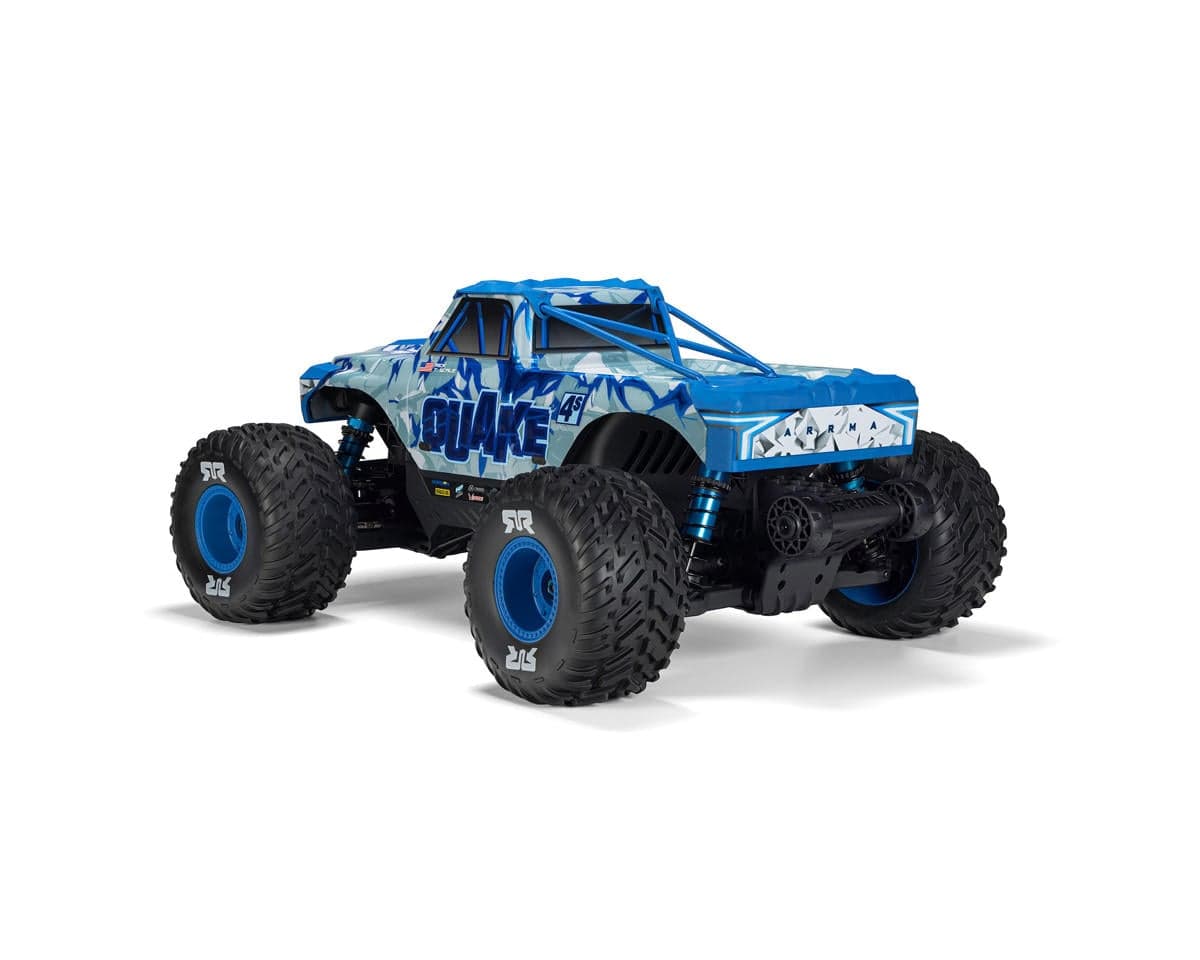

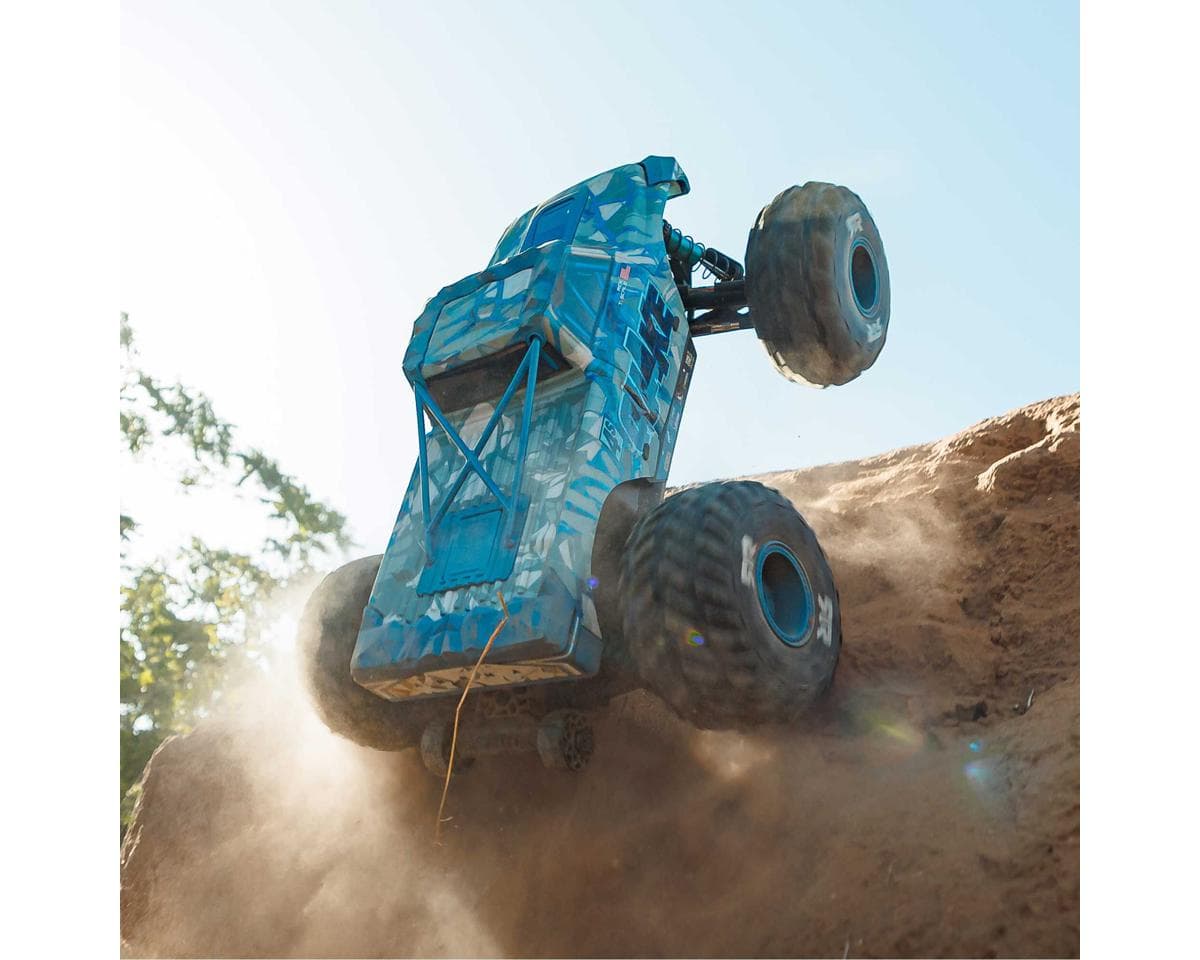

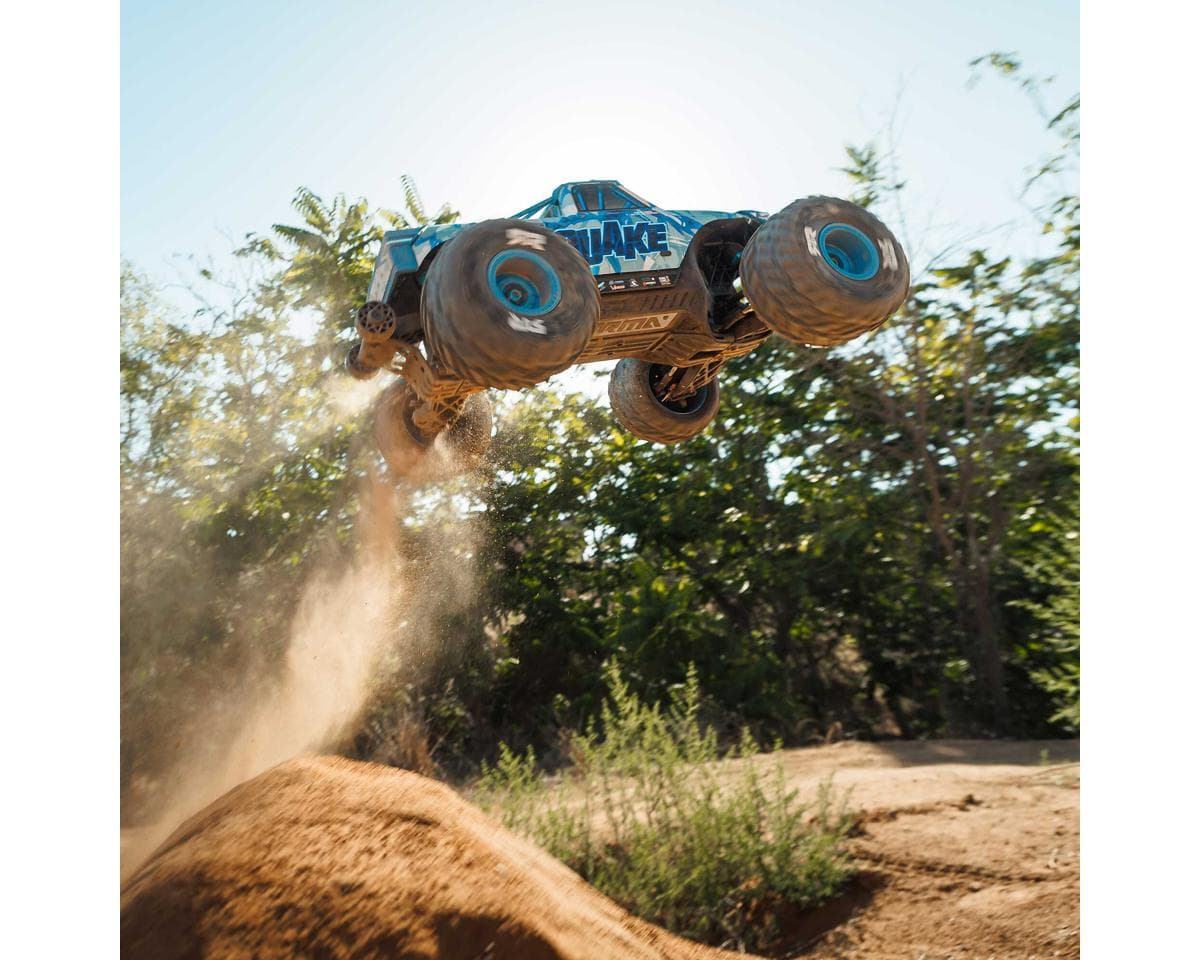

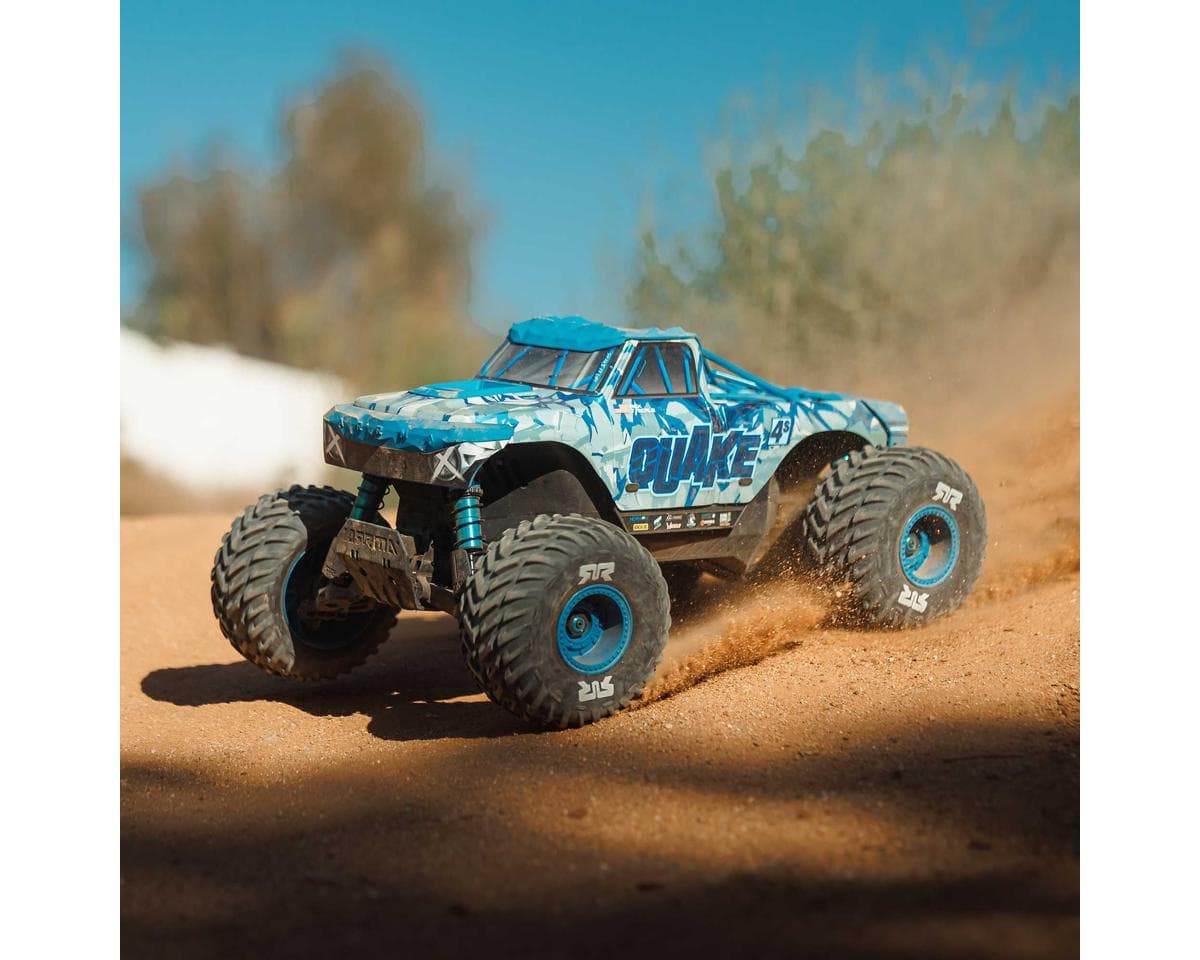

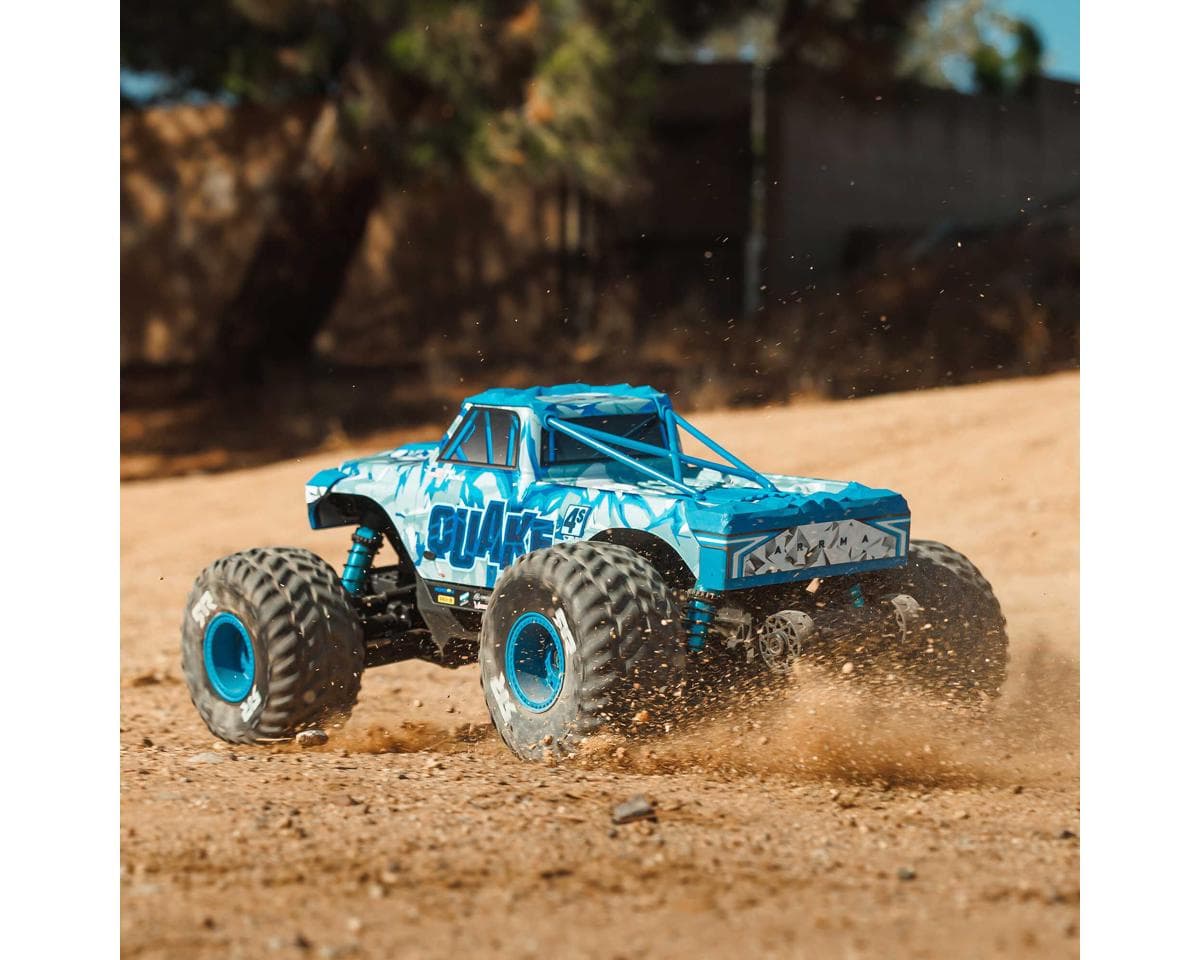

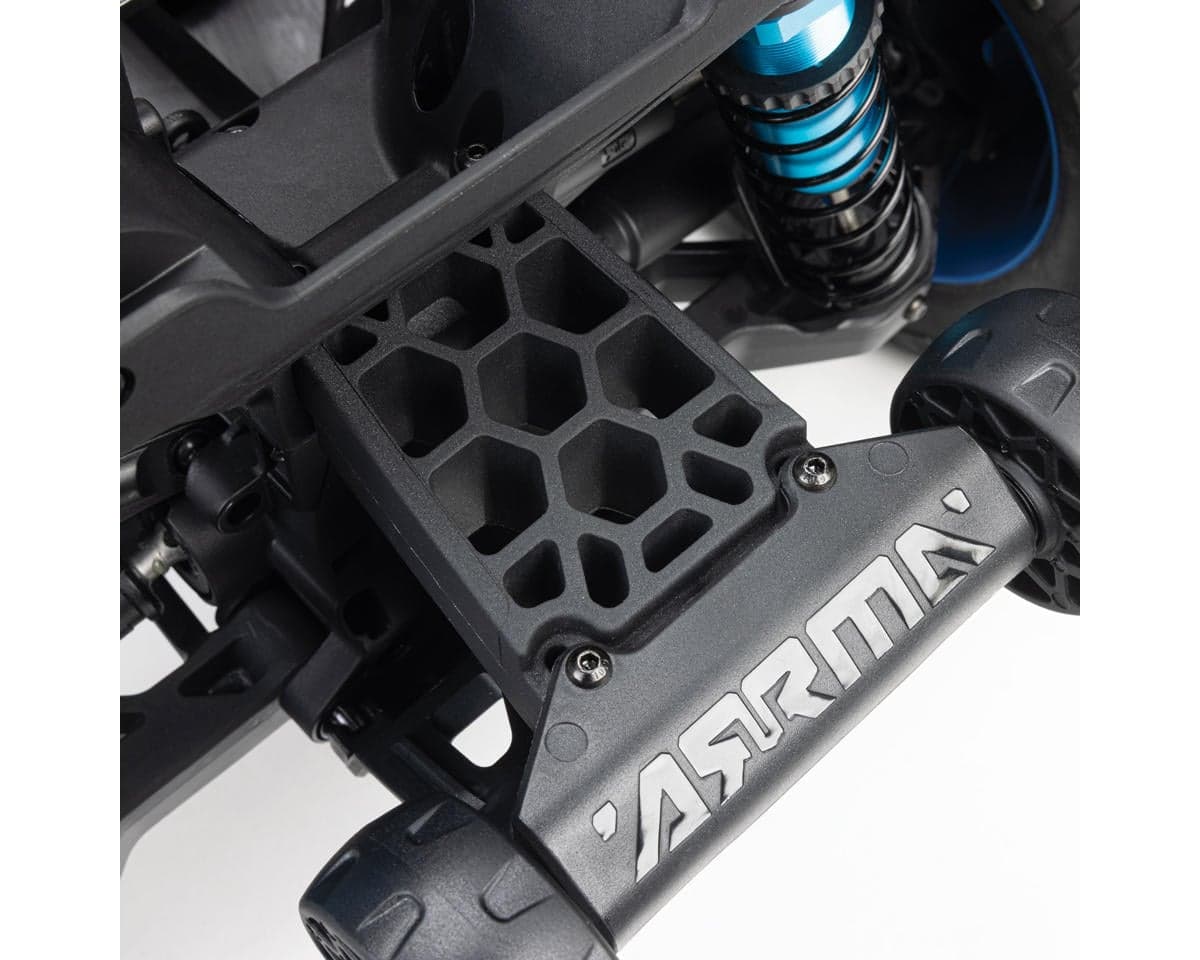

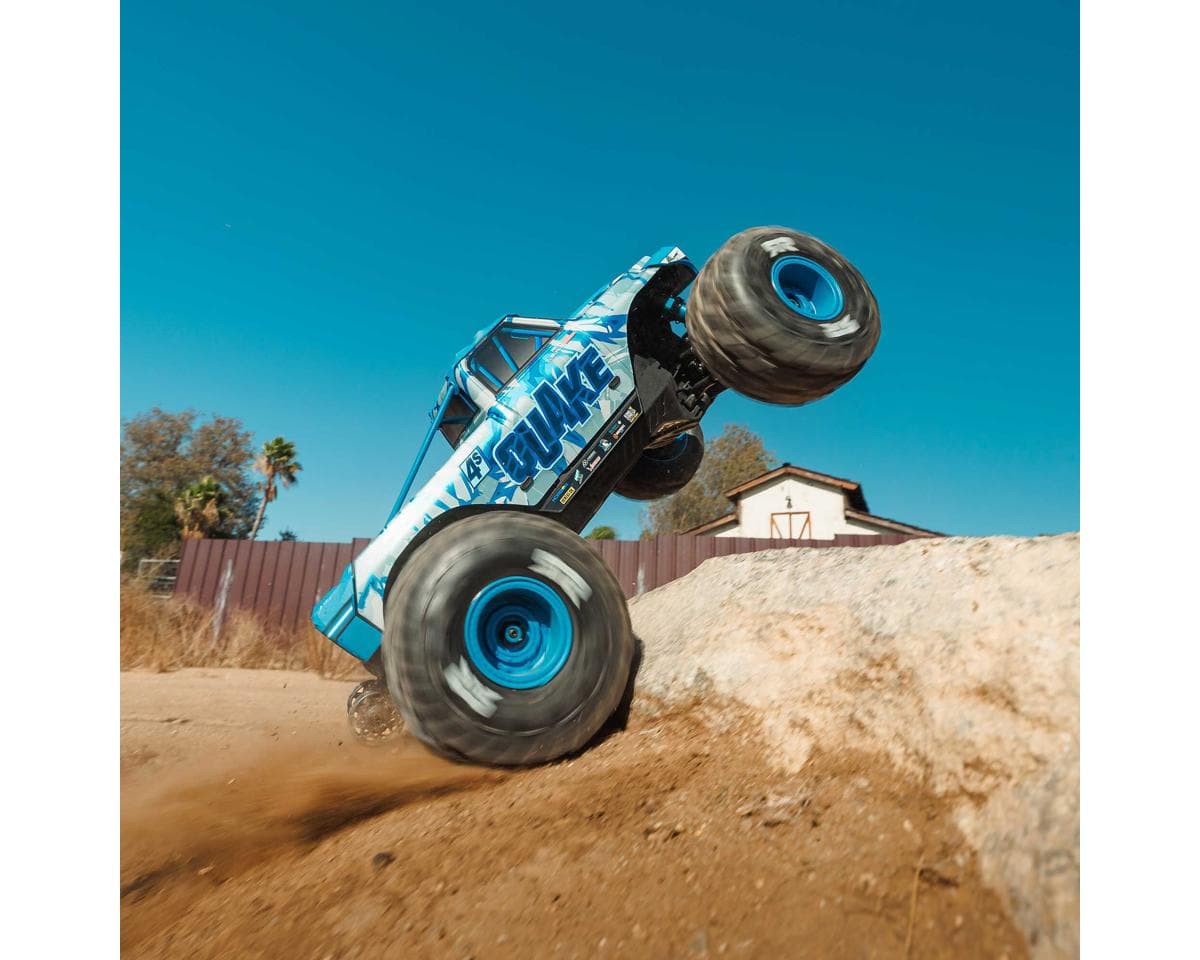

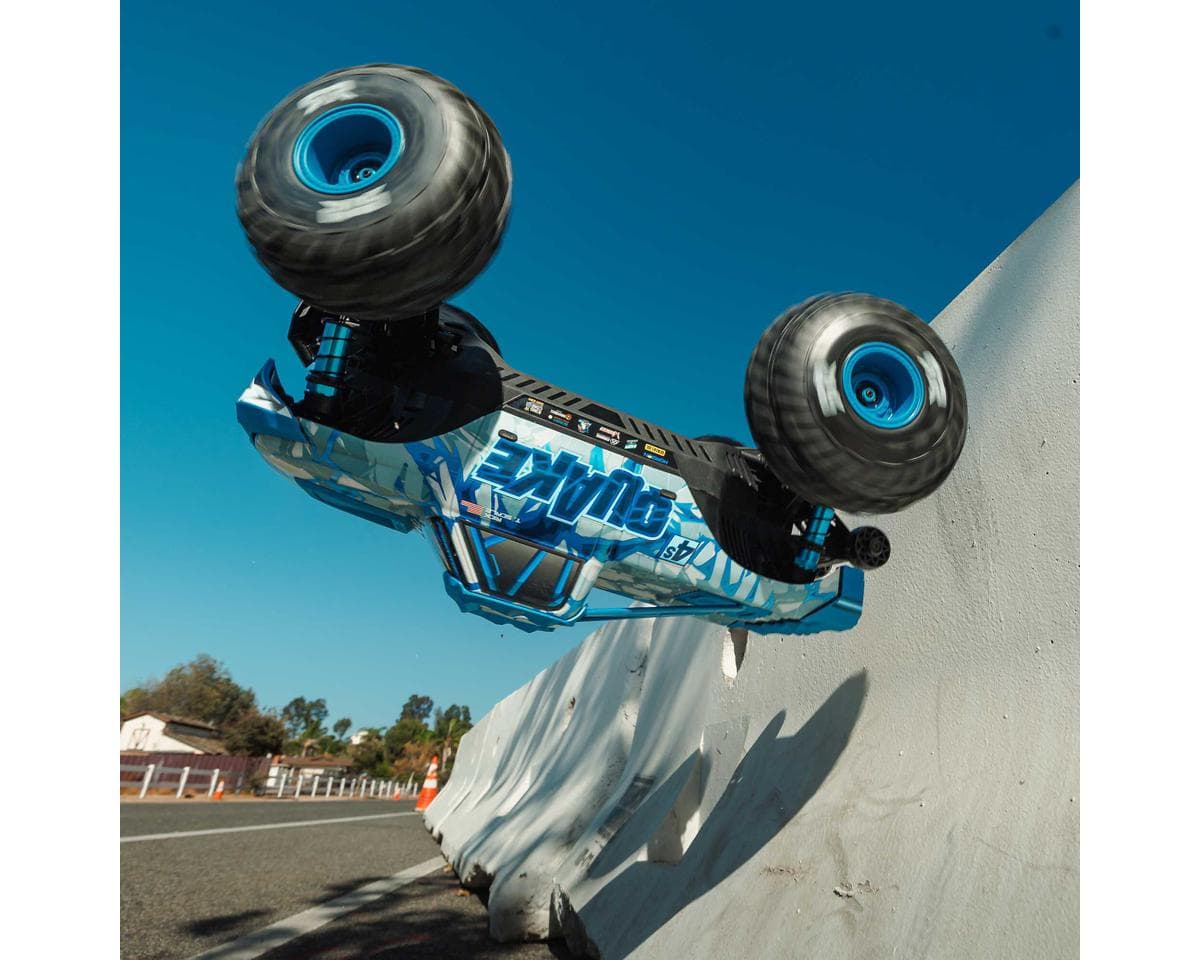

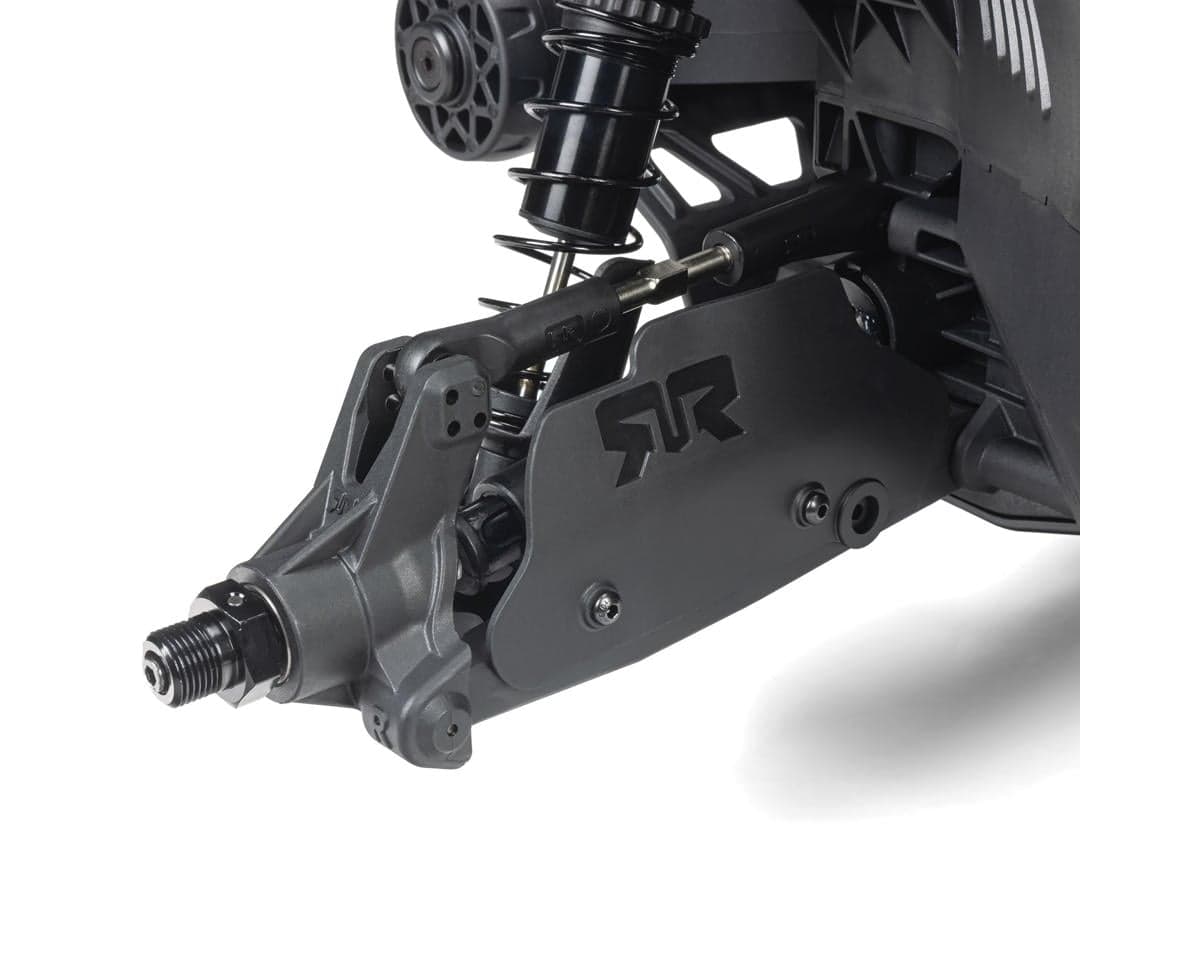

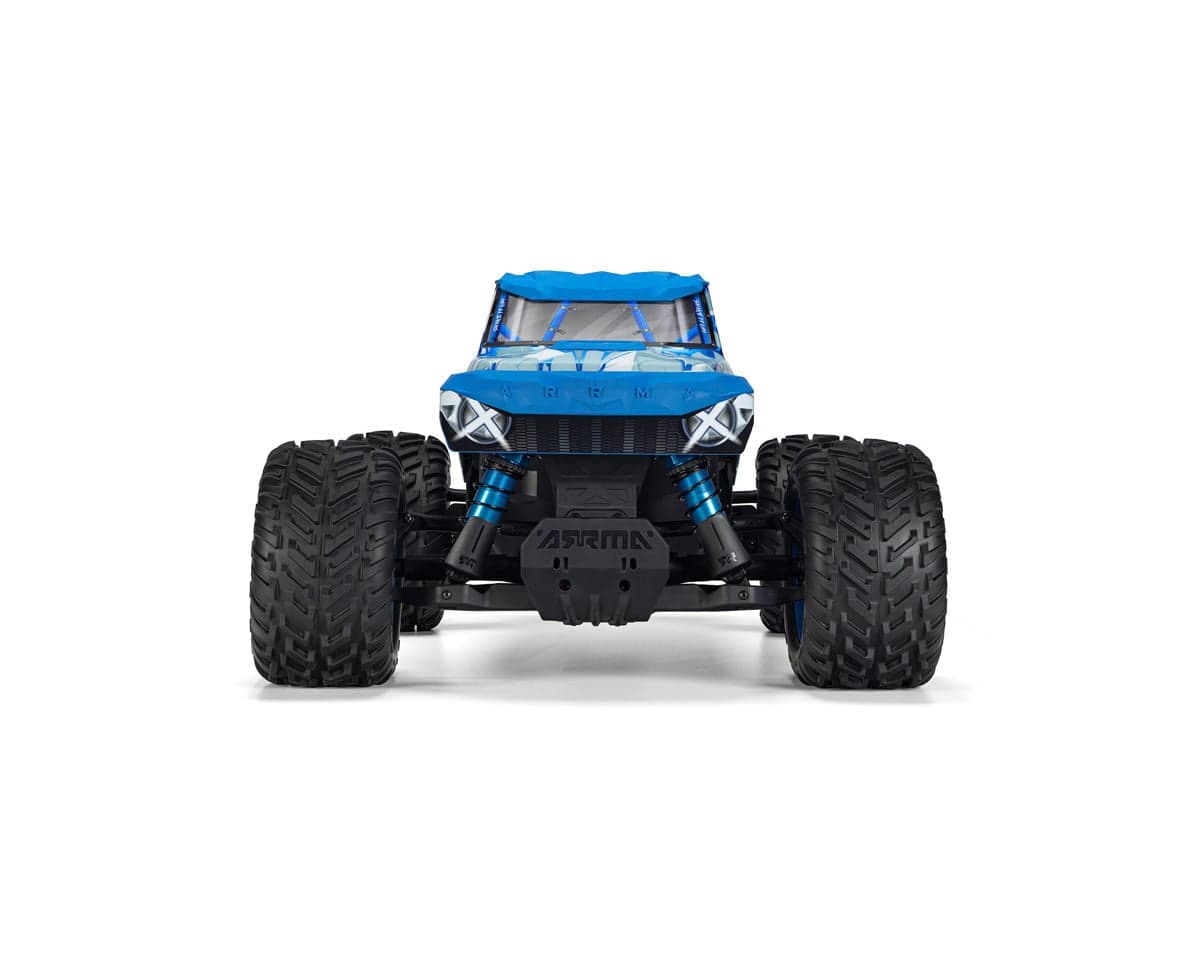

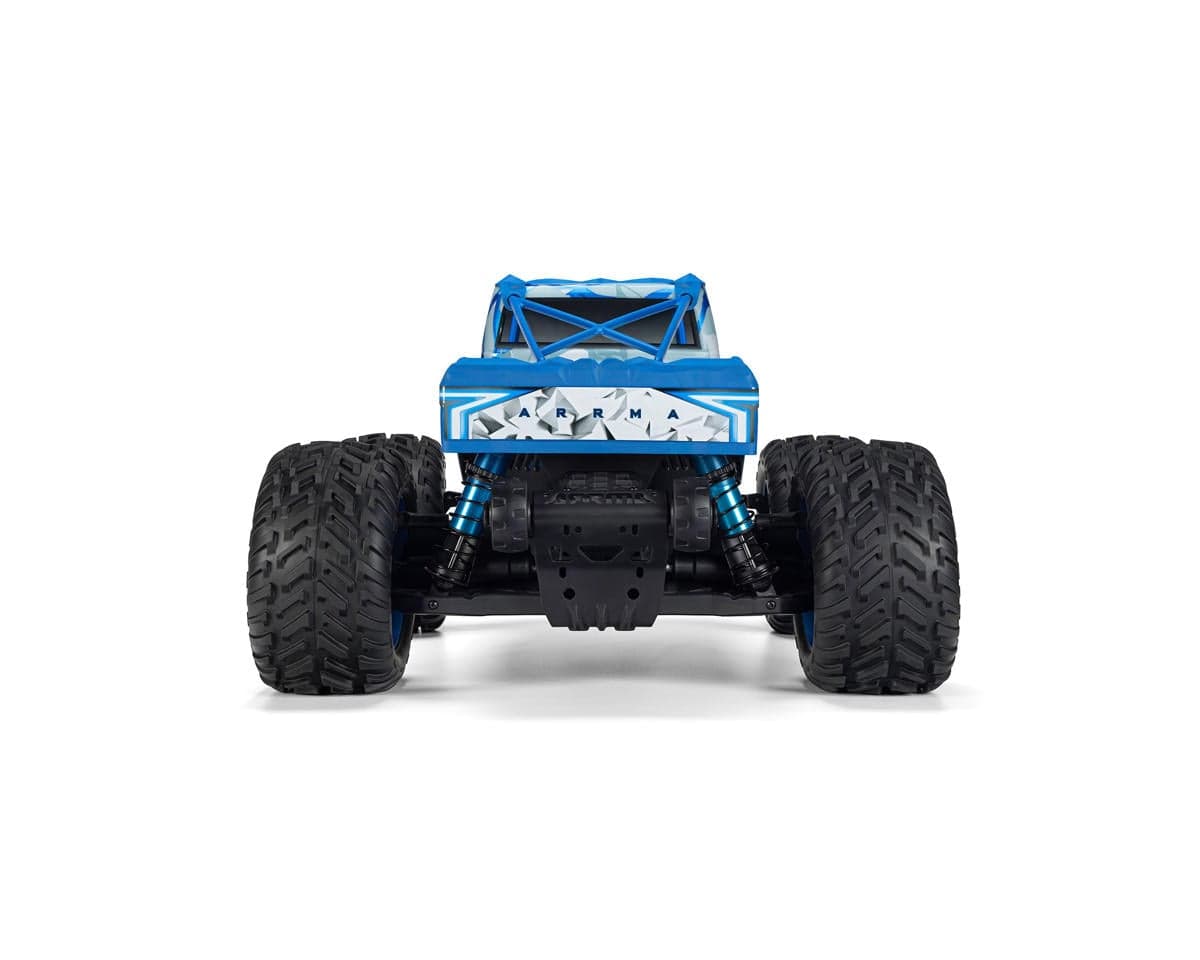

The Quake 4S features a raised, high-center-of-gravity chassis designed to produce the body lean and wheel-lifting action associated with full-size monster trucks. Its high-angle integrated wheelie bar supports stunt driving, while cut chevron tires provide grip across a variety of loose and uneven surfaces. Threaded aluminum shock absorbers with large-diameter shafts help absorb impacts from jumps, and interlocking shock towers support the suspension through repeated landings. A large front bumper and shock-absorbing bumper braces add protection when handling rough landings and collisions.
4S Brushless Power & DSC

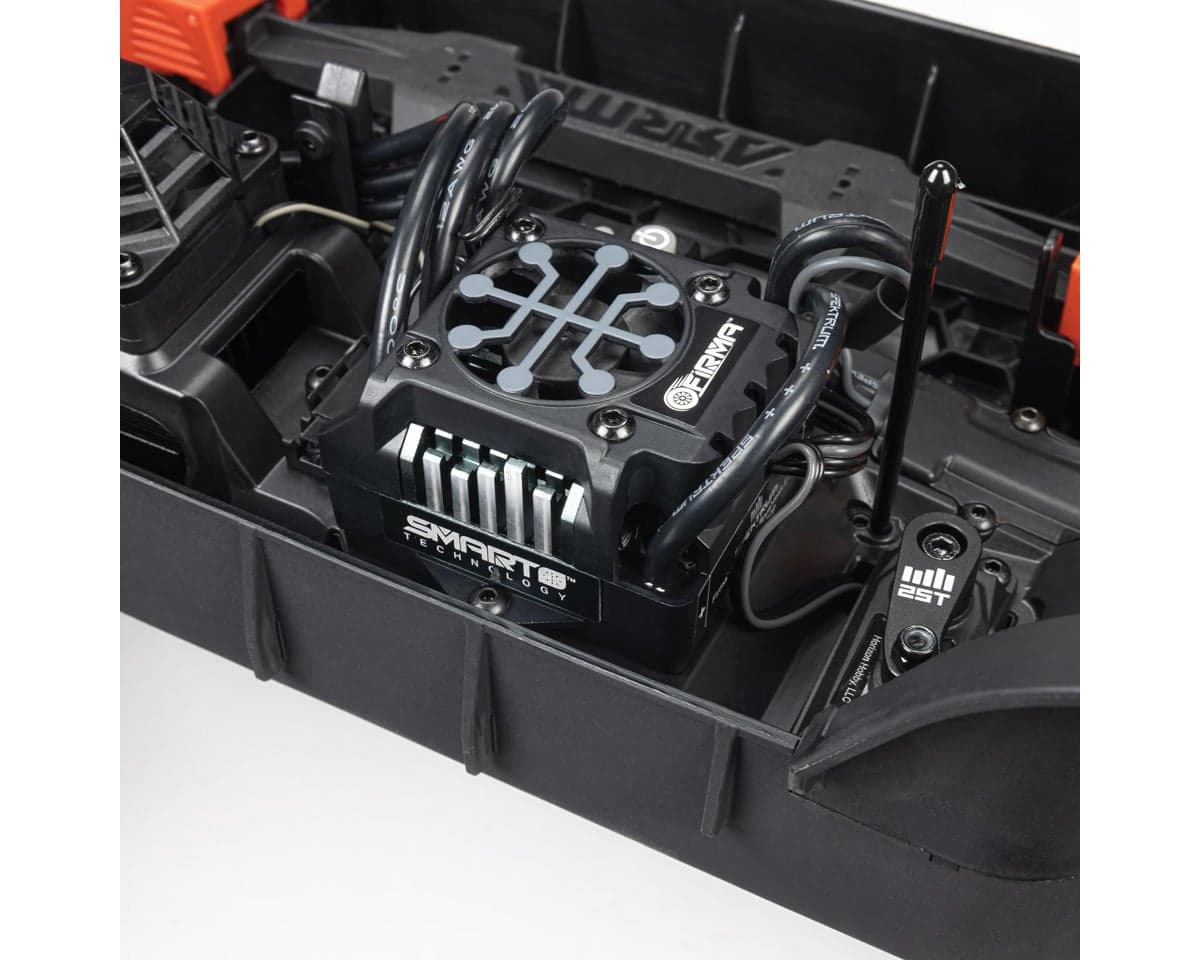

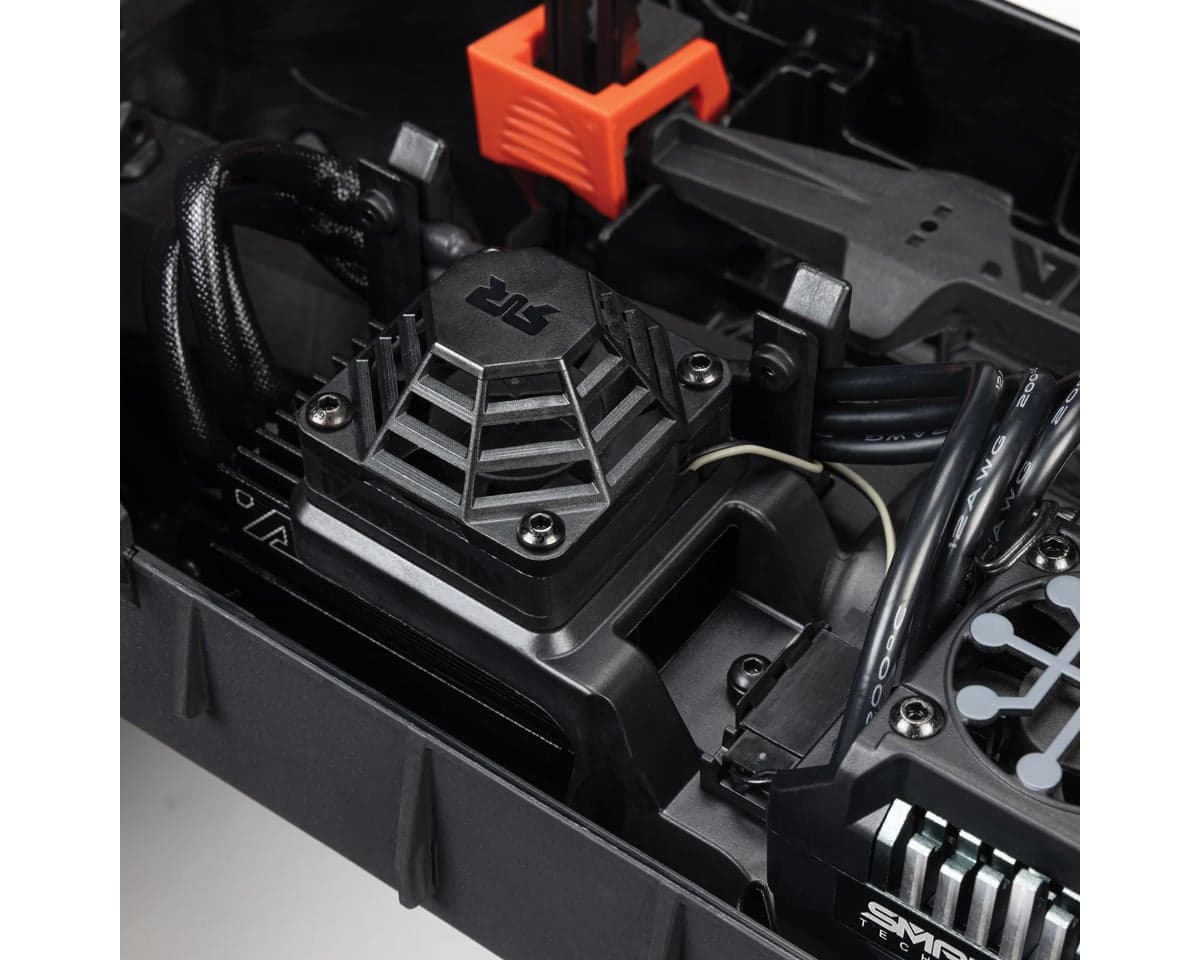

A Spektrum Firma 3674 2300kV brushless motor works with the Firma 150-Amp Brushless Smart V2 ESC to support both 3S and 4S LiPo battery operation. A heatsink, motor cooling fan, high-airflow fan cover, and integrated chassis cooling help manage heat during extended runs. Spektrum DSC automatically applies steering correction when it detects oversteer, helping control sideways slides with four selectable assistance modes. The included SLT3 2.4GHz three-channel transmitter also provides adjustable throttle limiting, while the S662 water-resistant metal-geared digital servo and heavy-duty servo saver support precise steering and help protect the steering system from impacts.
Durable Construction & Convenient Maintenance

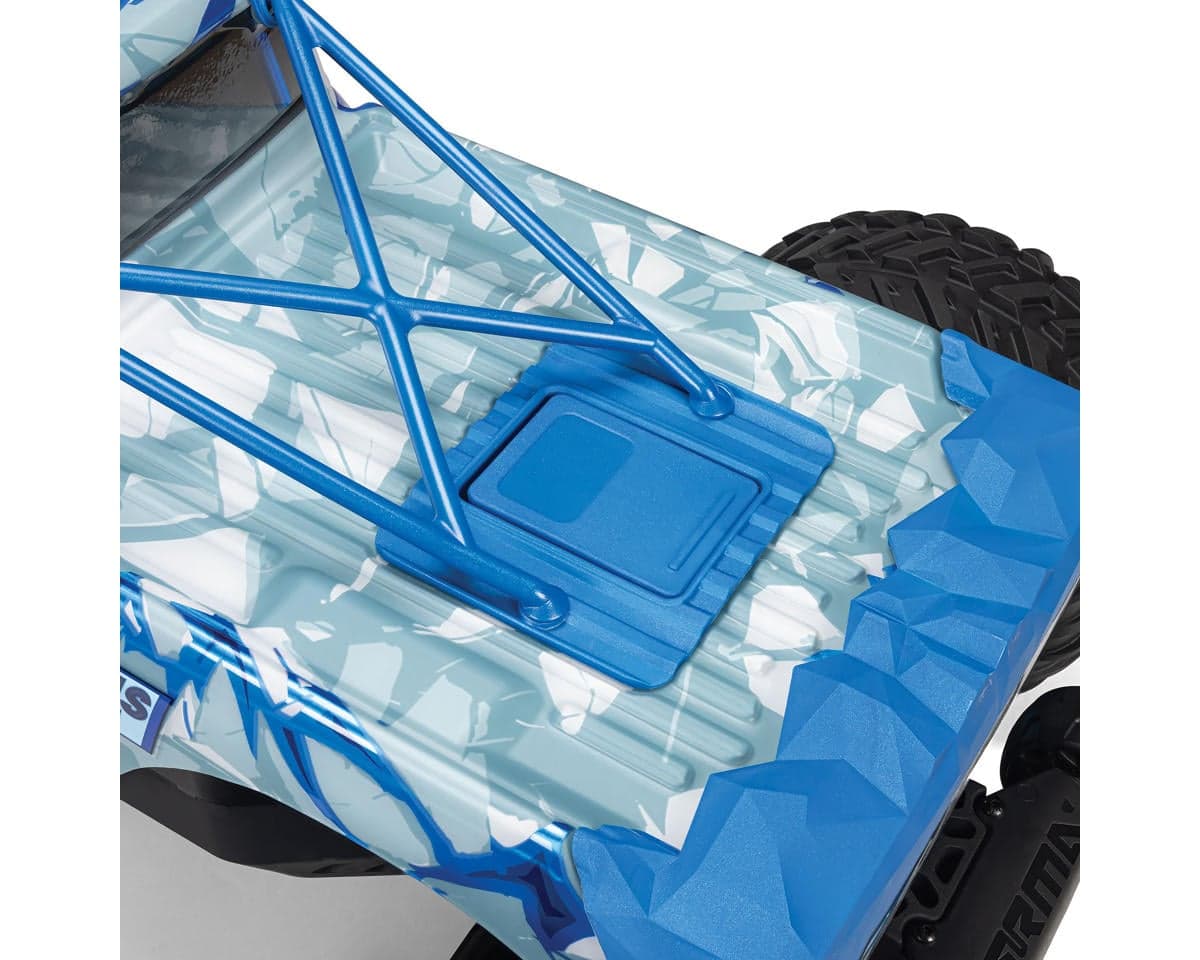

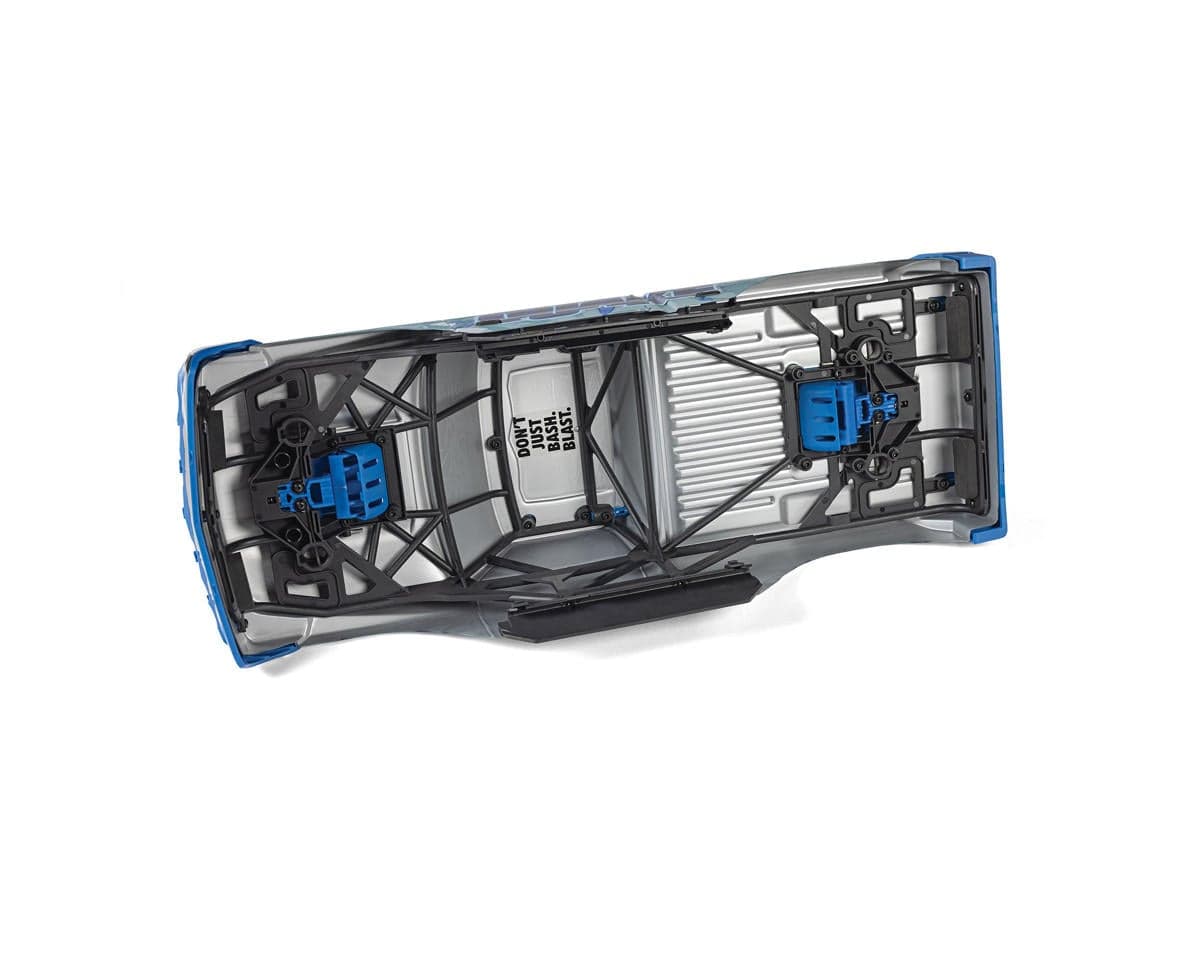

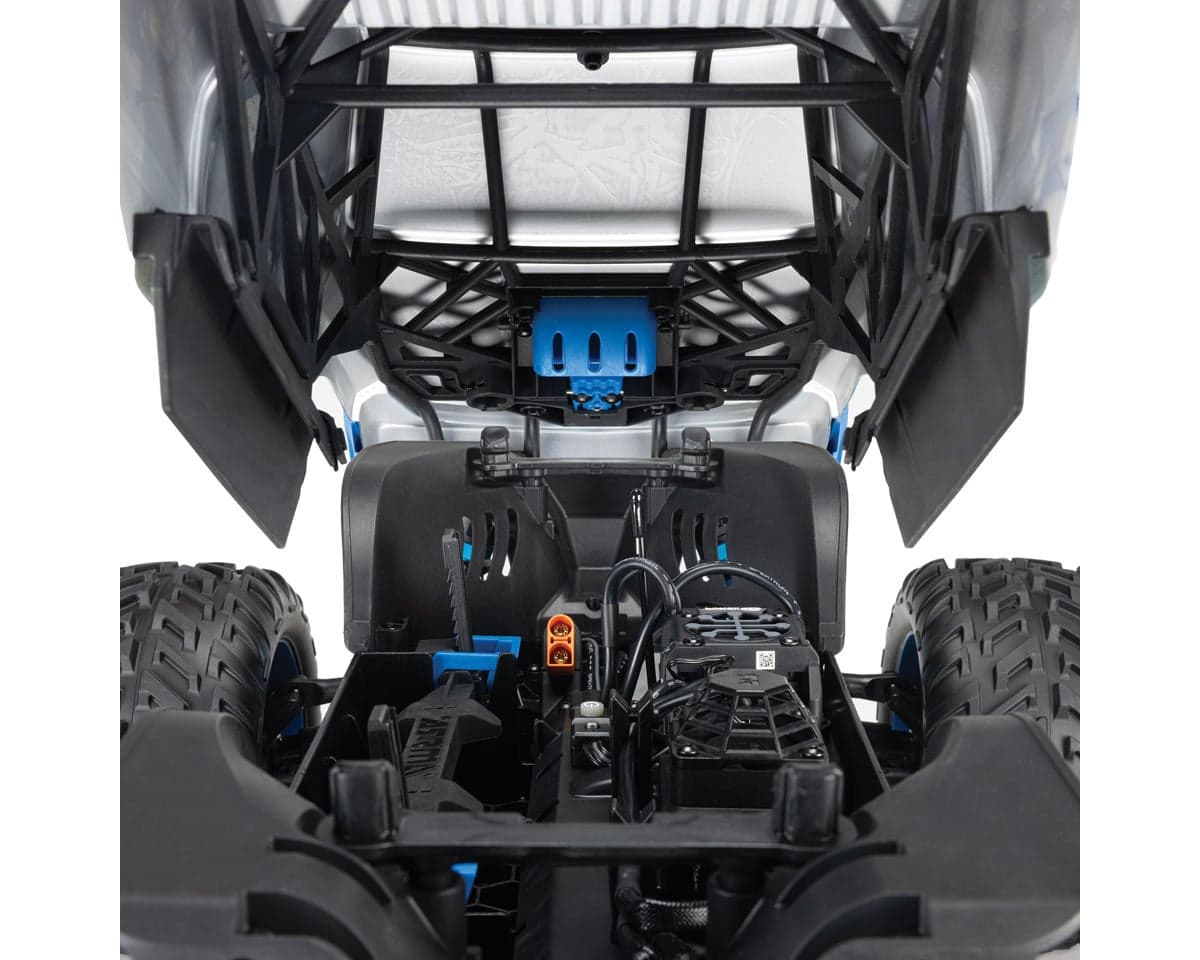

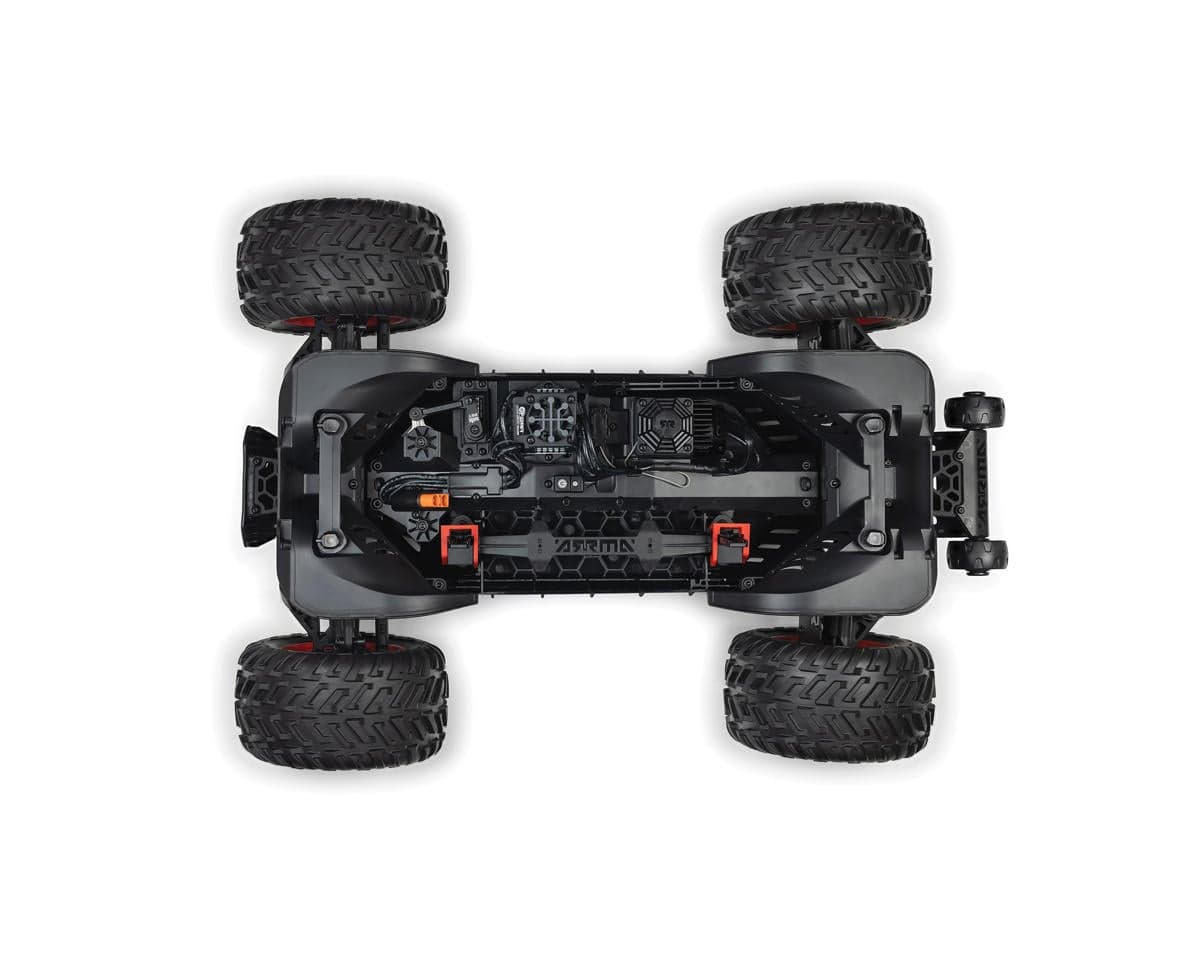

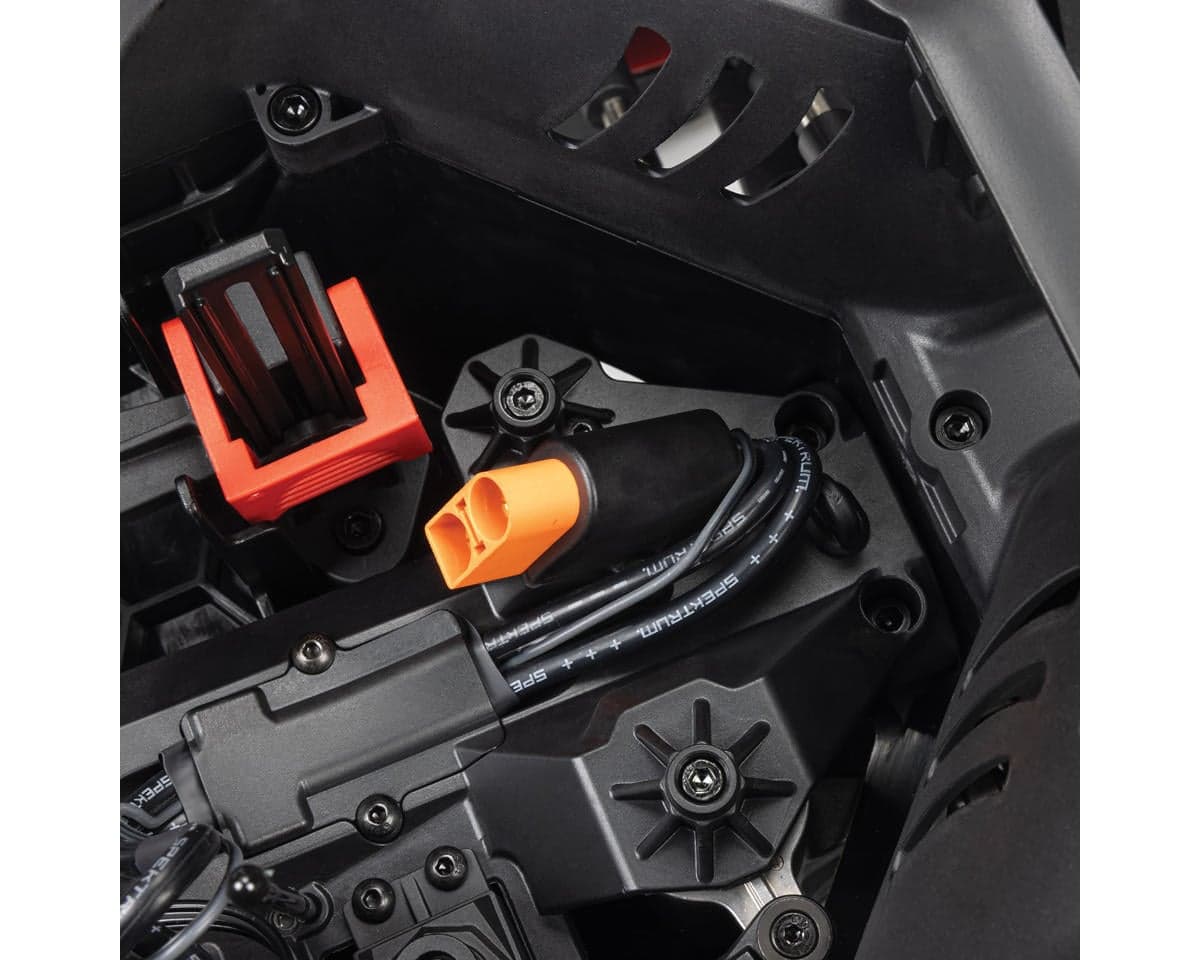

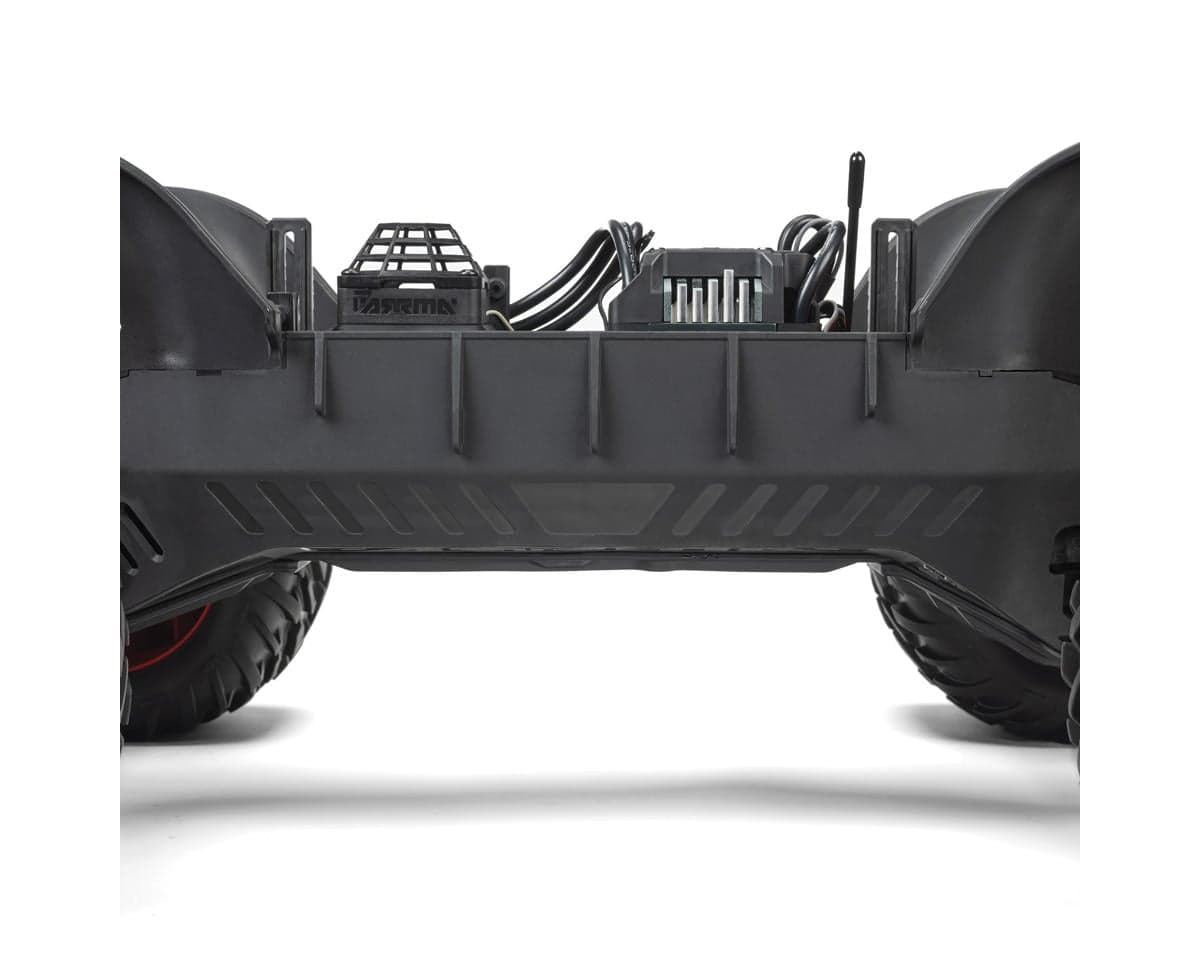

The deep tub molded composite chassis protects the vehicle's internal components while keeping the overall design straightforward to service. Interlocking body protection and rear wishbone dirt guards help shield vulnerable areas from dirt and debris, while the hidden body retention system secures the body without exposed clips. A large battery compartment, ratcheting battery strap, and captive battery wiring simplify battery installation and removal. With a reduced component count and easy access to key systems, the Quake 4S is designed to spend less time being serviced and more time on the ground.
Features:
- 1/8 scale monster truck with 4S capable performance
- High-center-of-gravity chassis for aggressive cornering and wheelies
- Spektrum Firma 3674 brushless motor
- Firma 150A Smart V2 ESC with 3S and 4S LiPo compatibility
- Spektrum DSC with four selectable steering assistance modes
- Three-differential 4WD drivetrain
- Threaded aluminum shocks with large-diameter shafts
- Deep tub composite chassis with impact-resistant bumpers
- Hidden body retention system without exposed body clips
- Ratcheting battery strap and simplified maintenance access
Includes:
- (1) Quake 4S DSC 1/8 4WD RTR Brushless Monster Truck
- (1) Spektrum Firma 150A Smart V2 ESC w/IC5 Connector
- (1) Spektrum Firma 3674 Brushless Motor (2300kV)
- (1) Spektrum S662 Metal-Geared Digital Steering Servo
- (1) Spektrum SLR370 DSC SLT Protocol Receiver
- (1) Spektrum SLT3 2.4GHz 3-Channel Transmitter w/DSC
- (4) AA Batteries for Transmitter
- Product Manual
Needed To Complete:
- (1) 3-4S Hardcase LiPo Battery (11.1-14.8V) w/EC5 or IC5 Connector
- (1) Compatible Battery Charger
Specifications:
| Scale | 1:8 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | 3S-4S LiPo | ||||||||
| Length | 22.83in (580mm) | ||||||||
| Wheelbase | 14.45in (367mm) | ||||||||
| Width | 16.3in (414mm) | ||||||||
| Height | 11.02in (280mm) | ||||||||
| Weight | 13.49lbs (6.12kg) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
