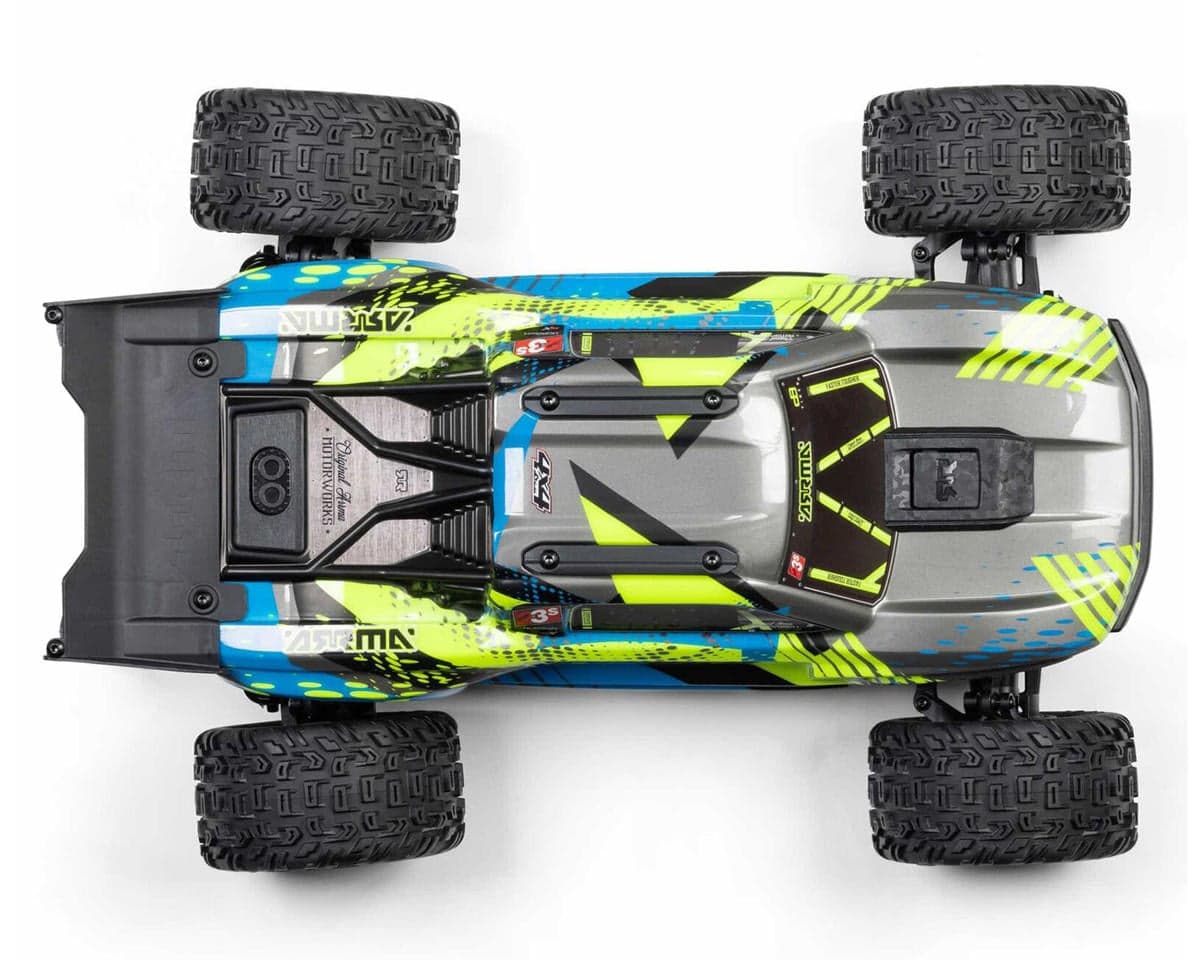

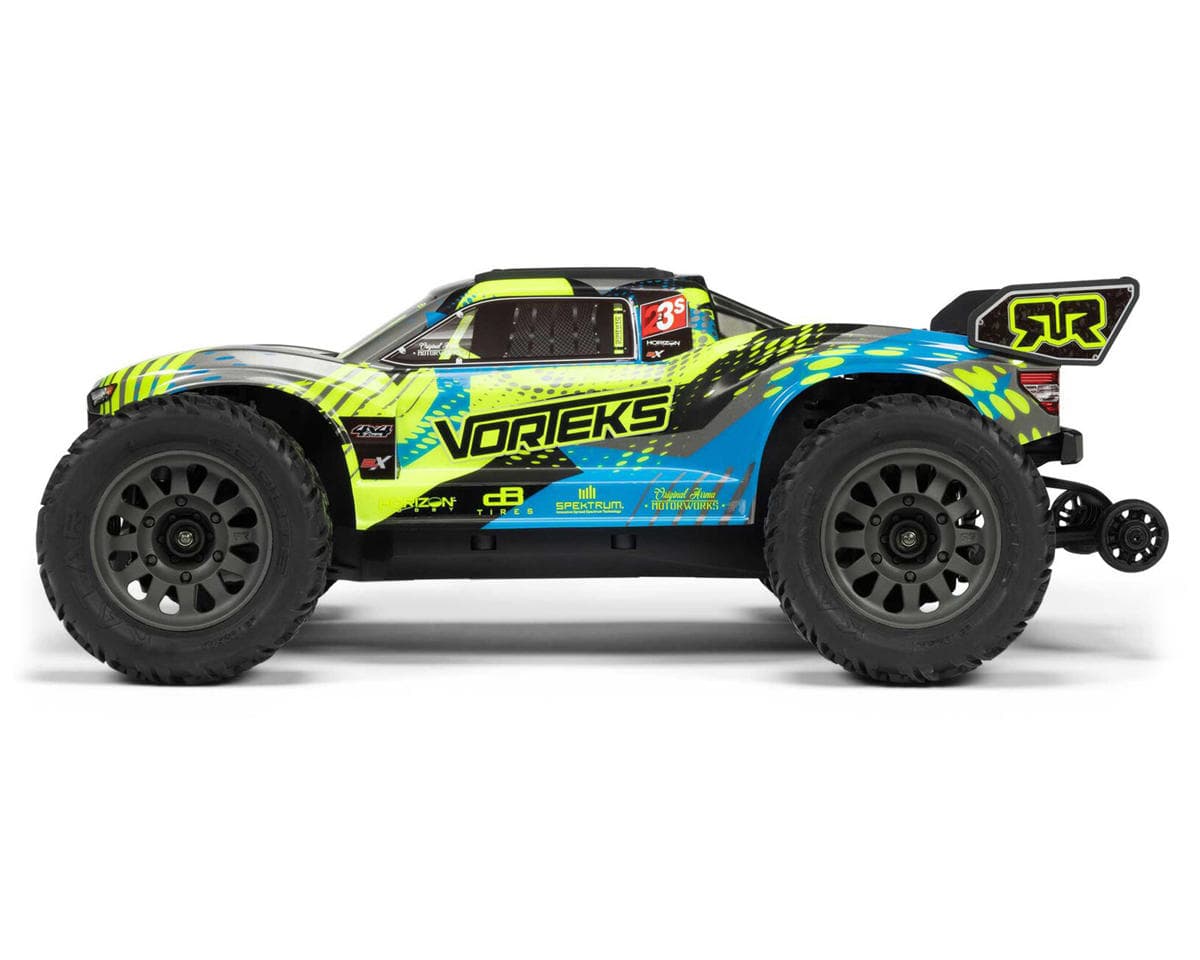

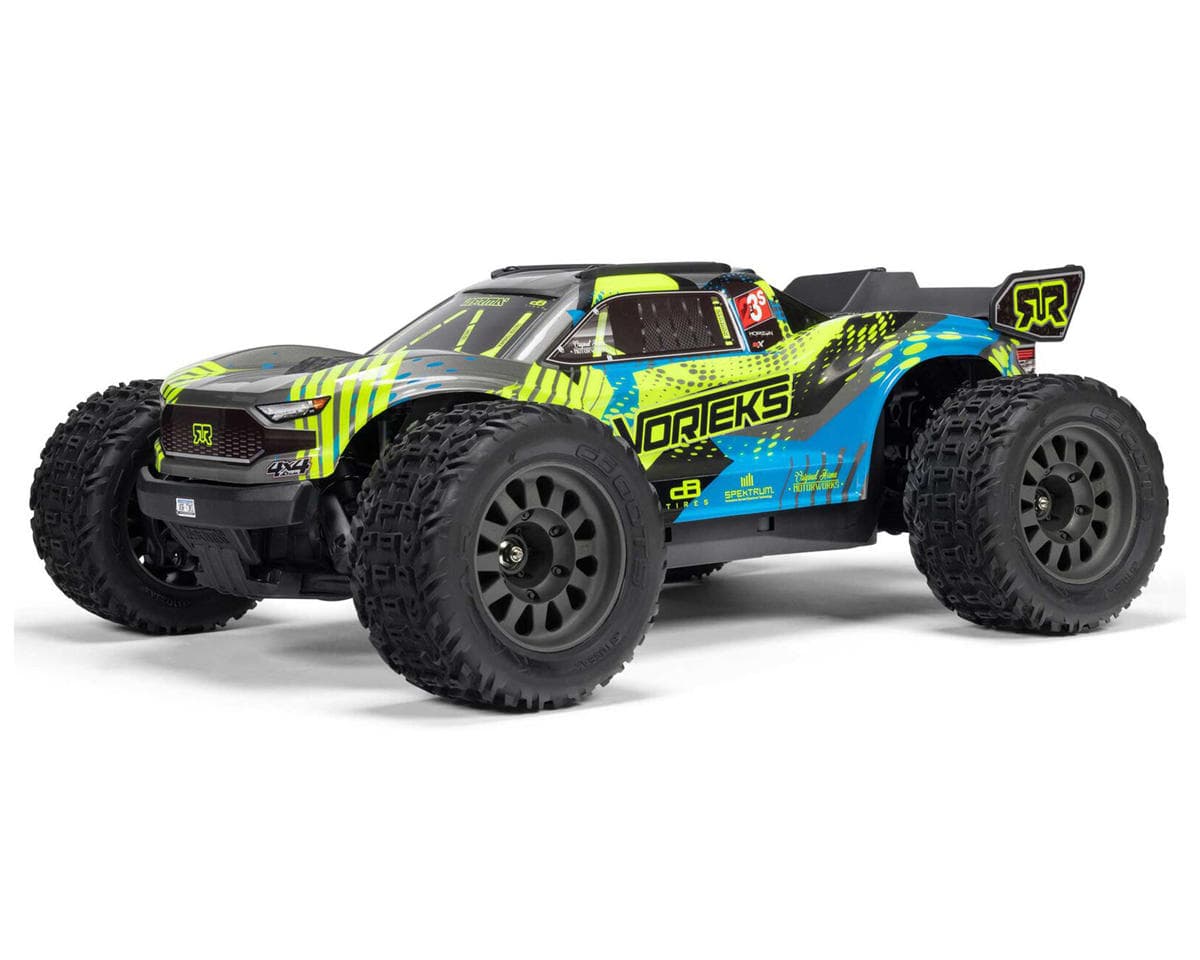

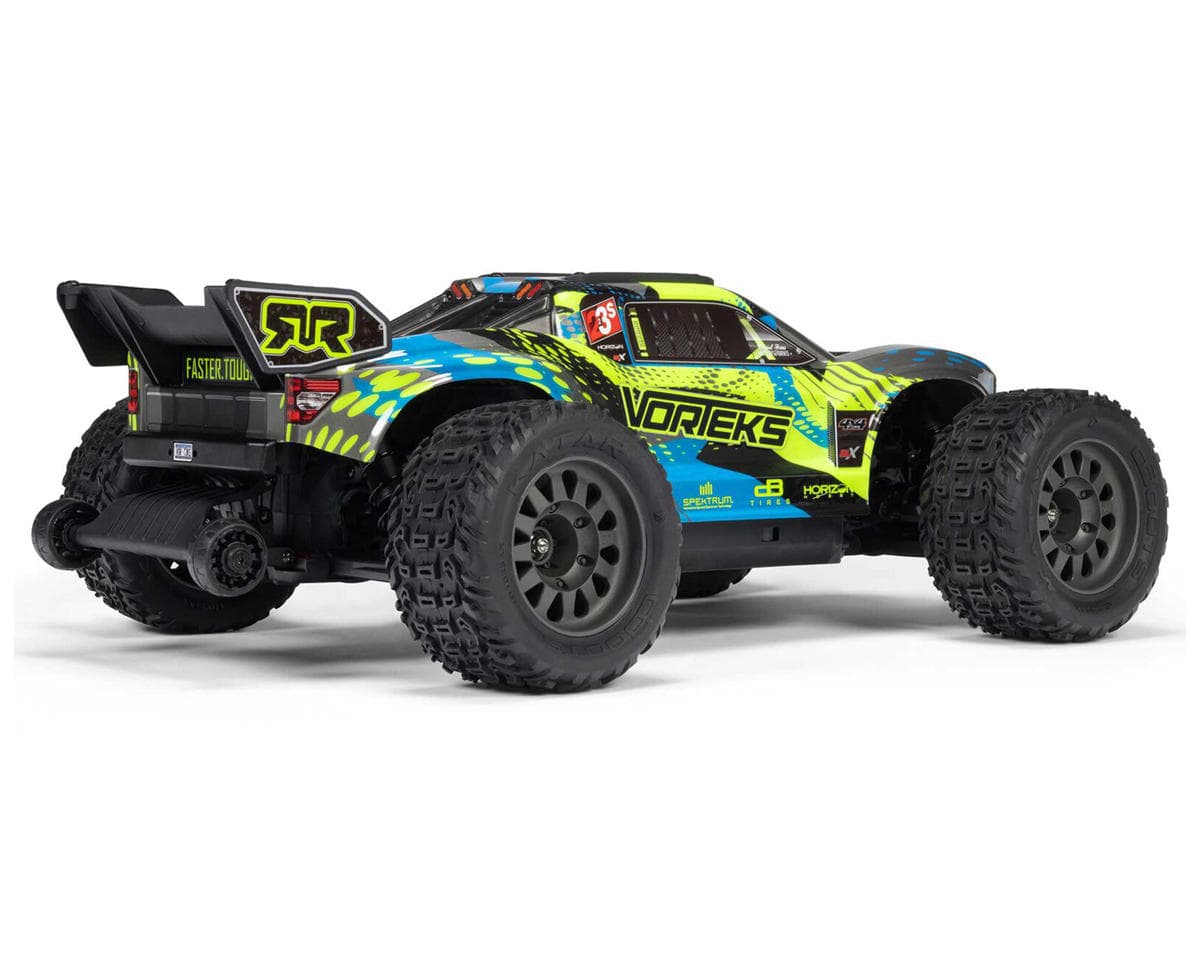

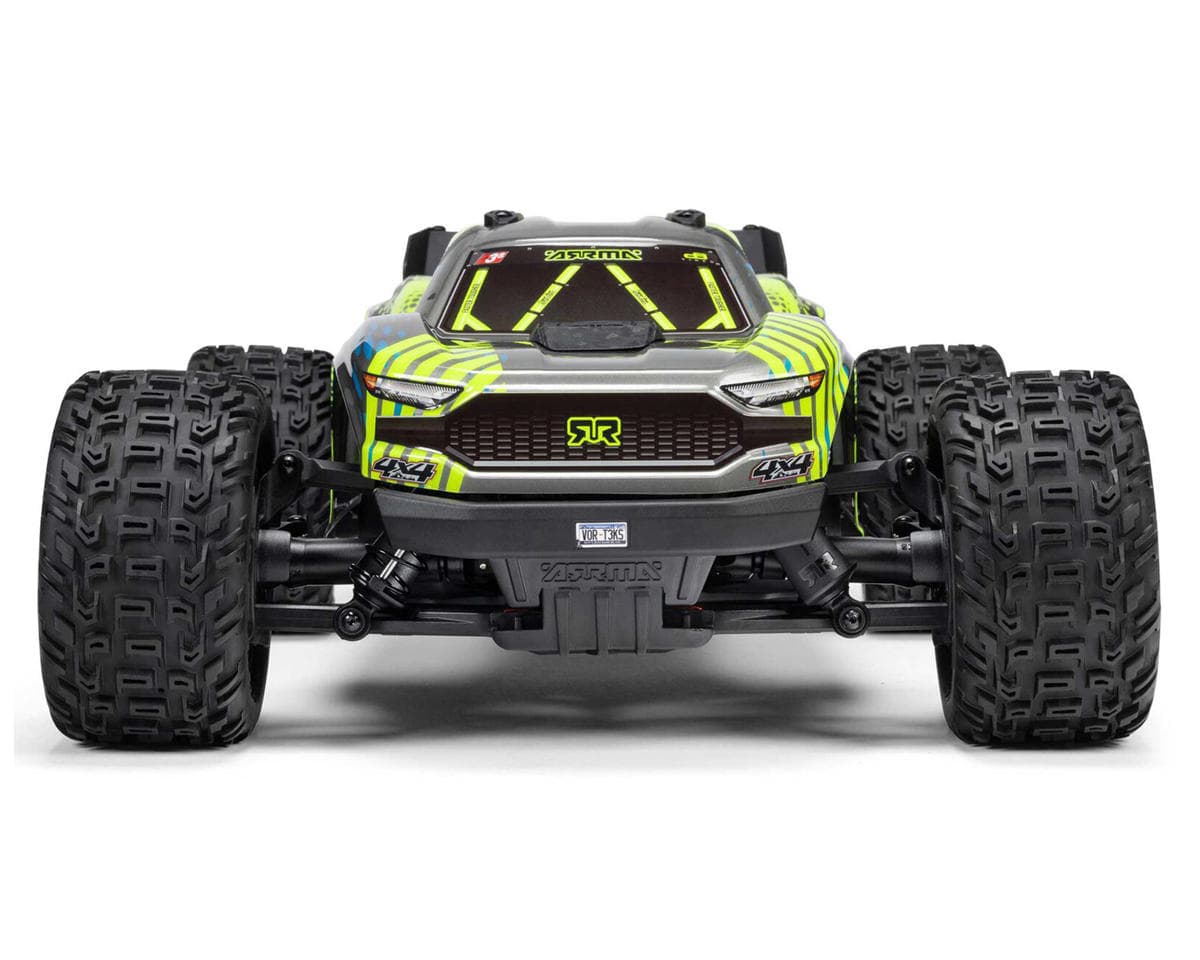

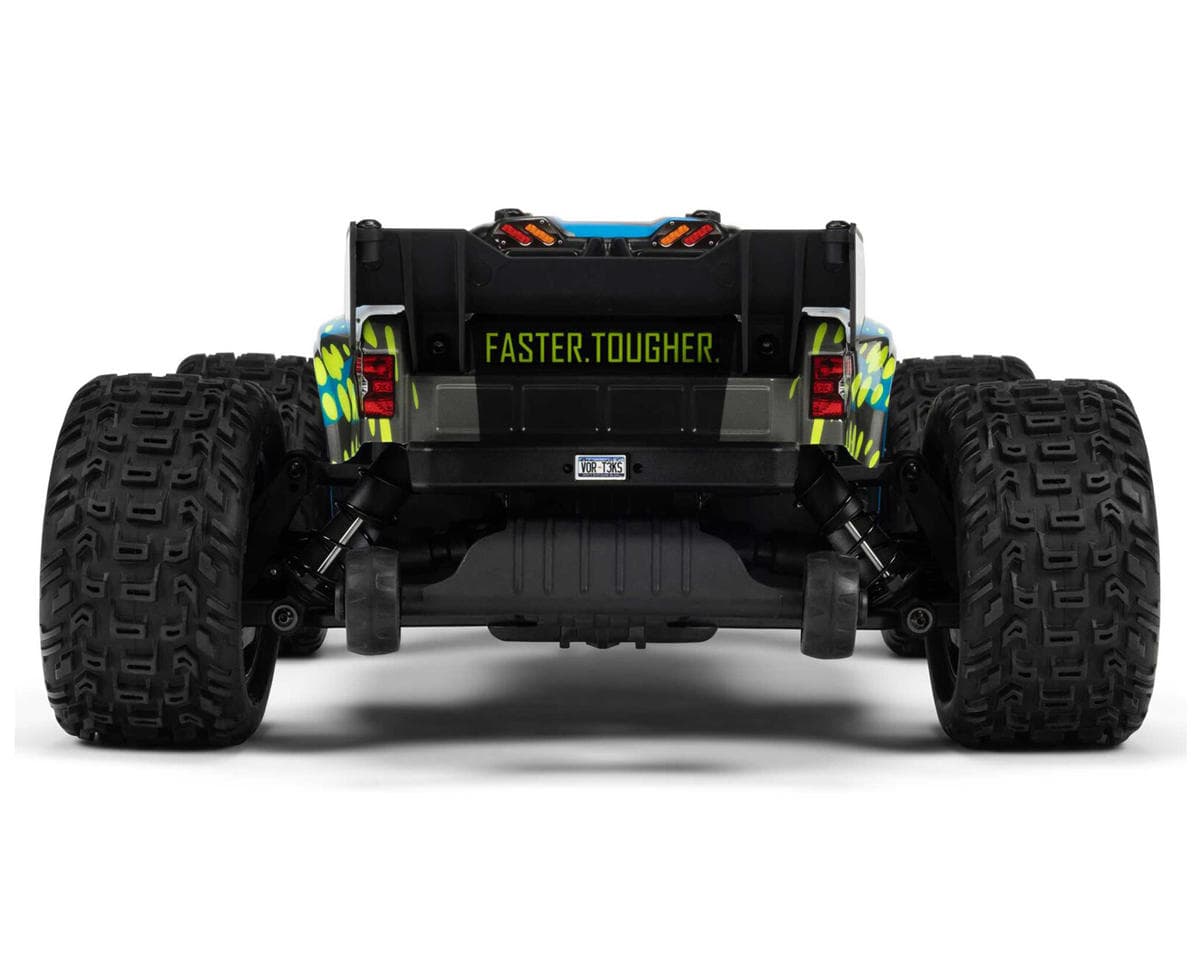

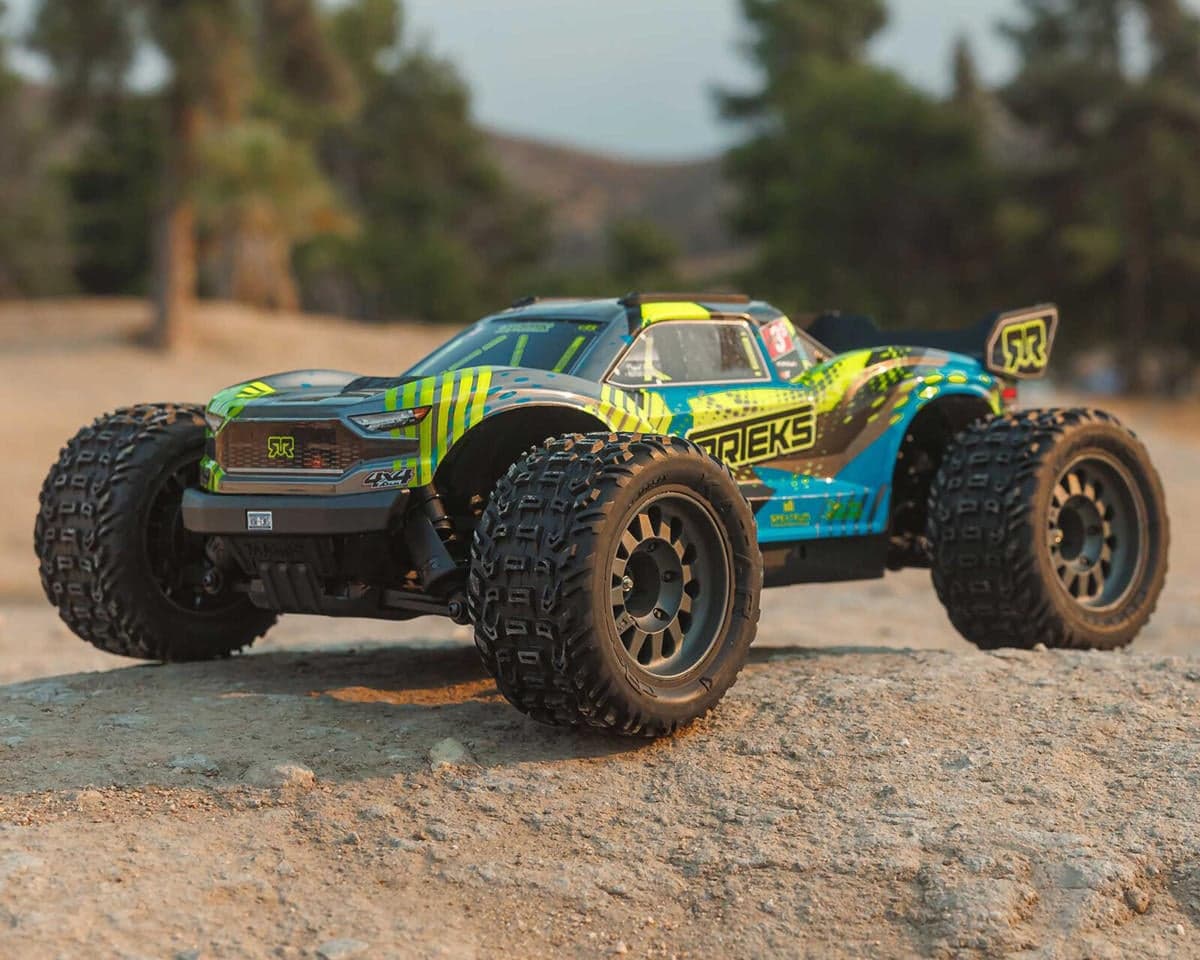

Arrma Vorteks 223S 1/10 BLX Brushless RTR 4WD Stadium Truck (Teal) w/SLT3 2.4GHz Radio & DSC
About this part
Tough, Fast & Ready-to-Bash R/C Truck
The Arrma® Vorteks™ 223S BLX 1/10 Brushless RTR 4x4 Stadium Truck offers an accessible way for drivers to experience the thrill of high-speed bashing. Designed for brushless beginners and pros alike, it combines durability, all-terrain capabilities, and speeds reaching over 50 mph with 3S power. This 4x4 truck arrives ready-to-run, giving you both powerful performance and the confidence to tackle challenging terrains with ease. All you need to add is your battery and charger, and you're ready to race.
About the Vorteks 223S BLX
Advanced Electronics & Brushless Power
The Vorteks 223S BLX comes equipped with high-quality Spektrum electronics, including a powerful 3100kV brushless motor and an 80A two-in-one ESC and receiver unit that's water resistant for reliable performance on any terrain. This setup enables exceptional speeds on a 2S battery and even higher top speed thrills with 3S power, giving you control over how fast you go. With Dynamic Stability Control (DSC) offering four selectable modes, drivers can benefit from automated steering corrections on various surfaces, increasing control and confidence.

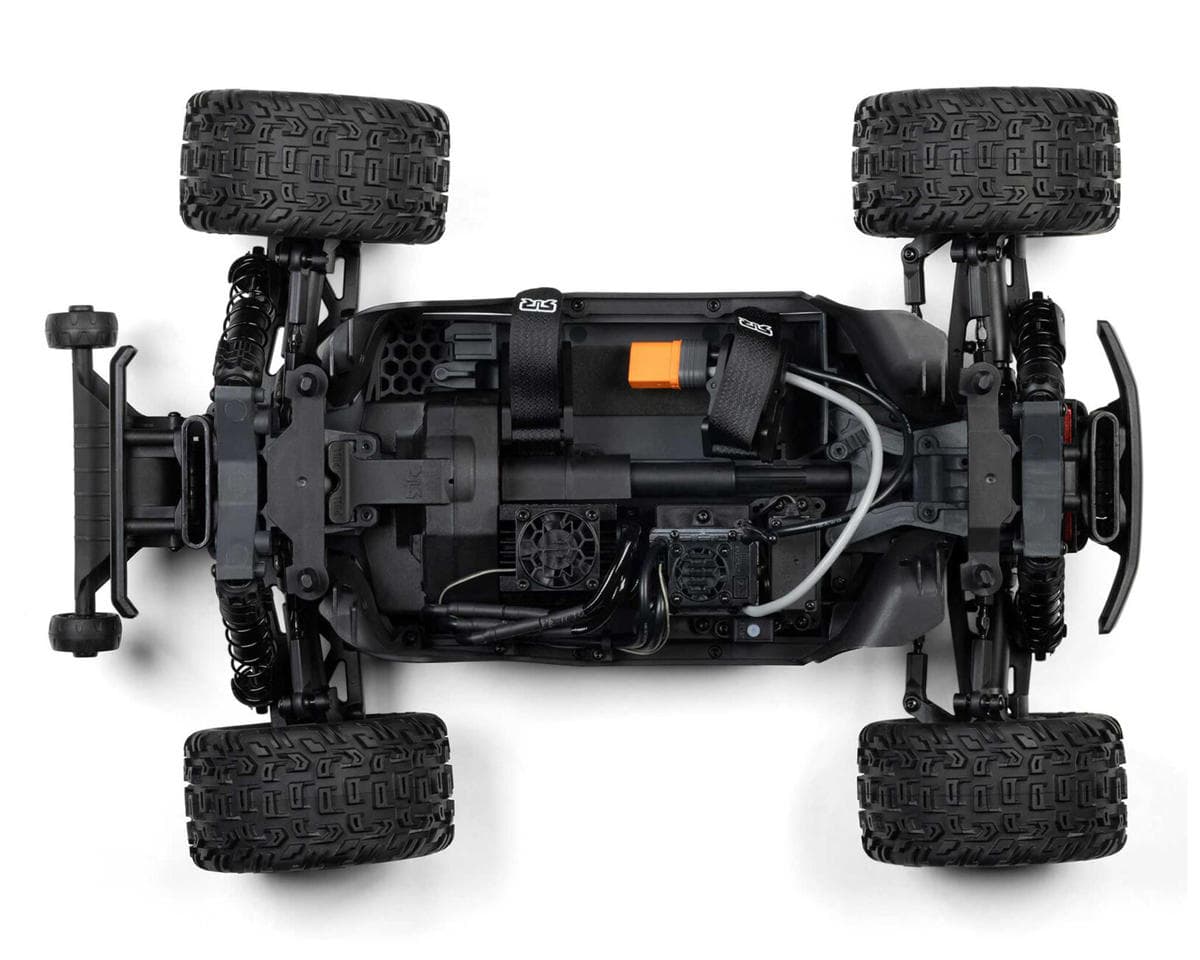

Heavy-Duty Drivetrain & Center Differential
Built tough for bashing, the Vorteks 223S BLX features a super-strong 4x4 drivetrain with a center differential and metal gears to ensure durability under extreme conditions. The all-metal gear differential efficiently transfers power to the wheels, enhancing traction and stability during high-speed runs. This drivetrain is engineered to endure challenging terrains, while the center differential distributes power evenly, providing the ideal balance for stadium truck performance.
Durable Design & Aggressive Styling
The Vorteks 223S BLX is designed to handle tough terrains while looking sharp with its aggressive short course body. Its impact-absorbing composite bumpers, strong composite nerf bars, and high side guards protect the truck from impacts and debris. The hidden body retention system and clipless body design offer easy access to the internals while keeping the body securely in place, so you can bash without worry.
Features:
- 2S and 3S LiPo compatibility for versatile power options
- Capable of 35+ mph with 2S and 50+ mph with 3S power
- Dynamic Stability Control (DSC) with four selectable modes
- Strong 4x4 drivetrain with metal-geared center differential
- Adjustable, oil-filled coil-over shocks for smoother rides
- Impact-absorbing composite front and rear bumpers
- Aggressive Stadium Truck body for added realism
- Ventilated composite chassis to keep components cool
- High side guards to protect from dirt and debris
- Hidden body retention system with clipless design for easy access
Includes:
- (1) Arrma Vorteks 223S BLX 1/10 Brushless RTR 4x4 Stadium Truck
- (1) Pre-Installed Spektrum SLT 80A Two-in-One ESC/Receiver with DSC and IC5 Connector
- (1) Pre-Installed Spektrum 3100kV Brushless Motor
- (1) Spektrum S662 Metal-Geared 25T Water-resistant Digital Servo
- (1) Spektrum SLT3 2.4GHz Transmitter
- (4) AA Batteries
- 2.5mm and 3.0mm Hex Wrenches
- Product Manual
Needed To Complete:
- (1) 2S or 3S LiPo Battery with IC5 Connector (7.4-11.1V)
- (1) Compatible Battery Charger
Specifications:
| Scale | 1:10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | 2S-3S LiPo (7.4-11.1V) | ||||||||
| Length | 18.5in (470mm) | ||||||||
| Wheelbase | 11.18in (284mm) | ||||||||
| Width | 13.15in (334mm) | ||||||||
| Height | 6.65in (169mm) | ||||||||
| Weight | 7.56lb (3.43kg) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 3 reviews
Giving this a 3 star due to esc thermal shutdown on 3s out the box Just got this the other day, first run about 10 mins on a 5000mah 3s batt and the esc did a thermal shutdown and again the next day, Hoping its just overgeared I have a smaller pinnion ordered so ill update when that gets in and tested. It was fun to bash around during the two 10 min runs, drove nice, has awesome power from a 3s Update: 15t pinnion and a better esc fan and the esc stopped overheating, motor and esc are still hot but no esc shutdown
This is my first hobby grade rc car. It's really fast and more durable than I thought. I did hit a curb at like 25 mph and broke the bottom of the shock, and it ripped the bottom shock mount screw through the bottom of control arm. I was very surprised that I didn't break more considering how fast I hit the curb. I think I like this more than my FPV drones.
Awesome cuatomer service, fast shipping. The r/c its awesome i liked it so much. Its pretty fast out of the box. I recommend users to get the 3s battery and start with 50 to 75% of power so you get use to the feel and speed
Three verified owners of the teal Arrma Vorteks 223S BLX truck report generally positive experiences, praising its speed, power on 3S, and durability in one crash. One reviewer reported ESC thermal shutdowns during the first runs on 3S with a 5000mAh pack; after switching to a smaller 15T pinion and a better ESC fan, the shutdowns stopped, though motor and ESC still ran hot. Another praised the customer service and shipping. Reviewers also note the truck is quite fast out of the box, and one suggests starting at 50 to 75 percent throttle. Overall sentiment is positive, but the overheating issue is the main recurring concern and sample size is small.
- + Strong power and speed
- + Durable in a high-speed curb impact
- + Good handling and fun to bash
- + Fast shipping and good customer service
- − ESC overheating and thermal shutdown on 3S
- − Motor and ESC still run hot after gearing change
- − Shock mount hardware can break in hard impacts
