Blade Fusion 550 Quick Build Electric Helicopter Super Combo Kit
About this part
Blade Fusion 550 Quick Build Electric Helicopter Super Combo
Blade Fusion 550 Quick Build Electric Helicopter Super Combo. Based on the extremely popular Fusion 480 and stretch kit with improved and updated features for a perfect fusion of convenience and performance! With a quick build setup with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits! The Fusion 550 features a lightweight, yet extremely stiff and durable carbon fiber and aluminum frame, a high-strength steel 10mm main shaft and 8mm spindle with metal head components, efficient helical main gear paired with a steel pinion for quiet and reliable performance, a 4320-1180Kv brushless Outrunner motor that delivers incredible torque and power, an oversized 25mm diameter tail boom that eliminates the need for boom support, a 6mm wide belt for the driven tail with adjustable tension, a carbon fiber and aluminum tail case with a metal tail drive pulley, exclusive Optimized Servo Geometry for precise and responsive control and a high-strength steel 5mm tail shaft paired with a metal bell crank and grips! It is safe to say that this Fusion 550 is one of the most advanced and convenient kits on the market with all-around performance capabilities!

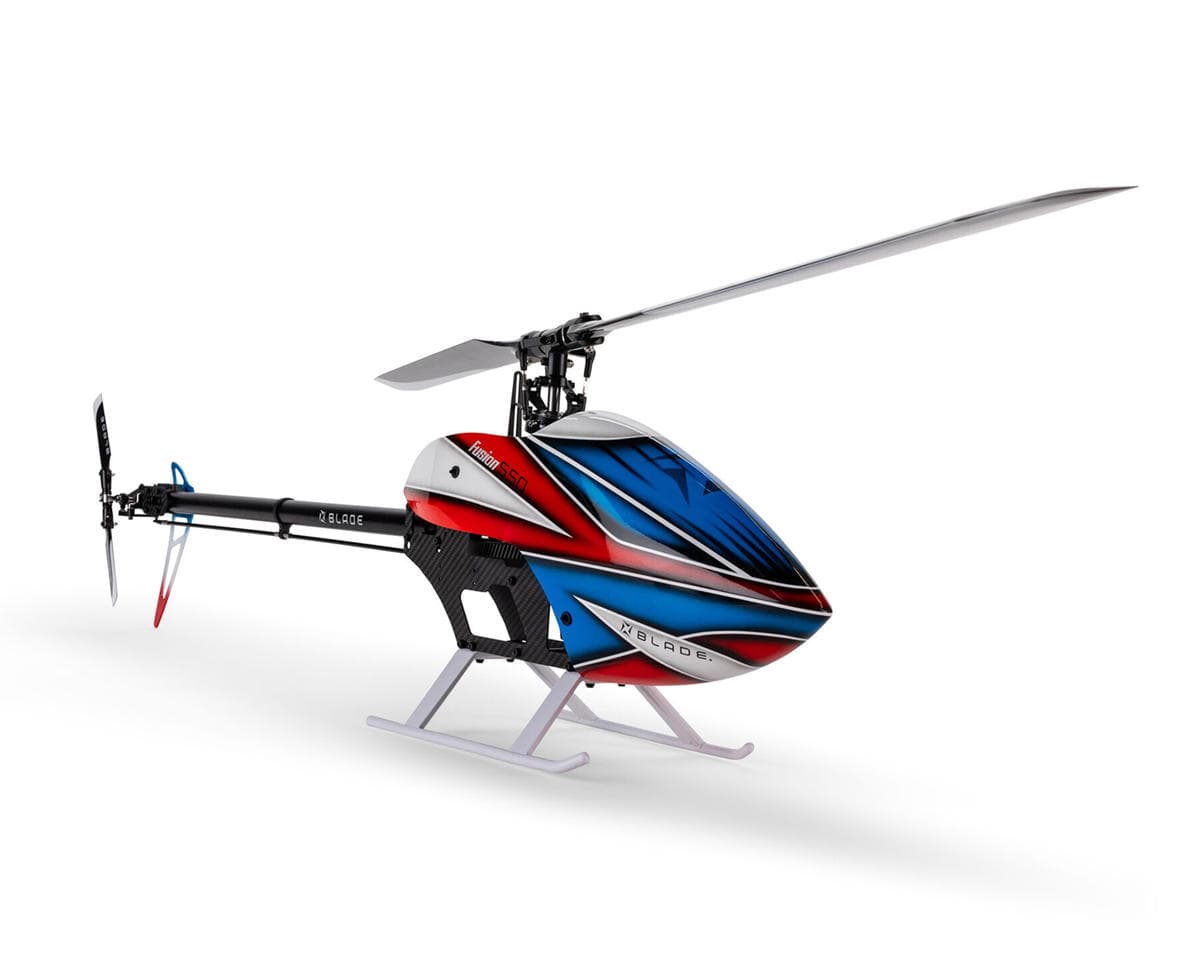

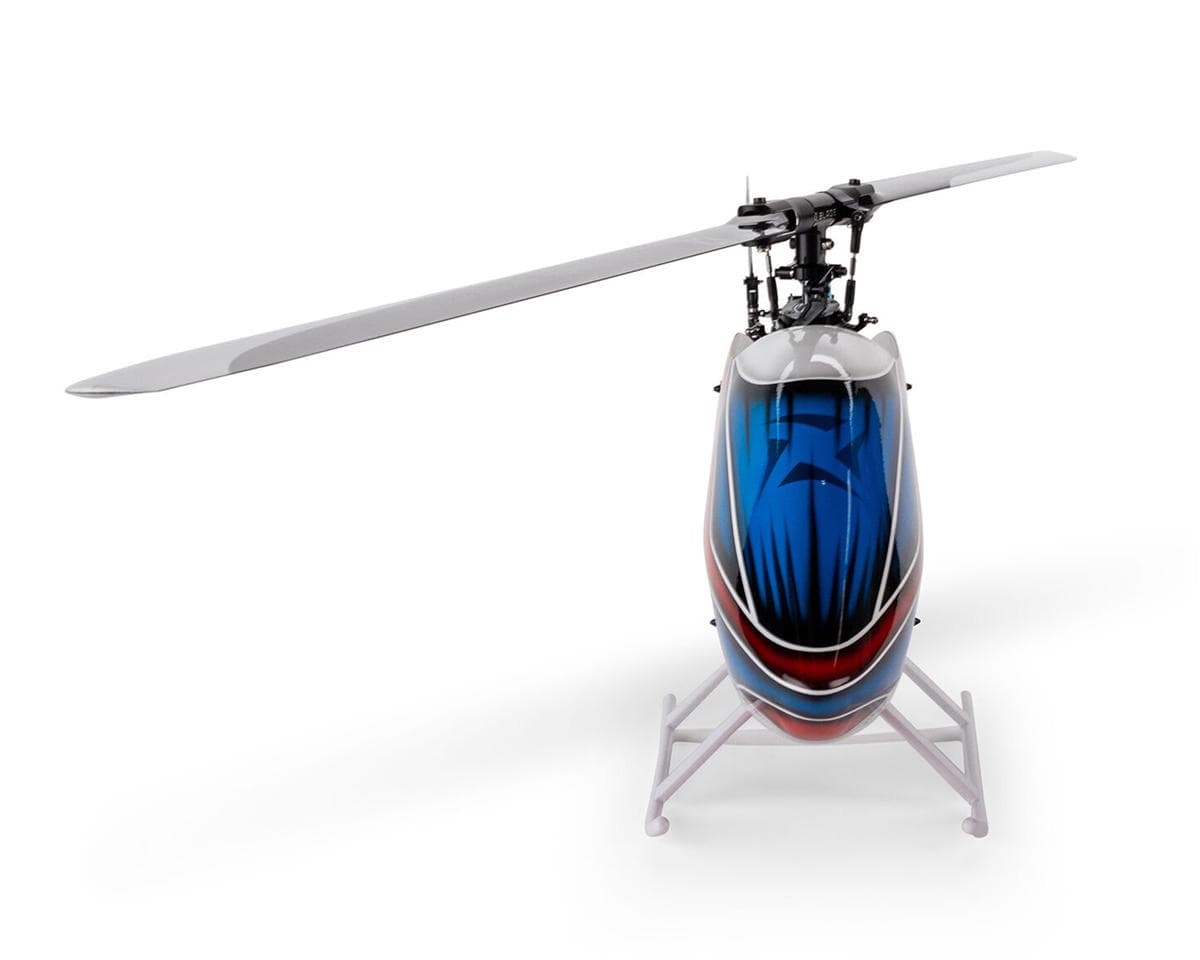

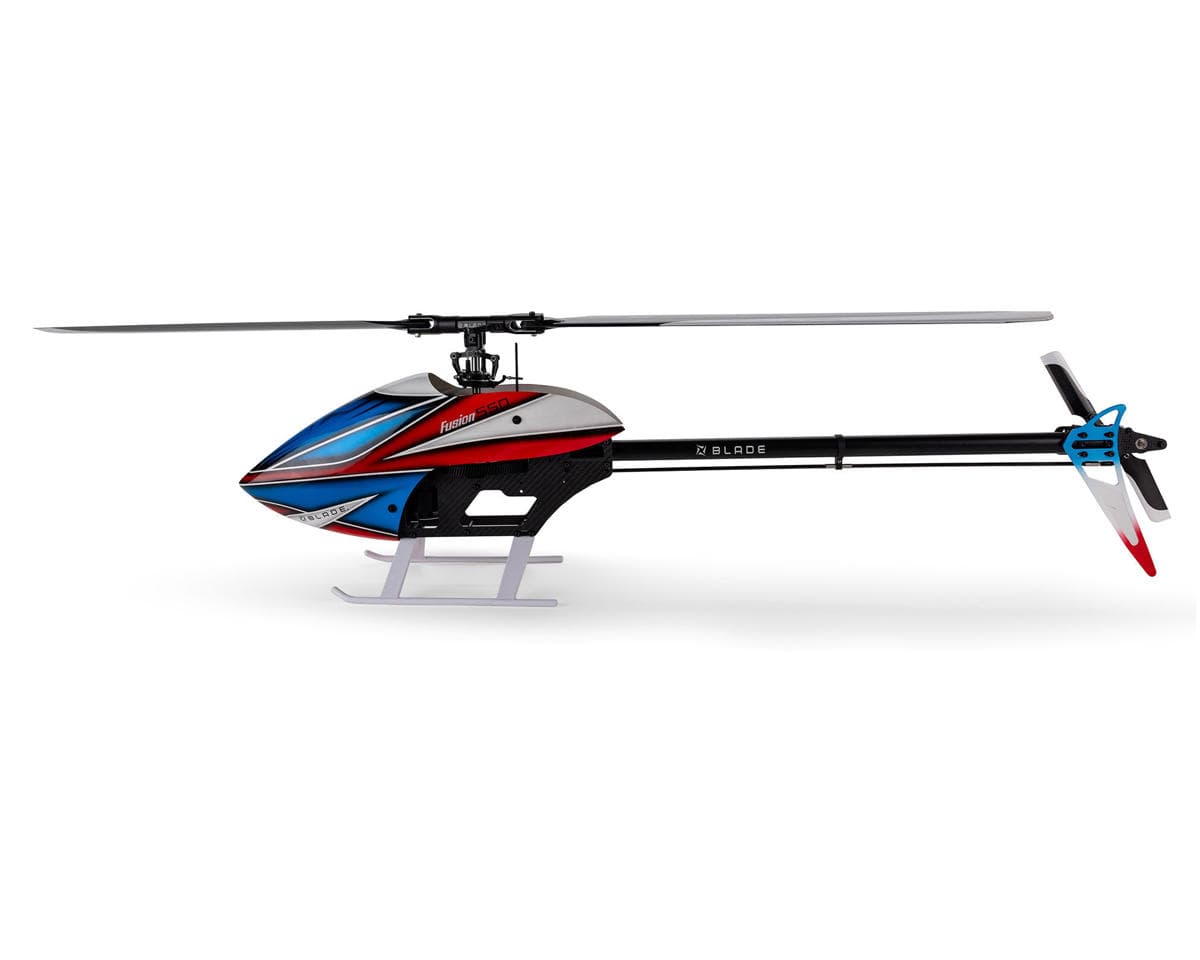

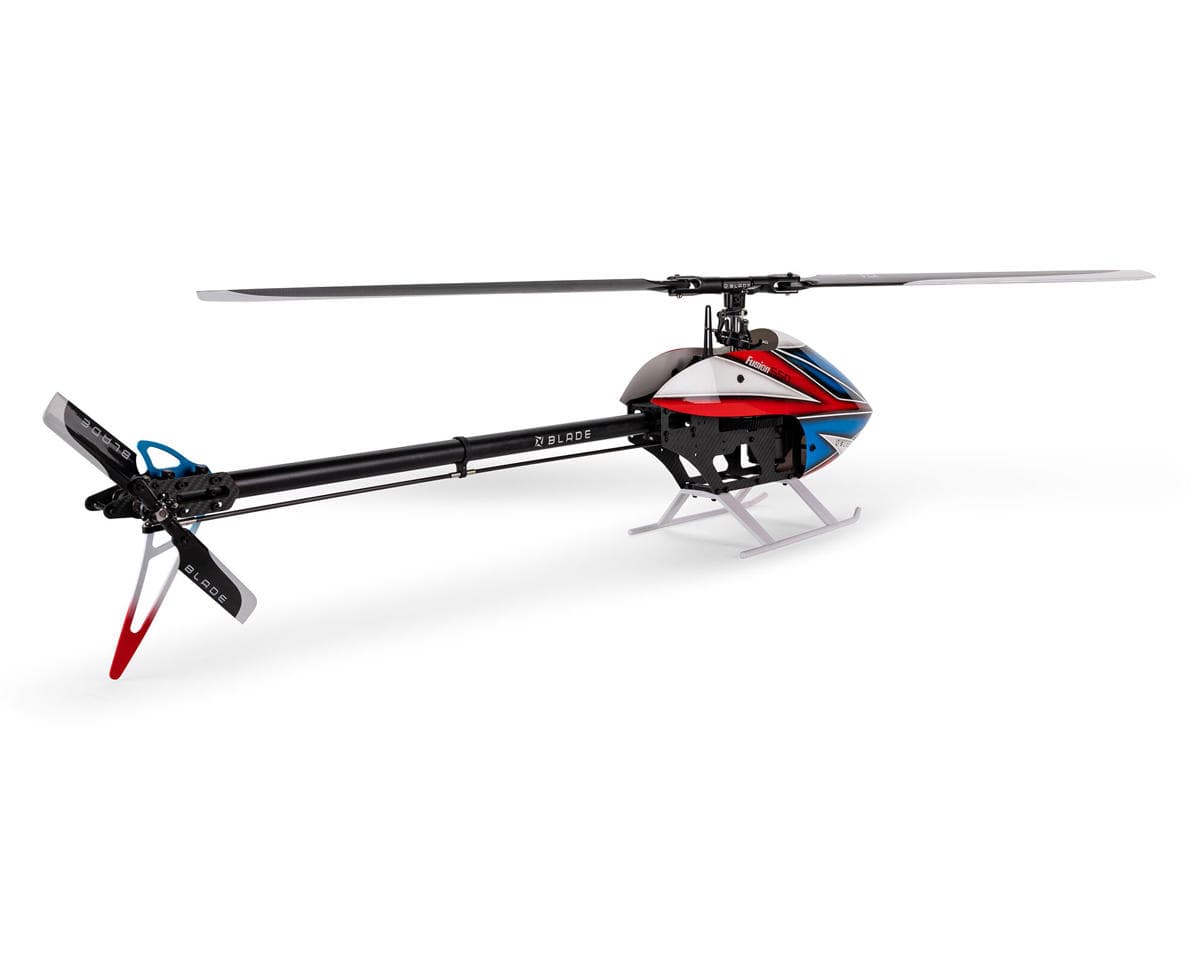

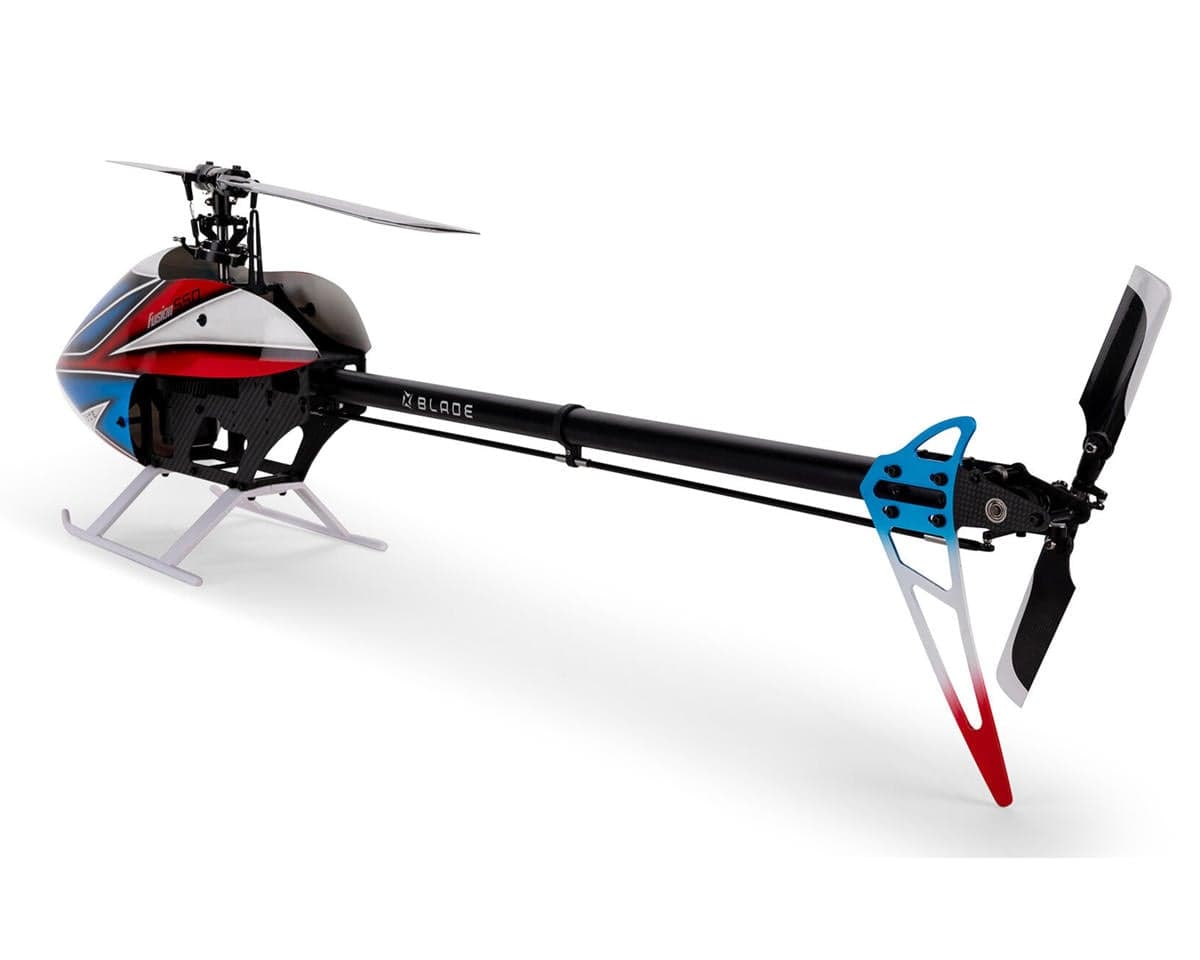

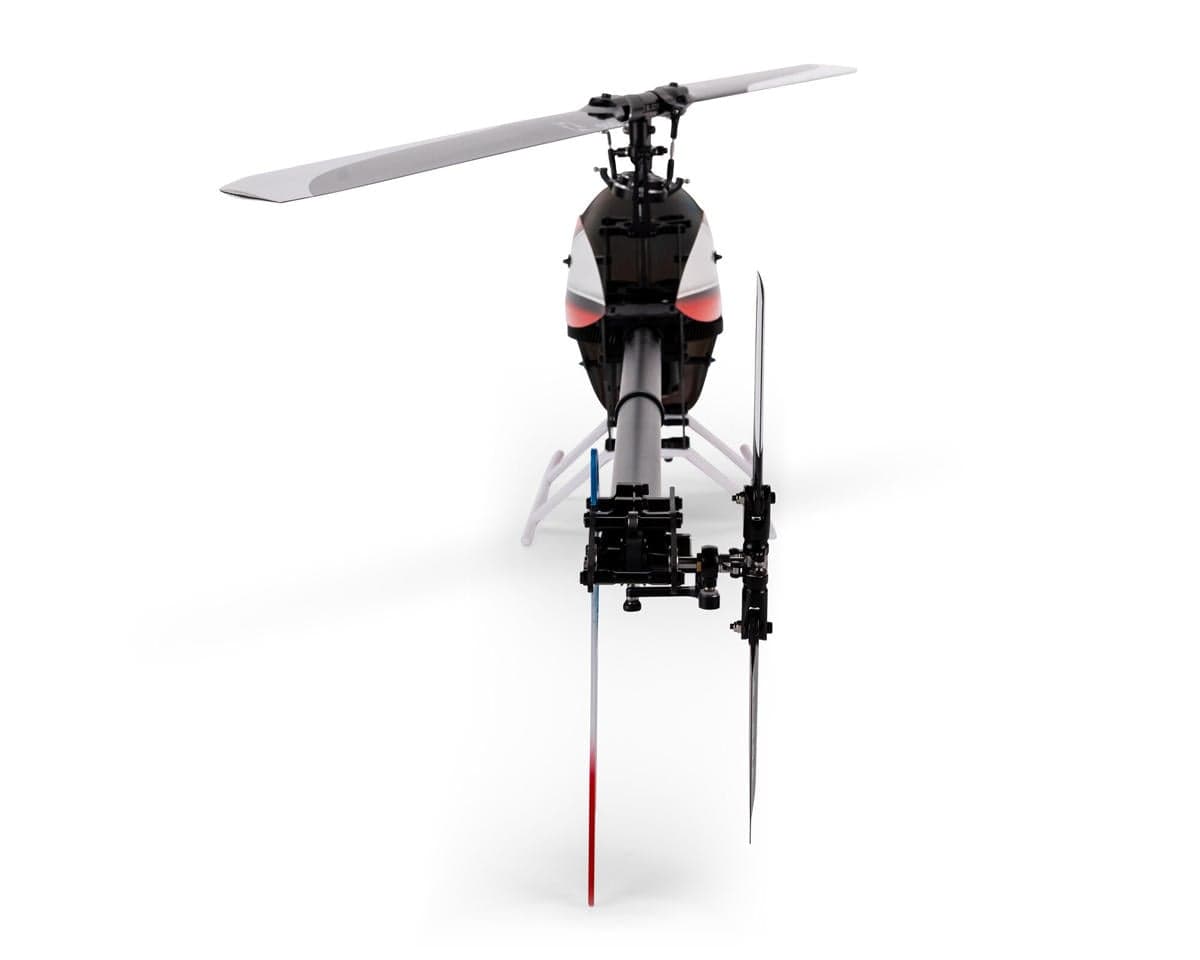

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Based on the extremely popular Fusion 480 and stretch kit for a perfect fusion of convenience and performance
- Quick Build Kit with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits
- Includes the longer boom, belt, plus carbon fiber 550mm main rotor and 95mm tail rotor blades

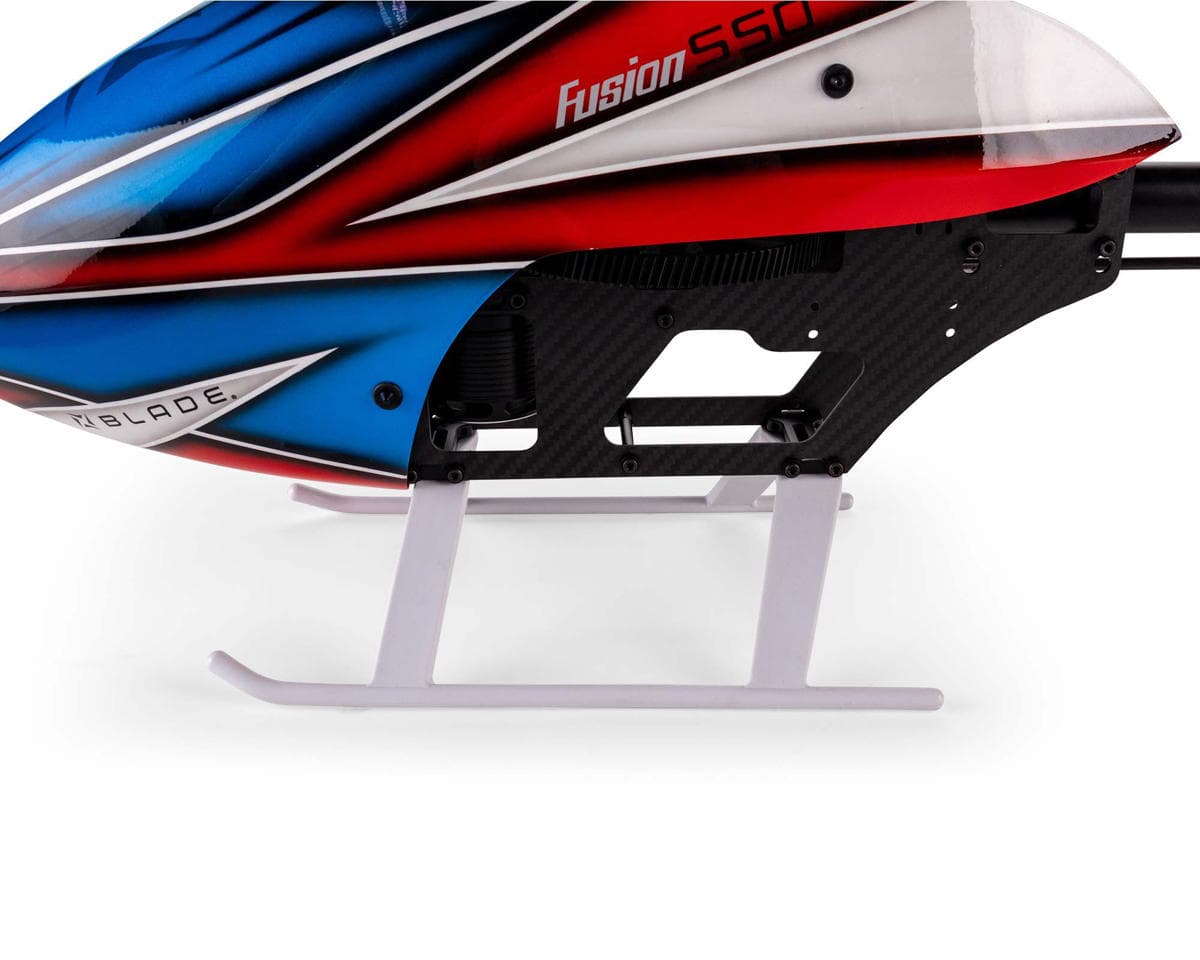

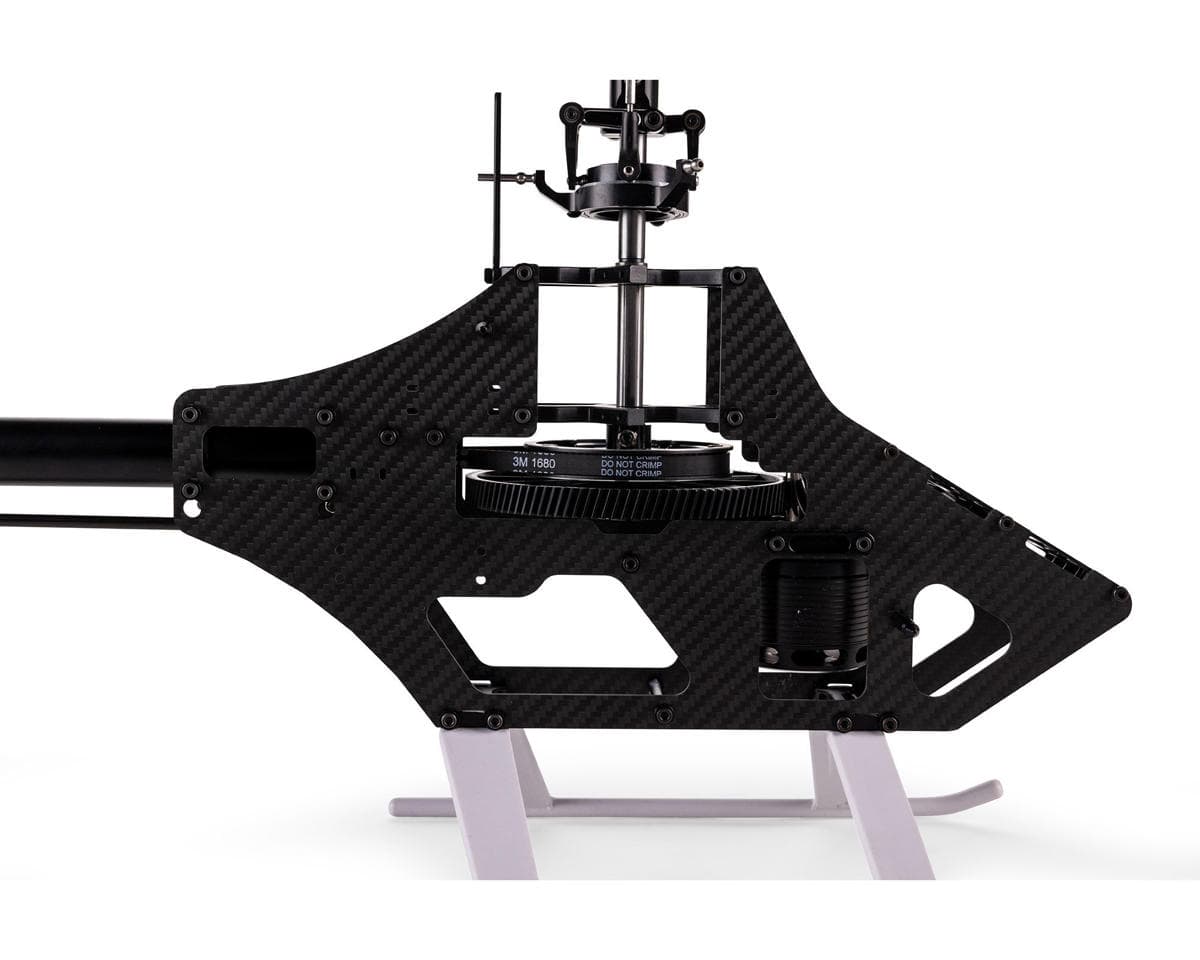

- Lightweight yet extremely stiff and durable carbon fiber and aluminum airframe design

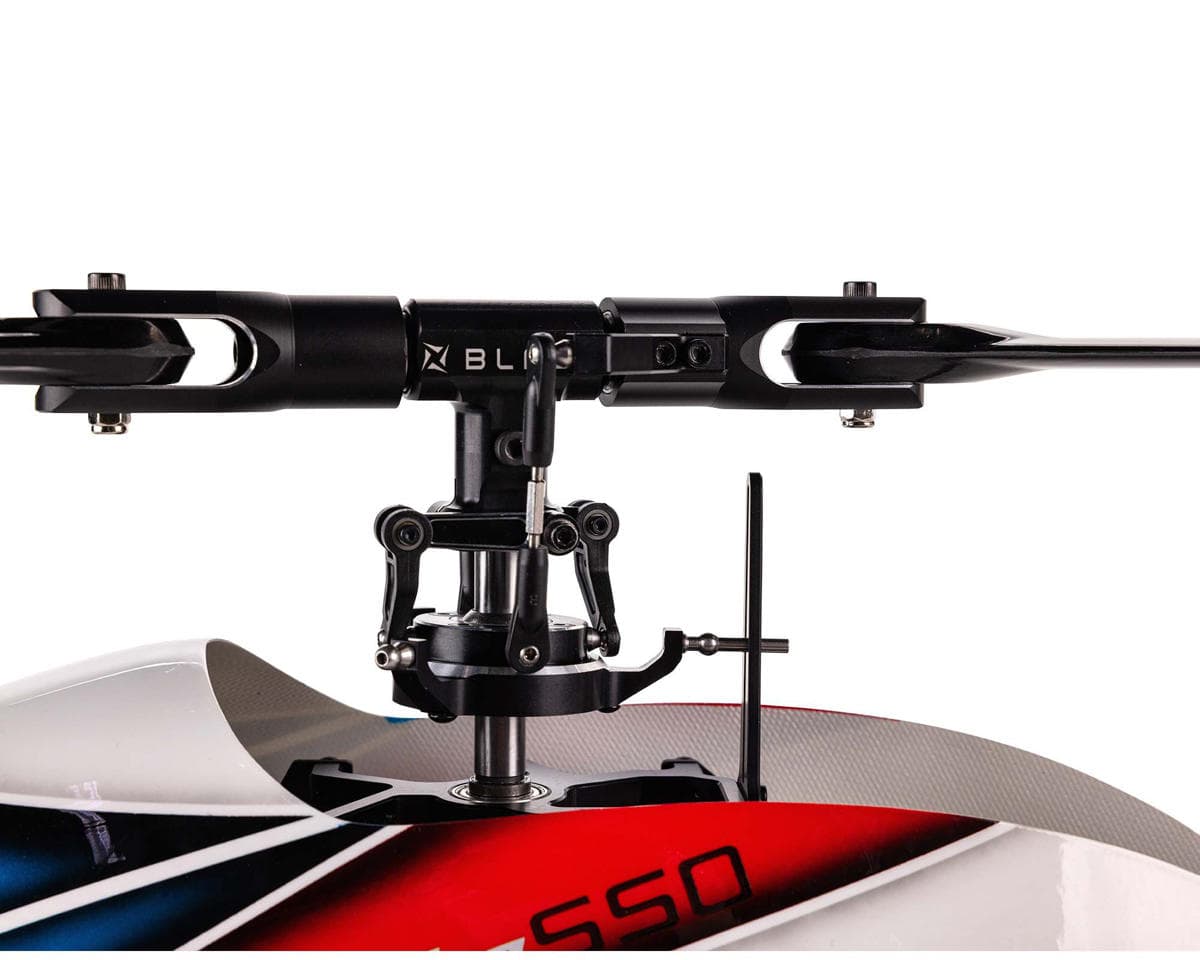

- High-strength steel 10mm main shaft and 8mm spindle with metal head components

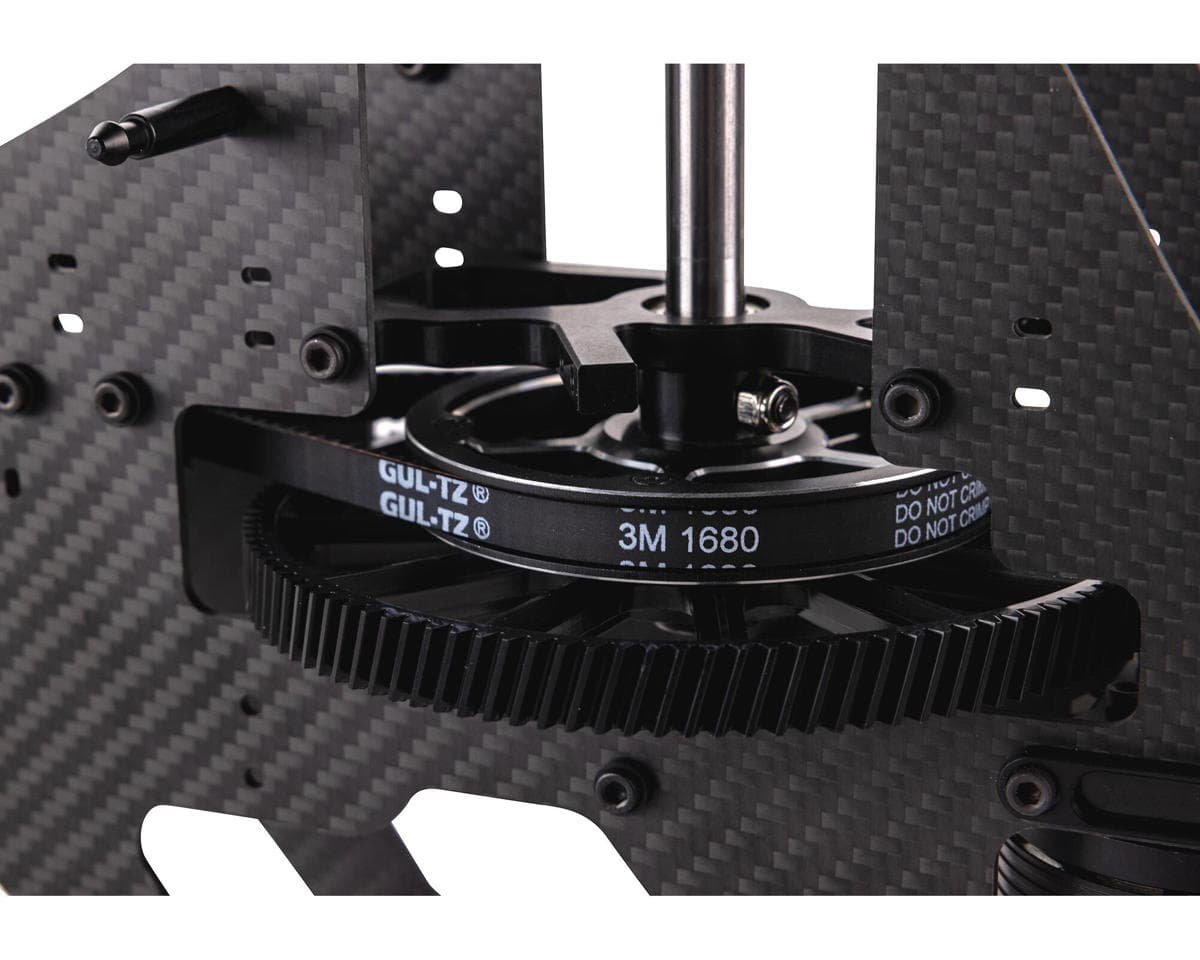

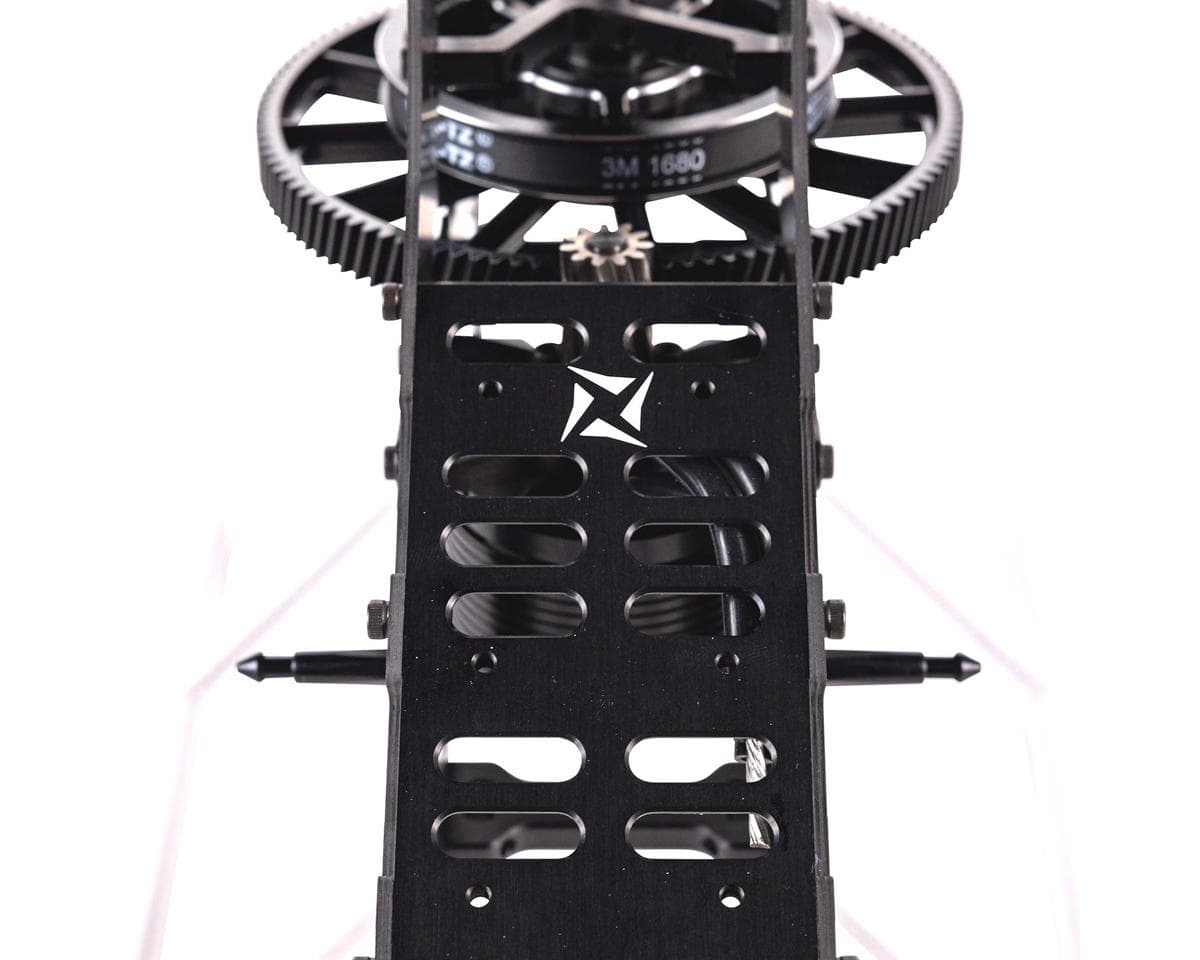

- Efficient helical main gear paired with a steel pinion for quiet and reliable performance

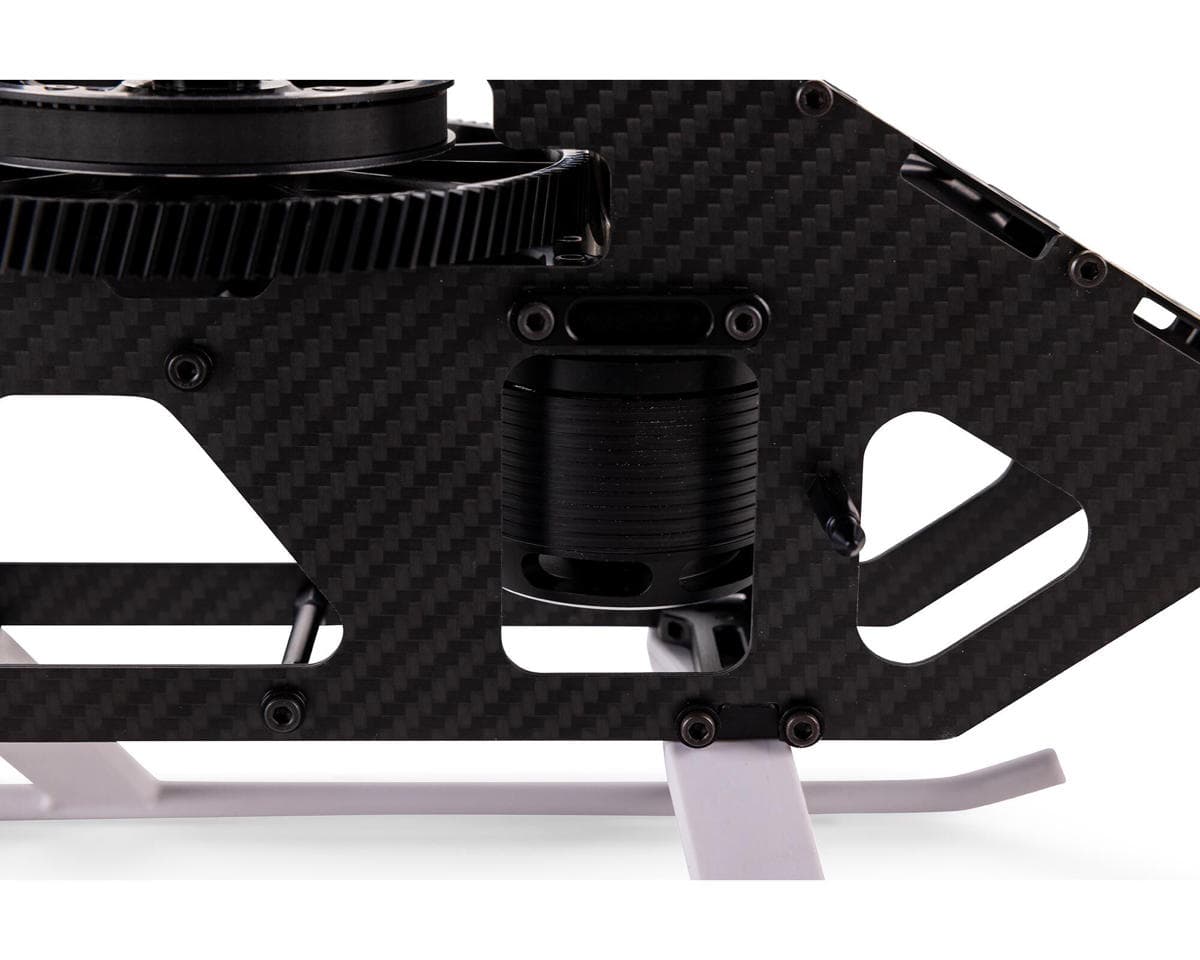

- Includes a 4320-1180Kv brushless Outrunner motor that delivers incredible torque and power
- Compatible with popular and common 6S 4000–5000mAh 30+C LiPo batteries
- Oversized 25mm diameter tail boom eliminates the need for boom supports
- 6mm wide belt for the driven tail featuring adjustable tension
- High-strength steel 5mm tail shaft paired with a metal bell crank and grips

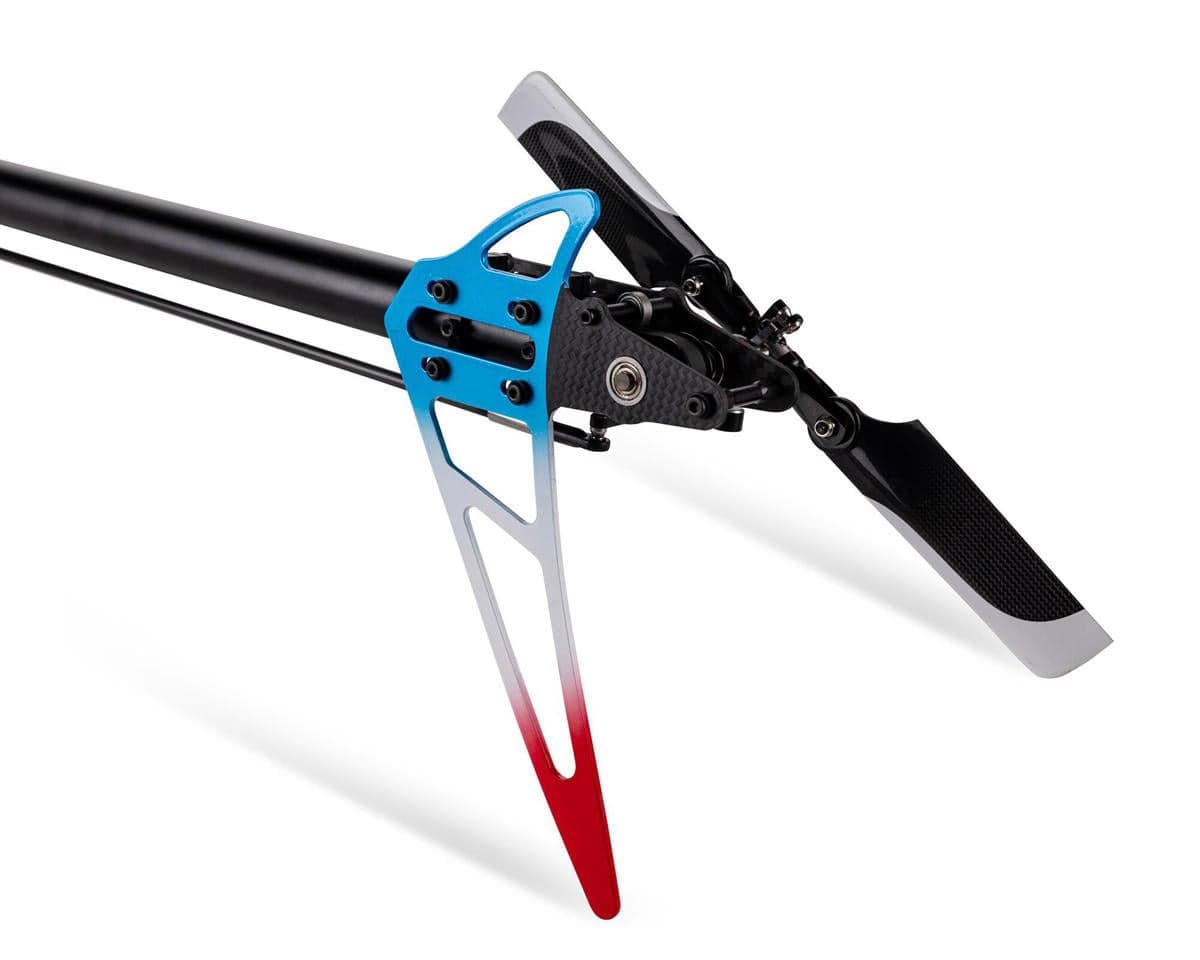

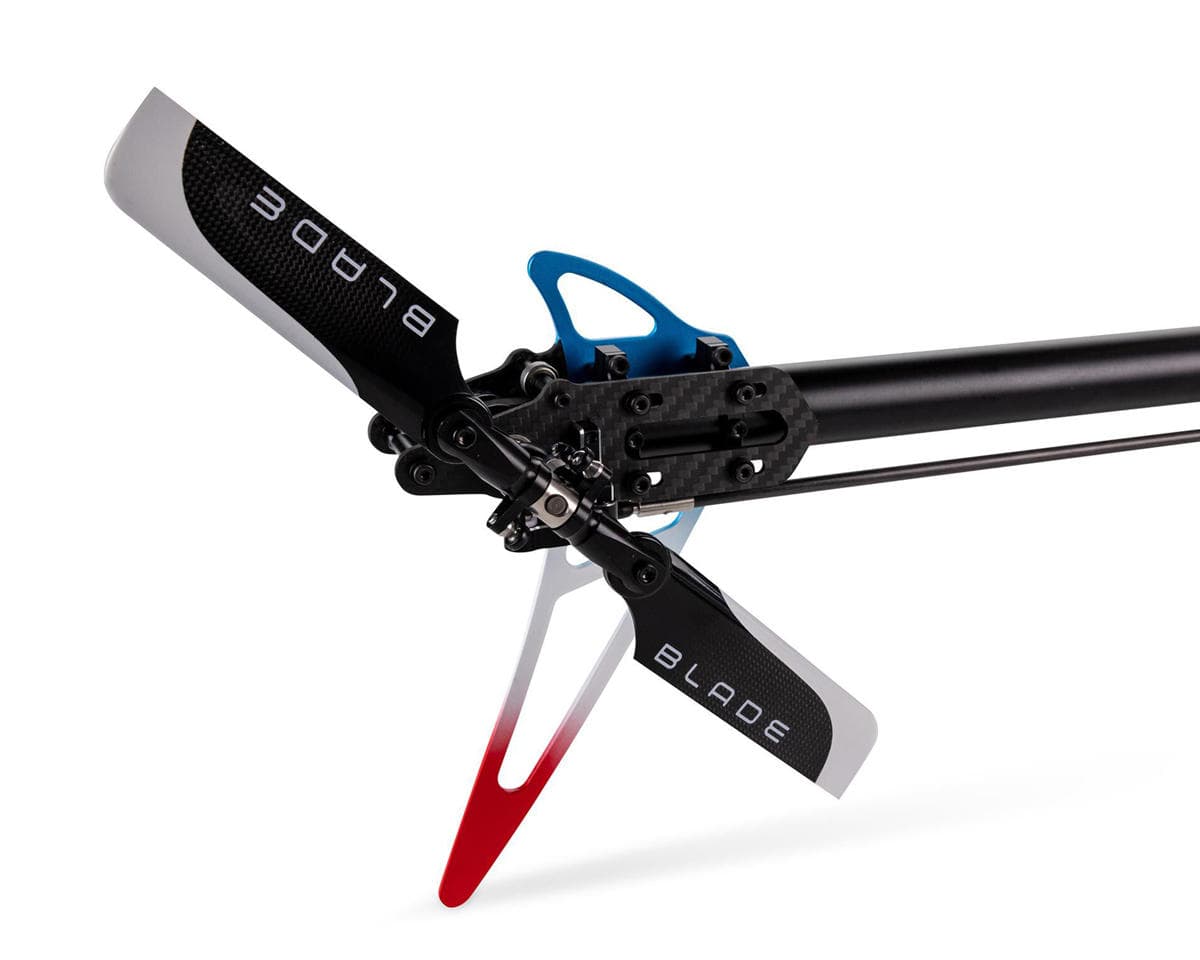

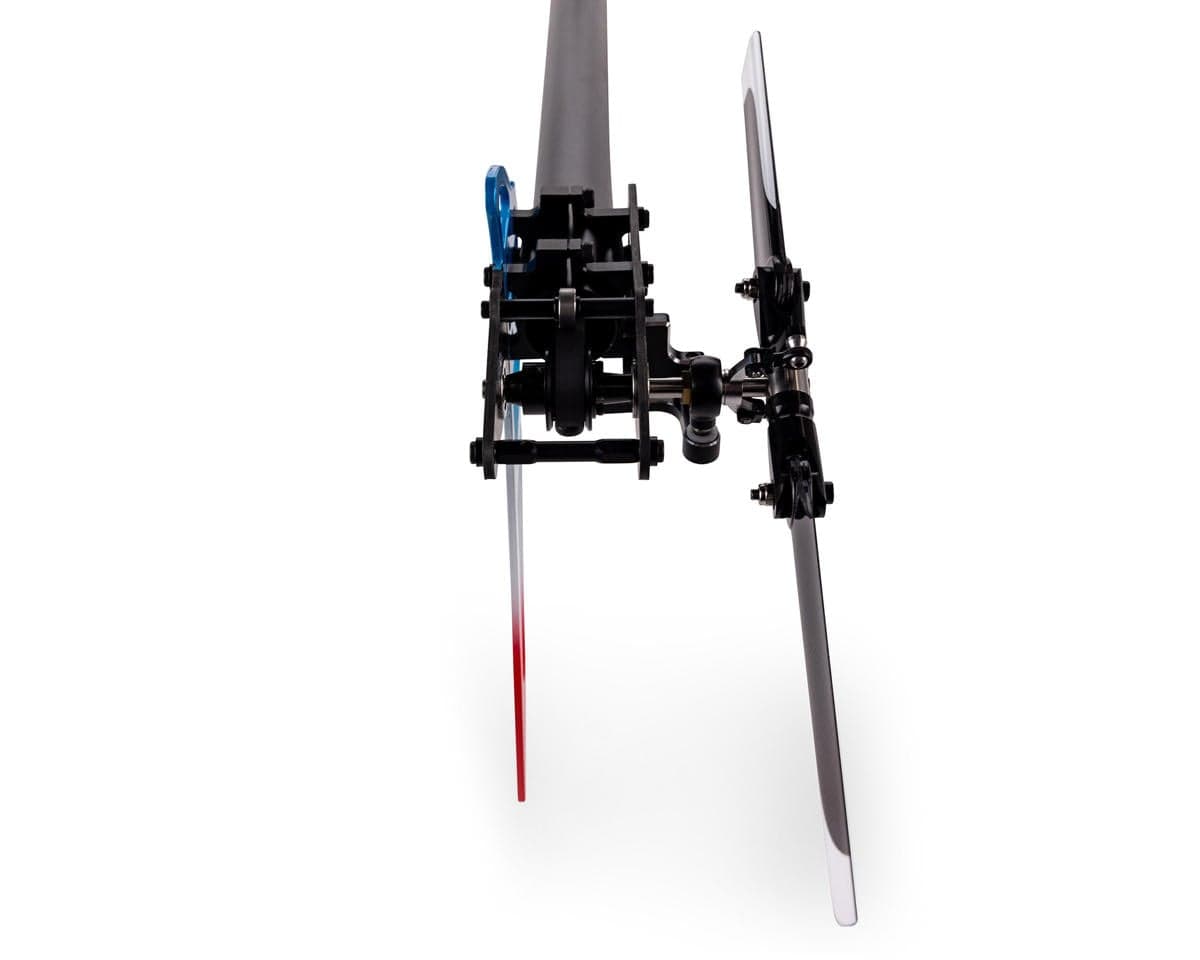

- Carbon fiber and aluminum tail case with a metal tail drive pulley
- 5mm diameter carbon fiber tail pushrod for precise tail control
- Fits standard-sized servos for cyclic and tail control
- Exclusive Optimized Servo Geometry for Precise and responsive control
- The Combo version includes top-of-the-line Spektrum components!
Specifications:
- Completion level: Un-Assembled Kit
- Skill Level: Level 3
- Power Type: Electric
- Swashplate Type: 120 Degree CCPM
- Tail Drive: Belt Drive
- Length: 42.52" (1080mm)
- Width: 7.4" (188mm)
- Height: 12.59" (320mm)
- Main Rotor Blade Length: 21.65" (550mm)
- Tail Rotor Blade Length: 3.74" (95mm
- Main Rotor Diameter: 49.01" (1245mm)
- Tail Rotor Diameter: 9.84" (250mm)
- Weight: 6.72Lb (3050g) with Recommended Battery
- Gear Ratio: 9.33
- Pinion Size: 12T
- Motor Type/Size: Brushless 4320-1180Kv 10-Pole
- Main Rotor Head Type: Collective Pitch Flybarless

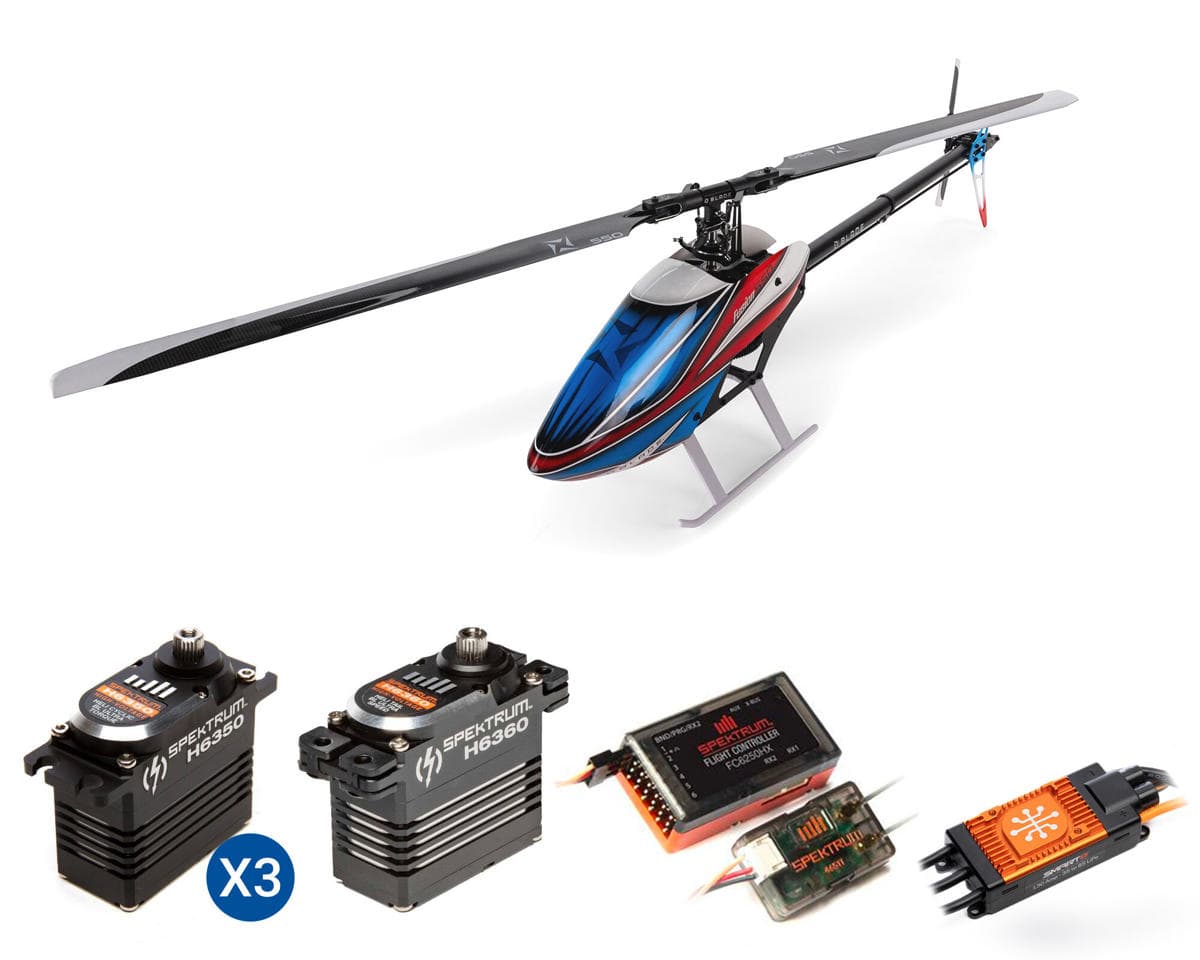

Includes:
- (1) Blade Fusion 550 Helicopter Quick Build Kit
- (1) Spektrum Avian 4320-1180Kv 10-Pole Brushless Outrunner Motor
- (1) Spektrum Avian 130 Amp Brushless Smart ESC for 3S–6S with IC5
- (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos
- (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo
- (1) Spektrum FC6250HX Helicopter Flybarless Control System
- (1) Spektrum DSMX Remote Receiver
- (1) Blade 550mm Carbon Fiber Main Rotor Blade Set
- (1) Blade 95mm Carbon Fiber Tail Rotor Blade Set
- (1) Fusion 550 Helicopter Product Manual
Needed to Complete:
- (1) Full-range 6+ channel Spektrum DSMX®/DSM2® compatible computer transmitter
- (1) 6S 22.2V 4000–5000mAh 30+C LiPo with EC5 or IC5 Connector
- (1) Compatible LiPo Charger
Reviews5.0 · 2 reviews
This kit is amazingly well designed and thought out. I have close to 90 flights on this heli and I am extremely impressed by how this heli behaves in the air. With a 6s 5000 mah, I average 8 minutes of flight at 65% head speed and land with 40% battery left. It is stable, responsive, and a blast to fly every time. I am by no means a 3D heli pilot. I mainly fly scale and do scale aerobatics. But this is my favorite Heli of all. I have a 330s, 360 fusion, trex 450, and the 550 fusion. I fly this heli every single chance I get. Blade/ horizon hobby have been making huge leaps and bounds with their helis over the past few years. The fusion line has been going strong now for a few years and Horizon Hobby has stated that they plan to support them for years to come. For what I do and how I fly, this heli flies amazing. Now I have 1 negative, nothing worth loosing a star for. 1. The canopy was not drilled correctly from the factory. Quick call to Horizon and a replacement was sent out quickly. Other than that this is a good flying heli that will be in my hangar for quite a while.
This was my second kit build after an align 450L. The super combo kit is very highly recommended for beginners. It includes nearly everything. There are also 3 build video's i referenced to assemble this kit and the video's bascially covered 99%. I only refered to the manual for things that were not clearly visible in the video like the main rotor head arms which i had incorrect and double checking the servo connections. The beastx flybar on the Align is not working for me however the Spektrum Avian flybarless is and the entire kit build (now complete) fly's excellently. Build time was significantly less than the align kit which is the only other one i have ever built. I am giving this 5 stars for the documentation. My recommendation when buying this is to also buy the spektrum servo tester, pitch gauge and ball joint pliers for 500 size heli's. I give 5 stars because the videos are the home run. I have an NX8 which is very similar to the nx20 used in the videos.
