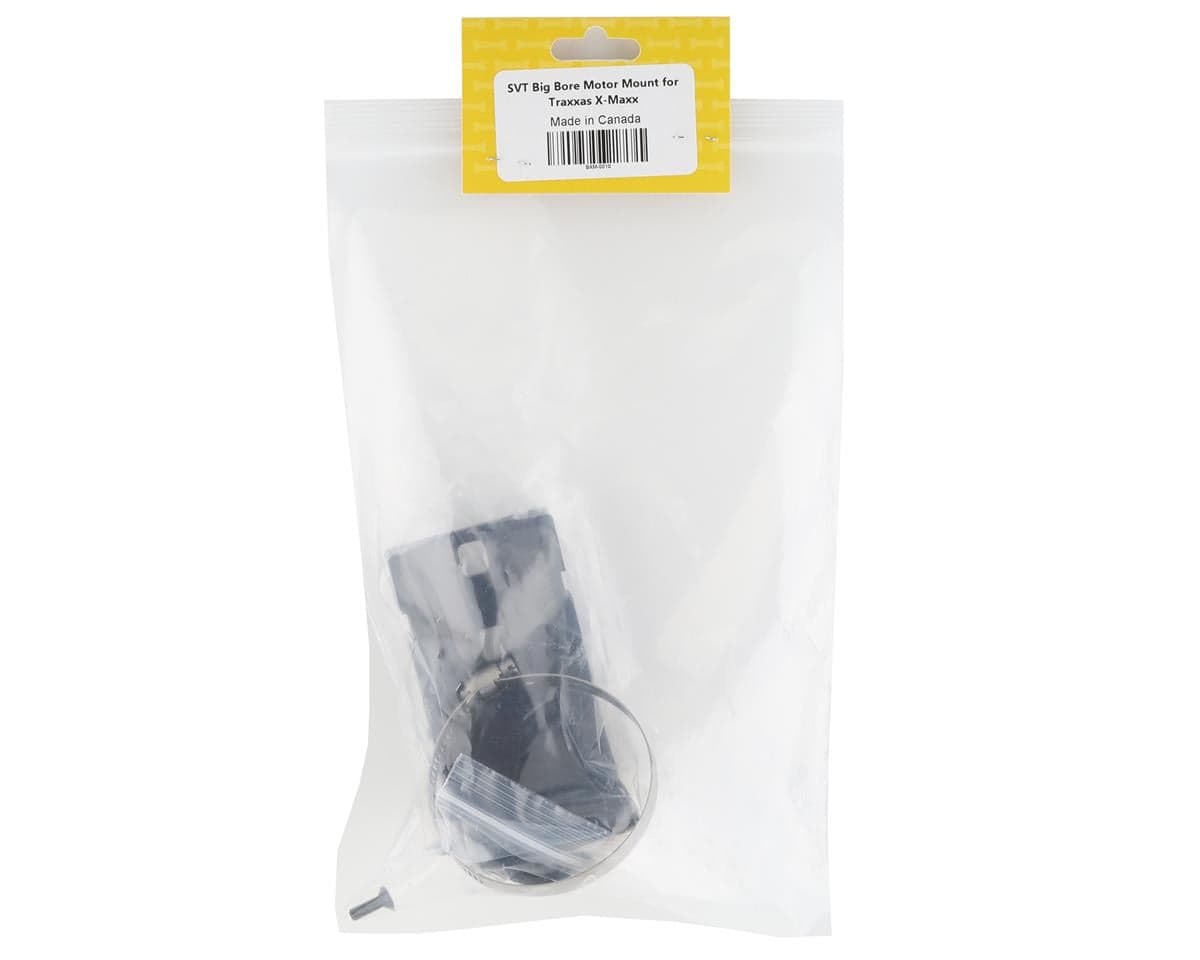

BowHouse RC SVT Big Bore Motor Mount for Traxxas X-Maxx (Black)
About this part
- Mounting holes spaced specifically for Castle 1717 and 2028, and Hobbywing 5687 and 56113 series motors (NOTE: 2028 and 56113 motors require SVT Risers, sold separately - BWH-BXM-0020)
- Use all 4 motor mount screws for added security with Hobbywing 5687 and Castle 2028 motors
- Included nylon spacer supports bottom of Castle 1717 motor
- Included metal tape supports bottom of Hobbywing 5687 and 56113 motors
- Included hose clamp secures the back of the motor to prevent up-and-down movement of the motor during hard-core bash sessions
- Motor mount (black anodized)
- (4) M4x12mm flat head screws
- Nylon spacer for 48mm motors
- Metal tape for Hobbywing 5687 motor

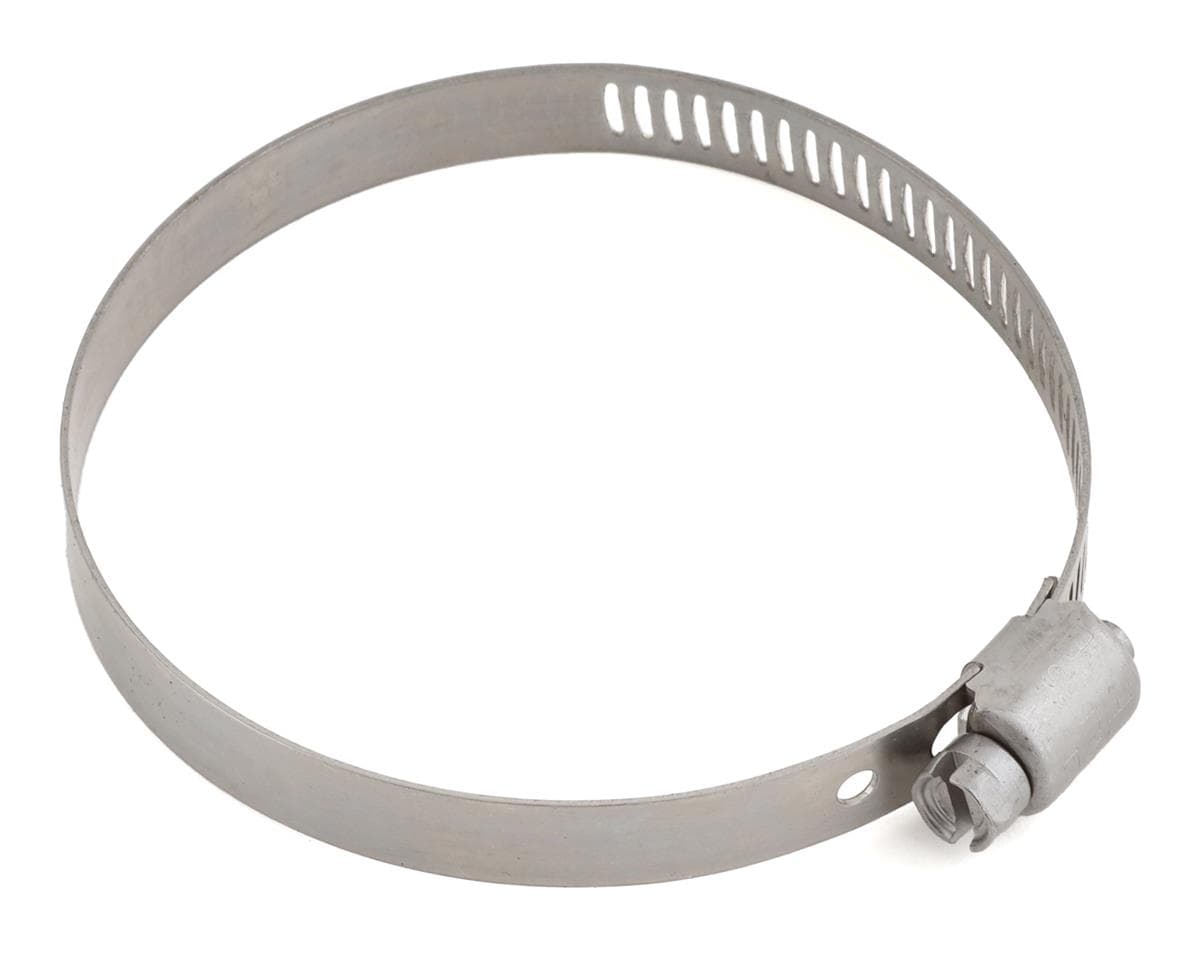

- Hose Clamp
- Remove spur gear cover and save
- Disconnect motor from ESC
- Remove 4 screws securing stock motor mount from underneath the chassis and save screws
- Remove 4 mesh pins from chassis (you will not reuse these)
- Install new motor onto SVT Big Bore Motor Mount. Use 2 screws (at 3 o'clock and 9 o'clock) for Castle 1717 and Hobbywing 4985 motors) or 4 screws at upper & lower locations for Hobbywing 5687/56113 or Castle 2020 series motors.
- Install new spur and pinion gear (-)
- For Castle 1717 and Hobbywing 5687 motors, install SVT Big Bore Motor Mount using stock motor mount screws and slide motor mount left/right as needed to achieve proper gear mesh. Make sure to use thread lock to secure screws going into mount.
- For Castle 2028 and Hobbywing 56113 motors, use SVT Risers for Big Bore Motor Mount between mount and chassis to provide proper clearance. BWH-BXM-0020 Risers sold separately
- Trim approx. 8mm off the stock spur gear cover on the left (driver's) side to clear the SVT Motor Mount
- Reinstall stock spur gear cover using stock hardware
Reviews4.7 · 7 reviews
Excellent motor mount! Lightweight, offers excellent stability and mounting, bolt on, and includes motor support for smaller motors. A+++
Installed this into my XMAXX with an off-brand 56mm motor and a Max 6. I was very grateful for the guidance that Bowhouse gives regarding gearing and now the Xmaxx is faster than ever. Plus, with the big can and 8S, everything stays ice cold. The center of gravity hasn't even been effected that much. I couldn't ask for a better solution. As always, Amain's customer service was impeccable.
This is a perfect motor mount. Super simple to use. Suggest buying the risers with it so you can use 1.5 gears
Very well designed and sturdy mount but wouldn’t allow me to use my mod 1.5 20/35 gears on my x-maxx as it was just too tight so I returned.
Cannot express how perfect of a motor mount this is. From the amazing quality, light weight design, perfect rock solid 360 support for the motor, and the reasonable gearing options, will recommend this motor mount to be used in each and every xmaxx and xrt. You WILL NOT REGRET IT. Handles 12S power like a champ, with a total of ZERO broken gears or motors after 4 years of abuse
Seven verified owners rated this Black BowHouse motor mount for the Traxxas X-Maxx 4.5 to 5 out of 5 on average, with two 4-star ratings. Reviewers consistently describe it as lightweight, sturdy, and well supported, with simple bolt-on installation and motor support for smaller motors. Several note good gearing options, including use with 1.5 module gears, though one 4-star reviewer found a 1.5 mod 20/35 gear set too tight and returned the product. Reviewers reported using it with 46/27 and other gearing, 56mm and 5687 or 5690 class motors, and high-voltage packs up to 12S. One reviewer reported no broken gears or motors over four years of use. The main recurring criticism is price, with one reviewer suggesting it should cost closer to $70.
- + Lightweight design
- + Sturdy, rock solid motor support
- + Simple bolt-on installation
- + Good gearing options
- − High price
- − Tight fit with some 1.5 mod gears
- − Risers may be needed for 1.5 gears
