BowHouse RC SVT Motor Mount Risers for Traxxas X-Maxx
Part # BWH-BXM-00205.0(2)
Fits
Where to buy
$29.99
Prices are as last seen at the store; stock is not tracked.
About this part
Bowhouse X-Maxx SVT Motor Mount Risers are designed to work with the SVT Big Bore Motor Mount to allow use of taller than stock gear ratios, as well as longer big-bore motors like the Castle 2028 and Hobbywing 56113 motors.
Gear ratio guide:
- Accommodates most Mod 1 gear ratios from 83 to 90 total teeth (spur + pinion)
- Accommodates most Mod 1.5 gear ratios from 55 to 60 total teeth (spur + pinion)
- Spur/pinion ratios of 1.6 or higher are recommended with the Hobbywing 5687 motor.
- Spur/pinion ratios of 1:1 or higher are recommended with the Castle 2028 and Hobbywing 56113 motors.
Installation notes:
- Attach 1 riser under each side of the SVT Big Bore Motor Mount using included M3x20mm screws (2 per risers) and M4x16mm screws (1 per risers) with thread lock
- Use included M4x30mm screws and M4 washers with thread lock to attach motor mount and risers to chassis
- Slide motor mount left/right to adjust mesh before tightening screws

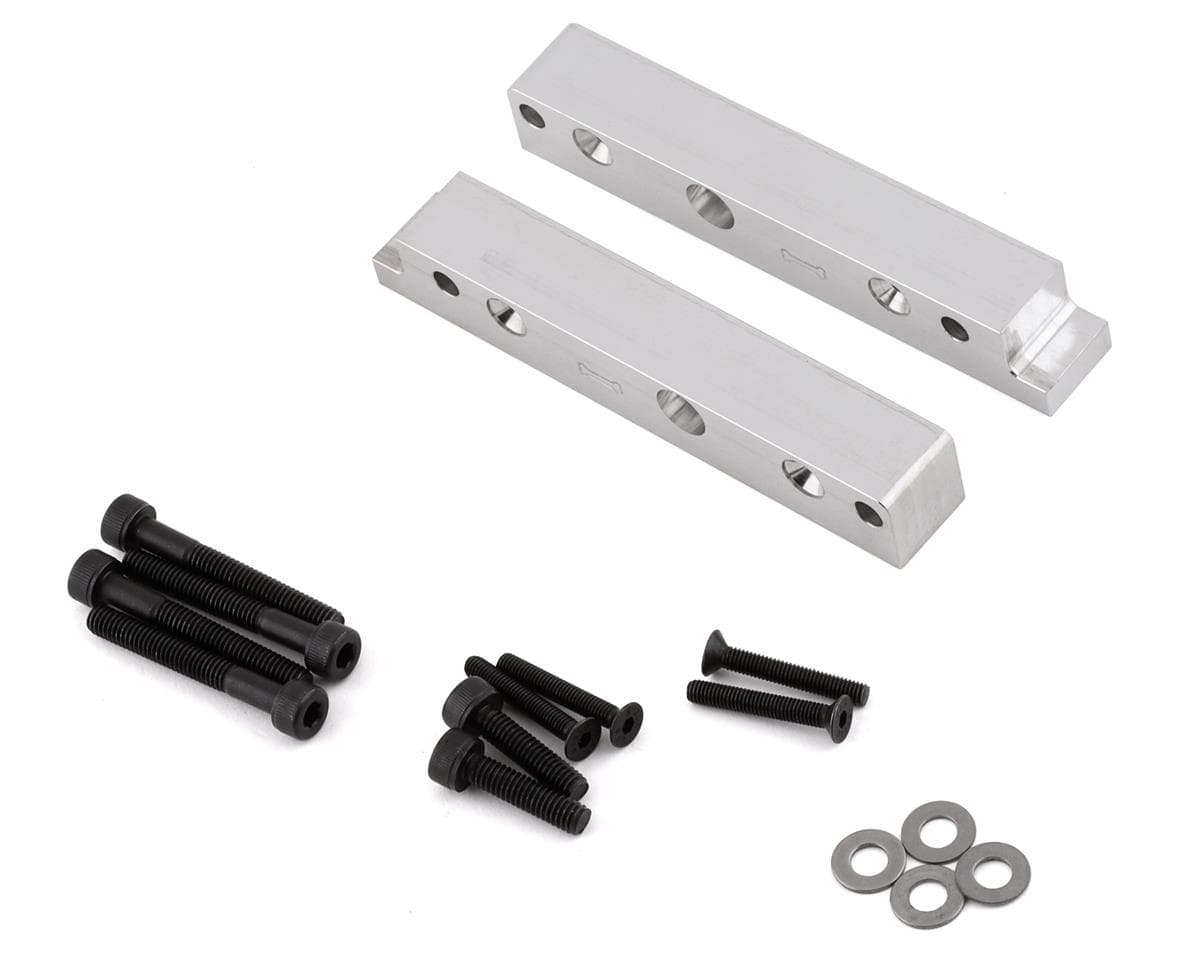

Includes:
- (2) risers
- (4) M3x20mm flat head screws
- (2) M4x16mm cap head screws
- (4) M4x30mm cap head screws
- (4) M4 washers
Reviews5.0 · 2 reviews
Yu DingVerified owneron BowHouse RC SVT Motor Mount Risers for Traxxas X-Maxx
Best motor mount for the xmaxx and xrt on this planet. Rock solid with zero worries on stripping gears ever again
Aaron PeighVerified owneron BowHouse RC SVT Motor Mount Risers for Traxxas X-Maxx
Perfect fit with the bowhouse motor mount. You will need this riser if you go to higher tooth count (pinion + spur) with the mount. Has 3 screws holding each riser to the motor mount.
