BowHouse RC SVT Spur Gear Adapter
About this part
- Axial: 56T 32P Spur (AXI31027), 87T 48P Spur (AXI30672)
- Kimbrough: 62T 32P Spur (KIM247)
- Robinson Racing: 58T 32P Blackened Steel Spur (RRP1558)
- Traxxas: 56T .8 Metric (TRA3957), 54T .8 Metric (TRA5936)
- Incision: 56T 32P Spur (INCIRC00402)

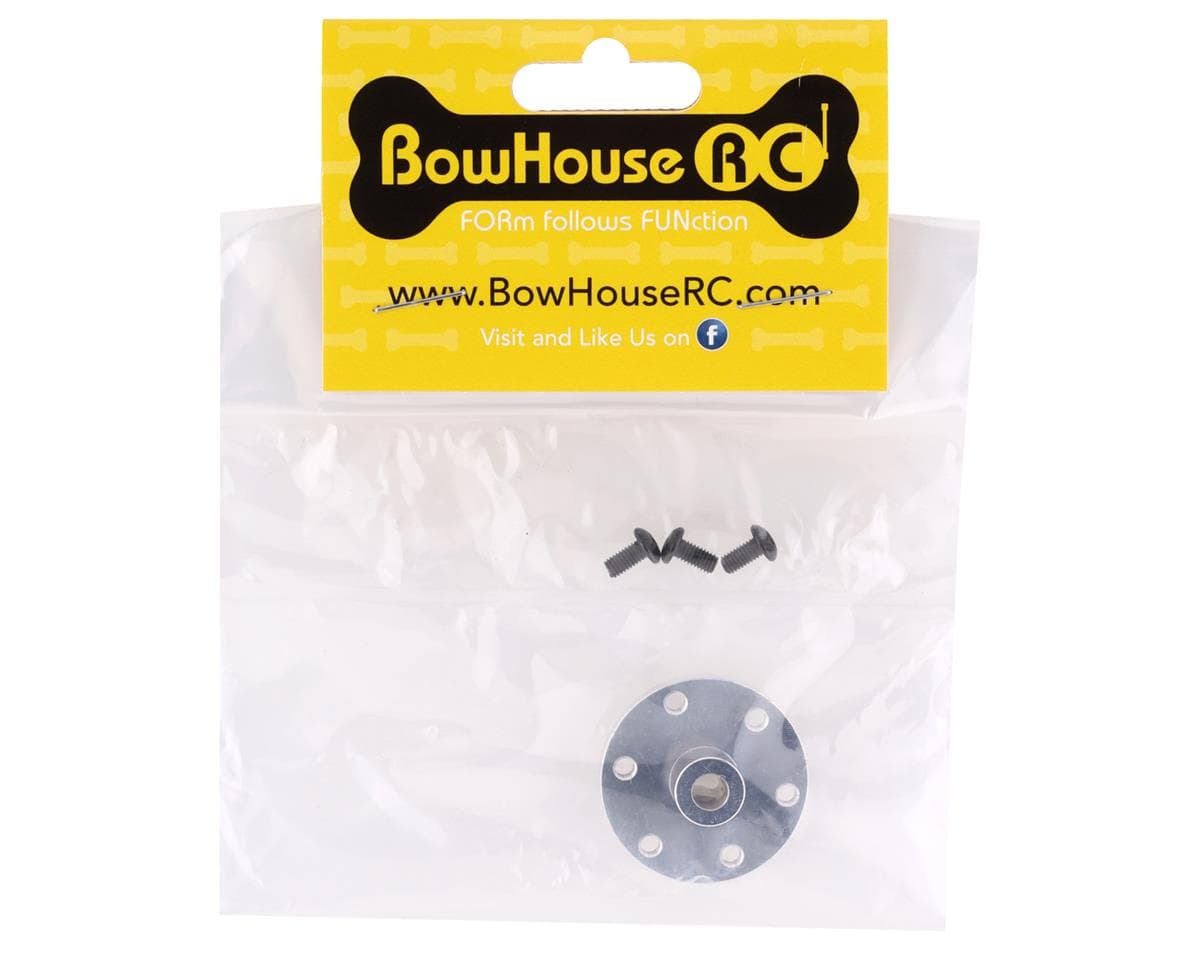

- (1) spur gear adapter
- (3) M3x6mm screws
- Remove spur gear cover, stock spur gear and spur gear hubs. Save spur cover and screws, and M3 locknut for spur gear.
- Mount your choice of spur gears to the side of the SVT spur gear adapter with the longer shaft using the included M3x6mm screws and thread lock. IMPORTANT NOTE: The mounting holes have different offsets to accommodate different spur gears. Three are offset at 22mm and the other three are offset at 23mm. Make sure you are using the correct set of mounting holes for your choice of spur gear.
- Slide spur gear adapter and gear onto transmission input shaft with the spur gear facing away from the transmission. This adapter is designed to have a snug fit on the OEM input shaft. OEM manufacturing tolerances create minor variance in the thickness of the input shaft, so you may need to press firmly to get the adapter seated on the input shaft.
- Secure spur gear with stock M3 locknut and reattach spur gear cover.
Reviews5.0 · 3 reviews
Excellent product from Bowhouse, nicely machined and tight fit. I have two of these now and the dual drill pattern is great. It randomly works perfectly with the China belt drive for AX-10 (Wraith / SCX10) transmissions. I am using an Element Stealth-X gearbox in my Capra with the 36T/13T belt drive. This setup is super quiet and hasn't slipped the belt. Thanks to Bowhouse I was able to put all the weird stuff together and make it work!
ditch that element proprietary spur gear for more commonly used gears with this bad boy, easy install, high quality material. I have yet to have a bad product from Bowhouse RC.
Fit and finish are top shelf. I'd buy it again. I'm using a 60t Kimbrough spur. Spur cover doesn't quite fit anymore but I don't care it's a crawler not a basher haha
All three verified owners rate the BowHouse RC SVT Spur Gear Adapter 5/5. Reviewers praise its machining, tight fit, finish and build quality, and one notes it allows swapping away from the proprietary Element spur gear to more common gears. Reported setups include a dual drill pattern used with a belt drive in a Capra with an Element Stealth-X gearbox, and a 60T Kimbrough spur. One reviewer says the spur cover no longer fits well with that gear, which they accept. No negative experiences are reported, but the sample is small.
- + Nicely machined, tight fit
- + Top-shelf fit and finish
- + Allows use of common spur gears instead of proprietary Element gear
- + Dual drill pattern
- − Spur cover no longer fits well with a 60T Kimbrough spur
