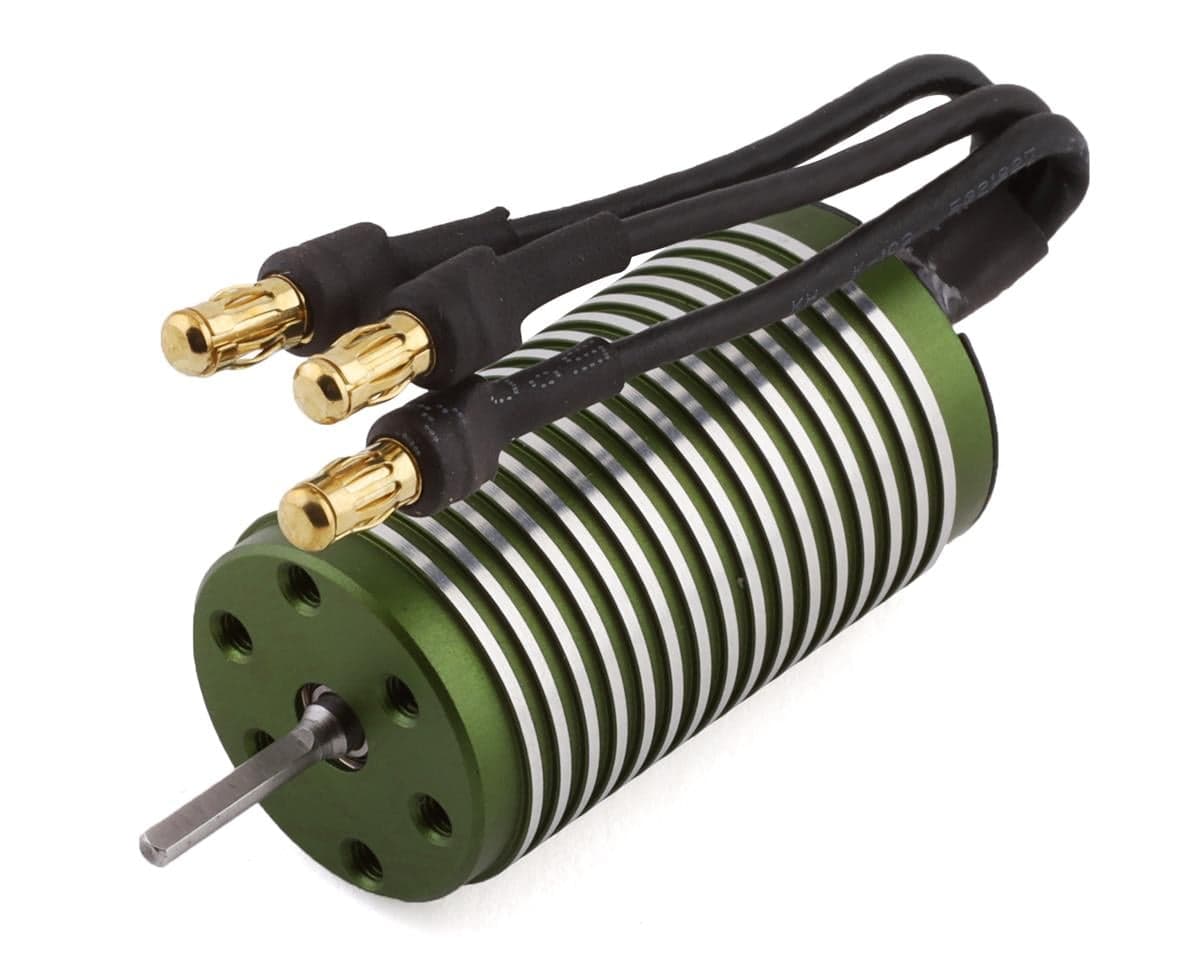

Castle Creations 0808 4-Pole 1/18 Brushless Motor (8200KV)

The Castle Creations 0808 4-Pole 1/18 Brushless Motor is intended for on-road and off-road applications running up to 2S LiPo and weighing in at up to 1.5lbs. The 0808 series motors delivers tremendous performance for an extremely affordable price. For 2WD and lighter 4WD vehicles (<1.25lbs) Castle recommends the Sidewinder Micro 2 ESC, and for heavier 4WD vehicles (<1.5lbs) the Mamba Micro X is recommended.

NOTE: Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo).

Specifications:
Input Voltage Range: 2S LiPo, 4-7 cell NiMH
Kv: 8200
Max. RPM: N/A
Length: 1.5" (38mm)
Diameter: 0.79" (20mm)
Weight (w/wires): 1.8 oz. (50g)
Shaft Diameter: 0.08" (2mm)
Mounting Hole Specifications: 2.5mm @ 1/2", 14mm, 5/8"
Cooling Fan: No
Connectors: 3.5mm gold connectors (female connectors included)
Items Needed for Operation: You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
Product Use Statements: Max. operating temperature = 180°F (82°C)
Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)
Recommended ESC(s): Mamba Micro X, Sidewinder Micro 2
Max. Recommended Vehicle Weight: 1.5lbs
Tech Notes: N/A
