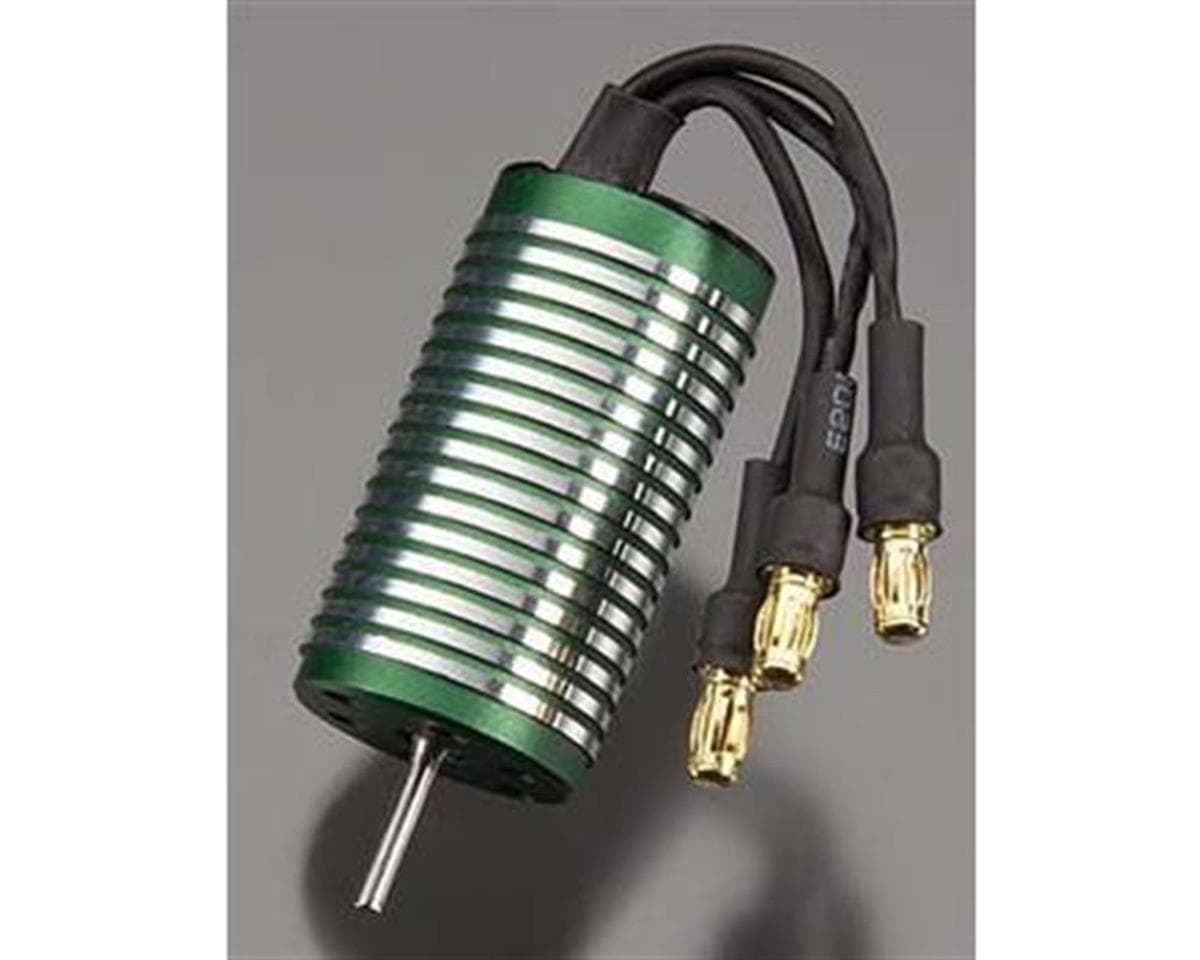

Castle Creations 0808 4-Pole 1/18 Inrunner Brushless Motor (5300KV)

This is the Castle Creations 0808 Inrunner 5300kV 1/18 Scale Brushless Motor.

Specifications:
Input Voltage Range: 2S-3S LiPo, 4-9 cell NiMH
Kv: 5300
Max. RPM: N/A
Size:

• Length: 1.5" (38mm)
• Diameter: 0.79" (20mm)
• Weight (w/wires): 1.8 oz. (50g)

Shaft Size:

• Diameter: 0.08" (2mm)
• Length: 12mm

Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan: No
Connectors: 3.5mm male bullets
Items Needed for Operation: Compatible ESC (See Recommended ESC(s) below)
Product Use Statements: N/A
Application Guidelines: Up to 3S LiPo and weighing in at up to 2lbs.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo
Recommended ESC(s): Mamba Micro X, Sidewinder Micro 2
Max. Recommended Vehicle Weight: 2lbs
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
