Parts/Electric power/Brushless motors/Castle Creations 1010 4-Pole 1/14 Sensored Brushless Motor (4400KV)
Castle Creations

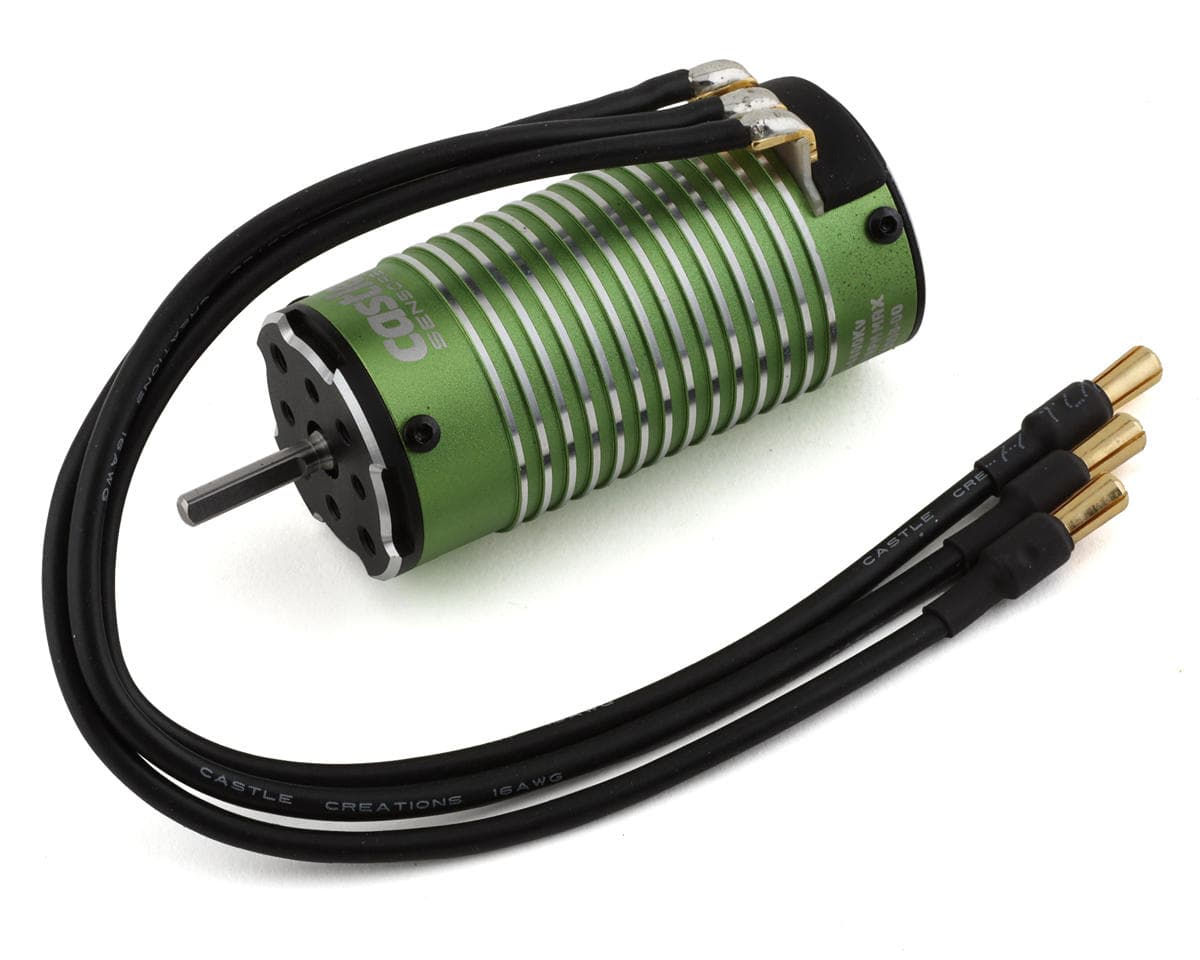

Castle Creations 1010 4-Pole 1/14 Sensored Brushless Motor (4400KV)
Part # CSE060-0098-004.5(2)
Where to buy
$109.95
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Castle Creations 1010 4-Pole 1/14 Sensored Brushless Motor. Constructed with the high quality components Castle Creations products are known for, this powerful motor features precision sensored technology. With an incorporated sensor board this motor offers precise throttle control and buttery smooth starts, plus the incredible power and longer run times that these highly efficient motors produce. When paired with a sensored ESC such as the Mamba Micro X2 this is a great option for rock crawler applications that require high-precision low speed control and torque for climbing. Additionally racers that need precision and predictability along with drag racers can benefit from this technology as well.
Features:
EFFICIENCY IS KEY
The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN’T BE IGNORED
Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.
Features:
- Improved 4-Pole 12-Slot design boasts exceptional efficiency and produces less heat.

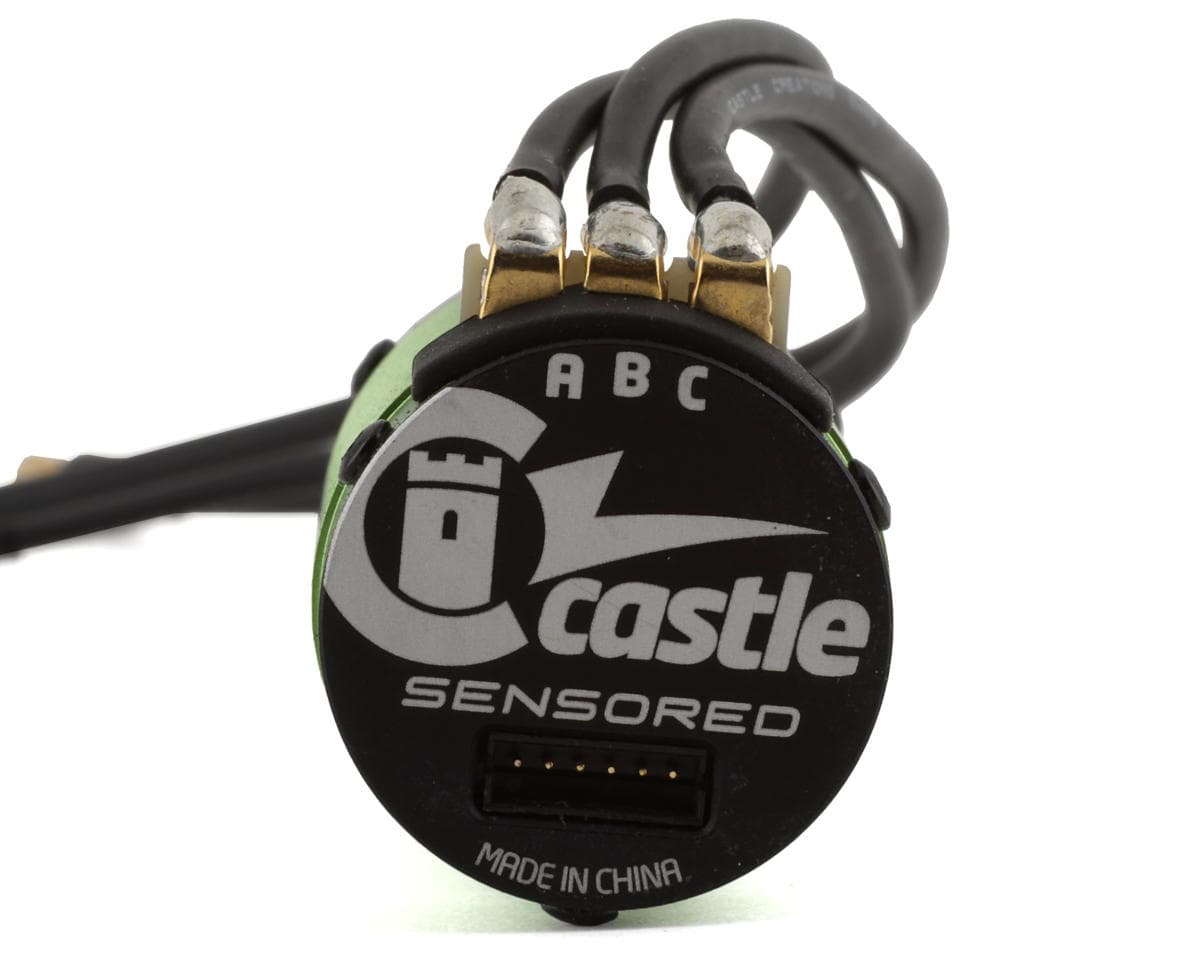

- QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even higher precision and more efficient startups.
- An Optimized design eliminates the need for mechanical timing adjustments. The sensor alignment method used delivers uniform timing and torque in both directions, automatically.
- Updated modern and sleek design; looks as cool as it performs.
Input Voltage Range: 2s - 4s LiPo
Kv: 4400
Max. RPM: 80,000
Length: 58.4mm
Diameter: 28mm
Weight (w/wires): 5.17oz (146.5g)
Shaft Length: 15mm
Shaft Diameter: 1/8" (3.175mm)
Mounting Hole Specifications: 2.5mm @ 14mm & 16mm; 3mm @ 19mm
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 3lbs.
Recommended ESC(s): Mamba Micro X2
Running Modes: SmartSense (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
Includes:
Includes:
- (1) 1010 4-Pole 1/14 Sensored Brushless Motor (4400KV)

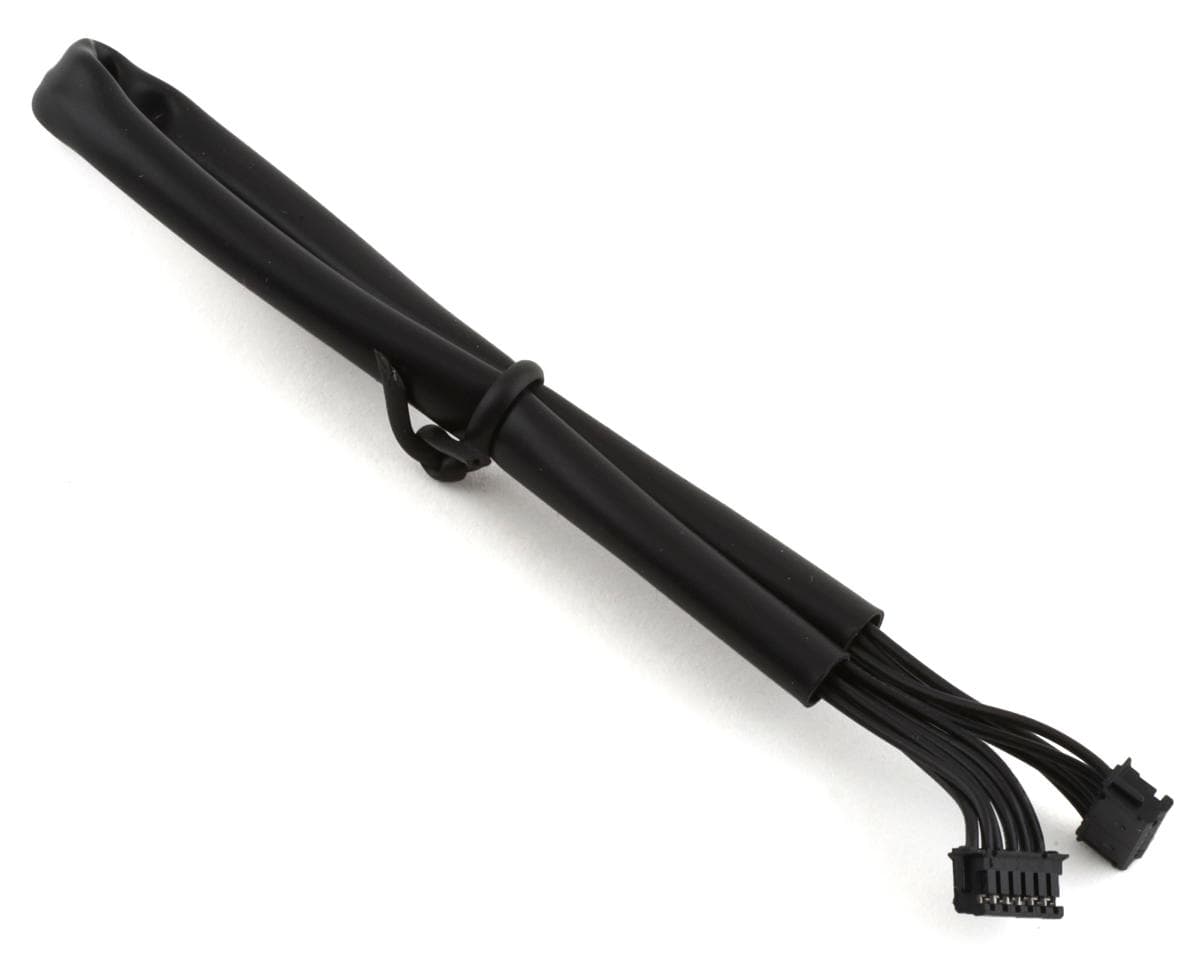

- (1) Sensor Cable (210mm)
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.5 · 2 reviews
Bryan HillVerified owneron Castle Creations 1010 4-Pole 1/14 Sensored Brushless Motor (4400KV)
I really like this motor it is probably the most powerful motor you can buy in a 380/390 28mm size. I bought it to put in my MINI KRATON AND IT PERFORMS AMAZINGLY! HOWEVER AT 3.25LBs without battery this motor does run HOT VERY HOT In this truck So a good FAN/HEATSINK COMBO is a must. While this motor is by far one of the most expensive options for a small scale E/C I am glad I chose it. When paired with a SENSORED ESC Power delivery as smooth as silk! Would I recommend this motor ABSOLUTELY!! IT IS WORTH EVERY PENNY!!
KenVerified ownerMay 28, 2026on Castle Creations 1010 4-Pole 1/14 Sensored Brushless Motor (4400KV)
This motor rips in the Arrma mini Kraton. I had to rotate the wires 120 degrees, and resolder the wires to face the esc and use 3.5mm bullets(if you do that use a high quality manual tool to remove the castle screws). Anyways, it has been all smiles.
