Castle Creations 1415 1Y 4-Pole Sensored Brushless Motor w/5mm Shaft (2400kV)
About this part
EFFICIENCY IS KEY
The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN’T BE IGNORED
Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.
INTEGRATED SOPHISTICATION
Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle.
SMARTSENSE™
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.
Features:
- 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
- Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
- QUIETSENSE™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
- HIGHER PRECISION and MORE EFFICIENT startups
- OPTIMIZED design eliminates the need for mechanical timing adjustments
- Sensor alignment method delivers uniform timing and torque in both directions, automatically
- REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft

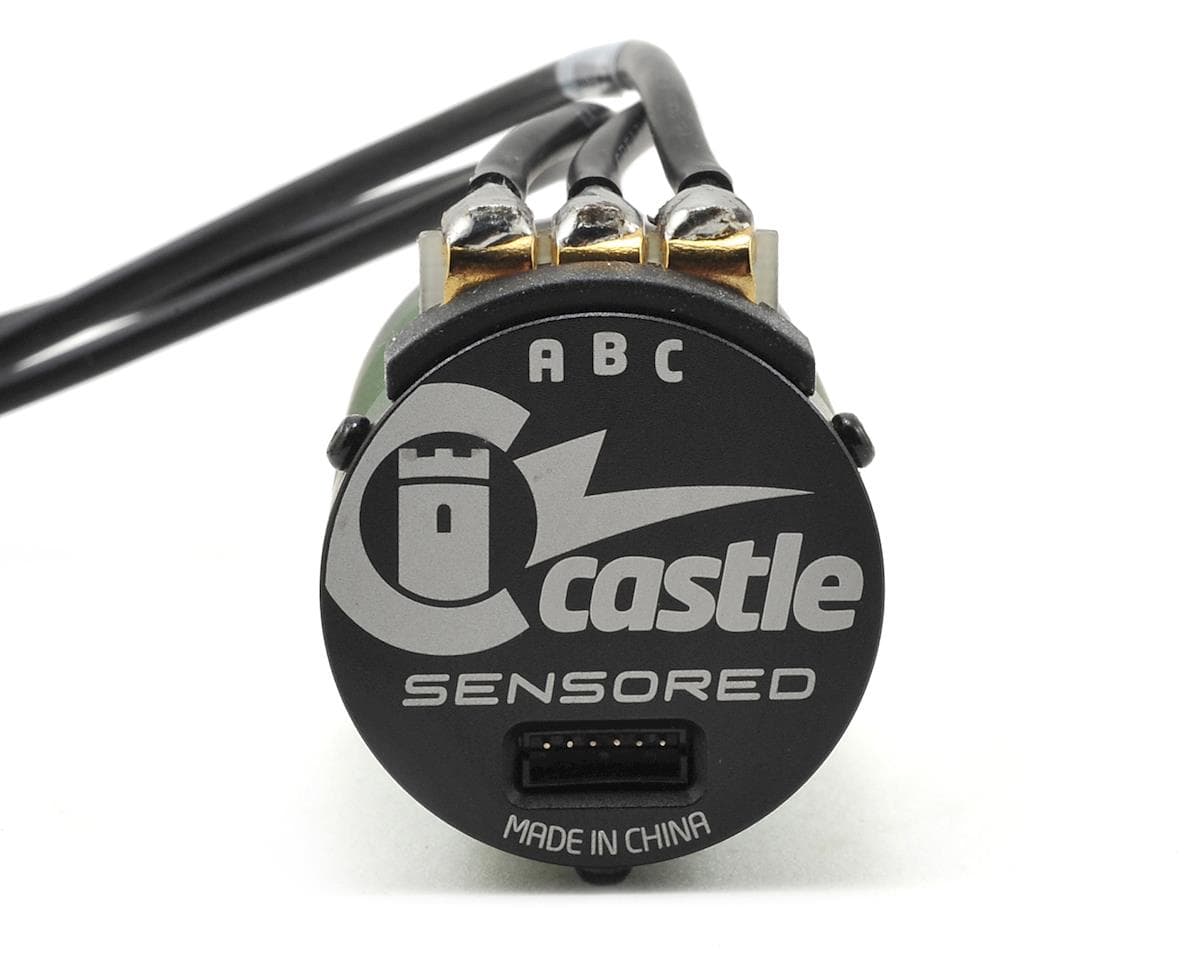

- ROAR standard sensor port and labeled connections
- High strength 180°C neodymium sintered magnets
- High quality, temperature-stabilized sensors
- High-purity, high-temperature copper windings
- Hardened stainless steel shaft
- 13 AWG high strand wire with silicone insulation
- Kevlar wrapped rotor
- 6061-T6 Billet aluminum heatsink can
- High RPM NMB oversized bearings
- High quality 0.2mm steel laminations
- Low resistance gold plated bullet connectors
Specifications:
Input Voltage Range: 3-4S LiPo
Kv: 2400
Max. RPM: 75,000
Length: 69.5mm
Diameter: 36mm
Weight (w/wires): 319g / 11.3oz
Shaft Length: 21mm
Shaft Diameter: 0.197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - not included
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (3-4S).
Recommended ESC(s): Mamba Max Pro, Mamba X, Monster X
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.2 · 5 reviews
Fast shipping product was packaged nicely. I put the castle 2400kv in my slash. Incredible torque and stays cool. I love castle products. Thanks A Main!
Put this in my Axial ryft. Paired with the copperhead esc, this motor has smooth start up and lots of power. Great combo
Great motor, best match for the RBX10 Ryft and the Mamba X ESC.5mm shaft gives the extra strength needed to power over the rocks and not worry about it snapping.
Biggest problem is motor is usually out of stock. I have been using this motor since it first came out. Motor used to have a smaller pinion shaft which would break but the motor itself is a beast. Now with this current version with 5mm shaft and sensored it's perfect. Motor runs strong and has tons of torque and power. Watch gearing this beast can get hot. I would not recommend for slash 4x4 but its perfect for my tekno short course truck or something similar.
Don't want to be Debby Downer as I have FIVE cars on Castle already, but this particular motor, along w/ the 1515 motor/ ESC combo I bought prior were no good "out of the box"......and took out TWO Mamba X ESC's in the process. No chiming, no run at all w/ sensor harness connected, super coggy w/o sensor harness and intermittent stopping. Numerous emails to Castle directly. 89.00 to ship THREE motors and TWO ESC's BACK to Castle for WARRANTY.............jury's not out on how that's going to go. Couldn't say enough about Castle prior .......we'll see if they make good, but most likely the last time around for me and will definitely purchase a different brand going forward
Four of five reviewers rate this 1415 2400kV sensored motor highly, praising its torque, power and strong runs in Ryft and short-course trucks, with the 5mm shaft cited as more durable than earlier versions. Reviewers note it can run hot at aggressive gearing and that it is often out of stock. One verified owner rated it 1/5, reporting a motor and ESC arrived non-functional, no sensor response, cogging and intermittent stopping, and that the ESC was damaged; that reviewer was dissatisfied with the warranty return process. One reviewer suggests it is not well suited to a Slash 4x4. Reviews are few, so the overall picture is limited.
- + Strong torque and power
- + Smooth startup with Copperhead or Mamba X ESC
- + 5mm shaft durability
- + Runs cool with proper gearing
- − Often out of stock
- − Can get hot with aggressive gearing
- − Defective out-of-box unit in one report
- − Warranty return cost and process concerns
