Castle Creations 2535 4-Pole Sensored Brushless Motor (680KV)
About this part
Large Scale Sensored Power
Experience unstoppable power with the Castle Creations 2535 Brushless Motor, engineered to deliver maximum torque, efficiency, and precision for heavy 1:5 and 1:4 scale RC vehicles.

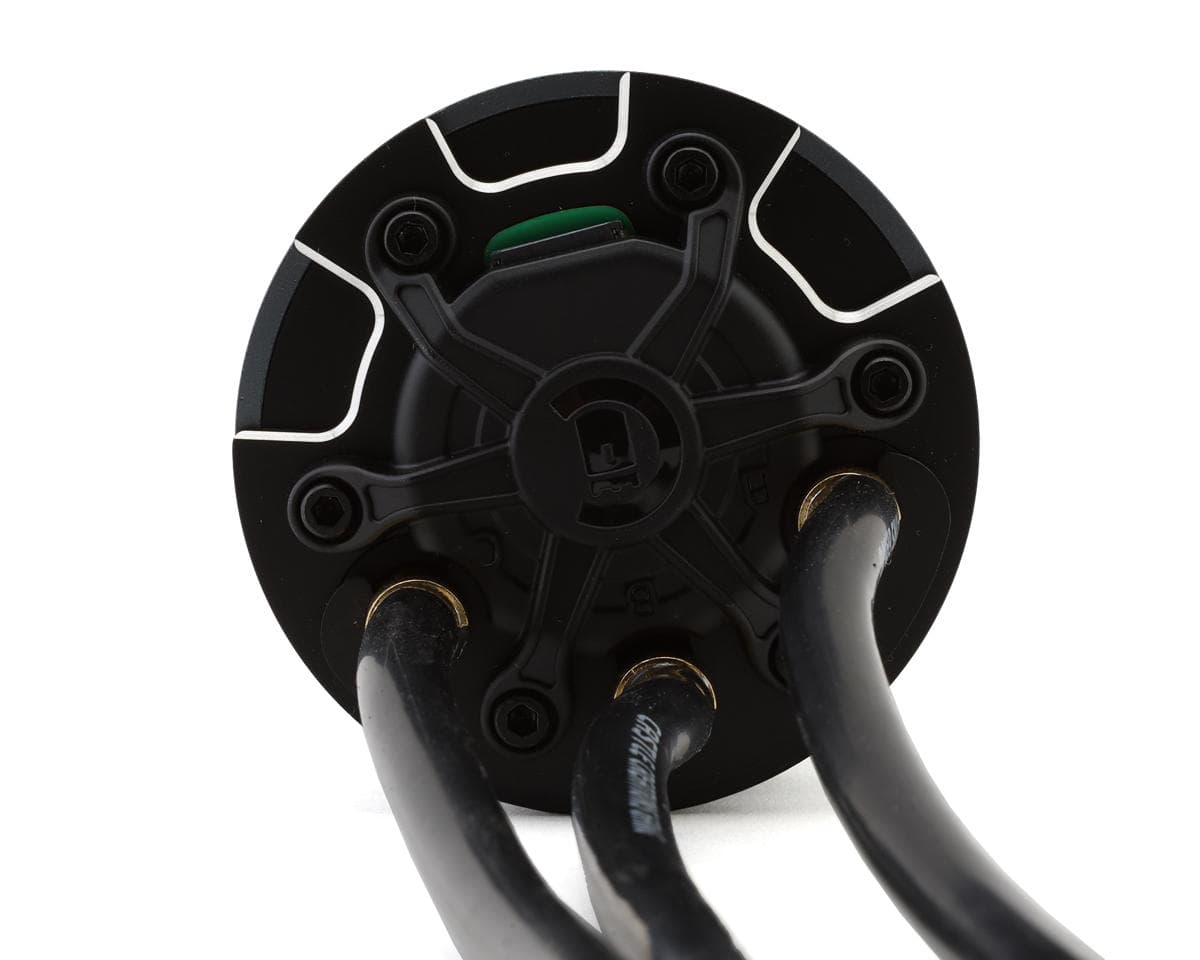

About the 2535 4-Pole Sensored Brushless Motor
Unmatched Power And Torque
The Castle Creations 2535 4-Pole Sensored Brushless Motor is the most powerful motor in Castle’s 28+ year history, capable of handling 1:5 and 1:4 scale RC vehicles weighing up to 50 lbs. Designed for extreme performance, it produces the torque and RPM needed to push heavy vehicles like the Losi 5IVE-T, 5IVE-B, or DBXL-E, making it the perfect upgrade for gas-to-electric conversions and high-demand applications.
Advanced Efficiency And Cooling
Featuring a 4-pole, 12-slot V3 design, the 2535 motor runs cooler and more efficiently, reducing heat buildup and extending motor life. Its oversized NMB bearings, stainless steel sleeve rotor, and high-strength neodymium magnets ensure durability under harsh conditions, while the smooth can exterior and water-resistant design make water cooling simple. Proprietary Castle winding techniques and vibration dampening further enhance performance and reliability.
Smart Sensored Technology
Equipped with SmartSense™ and QuietSense™ technologies, the motor delivers buttery smooth sensored startups and transitions seamlessly to ultra-efficient sensorless operation. Electronic timing automatically optimizes torque and efficiency across all load points, providing precise throttle control, longer run times, and peak performance. When paired with a Castle sensored ESC, users gain access to advanced tuning through Castle Link for the ultimate power and control experience.
Features:
- Designed for 1:5 and 1:4 scale RC vehicles
- Handles vehicles weighing up to 50 lbs
- Compatible with 12S LiPo batteries
- Max RPM: 38,000
- Advanced 4-pole, 12-slot V3 design
- Oversized front and rear NMB bearings
- Water-resistant construction with smooth can exterior
- High-strength stainless steel sleeve rotor and neodymium magnets
- SmartSense for smooth sensored startups and sensorless efficiency
- QuietSense and Flux Shield for precise, low-noise operation
Includes:
- (1) 2535 4-Pole Sensored Brushless Motor

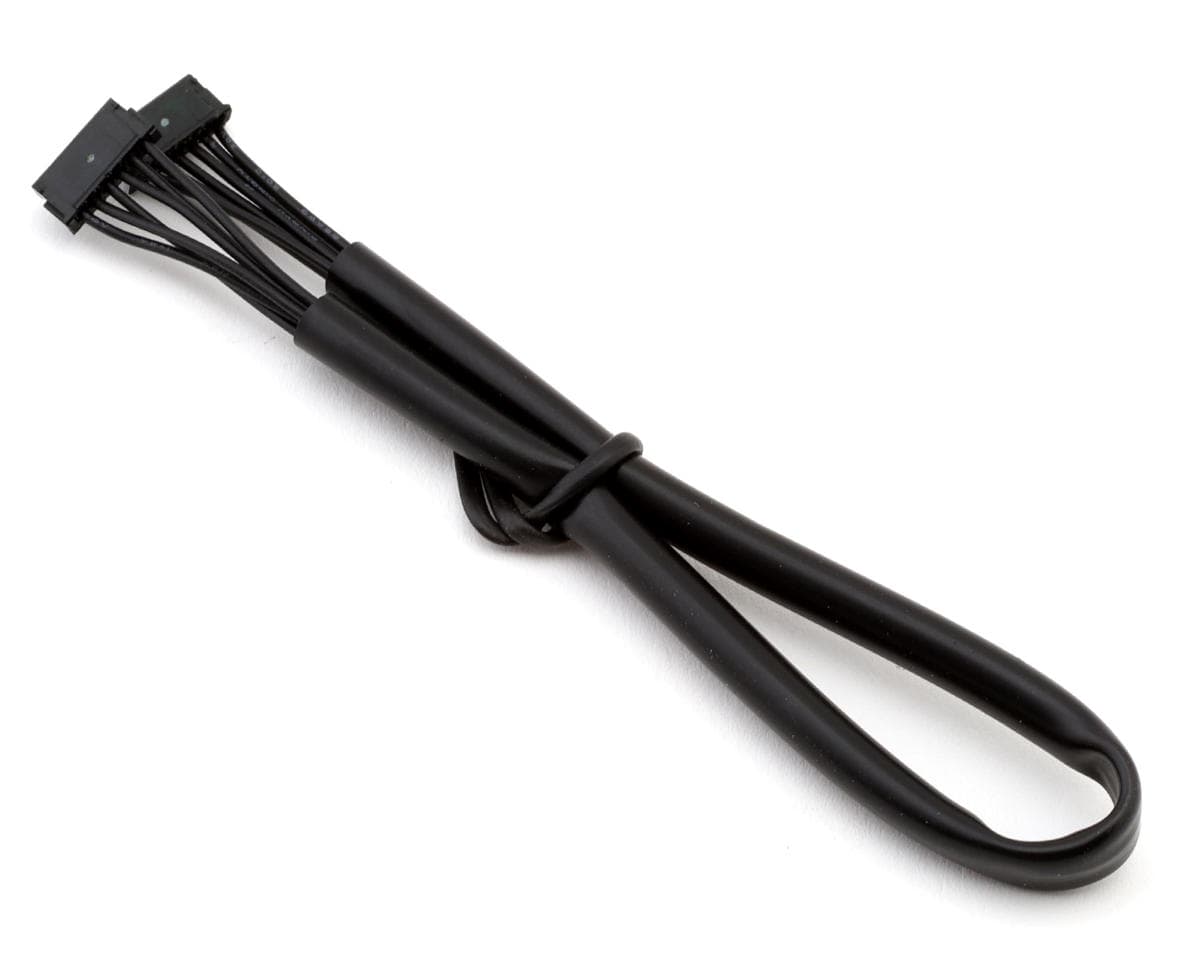

- (1) Sensor Wire
- (1) Manual
Specifications:
| Suggested Application | 1/6 & 1/5 Scale On-Road & Off-Road |
|---|---|
| Type | Brushless Sensored |
| Size | 2535 |
| kV Rating | 680 |
| Max. RPM | 38,000 |
| Input Voltage | 3-12S (11.1-44.4V) |
| Connector | 8.0mm Male Bullets |
| Dimensions | 5.8x2.7in (147.5x68.7mm) |
| Shaft Diameter | 0.31in (8mm) |
| Shaft Length | 1.18in (30mm) |
| Weight | 84.8oz(2.4kg) |
