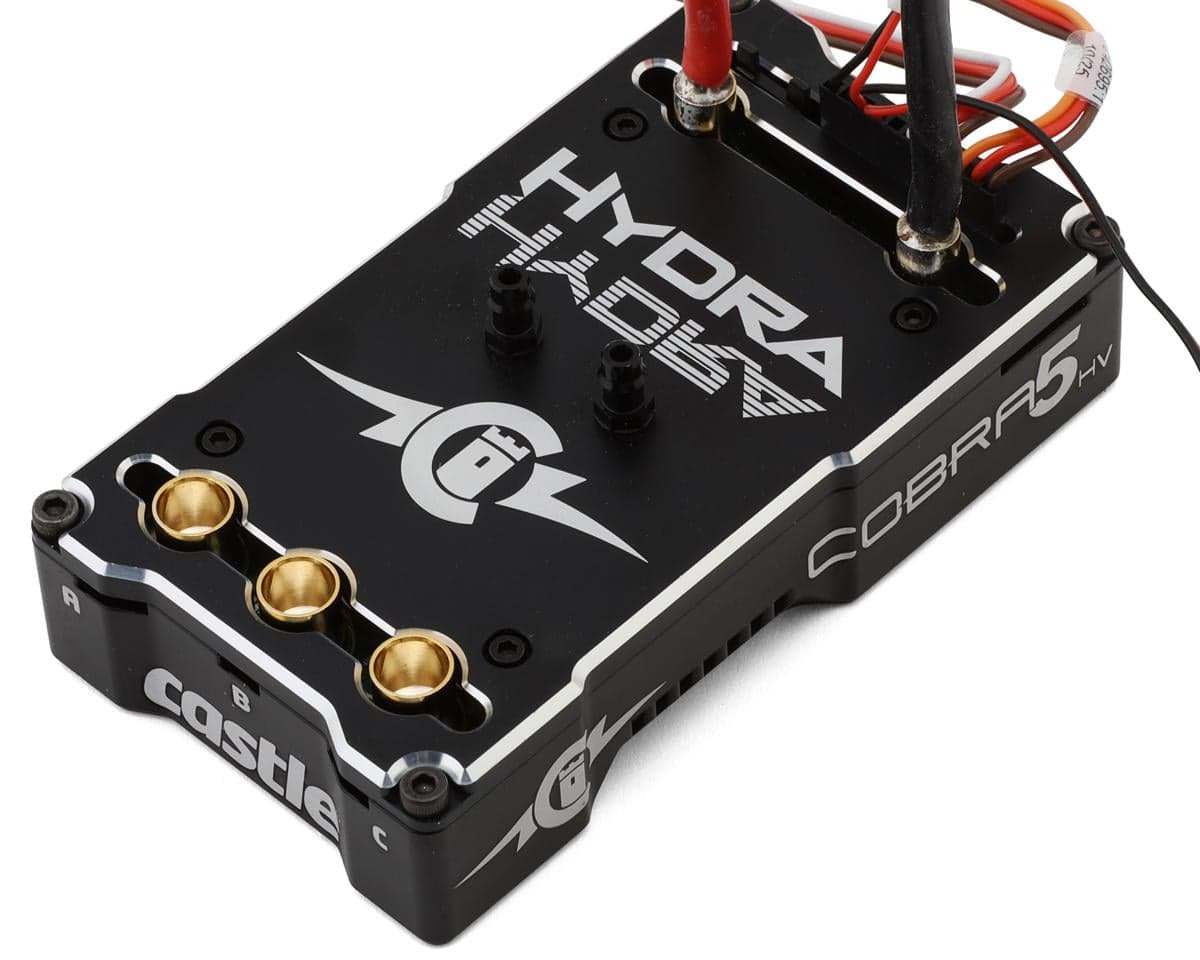

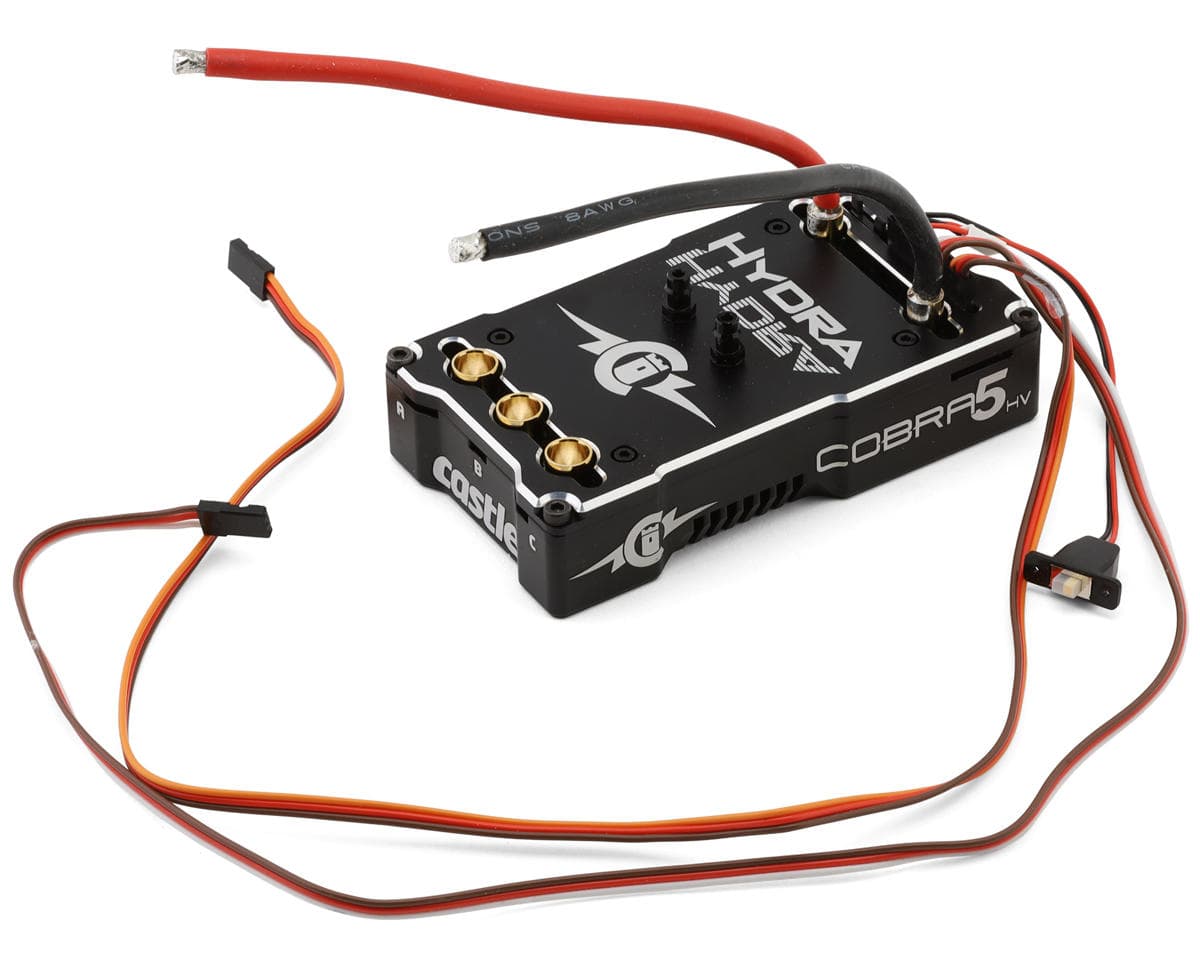

Castle Creations Hydra Cobra 5 HV 12S Brushless Marine ESC
About this part
Marine-Ready Performance and Design
Unleash next-level power and precision on the water with the Castle Creations Hydra Cobra 5 HV — engineered for RC boats up to 50 inches with advanced cooling, smart tuning, and bulletproof reliability.
About the Hydra Cobra 5 HV ESC
Powerful Marine Performance
The Castle Creations Hydra Cobra 5 HV 12S Brushless Marine ESC delivers uncompromising power for RC boats up to 50 inches, handling up to 12S LiPo (50.4V) with precision. Built on proven Cobra 5 architecture and re-engineered for water, it provides smooth motor control, rapid response, and bulletproof reliability for aggressive marine setups.
Advanced Cooling Protection
Featuring a machined water-cooled heatsink, dual anodized fittings, and a rugged CNC aluminum case potted in waterproof epoxy, the Hydra Cobra 5 HV ensures efficient heat transfer and total protection against the elements. CRYO-DRIVE technology minimizes heat generation during partial throttle operation, while upgraded current-sensing and thermal protection actively prevent failures.
Smart Tuning & Monitoring
Equipped with 32-bit processing, enhanced data logging, and onboard accelerometer measurements, this ESC provides detailed performance insights. Wireless setup is possible via B-Link2 Bluetooth and the Castle Link 2 app, while auxiliary wiring, audible alerts, and transmitter programming make on-the-fly adjustments easy. Firmware updates and tuning options are freely accessible, giving hobbyists complete control over their marine performance.
Features:
- 32-bit processing for smooth motor control and fast response
- Supports up to 12S LiPo (50.4V) for high-powered marine performance
- Built on the proven Cobra 5 architecture
- Machined water-cooled heatsink with dual anodized fittings
- Rugged CNC aluminum case potted in waterproof epoxy
- CRYO-DRIVE technology reduces heat during partial throttle operation
- Upgraded current-sensing and thermal protection prevents ESC failure
- Enhanced data logging with accelerometer and electrical motor timing
- Wireless tuning via B-Link2 Bluetooth Interface and Castle Link 2 app
- Auxiliary wire and transmitter programming for on-the-fly adjustments
Includes:
- (1) Hydra Cobra 5 HV ESC
- (1) Cobra decals

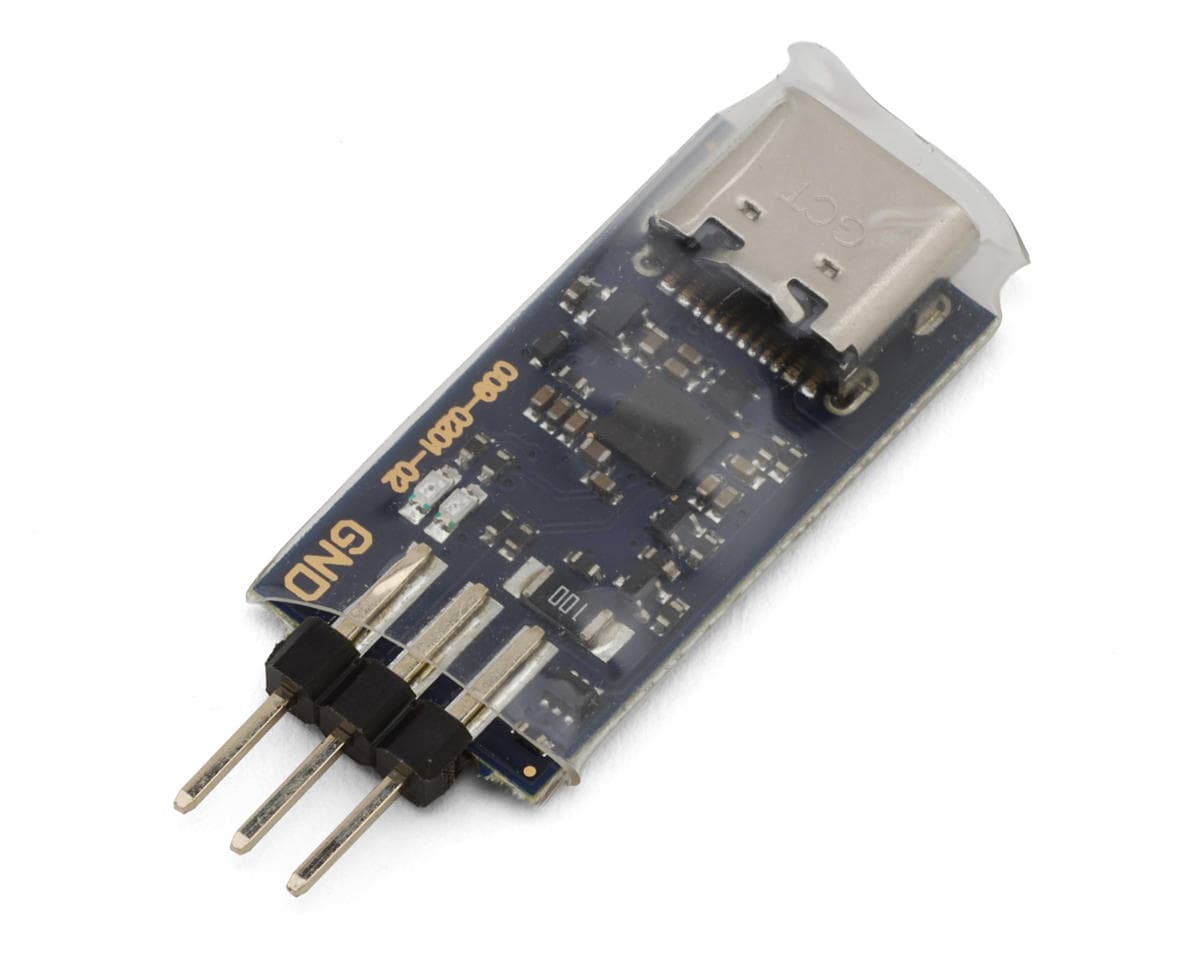

- (1) Castle Link V4 USB Adapter
- (1) Hydra Cobra Quick Start Guide
Specifications:
| Suggested Application | Boats up to 50" |
|---|---|
| Motor Type | Brushless - Sensored |
| Input Voltage | 6-12S LiPo (22.2-33.6V) |
| Continuous Current | 180A |
| Burst Current | 350A |
| Dimensions (LxWxH) | 4.72x1.46x2.64in (120x37.2x67mm) |
| Weight | 18.1oz (513g) |
| Motor Limits | - |
| BEC Voltage | 5.5-8.5V (Adjustable) |
| BEC Continuous Current | - |
| BEC Peak Current | - |
| Motor Connector | 8.0mm Bullet |
| Battery Connector | Bare Wire |
| Motor Wire | - |
| Battery Wire | - |
| Programmable | Yes with Castle Link V4 USB adapter |
*Tech Note: Due to the high power nature of the Hydra Cobra 5 HV, you must use appropriately sized batteries and connectors. We recommend a minimum 150 amp connector for the Hydra Cobra 5; examples include Castle 6.5mm polarized, EC8, and QS8. DO NOT USE XT90, Traxxas, EC5/IC5, or any other connectors rated below 150 amps continuous.
