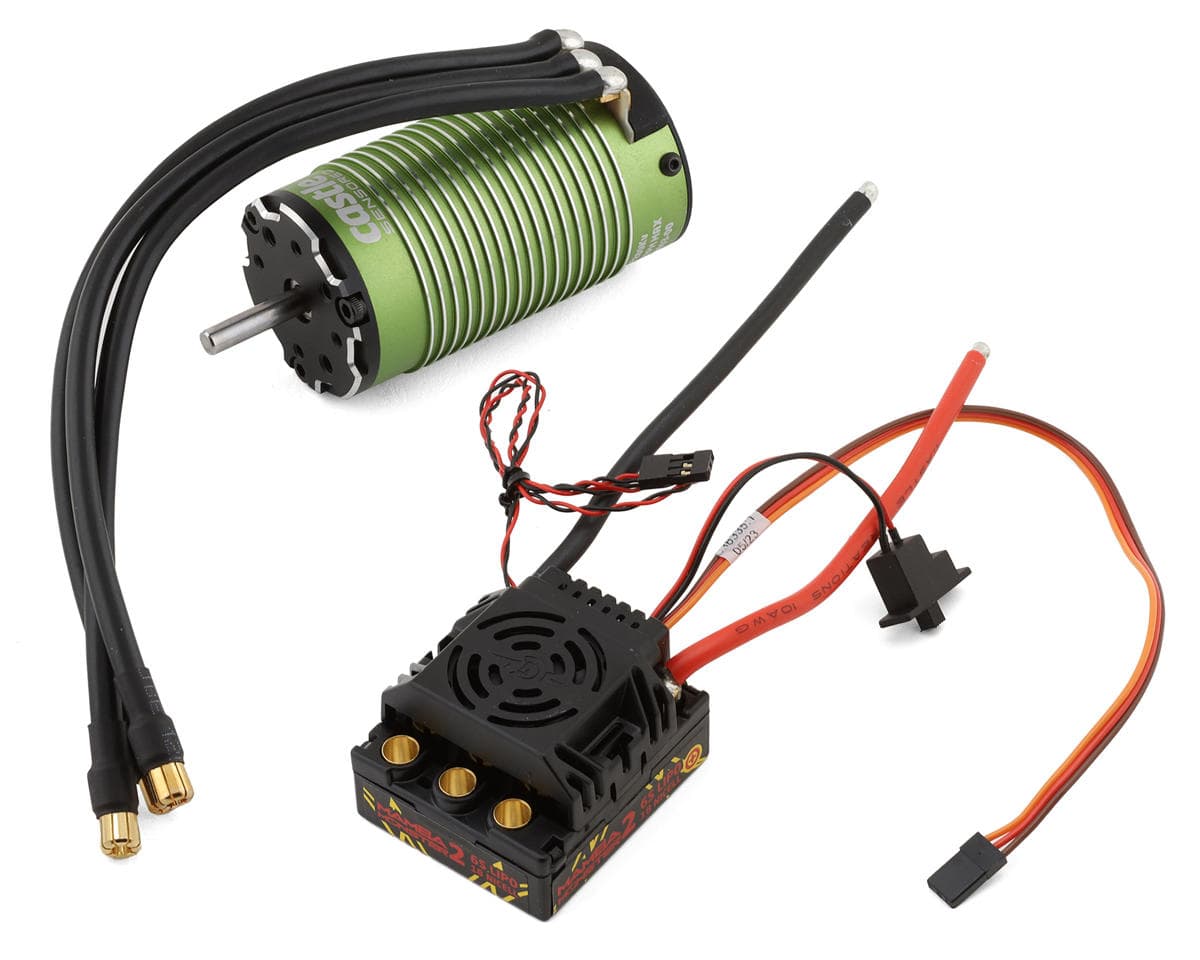

Castle Creations Monster 2 1/8 (25V) Waterproof ESC Combo w/1515 V2 Motor (2200kV)
About this part
Castle Creations' introduction of the Mamba Monster was a breakthrough moment for the RC world to experience what seemed to be unobtainable. brute power and sheer stamina! This Mamba Monster is capable of 2S LiPo to a maximum of 6S LiPo with a waterproof design to give you peace of mind to enjoy your vehicles in muddy, snowy and wet conditions without worrying about damaging the electronics!
Features an adjustable internal BEC with a peak of 8.0V, factory equipped and fully removable cooling fan, LED error codes for common error conditions, redesigned rotor and stator assemblies, reduced magnetic cogging, producing less residual drag brake, increased efficiency, resulting in lower temperatures and longer run times, smoother start-up, reducing cogging or stuttering when starting from a stop, high-performance 0.2mm steel lamination stacked stator oversized high quality NMB bearings!
The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience. This combo includes the Mamba Monster 2 controller and the recently updated Castle 1515-2200kV V2 sensored motor (Sensored capabilities of the motor cannot be utilized with the Mamba Monster 2).
ESC Features:
- Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Factory equipped (30mm), fully removable cooling fan
- Waterproof design allows for use in nearly any environment
- LED error codes for common error conditions
- Convenient transmitter programming for nine common adjustable settings
- Full compatible with the Castle Link Programming Suite or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
- Proudly Designed, Assembled and Supported in Olathe, KS USA
- Backed by Castle Creations' 1-year warranty
Motor Features:
- Redesigned rotor and stator assemblies
- Reduced magnetic cogging, producing less residual drag brake
- Increased efficiency, resulting in lower temperatures and longer run times
- Smoother start-up, reducing cogging or stuttering when starting from a stop
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
- High-Strength kevlar wrap and 180C grade neodymium sintered magnets
- Oversized NMB bearings and high-temperature, high-purity copper windings
- Castle 10 AWG, high-strand-count silicone-insulated wire with 6.5mm bullet connectors
- High-Performance 0.2mm steel lamination stacked stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with high-quality temperature-stabilized sensors
- T6 aluminum CNC-machines front and rear end bell
- Proudly designed and supported in Kansas, USA
- Backed by Castle Creations' 1-year warranty
Specifications:
- ESC:
- Input voltage range: 2S-6S LiPo
- BEC Specifications: Adjustable - 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak) (5.5V default)
- Length: 2.09" (53mm)
- Width: 1.93" (49mm)
- Height: 1.44" (36.4mm)
- Weight: 3.92oz (111g)
- On/Off Switch: Yes
- Cooling Fan: Yes, factory equipped
- Connector: 6.5mm female bullets for motor connection
- Wire Gauge: 8AWG
- Motor:
- Application: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs
- Input Voltage Range: 2-6S LiPo
- Kv Rating: 2200Kv
- Max. RPM: 60.000
- Diameter: 1.57" (39.98mm)
- Length: 2.96" (75.18mm)
- Shaft Size: 20mm(Length), 5mm(Diameter)
- Weight(w/wires): Approx. 15oz (452.2g) (W/Wires)
- Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25.4mm
- Connectors: 6.5mm male Castle Bullet Connectors
- (1) Mamba Monster 2 ESC

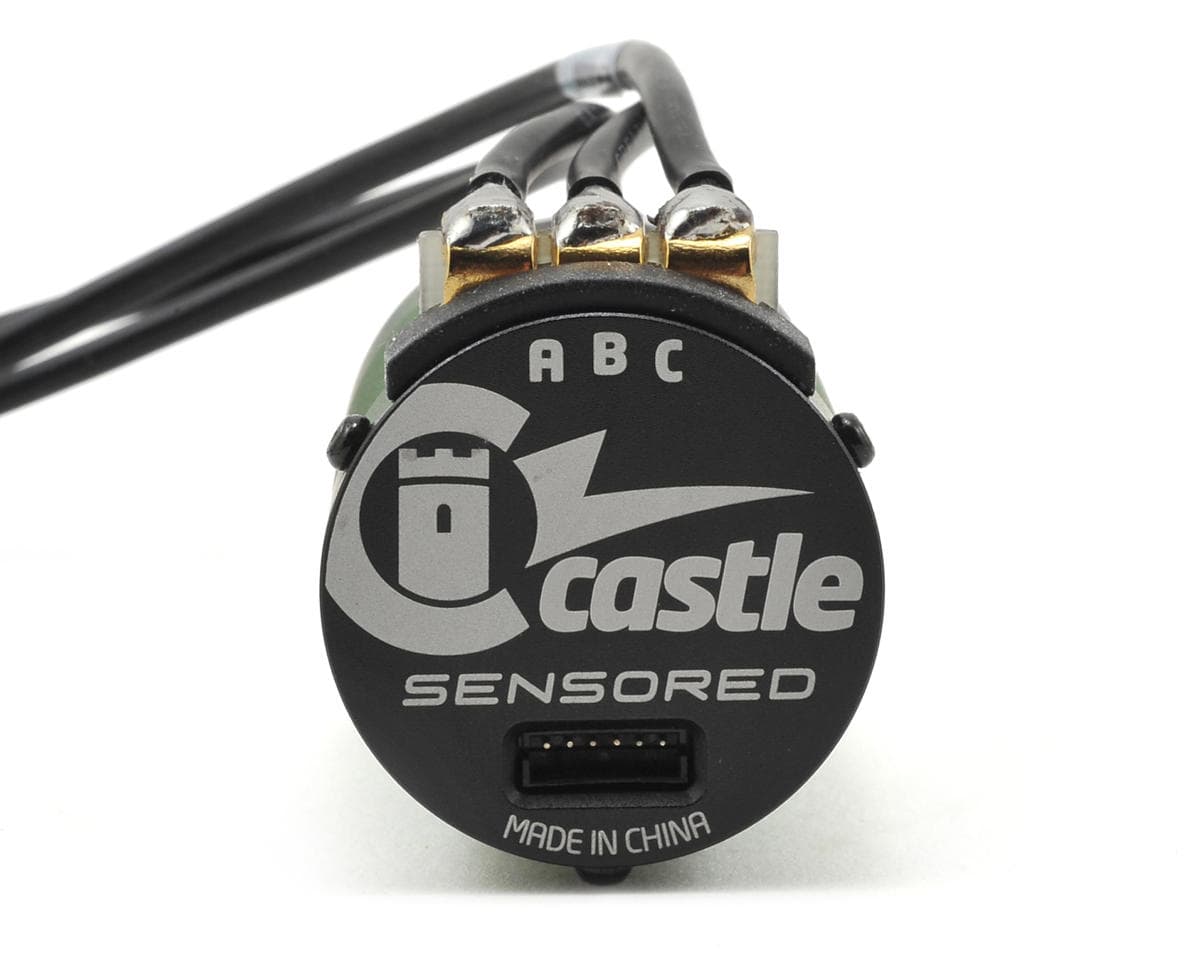

- (1) 1515-2200kv V2 sensored* brushless motor
- (1) Coupon for free Castle Link USB adapter
- (1) Driver's Ed and Quick Start Guide
- (1) Decal sheet
NOTE: CSE011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future.
Includes:
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 4 reviews
Im using this for the Axial Ryft with a Treal center skid plate. Not a perfect fit with the Treal skid plate but I knew that going into the purchase. After the mods I made to the plate this Castle works great. It's a beast.
The Monster 2 ESC performs as well as a Monster X or Hobbywing MAX8. My oldest monster 2 is 10 years old and is still in use. I use mine for a 4s 1/8 scale. The V2 1515 motor has a tight power band and is really responsive. The latest combo I purchased is sitting in a Tekno MT48 2.0 and I really like it a lot. I highly recommend the Monster 2 / 1515 combo.
If you want controllable power it's a big win if you want uncontrollable power its a win I put it on a hyper 7 that was nitro in its previous life running 6s with 21t pinion its sad to say it will only be in one crash if it's ever in one this is not for novice drivers 5 stars across the board!
I love this esc/motor combo. I have several of these esc/motors in different vehicles and they work great all the time every time. I am super happy with the performance, power and longevity they put out. I run them in my truggy and 1/8th scale monster trucks on 4s. I also have a couple version 1 combos that are still working great in some of my older trucks I have had for years. I think Castle creations make some great electronics and have been very happy using their stuff for many years.
All four reviewers rate this Castle Creations Monster 2 ESC and 1515 V2 motor combo five stars, describing it as powerful, responsive and durable. Reviewers report long service lives, including one ESC still in use after ten years and others running for years across several vehicles. Applications mentioned include 1/8 scale monster trucks and buggies on 4S, an Axial Ryft with a modified skid plate, and a Tekno MT48 2.0. One reviewer describes the power as very aggressive, noting it suits experienced drivers rather than novices, and that a high-power setup on 6S may be fragile in a crash. Reviewers compare its performance favourably to a Monster X and Hobbywing MAX8. One reviewer notes a minor fit issue with a third-party skid plate that required modification.
- + Strong, responsive power
- + Long service life
- + Consistent performance across vehicles
- + Performs well against comparable ESCs
- − Very aggressive power, unsuited to novice drivers
- − Minor fit issue with some third-party skid plates
- − Potentially fragile in crashes at high voltage
