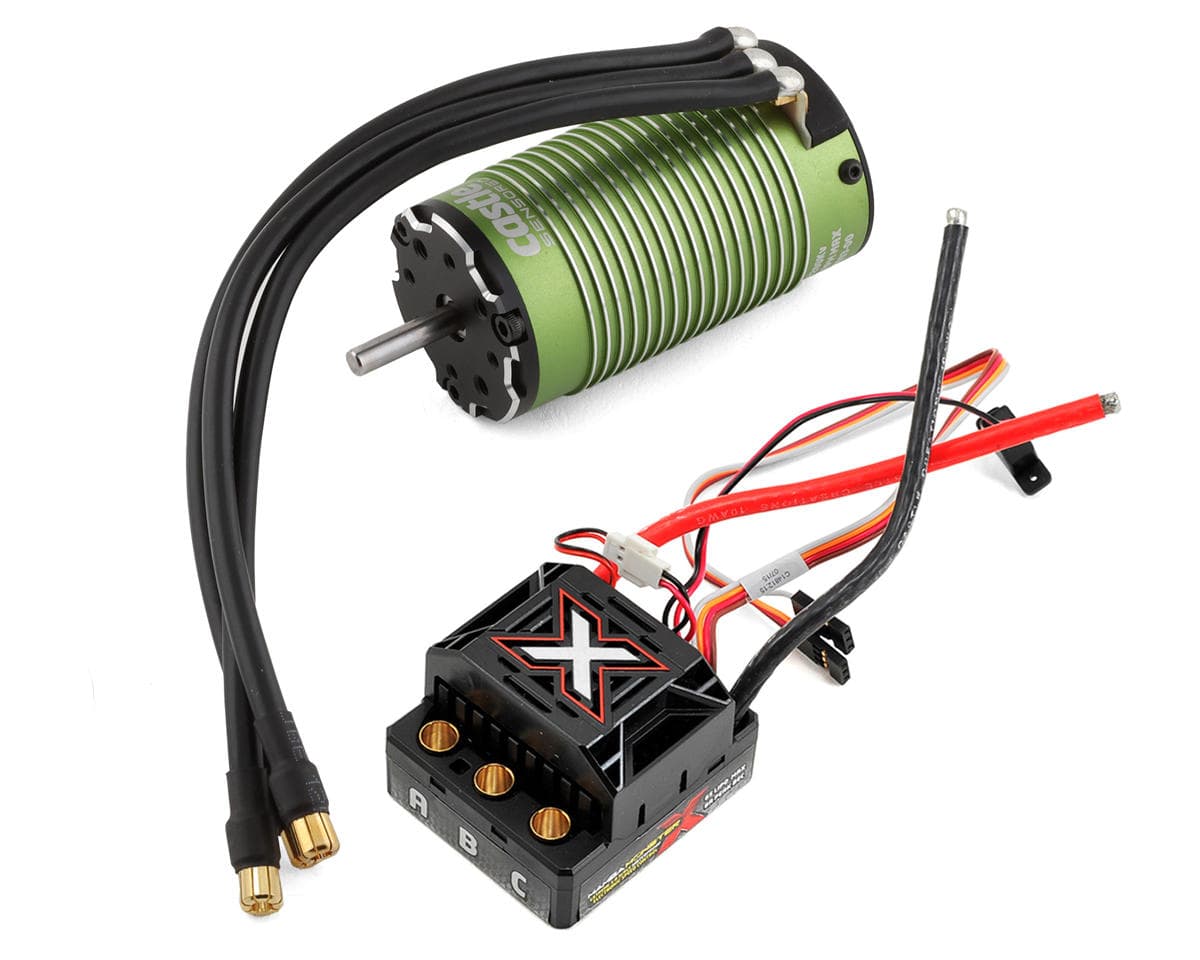

Castle Creations Monster X 1/8 Brushless Combo w/1515 V2 Sensored Motor (2200Kv)
About this part
Monster X 1/8 Brushless Combo with 1515 V2 Sensored Motor Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot) and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level!
MAMBA MONSTER X FEATURES:
- Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
- Housed in a durable injection molded case and potted in Waterproof epoxy to protect the electronics and promote efficient heat transfer
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- Data Logging to capture and record performance data from your vehicle
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient Transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as max Power and max Brake
- Proudly designed, assembled and supported in Kansas USA and backed by Castle Creations' 1-Year Warranty

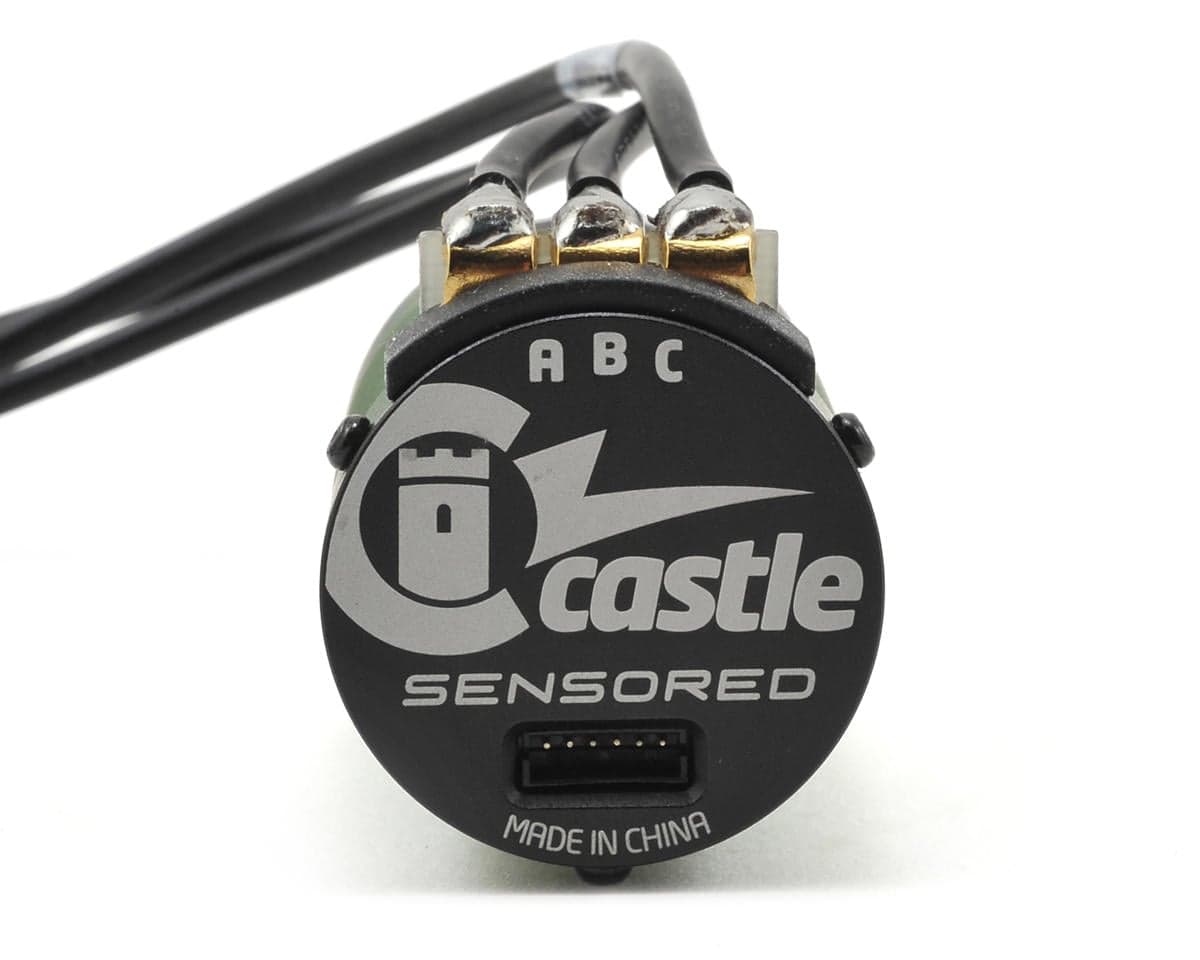

1515-2200 V2 MOTOR FEATURES:
- Redesigned stator and rotor assemblies to improve magnetic flux.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
- Oversized NMB bearings and high-temperature, high-purity copper windings
- High performance 0.2mm steel lamination stacked stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with high quality temperature stabilized sensors
- T6 aluminum CNC-Machined front/rear end bell
- Proudly designed and supported in Kansas, USA.
Specifications:
- ESC:
- Input voltage range: 2S-6S LiPo
- Length: 2.09" (53mm)
- Width: 1.93" (49mm)
- Height: 1.44" (36.4mm)
- Weight: 3.92 oz. (111.g)
- On/Off Switch: Yes
- Cooling Fan: Yes, factory equipped (30mm), fully removable**
- Connector: 6.5mm female bullets for motor connection.
- Wire Gauge: 8AWG
- Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
- Motor:
- Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
- Input Voltage Range: 2-6S LiPo
- Kv Rating: 2200Kv
- Max. RPM: 60.000
- Diameter: 40mm (41.4mm with fins)
- Length: 3.99" (101.2mm)
- Shaft Size: 20mm(Length), 5mm(Diameter)
- Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires.
- Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
- Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.
- (1) Mamba Monster X ESC
- (1) 1515-2200Kv V2 Brushless Sensored Motor
- (1) Castle Sensor Harness Adapter

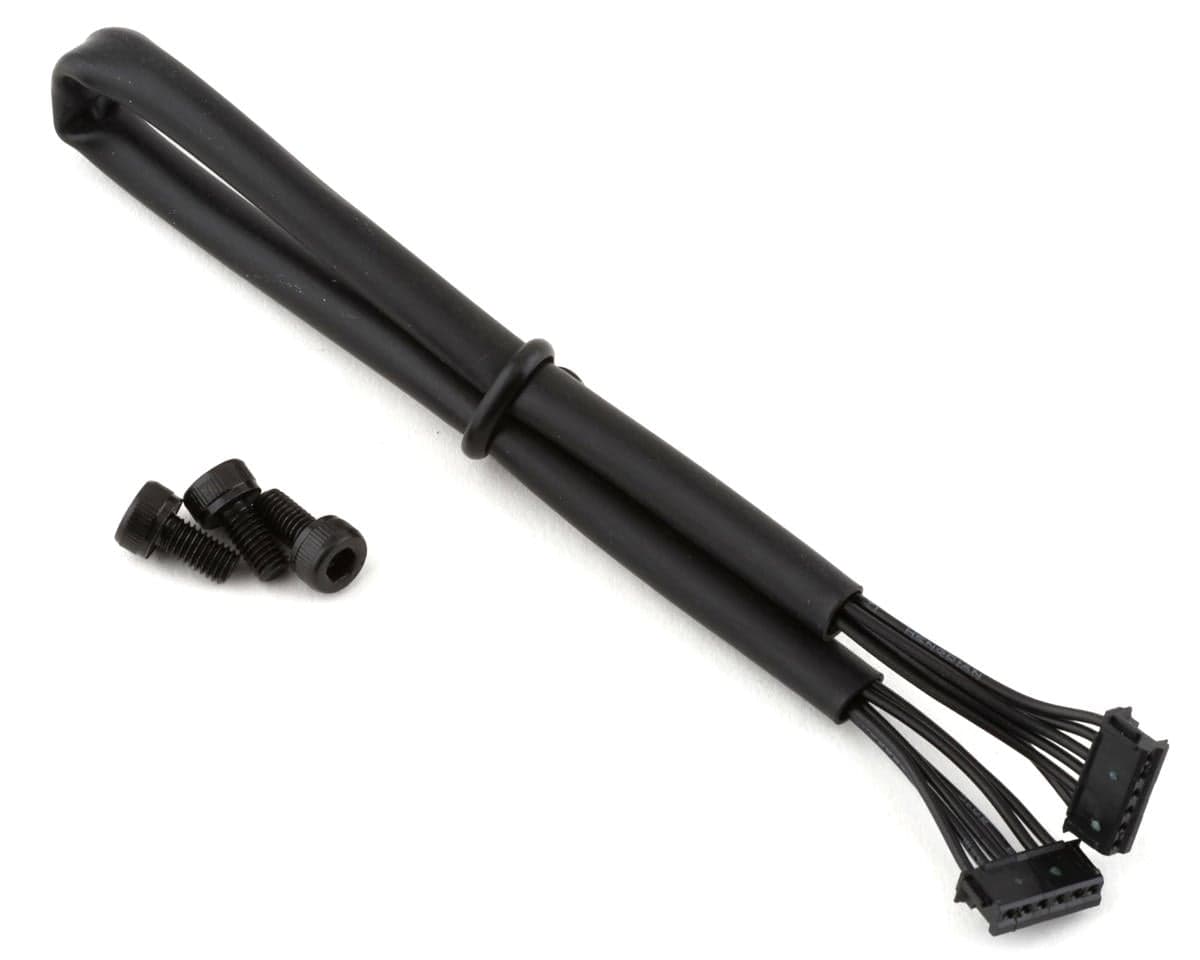

- (1) 210 mm sensor wire (for sensored operation)
- (1) Coupon for free Castle Link USB
- (1) Mamba Monster X Quick Start Guide and Decals
Includes:
Reviews5.0 · 6 reviews
I'm very satisfied with everything I've ordered. The guys are very helpful and have given me excellent service and advise. Even when I just needed parts for a kit I had purchased from them !!
Wow this Mamba Monster X is one badass motor it definitely takes the RC world to another level in my Cen Colossus 4x4 XT run smooth low temperatures definitely does everything it says it will do and more I love this motor i am so impressed wow
Excellent 1/8 setup. CASTLE QUALITY & PERFORMANCE is #1 hands down. Whether you need a buggy/truggy setup or short course/drift-road car setup this is the kit for you. Plenty of power, exceptionally efficient & runs cool.
I put this combo in my MT 48 2.2 that I just built. A similar build to the one in the a main video. This thing absolutely rips! It’s too early to comment about durability but first impression is that it is super powerful and fast. I usually go for hobby wing, but I had heard good things about castle so…
Very high quality setup and extremely fast shipping!
All six reviewers gave five-star ratings, and all are verified owners of the Monster X 1/8 Brushless Combo with 1515 V2 sensored motor (2200Kv). Reviewers consistently describe the setup as very powerful and fast, with low operating temperatures and efficient running. Several mention fitting it to 1/8 platforms such as a Cen Colossus 4x4 XT, an MT 48 2.2 and a TLR Tuned LMT, and one notes 2S is plenty of power on 3S is nearly too much. Installation is described as easy. Durability is not yet established, as one reviewer states it is too early to judge. Some comments focus on the seller's service and shipping rather than the motor itself.
- + Very high power and speed
- + Runs cool and efficient
- + Easy installation
- + Helpful seller and fast shipping
- − Durability not yet proven
- − 3S can be more power than needed
