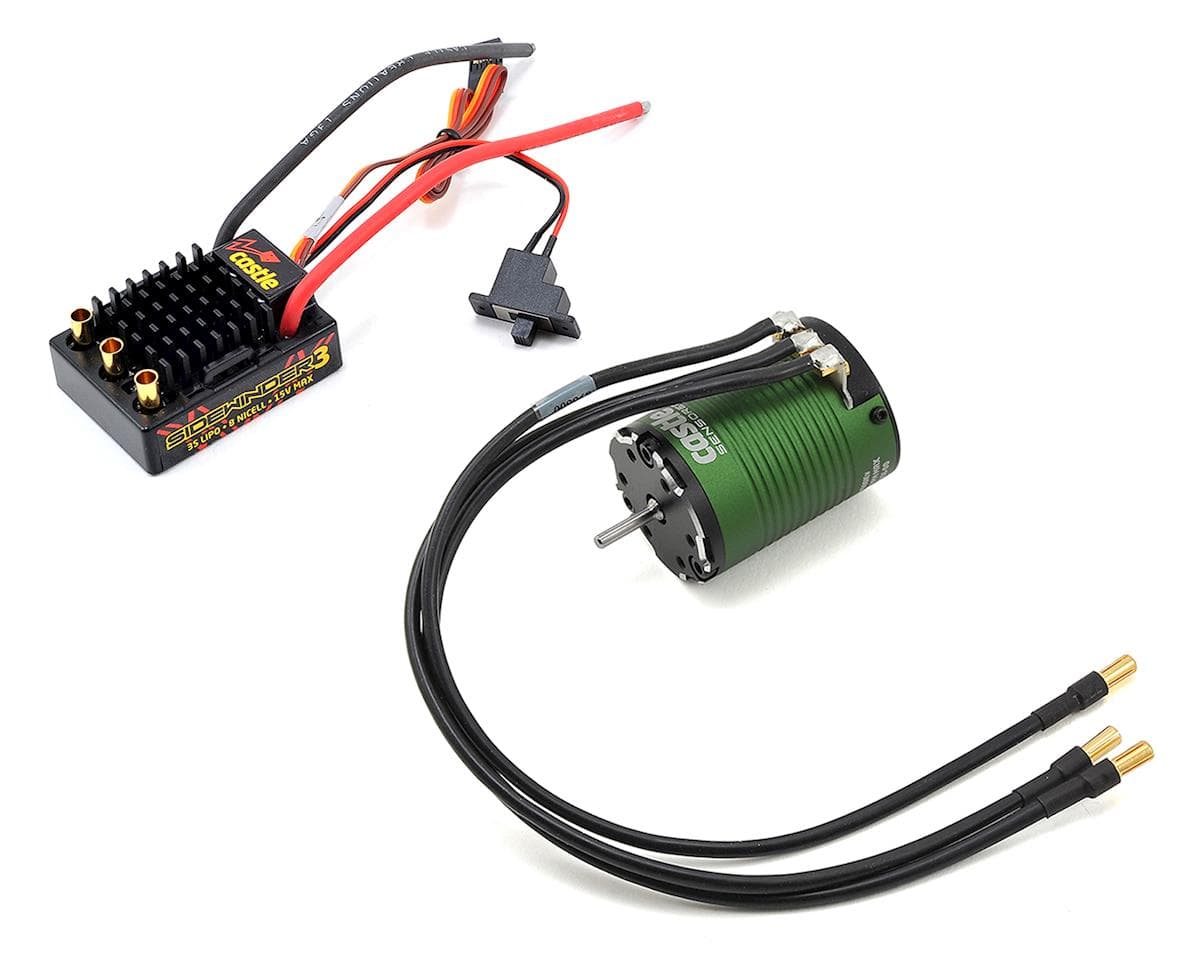

Castle Creations Sidewinder 3 WP 1/10 ESC/Motor Combo (5700kV) w/Sensored 1406 Motor
About this part
This is the Castle Creations Sidewinder 3 WP 1/10 ESC and Brushless Motor Combo, including a Neu-Castle 1406 5700kV Brushless and Sensored Motor. Castle’s Sidewinder ESC is now waterproof! The Sidewinder 3 can power crawlers on water filled trails, AWD's in rain soaked parking lots, and SCT's on adventures through muddy fields. Drivers can now give in to those irresistible urges to drive in the mud or rip through puddles without damaging their ESC.
Designed for 1/10th
The Sidewinder 3 is a great fit for 1/10th off-road, on-road, and rock crawlers running up to 3S LiPo. It features updated circuitry for faster response time and improved reliability. As always, the Sidewinder 3 offers industry-leading software functions and USB programming capability via Castle Link USB adapter (sold separately).
You asked. Castle listened.
For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by their customers, Castle has brought technological advancements together that will deliver unprecedented performance in our their Sensored motor Line.
ESC Specifications:
Input Voltage: MIN: 2s LiPo; MAX: 3s LiPo
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes - with lockout
Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
Weight (w/127mm long battery wires and no battery connector): 1.96 oz (55.5g)
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Motor Specifications:
Input Voltage Range: 2-3S LiPo
Kv: 5700
Max. RPM: 100,000
Size: Length: 49.5mm; Diameter: 36mm
Weight (w/wires): 202 g / 7.1oz
Shaft Size: Length: 15mm; Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies
Max. Recommended Vehicle Weight: 2WD SCT Trucks up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs.
Tech Notes: Running modes: SMARTSENSE, Sensored, Sensorless
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.3 · 4 reviews
This motor rips. I installed it in a 1/10 Stadium truck with a Hobbywing QuicRun QR10BL120 120A Sensored Brushless ESC. Smooth as silk when paired with a Sensored ESC. It's blindingly quick for my application. My punch control, timing, and slipper had to be adjusted to keep the truck from losing traction or pulling wheelies when being aggressive with the trigger. Even with it turned down, I never worry about clearing any long jumps. If you're not worried about track applications and focus more on bashing, the Castle ESC that comes with the combo will be just fine.
These Castle kits are perfect. What a bargain. Even though you can’t run sensored with a sidewinder 3, you can also switch to brushed very easily. I run these kits in rerelease Tamiya and Kyosho kits and they are perfect
I purchased sidewinder 3 for and old RC10T3 as an upgrade . The motor was Sensored but the ESC was not . I called the company and they were great . I returned it and purchased the mamba x . This one has the sensored ESC . No hassle on returns at all . Looking forward to doing more business with this company.
Powerful and customizable. However it seems cheaply made. The rotor is unbalanced in mine. The motor and esc overheat easily. Castle customer service is nonexistant. Can't even get them to call me back.
Reviewers describe the Sidewinder 3 WP combo as very powerful and quick, with one owner running it in a 1/10 Stadium truck paired with a sensored Hobbywing ESC and needing to tune punch, timing and slipper settings to control traction. Some praise its value and say it can be switched to brushed operation for older kits. Opinions diverge on build quality and support: one reviewer reports an unbalanced rotor, overheating motor and ESC, and unresponsive customer service, while another reports a smooth, hassle-free return and helpful support. Reviews note that the motor is sensored and the included ESC is not, meaning sensored operation requires a sensored ESC. Reviews are few and mixed in their experience.
- + Strong power and speed
- + Good value for the price
- + Can run brushed as well as brushless
- + Smooth with a sensored ESC
- − Unbalanced rotor in one unit
- − Motor and ESC overheat easily
- − Poor customer service in one report
- − Included ESC is not sensored
