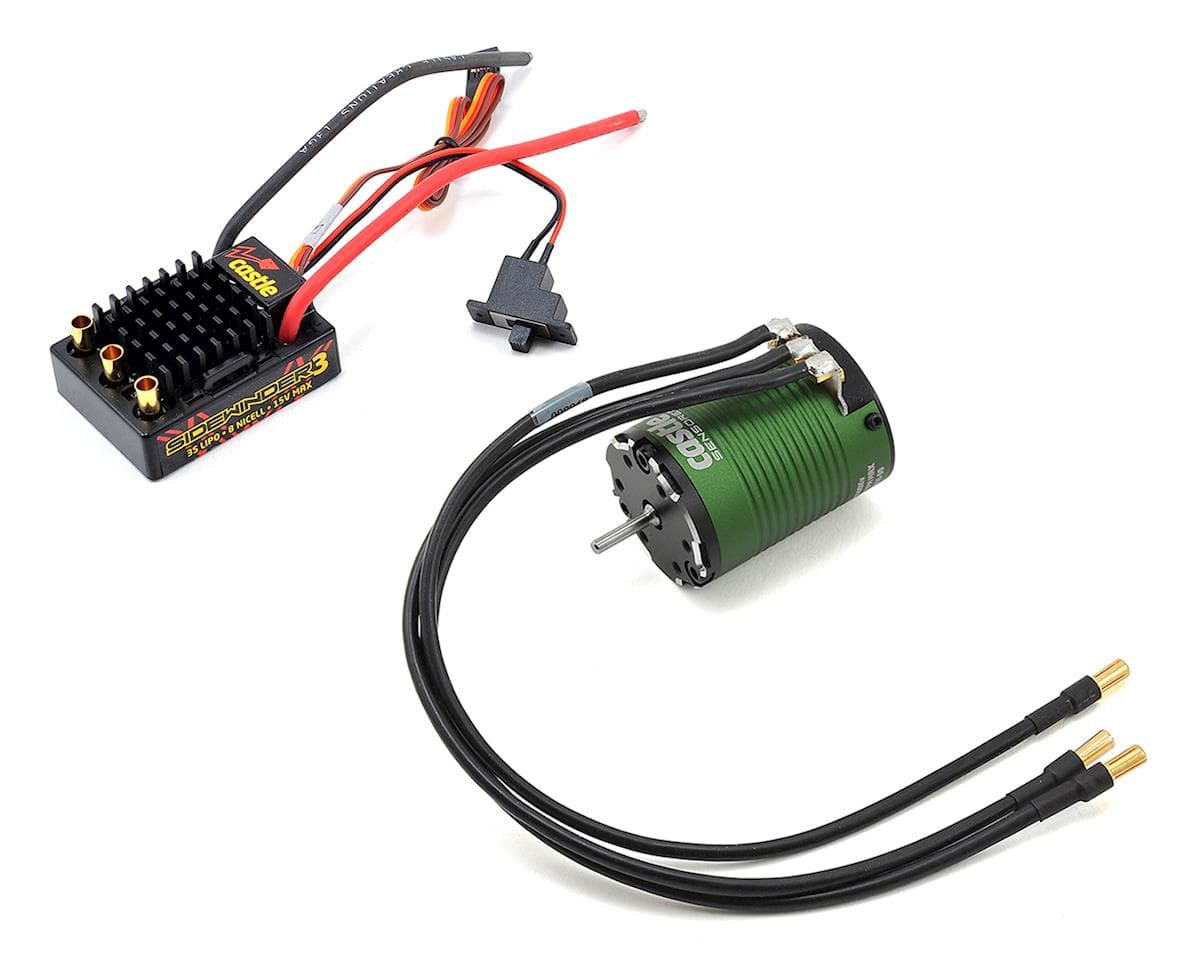

Castle Creations Sidewinder SV3 Waterproof 1/10 ESC/Motor Combo (6900kV) w/Sensored 1406 Motor
About this part
This is the Castle Creations Sidewinder SV3 WP 1/10 ESC and Brushless Motor Combo, including a sensored 1406 6900kV Motor. This combo is recommended for 1:10 scale on road for 2S use, lighter off road 1/10 stadium truck and buggies with conservative gearing up to 4 pounds. This combo is NOT recommended for 2wd or 4wd short course trucks.
Designed for 1/10th
The Sidewinder 3 is a great fit for 1/10th off-road, on-road, and rock crawlers running up to 3S LiPo. It features updated circuitry for faster response time and improved reliability. As always, the Sidewinder 3 offers industry-leading software functions and USB programming capability via Castle Link USB adapter (sold separately).
You asked. Castle listened.
For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by their customers, Castle has brought technological advancements together that will deliver unprecedented performance in our their Sensored motor Line.
ESC Specifications:
Input Voltage: MIN: 2s LiPo; MAX: 3s LiPo
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes - with lockout
Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
Weight (w/127mm long battery wires and no battery connector): 1.96 oz (55.5g)
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

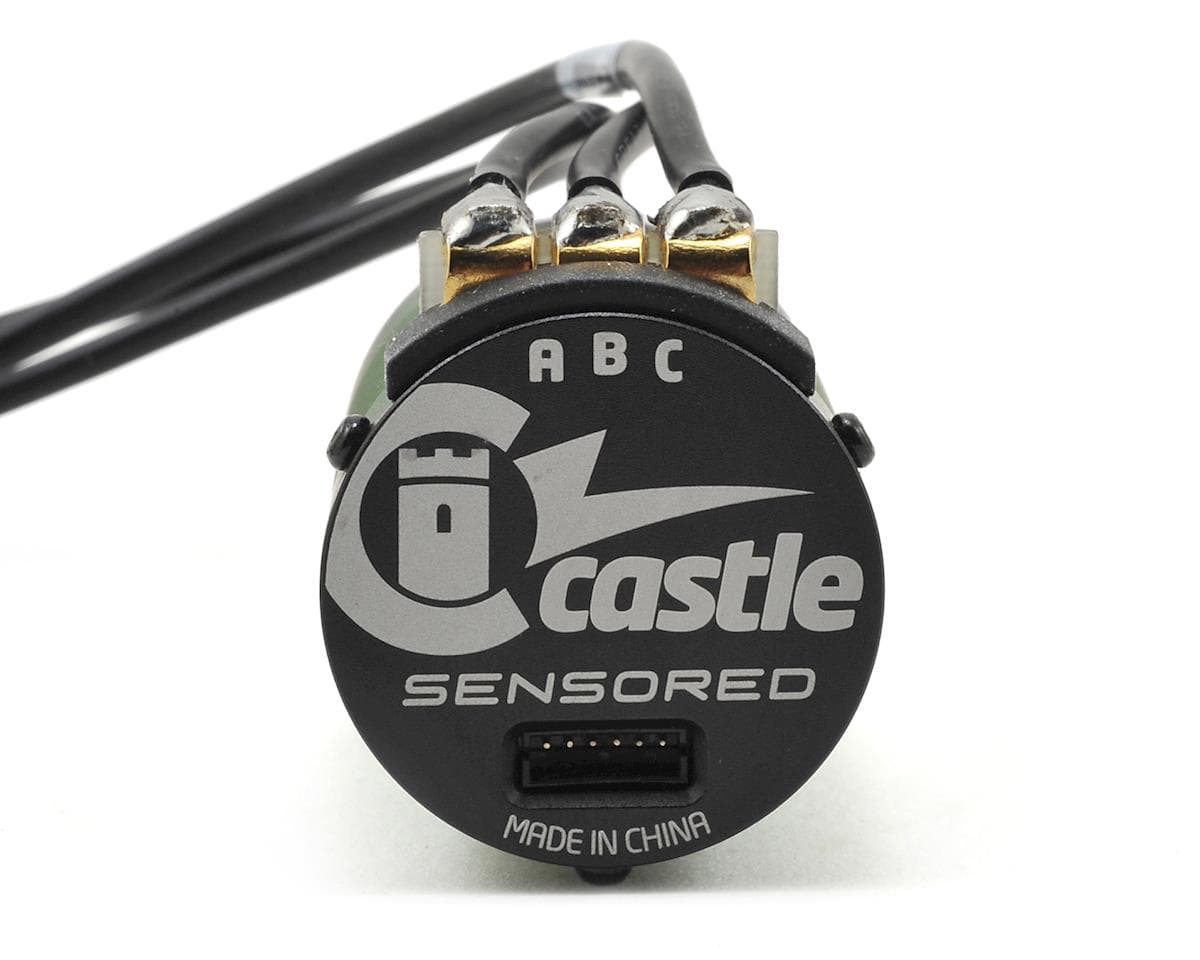

Motor Specifications:
Input Voltage Range: 2-3S LiPo
Kv: 6900
Max. RPM: 100,000
Size: Length: 49.5mm; Diameter: 36mm
Weight (w/wires): 193 g / 6.8oz
Shaft Size: Length: 15mm; Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm

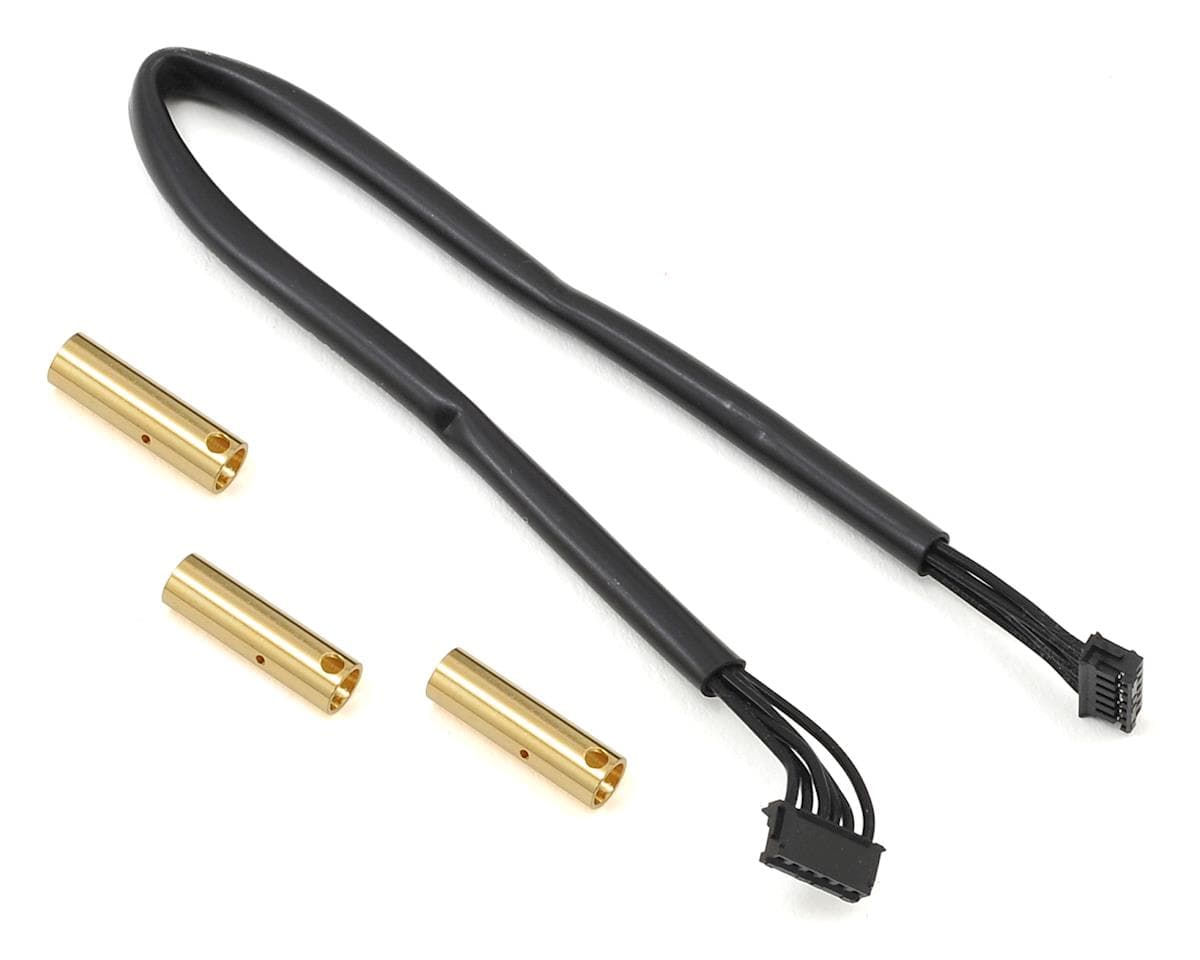

Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: 1:10 scale on road for 2S use, lighter off road 1/10 stadium truck and buggies with conservative gearing. NOT for 2wd or 4wd short course trucks.
Max. Recommended Vehicle Weight: Up to 4lbs
Tech Notes: Running modes: SMARTSENSE, Sensored, Sensorless
