About this part
“I have been running the Crest 8 in my Sparko eBuggy and have found the ESC to be very smooth with plenty of power. The included Bluetooth programmability is very useful to get my desired track settings dialed in.”-Jonah Wilson
Bluetooth ESC Designed for Ultimate Performance

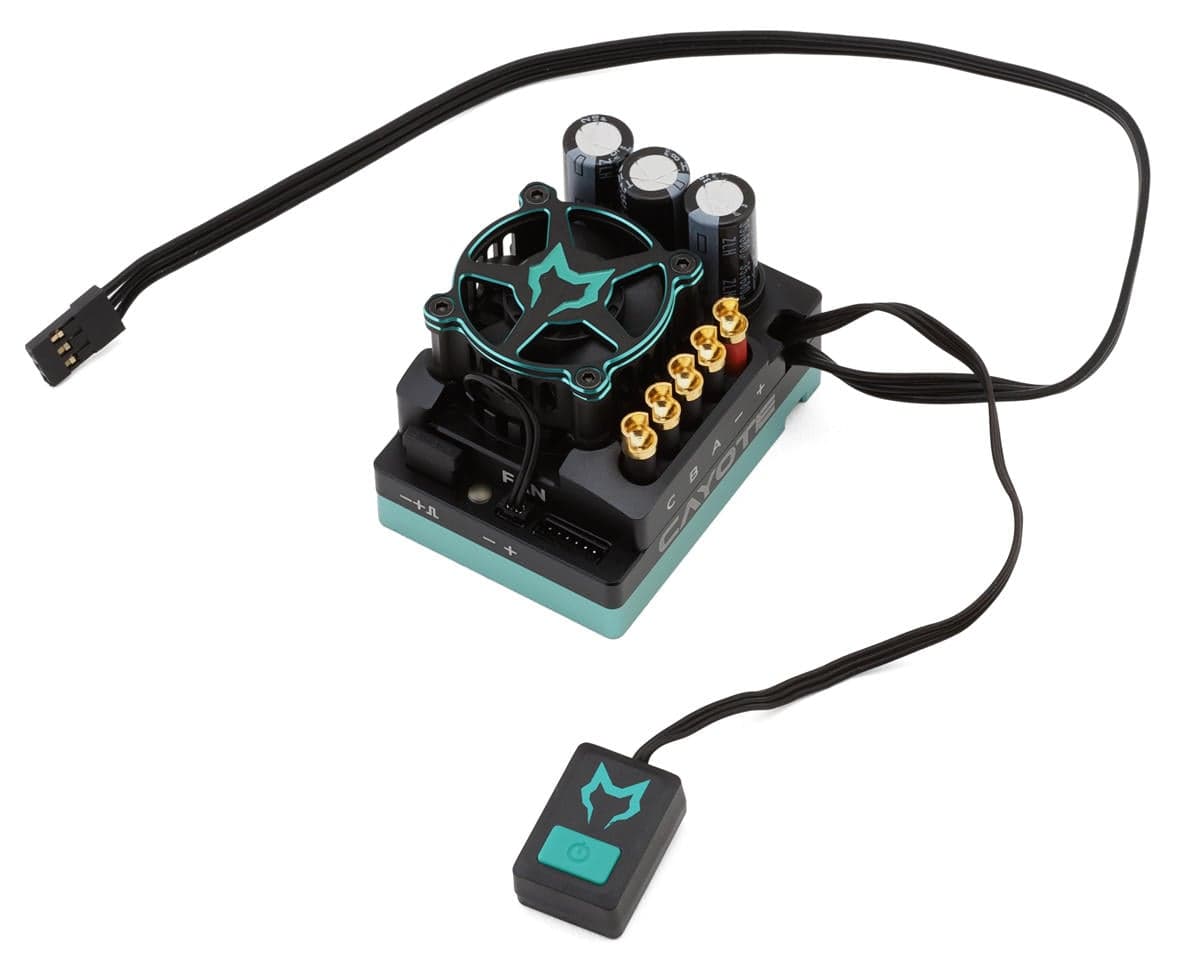

The Cayote Crest 8 1/8 200A Sensored Brushless ESC is engineered for high-performance RC applications, delivering precise power control and reliability. With advanced cooling technology and customizable settings, this ESC adapts to various racing conditions. Additionally, this ESC includes an optional glitch buster to help smooth out voltage fluctuations and interference. Whether you're pushing the limits on the track or tackling challenging terrain, the Crest 8 ESC provides the control and durability needed for intense competition.
About the Crest 8 Brushless ESC
Powerful Boost & Turbo Timing
Featuring a super large 48° boost and turbo timing, the Crest 8 ESC maximizes power output while optimizing motor efficiency. This advanced timing system enhances acceleration and top speed, making it ideal for competitive racing. The fine-tuned performance ensures smoother throttle response and increased stability during high-speed runs.
Bluetooth & Data Monitoring
"With offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, optimizing power output and battery usage. The ESC’s built-in Bluetooth enables seamless wireless monitoring and tuning. Users can review recorded data via the Cayote Team app or the Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)* to fine-tune their setup for consistent and reliable results."
Advanced Protection & Customization
Equipped with over thirty-three adjustable parameters, the Crest 8 ESC offers extensive tuning options to match various racing styles. Multiple protection functions such as low voltage and motor overheat protection safeguard your electronics from damage. The built-in professional reversing shutdown system ensures precise control, making it a reliable choice for demanding racing conditions.
Features:
- Built-in Bluetooth compatibility with the Cayote Team app
- Super large 48° boost and turbo timing
- Offline data recording for performance tracking
- Over thirty-three adjustable parameters
- Built-in super switching mode BEC
- Smooth and stable power delivery
- Professional reversing shutdown system
- Multiple protection functions for long-term reliability
- Advanced cooling system for heat dissipation
- Lightweight and durable construction

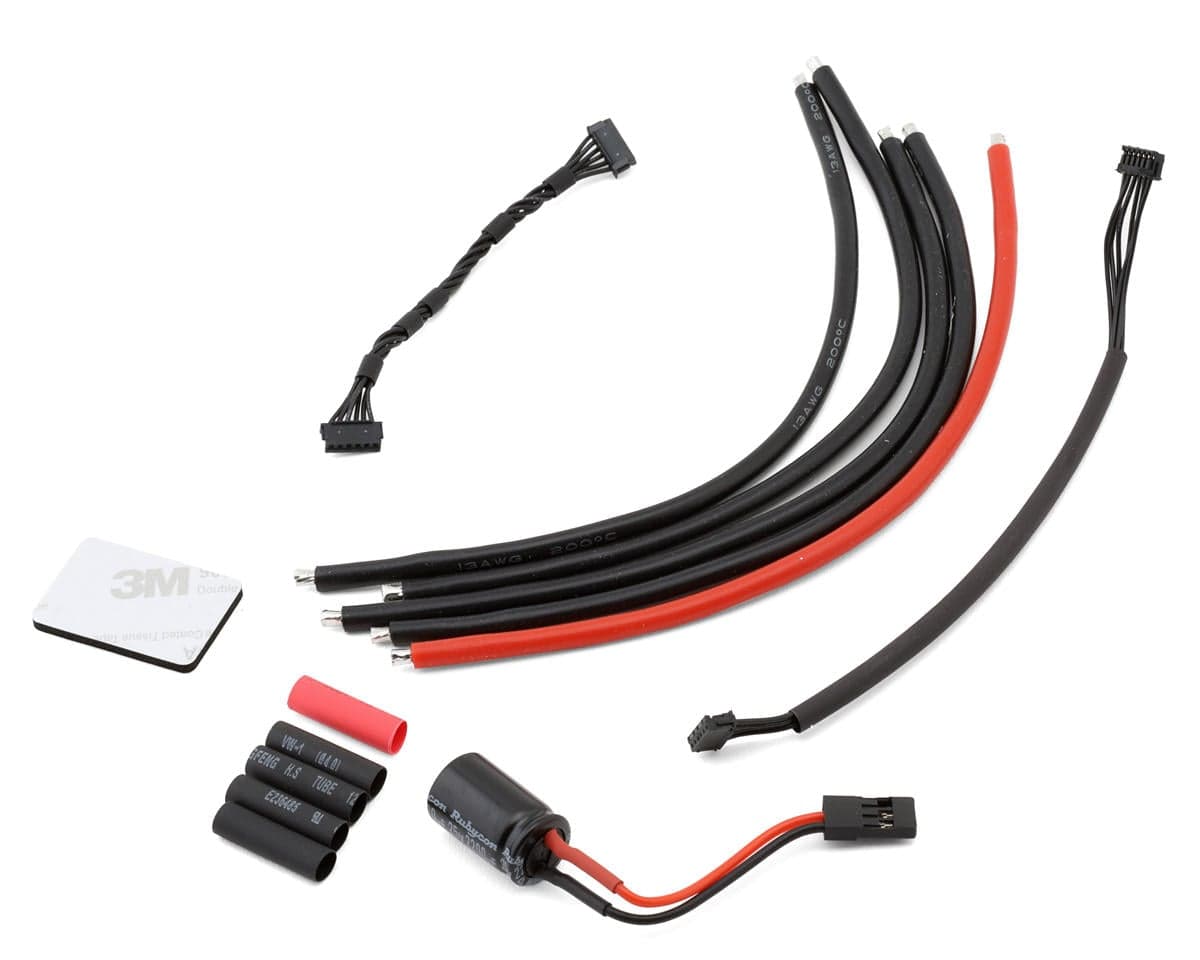

Includes:
- (1) Crest 8 1/8 200A Sensored Brushless ESC
- (1) Glitch Buster
- (1) Sensor Cable
- (3) Black 10AWG Wire Connectors
- (1) Black 13AWG Wire Connector
- (1) Red 13AWG Wire Connector
- (1) Heat Shrink Tube Set
- (1) Double-Sided Mounting Tape
- Instruction Manual
Specifications:
| Suggested Application | 1/8 Buggies, Truggies & Trucks |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | 200A |
| Peak Current | 1080A |
| Dimensions (LxWxH) | 2.24x1.64x1.57in (56.8x41.6x40mm) |
| Weight | 4.3oz (122g) |
| Motor Limits | 4268/4274 3000kV Maximum with 4S Lipo |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 8A |
| BEC Peak Current | 12A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | 10AWG |
| Battery Wire | 13AWG |
| Throttle Wire | - |
| Programmable | Yes, with Cayote Xlink Program Box or Cayote Team App |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read the data.
Manuals:
User Manual
Reviews5.0 · 4 reviews
Has to be the best thought out ESC in terms of fitment into any vehicle. Sensor wire out the top to stay away from shafts is nice. The channel underneath to allow routing the receiver wire to either side is a great idea. And it really just feels like a quality unit. The Bluetooth app is easy enough. Now we just need to see how it holds up long term. Only 1 race on it (truggy).
Got this ESC for this years outdoor season. we are know 3 months in. I am using it in a 1 gen Sparko F8 buggy. At PNB the esc made me a believer of Cayote ESC's even tho it is not the EVO it was easy to set up using the Cayote programmer app in the playstore. got a Few tips from the Cayote team when at PNB. This ESC has definitely picked up my racing level couple notches all on its own. I just got the Cayote Crest 8 EVO for my truggy. I tell everyone that you got to try the Cayote Crest 8 or Crest 8 EVO. ether works great.
If your wanting one of the nicest Esc ever get a Cayote . This thing is a monster and can be tuned for anything .
I have been using the Cayote 1/8 ESC for over 9 months now and have had nothing but a positive experience with the ESC. It is smoother, faster, and runs cooler than other ESCs I have tried previously. The app and built in bluetooth is an awesome feature, I love being able to adjust my ESC parameters on the fly from the drivers stand. I can 100% with confidence recommend the Cayote line of electronics to anyone looking for performance and reliability for their 1/8 or 1/10 scale programs.
All four reviewers rate this 1/8 200A sensored brushless ESC five out of five, and three are verified owners. Reviewers praise its fitment and layout, including the sensor wire exiting at the top and a channel for routing the receiver wire to either side. The built-in Bluetooth app is described as easy to use, and one owner adjusts settings from the driver's stand. Reviewers describe the unit as smooth, cool-running and a noticeable performance upgrade. Two reviews mention use over several months (three and nine months), and one reviewer mentions a truggy and another a 1st-generation Sparko F8 buggy. One review also mentions the EVO variant, which is not the product reviewed. Durability is not yet confirmed by the single-race owner. No recurring problems are reported.
- + Sensor wire exits at top
- + Receiver wire routing channel
- + Easy Bluetooth app setup
- + Runs cool and smooth
- − Long-term durability not yet confirmed
- − Limited sample of reviews
