About this part
Bluetooth ESC Designed for Ultimate Performance

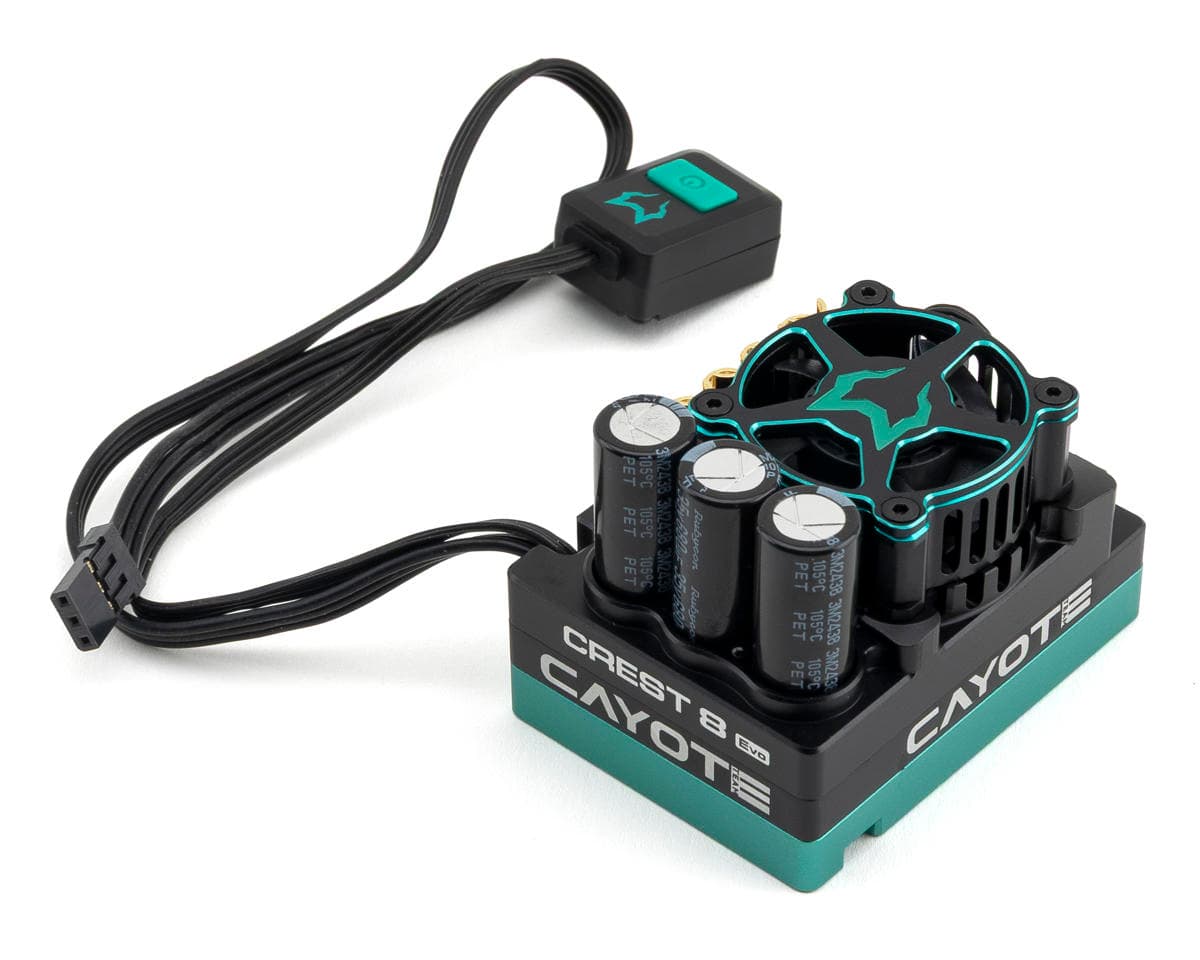

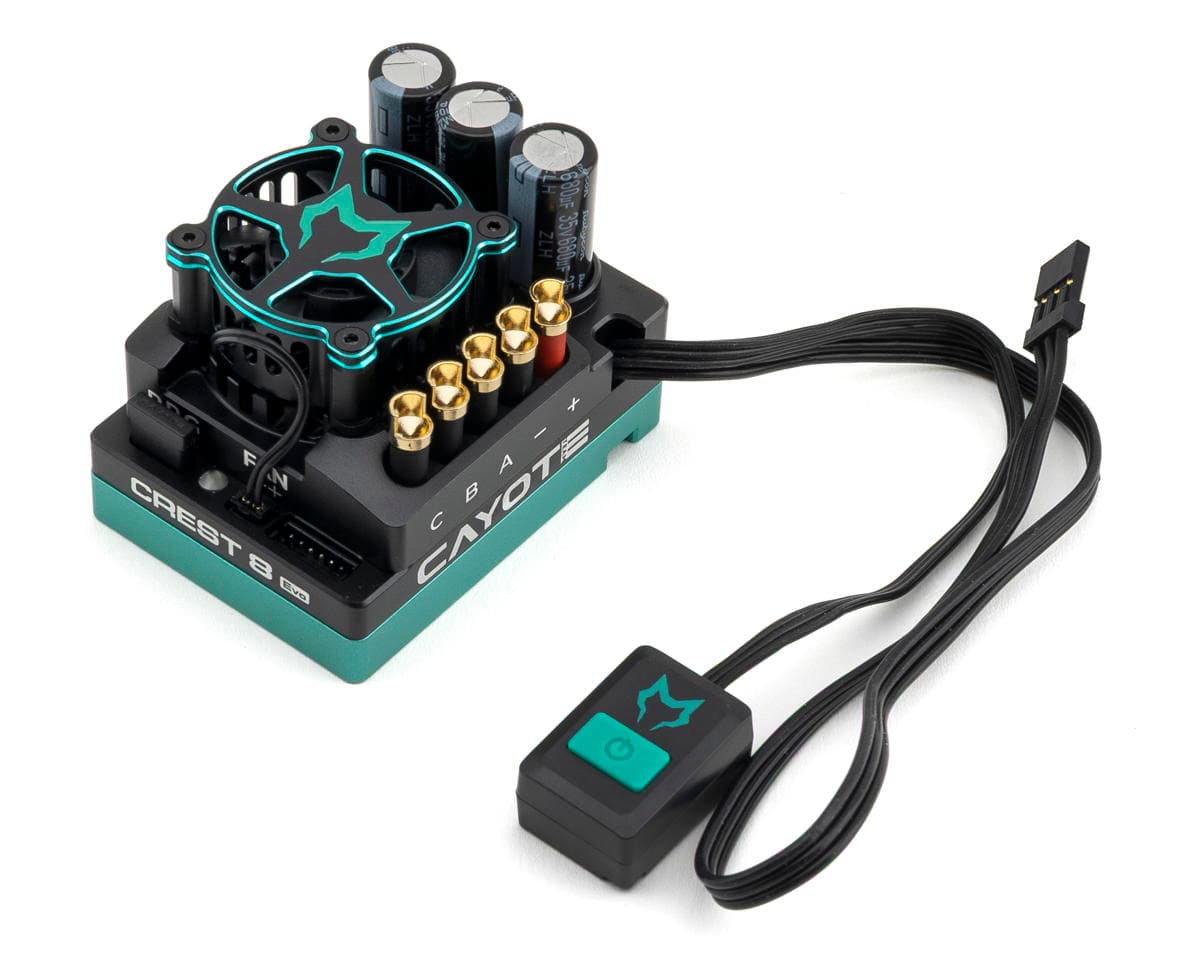

The Cayote Crest 8 Evo 1/8 200A Sensored Brushless ESC is engineered for high-performance RC applications, delivering precise power control, reliability, and up to 10% more peak power for an extra edge on the track. Built with reverse polarity protection, it safeguards your system from wiring errors while maintaining consistent performance. With advanced cooling technology, customizable settings, and an included glitch buster to smooth out voltage fluctuations, the Crest 8 Evo adapts seamlessly to any racing condition. Whether you're chasing podium finishes or pushing through rugged terrain, this ESC provides the control, protection, and durability demanded by serious competitors.
About the Crest 8 Evo Brushless ESC
Powerful Boost & Turbo Timing
Featuring a super large 48° boost and turbo timing, the Crest 8 Evo ESC maximizes power output while optimizing motor efficiency. This advanced timing system enhances acceleration and top speed, making it ideal for competitive racing. The fine-tuned performance ensures smoother throttle response and increased stability during high-speed runs.
Bluetooth & Data Monitoring
"With offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, optimizing power output and battery usage. The ESC's built-in Bluetooth enables seamless wireless monitoring and tuning. Users can review recorded data via the Cayote Team app or the Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)* to fine-tune their setup for consistent and reliable results."
Reverse Polarity Protection & Full Parameter Tuning
Equipped with over thirty-seven adjustable parameters, the Crest 8 Evo ESC offers extensive tuning options to match various racing styles. Multiple protection functions, such as low voltage and motor overheat protection safeguards your electronics from damage. The built-in Reverse polarity protection system ensures you don't pop it before the first race, making it a reliable choice for stressful racing conditions.
Features:
- Built-in Bluetooth compatibility with the Cayote Team app
- 10% More Peak Power!
- Offline data recording for performance tracking
- Reverse polarity protection
- High-performance ARM architecture - 32-bit industrial- grade Cortex-M4 core
- up to 108 MHz clock speed - 5x computing power improvement
- 1-20 Adjustable drag break
- Multiple protection functions for long-term reliability
- Optional RPM limiting 10-88K RPM
- Throttle Midpoint: 4%, 6%, 8%, or 10%

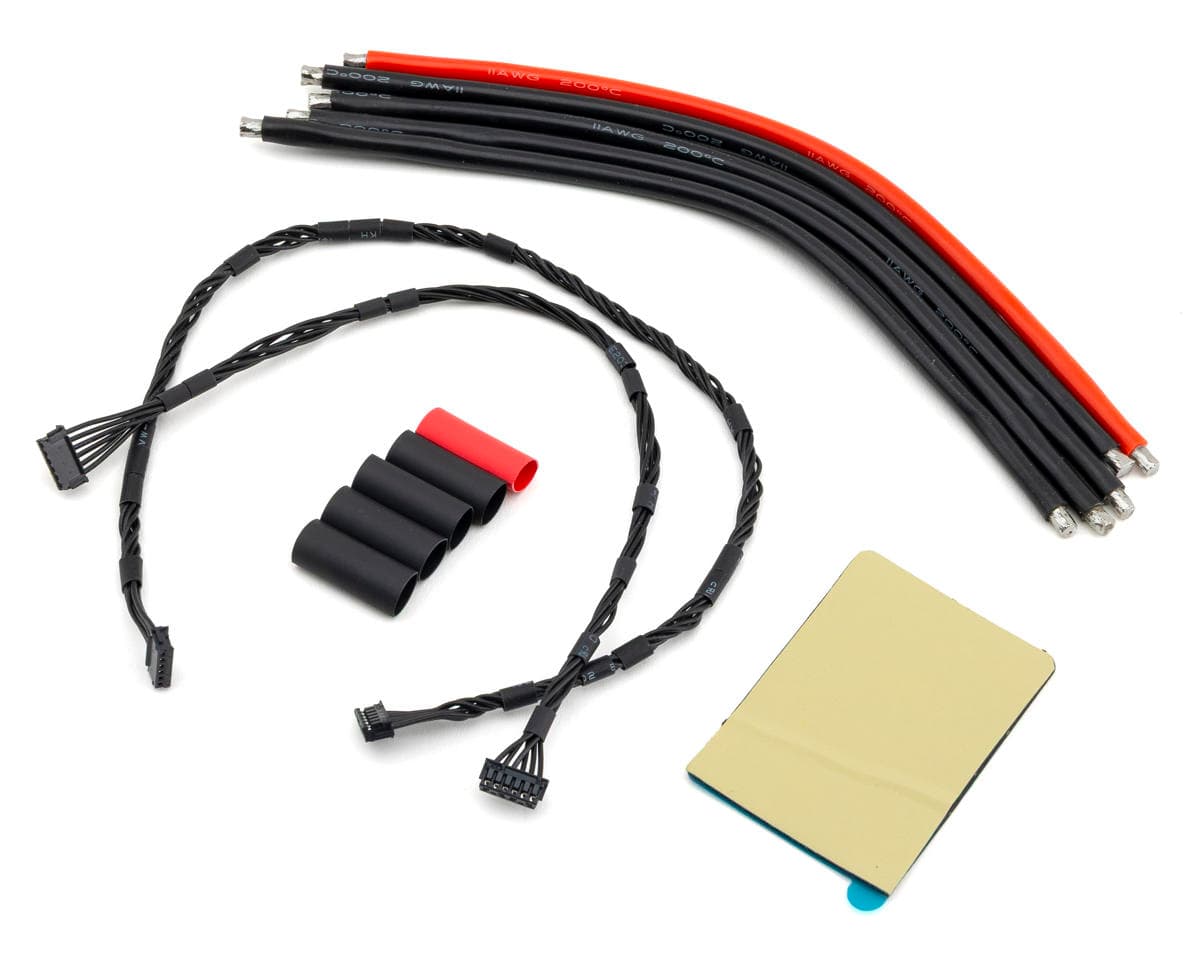

Includes:
- (1) Crest 8 Evo 1/8 200A Sensored Brushless ESC
- (1) Sensor Cable
- (3) Black 10AWG Wire Connectors
- (1) Black 13AWG Wire Connector
- (1) Red 13AWG Wire Connector
- (1) Heat Shrink Tube Set
- (1) Double-Sided Mounting Tape
- Instruction Manual
Specifications:
| Suggested Application | 1/8 Buggies, Truggies & Trucks |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | 200A |
| Peak Current | 1080A |
| Dimensions (LxWxH) | 2.24x1.64x1.57in (56.8x41.6x40mm) |
| Weight | 4.3oz (122g) |
| Motor Limits | 4268/4274 3000kV Maximum with 4S Lipo |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 8A |
| BEC Peak Current | 12A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | 10AWG |
| Battery Wire | 13AWG |
| Throttle Wire | - |
| Programmable | Yes, with Cayote Xlink Program Box or Cayote Team App |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read the data.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.5 · 11 reviews
Great ESC includes sensor wires and really cool don't need a program box it automatically links up to phone app.
Couldn’t be happier with this ESC. Plenty of tuning options with it and plenty powerful. Came with everything I needed to install. Fast shipping and a great price. Can’t complain one bit.
I have had this ESC for less than a year, and it has already failed. I may have taken the car to the track 10 times and it had been cutting out randomly on the last couple times. Now it wont even power on. The bluetooth connection is not great and most times it won't even connect.
Throttle feels good. Tuning from the phone is very nice, but it does have a tendency to kind of bog out in certain spots. Particularly when I between rolling jumps where I’ve got a lot of traction and I’m heavy on throttle. I run low gearing on a low KV motor, but this esc kinda freaks out when I do that sometimes. Otherwise, very nice set up
Great product. Warranty is outstanding. Recommend A++
Reviewers largely praise this 200A sensored brushless ESC for strong power delivery, smooth throttle and braking, and easy tuning through the Bluetooth phone app, with no program box needed. Several note it works well in truggy and buggy builds and runs cooler than some alternatives. Recurring criticism centres on a single report of failure within a year, with the unit cutting out before failing to power on, and on Bluetooth connectivity that was unreliable for that owner. Another reviewer reported bogging or cutting out on throttle when running low gearing with a low-KV motor. Warranty and service were praised. Overall sentiment is strongly positive, but the sample is small and the reliability concerns come from one reviewer.
- + Strong, linear power delivery
- + Smooth throttle and braking
- + Easy tuning via phone app
- + Good warranty and service
- − Single reported failure within a year
- − Unreliable Bluetooth connection for one owner
- − Bogs or cuts out with low gearing and low-KV motor
