About this part
Lightweight ESC with Advanced Cooling Power

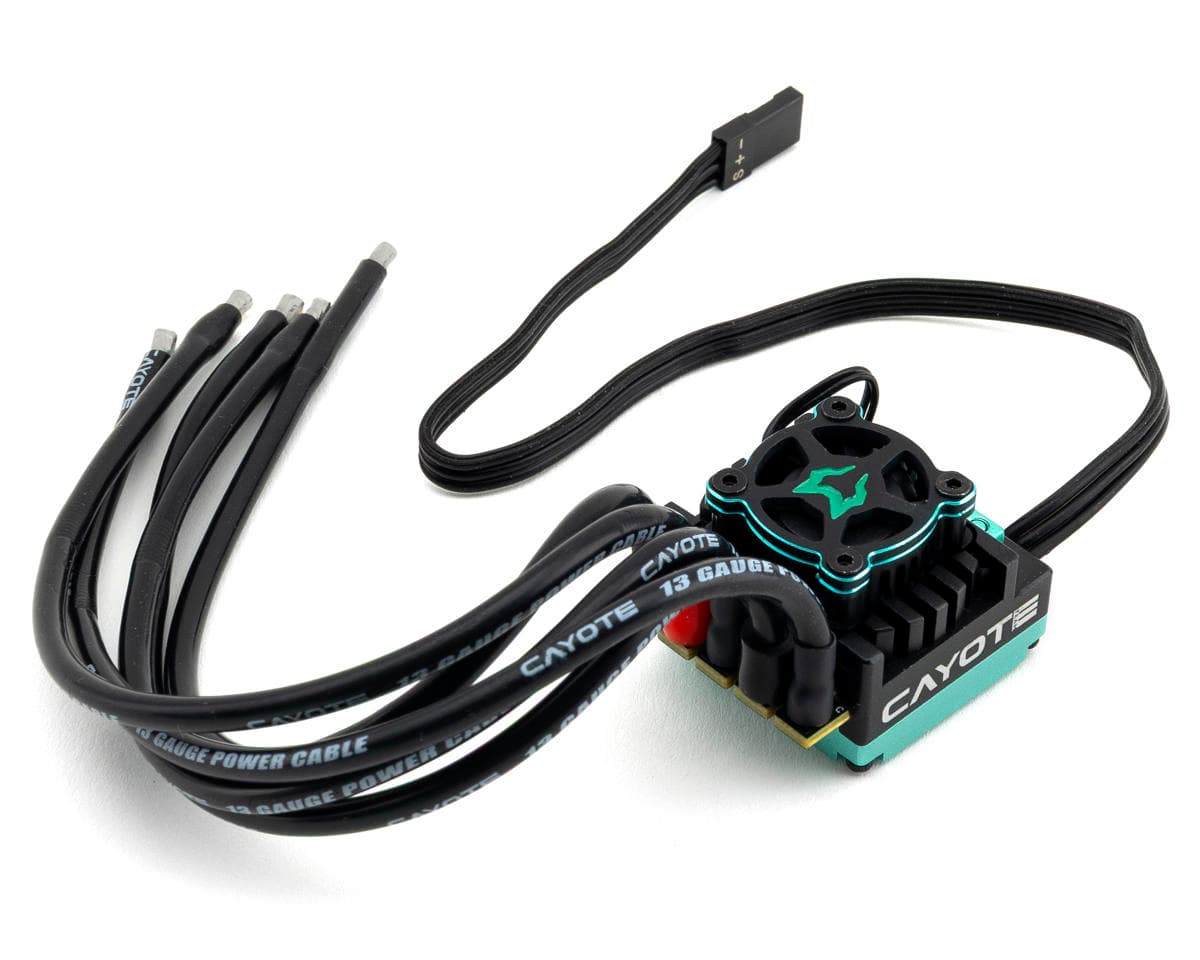

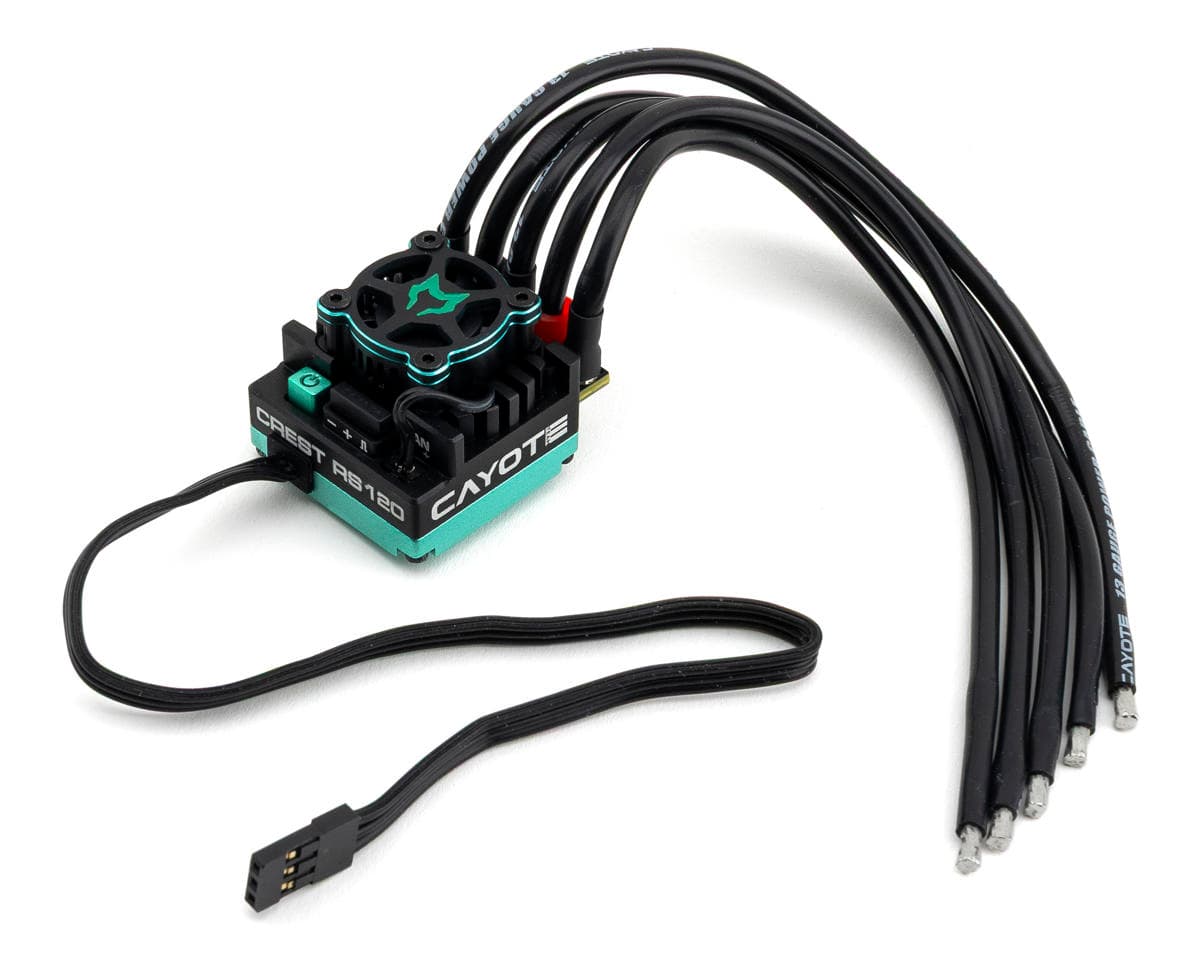

The Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC is engineered for serious RC racers seeking peak performance in a lightweight, compact package. Weighing just thirty-six grams, this ESC combines smart design with powerful output, making it ideal for competitive 1/10 drifting or professional stock class racing. Tailored presets for various race types simplify setup, while advanced cooling technology ensures efficiency and durability. Whether you're navigating off-road challenges or racing on smooth tarmac, the Crest RS120 delivers consistent, high-performance control.
About the Crest RS120 Brushless ESC
Optimized Performance Across Race Modes
The Crest RS120 features three distinct race presets: Stock Racing Blinky Mode for compliance with no-advance timing rules, a 1/10 Off-Road Mode for truck and bumpy terrain applications, and a 1/10 On-Road Mode for high-speed asphalt action. Each mode is pre-calibrated to deliver tailored power curves, enhancing drivability and control. These profiles remove the guesswork and let racers focus on performance.
Advanced Cooling & Technology
Utilizing innovative ultra-thin, windowed cooling N-MOS technology, the Crest RS120 integrates its chip core directly with the metal housing. This engineering feat reduces thermal resistance by 35%, resulting in improved heat dissipation and maintaining 98% energy efficiency. The compact design eliminates bulky heat sinks, allowing for a slimmer ESC that runs cooler and lasts longer, even under demanding race conditions.
Precision Tuning & Data Feedback
With built-in features like adjustable RPM limiting, offline data recording, and independent drag brake and brake frequency control, the Crest RS120 is all about customization. Users can fine-tune their setups in 0.5K increments and analyze performance data via the Cayote BTune ESC Bluetooth Module (CYECBM01 - sold separately) or Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) with the Cayote APP. This level of precision ensures better handling and strategic insight for competitive drivers.
Features:
- Stock Racing Blinky Mode
- 1/10 Off-Road and On-Road Race Presets
- ROAR approved for compliance with sanctioned racing standards
- Ultra-lightweight at 36 grams
- Cooling N-MOS technology with 35% reduced thermal resistance
- 98% energy efficiency
- Adjustable RPM limit
- Offline data recording for performance analysis
- Independent drag brake and brake frequency control
- High-performance CNC alloy fan system
Includes:
- (1) Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC
- Instruction Manual
Specifications:
| Suggested Application | 1/10 Touring Car, Buggy, Drift, Stock Class Racing |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 120A |
| Peak Current | 600A |
| Dimensions (LxWxH) | 1.39x1.20x0.96in (35.3x30.5x24.5mm) |
| Weight | 1.27oz (36g) |
| Motor Limits: | |
| 540/3650 | >10.5T |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 5A |
| BEC Peak Current | 8A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | - |
| Battery Wire | - |
| Throttle Wire | - |
| ROAR Approved | Yes |
| Programmable | Yes, with Cayote Xlink Program Box* |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
Manuals:
User Manual
Reviews5.0 · 4 reviews
Most excellent ESC, very straight forward programing.
The best multi setup I've used ever. Old school racer here. Going to win this one.
The best esc on the market hands down! I ordered 3 of them!
These are great esc’s and work great I will keep buying there stuff
All four reviews are five-star ratings from verified owners of the Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC. Reviewers describe the unit as easy to program and say it performs well, with one calling it the best ESC they have used and another planning to buy more. The reviews are brief and general, with no reported defects or disagreements, and none describe specific performance measurements or long-term durability.
- + Straightforward programming
- + Performs well
- + Praised as a top ESC by reviewers
