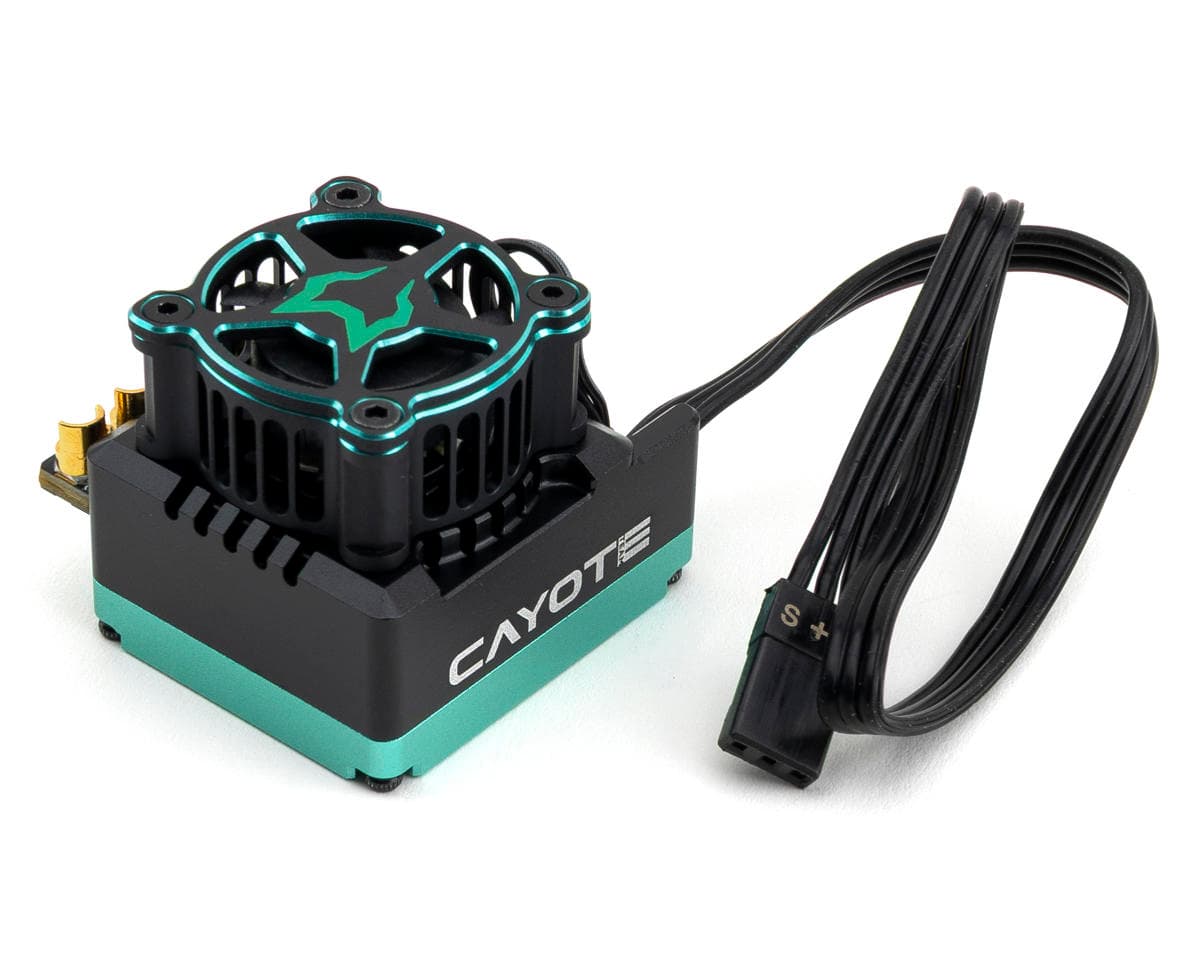

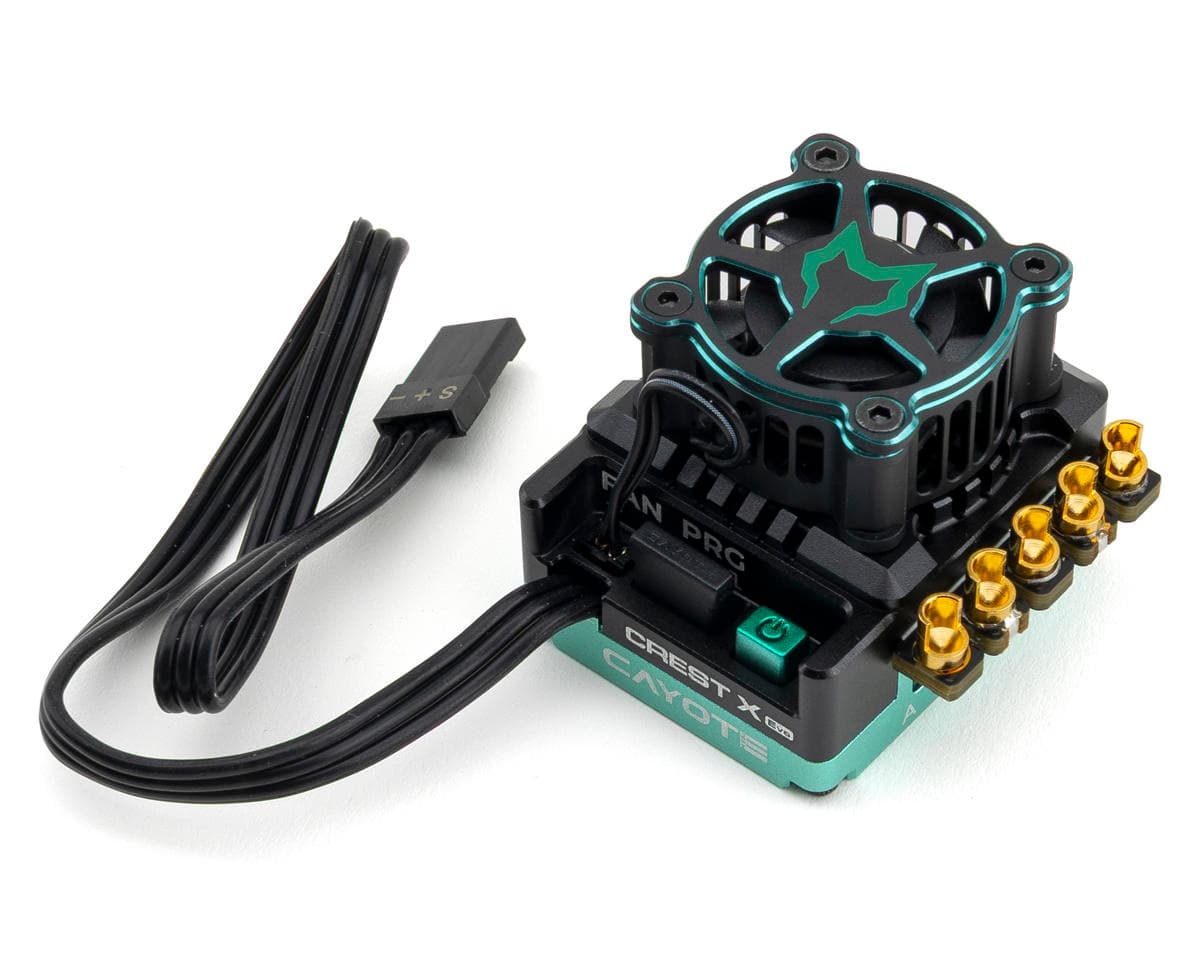

High-Performance Crest X Evo ESC
The Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC is the next evolution in Cayote’s proven racing technology. Built with direct input from top professional drivers and extensively tested under the most demanding racing conditions, the Crest X Evo is designed to push competitive performance to the next level. With enhanced processing power, advanced cooling, and expanded customization options, this ESC delivers unmatched control and efficiency. Whether you’re chasing podiums or looking to fine-tune every detail of your setup, the Crest X Evo provides the precision and reliability needed to dominate the track.
About the Crest X Evo ESC
Seamless Power and Flexibility
The Crest X Evo features intelligent sensored/sensorless mode switching, giving racers the ability to adapt to varying conditions with smooth, uninterrupted transitions. In sensored mode, precise rotor detection ensures ultra-smooth handling, while sensorless mode offers simplified, efficient operation. Combined with up to 64° of Boost and Turbo timing, the Evo delivers explosive acceleration and finely tuned throttle control for every launch and corner exit.
Advanced Cooling and Processing Power
Engineered for consistent performance, the Crest X Evo is equipped with a four-vent metal-framed cooling fan that maximizes airflow and keeps internal components clean and stable. At its core is a 32-bit Cortex-M4 processor running at 108MHz—five times faster than the original Crest X—enabling rapid calculations, superior braking precision, and stronger response under high-demand conditions. This ensures reliable operation and unmatched performance, even during intense competition.
Customization and Safety Features
Racers can personalize their performance with adjustable throttle and brake PWM frequency settings, accessible via the Xlink program box or wirelessly through the BTUNE app. Safety is prioritized with a full suite of protection systems, including over-temperature, low voltage, stall, fail-safe, and reverse polarity protection. Together, these features ensure the Crest X Evo not only delivers top-tier performance but also maintains long-term durability and reliability.
Features:
- 160A continuous / 1100A peak current handling
- Seamless sensored/sensorless mode switching
- Up to 64° Boost and Turbo timing
- High-performance 32-bit Cortex-M4 processor at 108MHz
- Metal-framed cooling fan with four-vent design
- Adjustable throttle and brake PWM frequencies
- Wireless tuning and data logging with BTUNE app
- Multiple protection systems for safety and reliability
- ROAR approved for compliance with sanctioned racing standards
- Designed for 1/10 scale buggies and touring cars

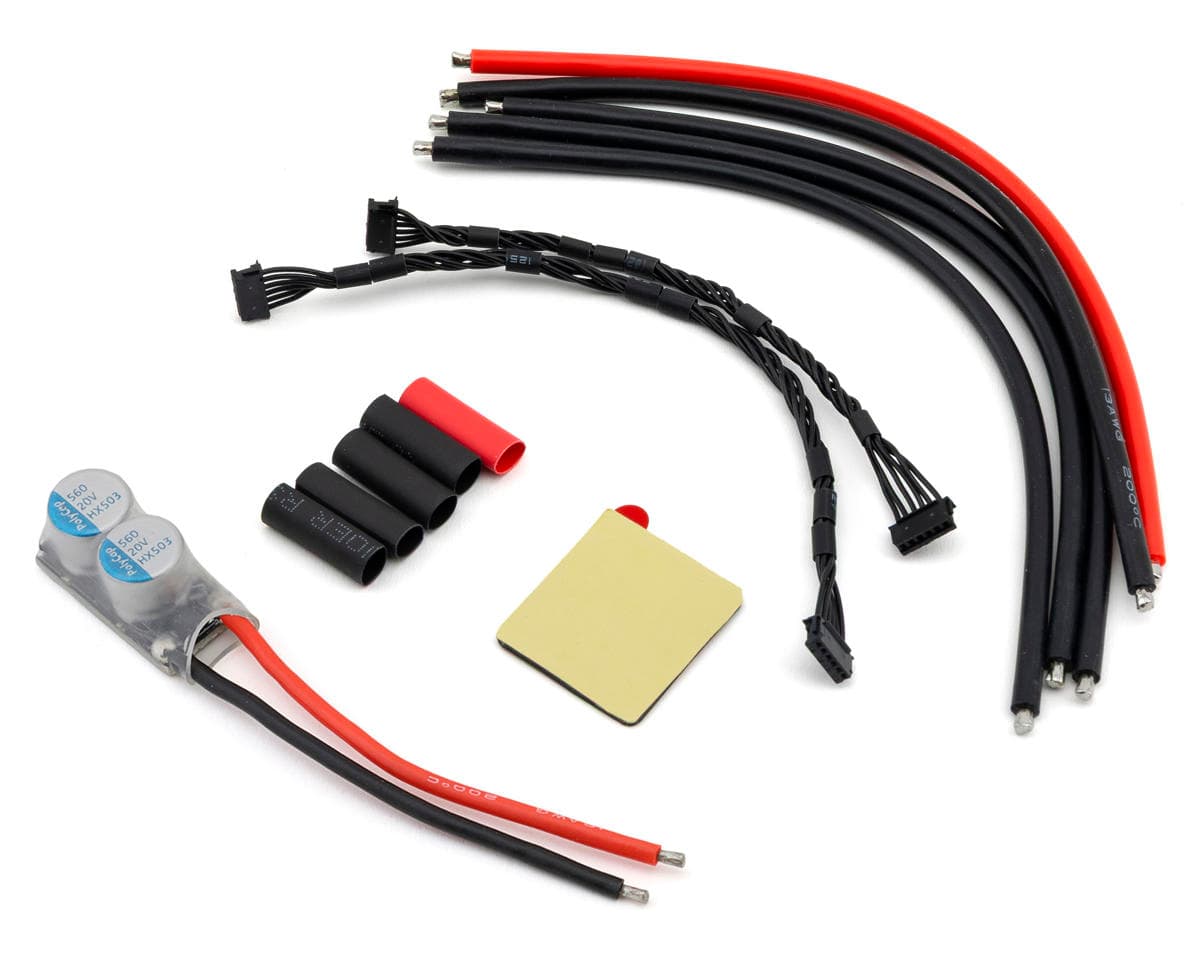

Includes:
- (1) Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC
- (1) Manual
Specifications:
| Suggested Application | 1/10 |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 160A |
| Peak Current | 1100A |
| Dimensions (LxWxH) | 1.49x1.49x1.18in (37.9x37.8x30mm) |
| Weight | 1.94oz (55g) |
| Motor Limits | - |
| BEC Voltage | 6V/7.4V |
| BEC Continuous Current | 8A |
| ROAR Approved | Yes |
| Programmable | Yes/BTUNE Wireless App |
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.6 · 5 reviews
Very smooth and powerful in my 6.5T 2wd buggy mod car. I am kinda disappointed with how reverse will sometimes engage when braking and modulating the brakes. I like to have reverse enabled for when I am practicing. Unfortunately, this issue has caused me to not be able to use reverse entirely. I am hoping they release a firmware update that fixes this. None of my Hobbywing or Tekin ESCs have this behavior.
best ESC on the market for 1/10 offroad carpet, dirt and dirt oval racing
Wow, this product is of exceptional quality! I will never switch brands again.
my favorite esc so far. you really feel the adjustments. fantastic
Smooth throttle, looks great in the car, plenty of power with a 10.5t motor, good temps so far, fan is nice and quiet too! Side note, it is not programmable without ordering a Bluetooth programmer or wired x link. Only mentioning because I assumed it was built in Bluetooth like the 1/8.
Reviewers broadly praise the Cayote Crest X Evo 160A ESC for smooth throttle response, strong power in mod-class buggy and oval applications, and good temperature behaviour, with one reviewer noting a quiet fan. Ratings are mostly 5/5, with one 3/5 review. The main recurring complaint concerns programming: one reviewer notes the unit is not programmable without purchasing a Bluetooth programmer or wired link, which they had not expected. The lower-rated review reports reverse engaging unintentionally during braking and modulation, leaving the reviewer unable to use reverse; they note they have not seen this on other brands and hope a firmware update resolves it. Only one review addresses that issue, so it is not confirmed as widespread. Several reviews are brief and general in wording.
- + Smooth throttle response
- + Strong power with mod motors
- + Good temperatures reported
- + Quiet fan
- − Programming requires an additional Bluetooth or wired programmer
- − Reverse can engage unintentionally during braking (one report)
