About this part
High-Performance Crawler ESC with Advanced Features

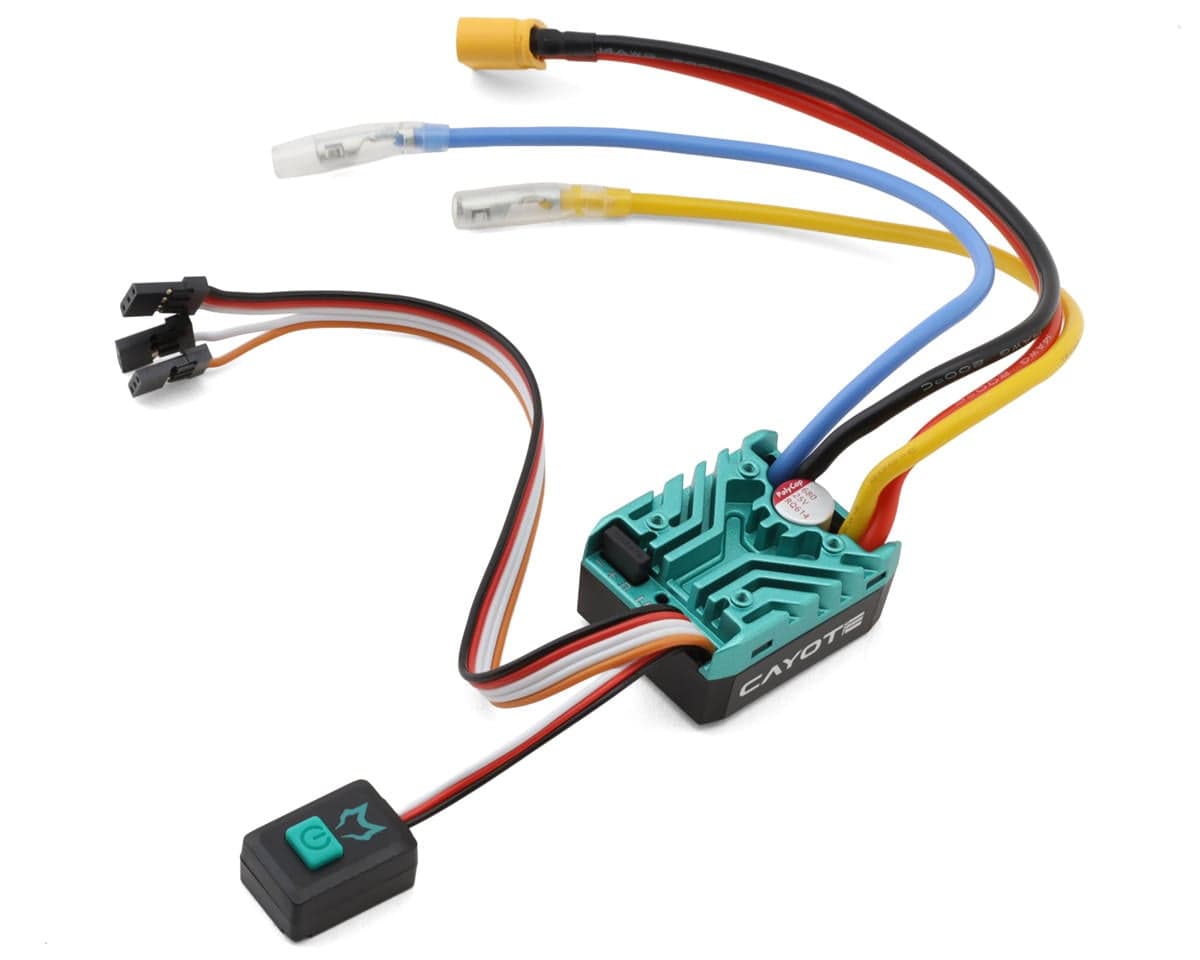

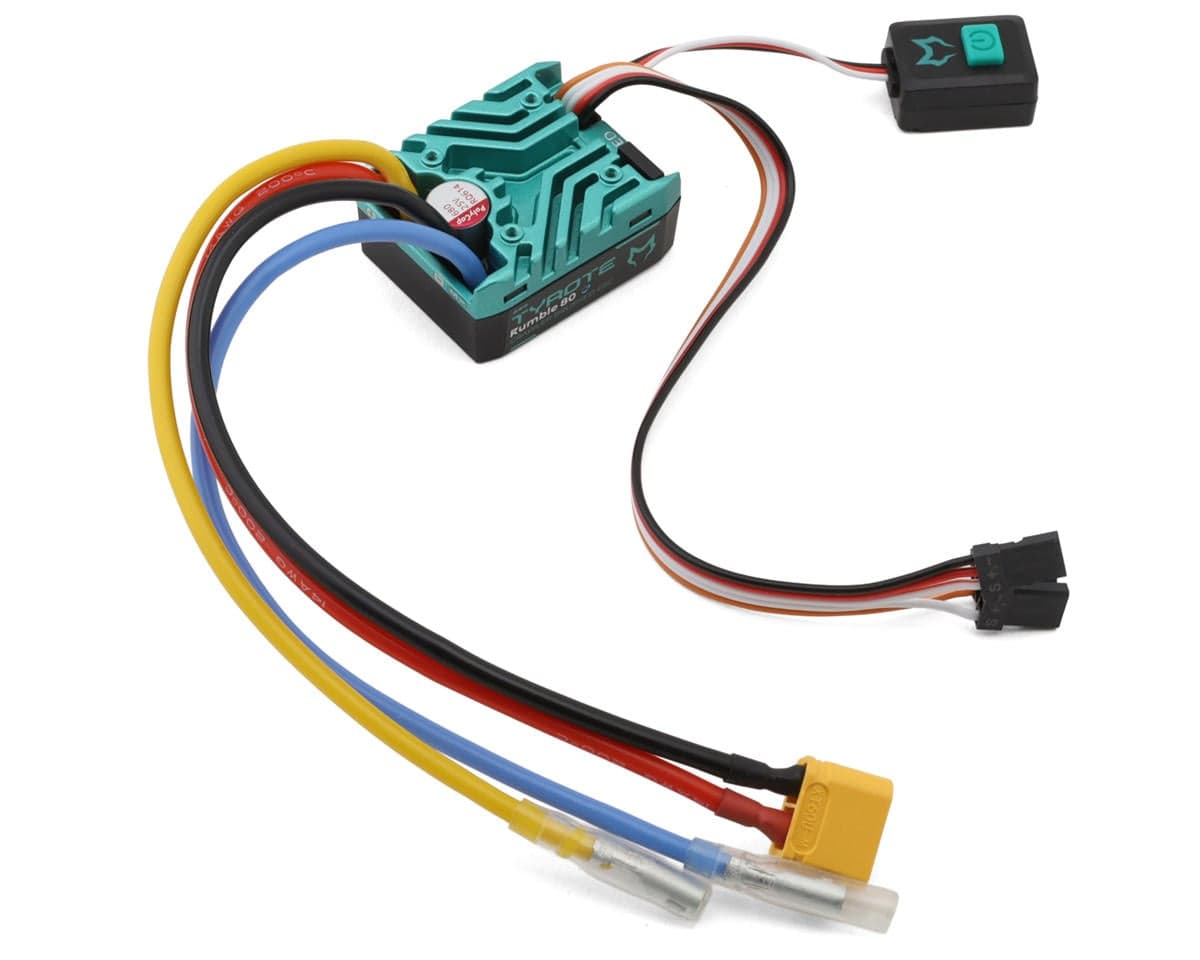

The Cayote Tyrote Rumble 80 1/10 Brushed Rock Crawler ESC is designed for drivers who want flexible control and adaptable performance on varied terrain. Its four driving modes let you tailor how the crawler responds, whether you are navigating tight turns, climbing uneven ground, or recovering from tricky situations. With adjustable drag brake force, selectable BEC voltage, and a wide range of programmable parameters, it supports fine-tuning for different setups and driving styles. A sealed IP67 design and multiple protection functions make it a dependable choice for outdoor crawling.
About the Tyrote Rumble 80
Four Driving Modes
The Rumble 80 provides four distinct driving modes that let you choose how the crawler behaves in different situations. Forward with brake, forward/reverse with brake, direct forward and reverse, and real car mode each offer a different feel, giving you more control over how the vehicle responds. Real car mode uses an AUX channel to switch direction, allowing you to pull the trigger to accelerate and push it to brake regardless of direction, creating a more intuitive driving experience.
Programmable Control Options
With sixteen programmable parameters, the ESC allows detailed tuning of throttle, braking, and power delivery. Qlink and Xlink support make it easy to adjust settings to match terrain or personal preference. Drag brake force can be changed directly from the transmitter, letting you adapt to slopes or obstacles without stopping to reprogram the ESC.
Power & Protection
Selectable BEC voltage options give you flexibility when choosing servos or onboard electronics, supporting 6V, 7.4V, and 8.4V setups. The IP67 sealed design protects the ESC from water and dust, making it suitable for outdoor crawling. Built-in protection functions include low-voltage, over-voltage, overheat, and throttle signal loss protection, and a fan mounting point is available for additional cooling during long climbs.
Features:
- Four selectable driving modes
- Real car mode with AUX direction switching
- Adjustable drag brake force from transmitter
- Sixteen programmable parameters
- Selectable BEC voltage options
- IP67 sealed protection design
- Built-in voltage and heat protection
- Motor polarity swap through settings
- Supports Qlink and Xlink tuning
- Fan mounting point for added cooling
Includes:
- (1) Tyrote Rumble 80 1/10 Brushed Rock Crawler ESC w/XT60 Connector
Specifications:
| Suggested Application | 1/10 Rock Crawlers |
|---|---|
| Type | Brushed |
| Input Voltage | 2-3S LiPo (7.4-11.1V) |
| Continuous Current | 80A |
| Peak Current | 400A |
| Dimensions | 1.64x1.31x0.8in (41.6x33.4x20.2mm) |
| Weight | 2.73oz (77.5g) |
| BEC Voltage (Selectable) | 6/7.4/8.4V |
| BEC Continuous Current | 4A |
| BEC Peak Current | 8A |
| Motor Connector | Bullets |
| Battery Connector | XT60 |
*Tech Note: The IP67 protection rating was verified under controlled laboratory conditions according to GB/T 4208-2017 (China) and IEC 60529 (International) standards. Protection performance may decrease over time due to wear, impact, or aging. Product is not designed for prolonged submersion.
