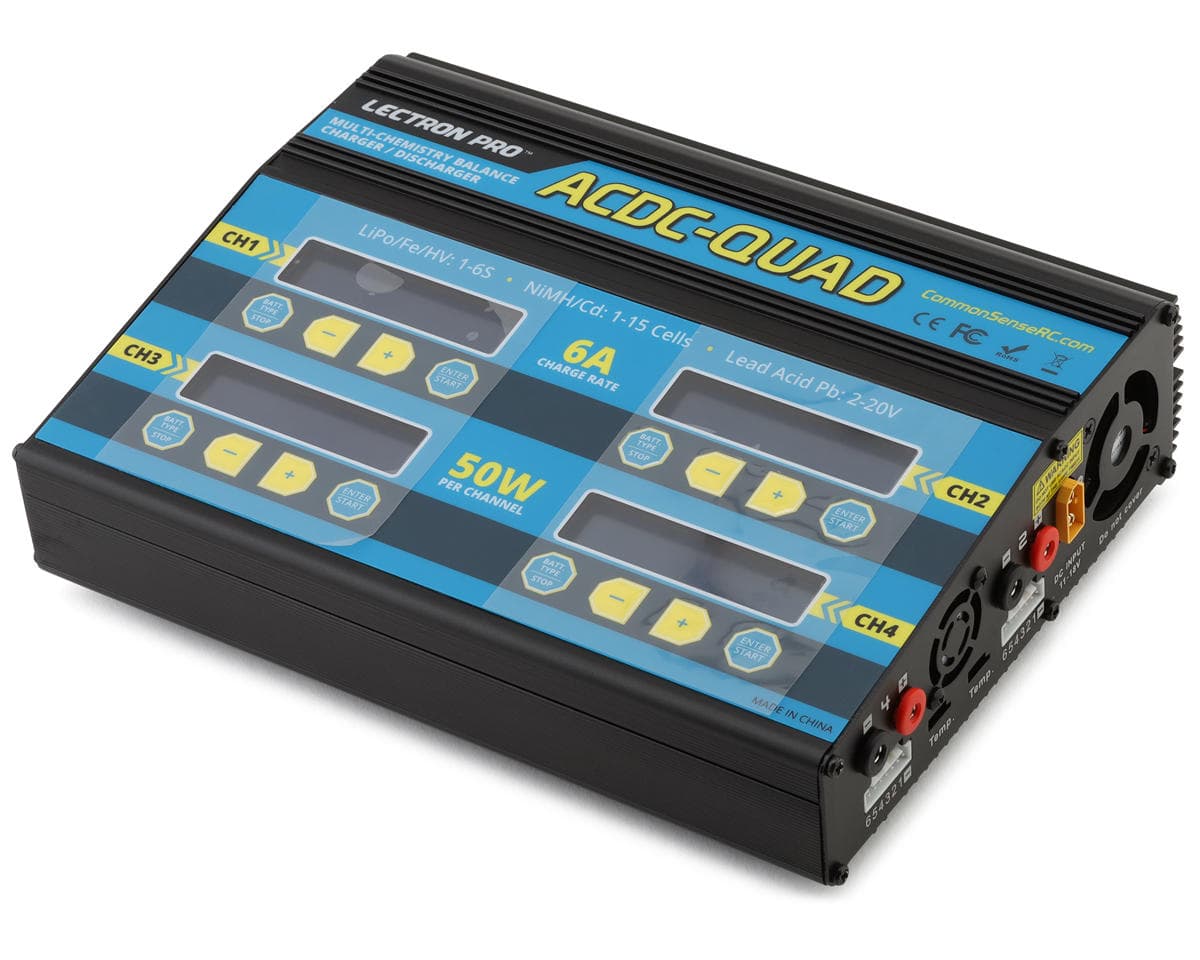

Common Sense RC ACDC-QUAD 4-Port Multi-Chemistry Charger (6S/5A/50W)

Quad Charger Overview

Charge four batteries simultaneously and get back to action in no time with the ACDC-QUAD charger. Featuring four independent 50 watt charge ports, this powerful device handles up to 15 NiCad/NiMH cells or 6S Lithium batteries, including LiPo, LiFe, and LiHV. With a maximum charge rate of 6 amps per channel, it's designed to deliver efficient and speedy charging. The ACDC-QUAD also incorporates balancing circuits for lithium batteries, ensuring optimal performance.

Features:

• Quad charging ports for efficient multitasking
• Multi-chemistry support for various battery types
• Built-in balancing circuits for lithium batteries
• Handles up to fifteen NiCad/NiMH cells
• Supports up to six lithium batteries, including LiPo, LiFe, and LiHV
• Maximum charge rate of six amps per channel
• Four independent fifty-watt charge ports
• Designed for efficient and speedy charging

Specifications:

• Input Voltage: DC 11-18.0V, AC 100-240V
• Charging Circuit Power (Per Channel): 50 watts max
• Total Charging Circuit Power: 200W
• Lithium Cells: 1S-6S
• NiMH/NiCad: 1-15 cells
• Pb Battery Voltage: 2-20V
• Charge Rate (Per Channel): 0.1A to 5.0A
• Discharge Power (Per Channel): 5 watts max
• Total Discharge Power: 20W
• Discharge Rate (Per Channel): 0.1 to 2.0A
• Balance Current: 400mAh/cell
• Dimensions (LxWxH): 9x6.7x2.5" (229x170.2x63.5mm)
• Weight: 3.3lbs

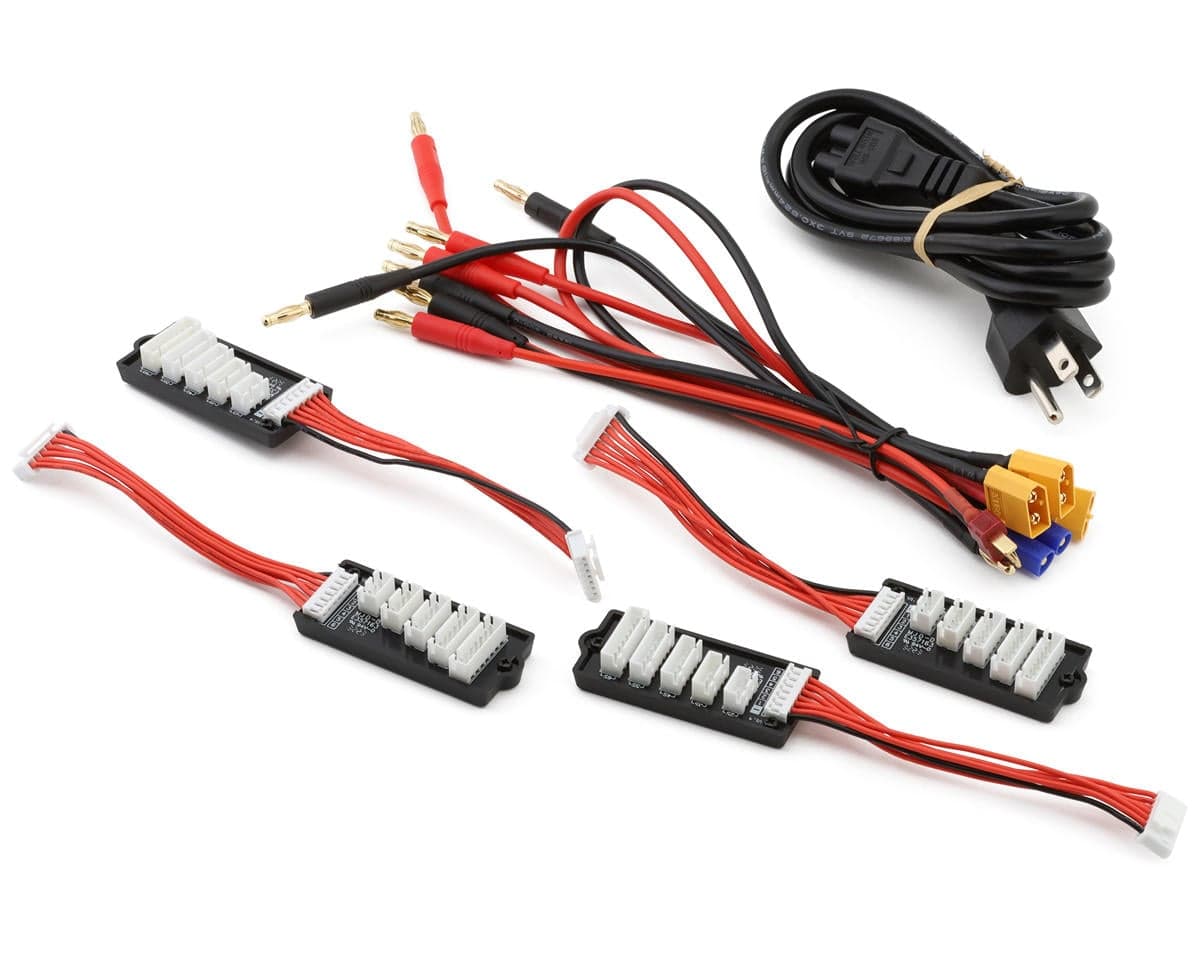

Includes:

• (1) ACDC-QUAD 4-Port Multi-Chemistry Charger
• (4) Balancing Boards with 2S-6S JST-XH Connectors
• (1) EC3 Charging Cable
• (1) Deans-Type Charging Cable
• (1) XT60 Charging Cable
