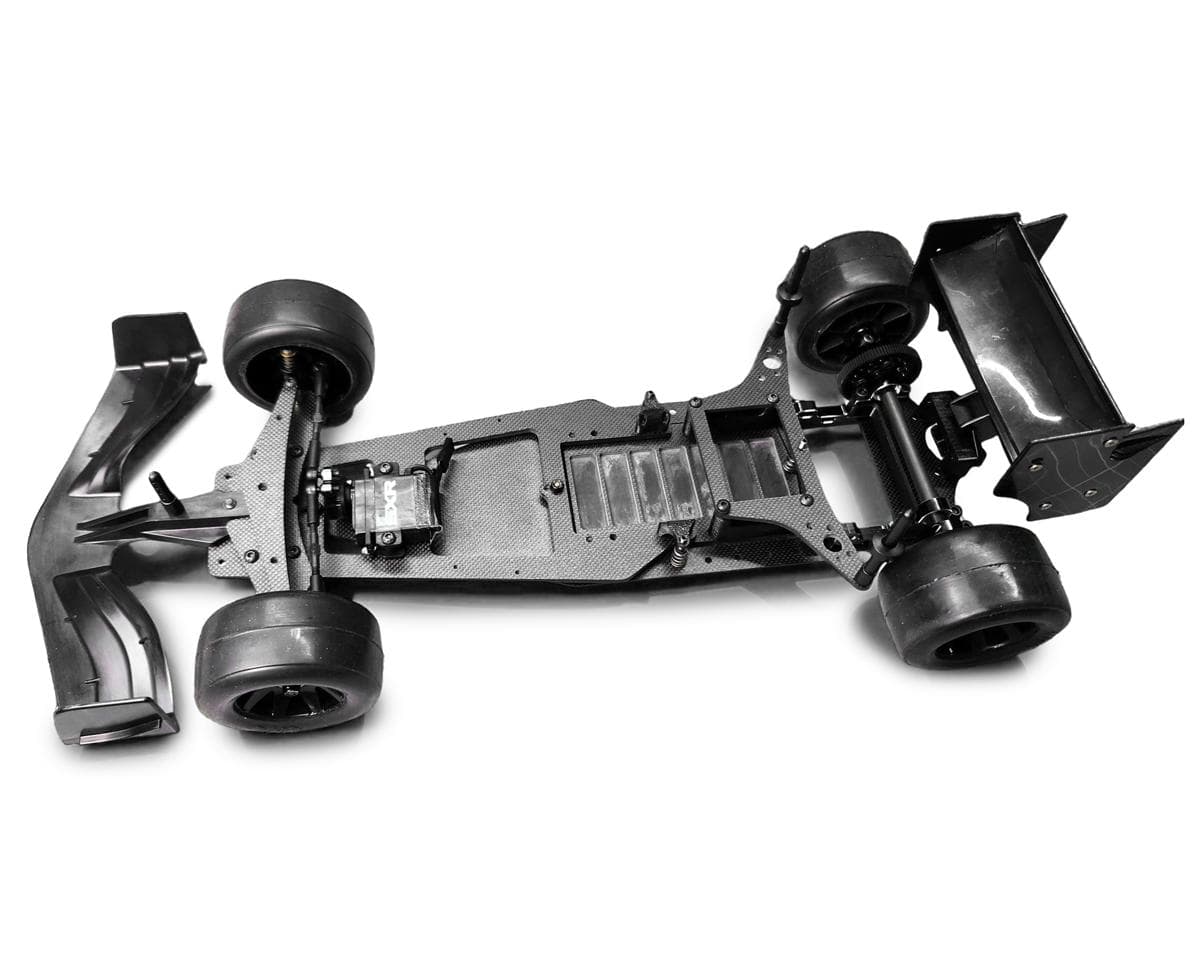

CRC F-Won 1/10 2WD On-Road Racing Competition F1 Chassis Kit
About this part
Proven Formula 1 On-Road Racing Chassis
Engineered for precision, speed, and simplicity, the CRC F-Won 1/10 Formula 1 chassis redefines performance with an ultra-low center of gravity, innovative Ultra-Tune suspension, and a lightweight, narrow design built to dominate corners and deliver championship-winning consistency.
About the F-Won F1 Kit
Precision Suspension Control
The CRC F-Won features the innovative Ultra-Tune front suspension with caster/camber plates for quick, precise alignment changes that stay consistent after crashes. Durable 1/8 x 5/16 front bearings provide superior strength compared to standard options, while mid-mounted roll springs allow fine-tuned stiffness and handling flexibility. Adjustable preload and droop settings make setup fast, accurate, and race-ready.
Low Center Gravity
Designed with performance in mind, the F-Won keeps weight as low as possible with tungsten ballast mounted beneath the battery, nearly flush with the chassis. This keeps the car stable, responsive, and extremely fast through corners. Combined with its lightweight, narrow chassis, the car reduces drag and maintains excellent balance on high-speed tracks.
Efficient Dampening System
The dual inline dampers use a captured ball socket design that eliminates free play and backlash. This ensures consistent damping action with zero dead zone, unlike fork-driven systems that lose effectiveness mid-travel. The result is smooth, predictable handling and improved control, even on technical circuits with limited suspension movement.
Proven Racing Heritage
Backed by over 30 years of CRC race-winning experience, the F-Won carries design principles tested at world-class events like IFMAR Worlds, ROAR Nationals, and the European Championships. With all-metric hardware, an easy-to-maintain design, and affordable upgrade options, it combines championship-level engineering with durability and value, making it an excellent choice for serious racers.
Features:
- All-metric hardware for easy maintenance
- Ultra-Tune caster/camber plate system
- Ultra-low center of gravity design
- Lightweight, narrow one-piece chassis
- Dual inline dampers with no backlash
- Easy preload and droop adjustment
- Mid-mounted roll springs for tuning
- Adjustable rear pod angle for handling
- Durable 1/8 x 5/16 front bearings
- Proven CRC race-winning heritage
Includes:
- (1) F-Won 1/10 2WD On-Road Racing Competition F1 Chassis Kit
- Manual
Needed To Complete:
- (1) 1/10 540 size motor
- (1) 1/10 ESC such as (Tekin RS SPEC ESC TEKTT1157)
- (1) Low Profile TC type steering servo
- (1) LCG Shorty Pack
- (1) Compatible battery charger
- (1) 2-Channel Transmitter/Receiver system
- (1) 1:10 Scale Polycarbonate F1 Body
- F1 Wheels & Tires
- Polycarbonate Spray Paint for Body
- Assembly Tools
Specifications:
| Scale | 1:10 |
|---|---|
| Length | - |
| Width | - |
| Height | - |
| Wheelbase | Varies (Adjustable) |
| Weight | Varies |
| Drive | 2WD |
| Power Source | Electric |
| Input Voltage | 2S (7.4-7.6V) LiPo Battery |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.0 · 1 review
A nice build then you need to open your wallet. Wings in the picture are not in the box. Extra cost. Am very disappointed with the spool axle. Now I need to find a diff to make a lap without spinning out.$$$ After tires and servo motor and ESC I have $500+ and can't race it. Maybe I'm spoiled with my Losi Sprint and Dirt Late Model which race out of the box.
